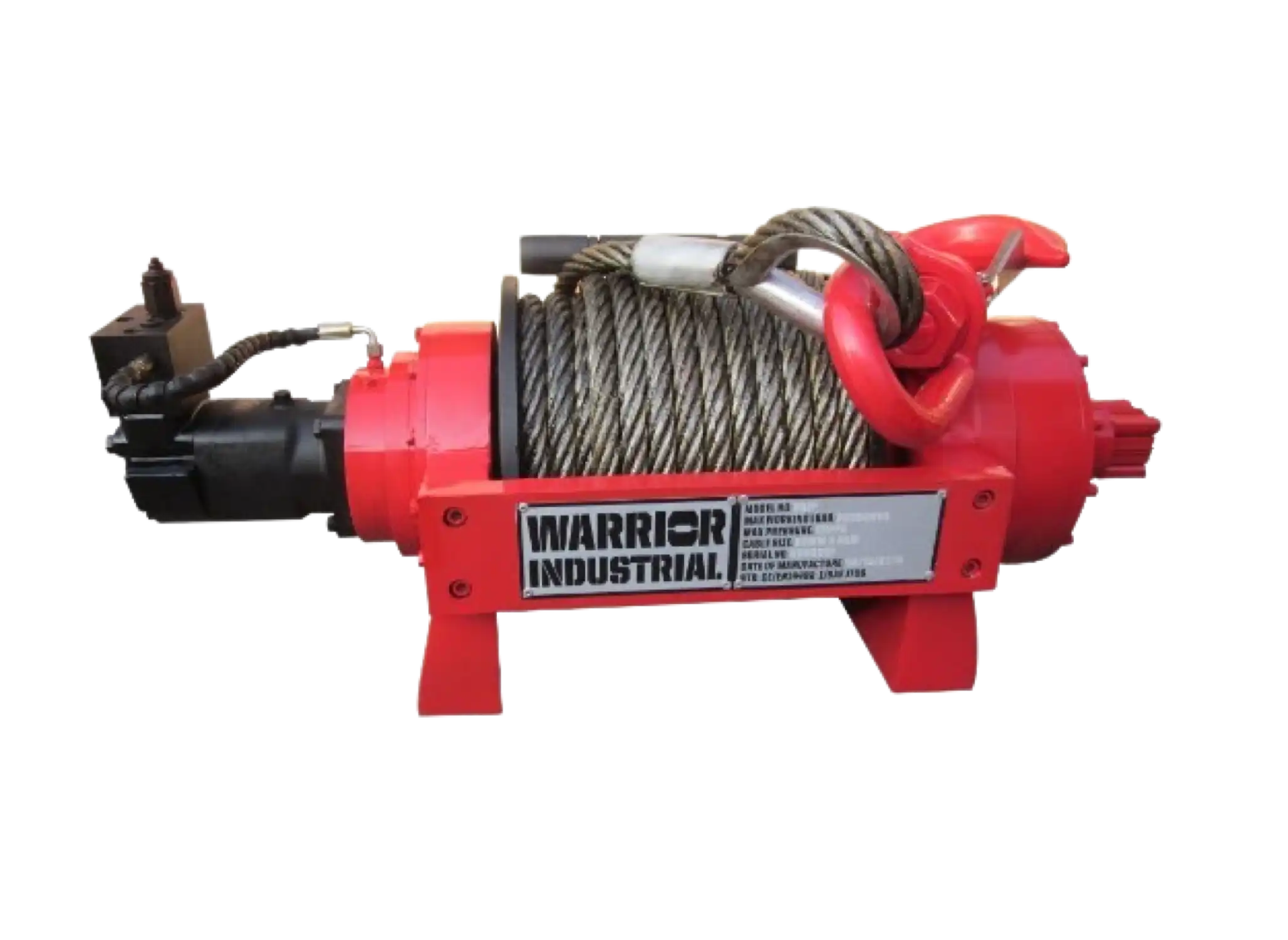

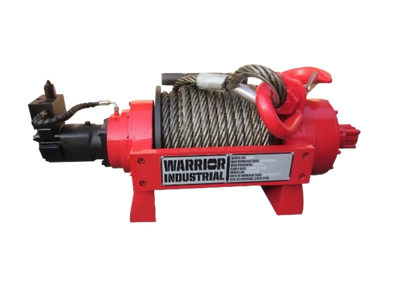

DK2 20TJP 44092 lbs. Capacity JP Series Industrial Hydraulic Winch New
Manufacturer: DK2
SKU: 20TJP
Share
QTY
(888) 999-1522
$ 15,999.99
+
FREE Shipping
×
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 4 left in stock
Special Order Item
(Check with us for processing time)
Exceptional Customer Service
Manufacturer Direct
DK2 20TJP 44092 lbs. Capacity JP Series Industrial Hydraulic Winch New
Share
Product Overview
These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Full float heavy duty planetary gearing
- Multi disc friction brake
- High torque industrial motor
- Air and manual clutch operation
- Heavy duty rope tensioner as standard
- Minimum 10:1 rope/drum ratio
- Balance valve as standard
Specifications
| RATED LINE PULL | 44092 LBS (20000 KG) |
| GEARING | 36 |
| BRAKING ACTION | AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH | 210 x 340mm (8.26 x 13.39") |
| CABLE - DIAMETER x LENGTH | 26mm x 50m (1.02" x 164') |
| DIMENSIONS | 1224 x 640 x 420mm (48.19 x 25.2 x 16.5") |
| MOUNTING PATTERN | 532 x 160 / 280mm (20.9 x 6.3 / 11.02") |
| WEIGHT | 370 KG (815 LBS) |
| CERTIFICATION | CE CERTIFIED |
| MAX FLOW L/MIN | 120 |
| MAX PRESSURE MPA | 170 BAR |
| CLUTCH | AIR CLUTCH |
| WORKING SPEED | 6 M/MIN |
| RESPONSE PRESSURE OF ARRESTER | LESS THAN 2.5MPA |
Package Contents
Hydraulic Winch
Manual
Warranty
This item comes with a 1 year factory warranty.
