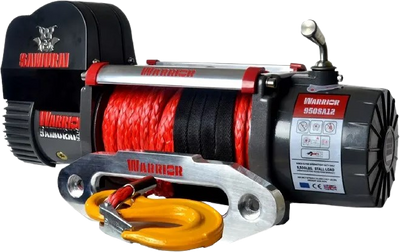

DK2 9500 9,500 lbs. Capacity Warrior Spartan Electric Synthetic Winch New
Manufacturer: DK2
SKU: 9500
Share
QTY
(888) 999-1522
$ 739.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR $20 OFF: 20dk COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct

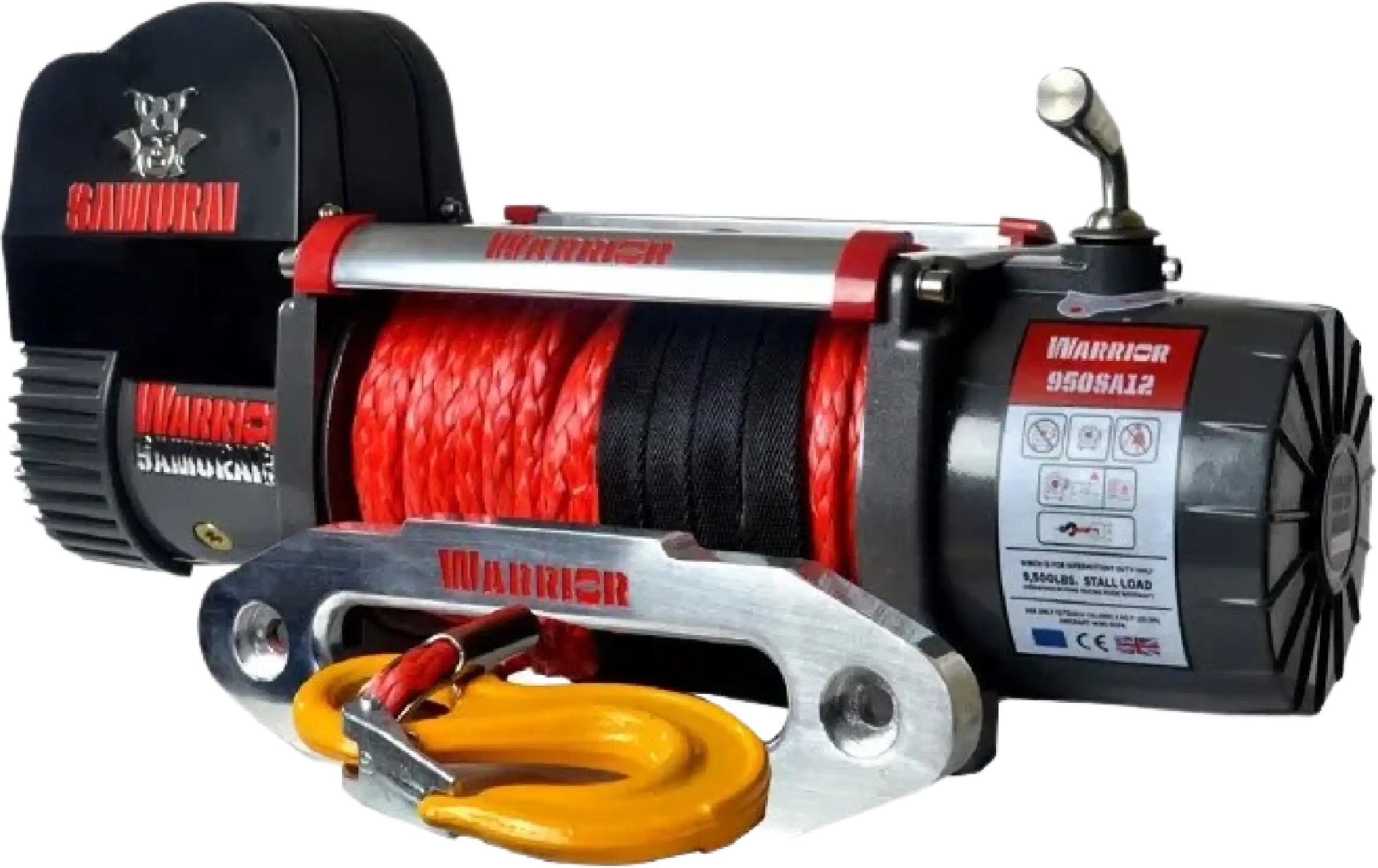

DK2 9500 9,500 lbs. Capacity Warrior Spartan Electric Synthetic Winch New
Share
Product Overview
The DK2 Warrior Samurai 9500lb with synthetic rope is a Superb, high specification winch. Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12V version comes complete with Heavy Duty integrated wireless remote.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- All brass (no corrosion) series wound motor
- Double sealed motor
- Sealed waterproof contactor
- Steel contactor cover for added protection
- Double sealed drum (gearbox/motor)
- Sealed 3 stage planetary gears
- Stainless steel 4 way fairleads
- Integrated wireless remote (12V only)
Specifications
| RATED LINE PULL | 9500 LBS (4500 KG) |
| MOTOR | 12V: 4.6 HP / 3.2 KW |
| GEARING | 230:1 |
| BRAKING ACTION | AUTO IN THE DRUM |
| DRUM SIZE - DIAMETER x LENGTH | 63 x 223mm (2.48 x 8.78") |
| CABLE - DIAMETER x LENGTH | 9.5mm x 25m (0.37" x 82') |
| DIMENSIONS | 540 x 160 x 219mm (21.25 x 6.3 x 8.62") |
| MOUNTING PATTERN | 254 x 114mm (10 x 4.49") |
| WEIGHT | 32 KG (71 LBS) |
| CERTIFICATION | CE CERTIFIED |
Package Contents
Warrior Spartan Electric Synthetic Winch
Manual
Warranty
This item comes with a 1 year factory warranty.
