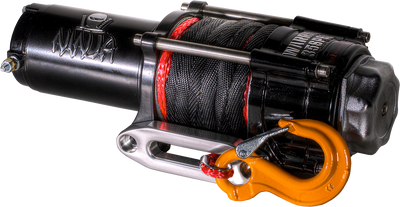

DK2 C2500N 2,500 lbs. Capacity Warrior Ninja Series Winch New
Manufacturer: DK2
SKU: C2500N
QTY
(888) 999-1522
$ 219.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
DK2 C2500N 2,500 lbs. Capacity Warrior Ninja Series Winch New
Product Overview
Ideal for large ATV’s and small trailers. A huge high power motor, heavy duty clutch, heavy duty steel gearing and heavy duty waterproof contactors ensure the ultimate in performance and reliability. Strengthened Steel makes it ideal to use with Synthetic Rope. Watertight 4 Pin connection allows the use of ‘Plug and Play’ Wireless remote.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Sealed high power motor
- Heavy duty watertight contactors
- Full steel planetary gearing
- Strengthened steel drum (suitable for synthetic rope)
- Watertight controller socket
- Gloss chip resistant paint
Specifications
| RATED LINE PULL | 2500 LBS (1134 KG) |
| MOTOR | 12V 1.9 KW / 2.6 HP • 24V 1.9 KW / 2.6 HP |
| GEARING | 170 to 1 |
| BRAKING ACTION | DYNAMIC |
| DRUM SIZE - DIAMETER x LENGTH | 37 x 80mm (1.46 x 3.15") |
| CABLE - DIAMETER x LENGTH | 5mm x 14m (0.2" x 46') |
| DIMENSIONS | 346 x 113 x 118mm (13.62 x 4.4 x 4.6") |
| MOUNTING PATTERN | 124 x 76mm (4.88 x 3") |
| WEIGHT | 9.3 KG (21 LBS) |
| CERTIFICATION | CE CERTIFIED |
Package Contents
ATV / UTV / Trailer Level Winch
Manual
Warranty
This item comes with a 1 year factory warranty.
