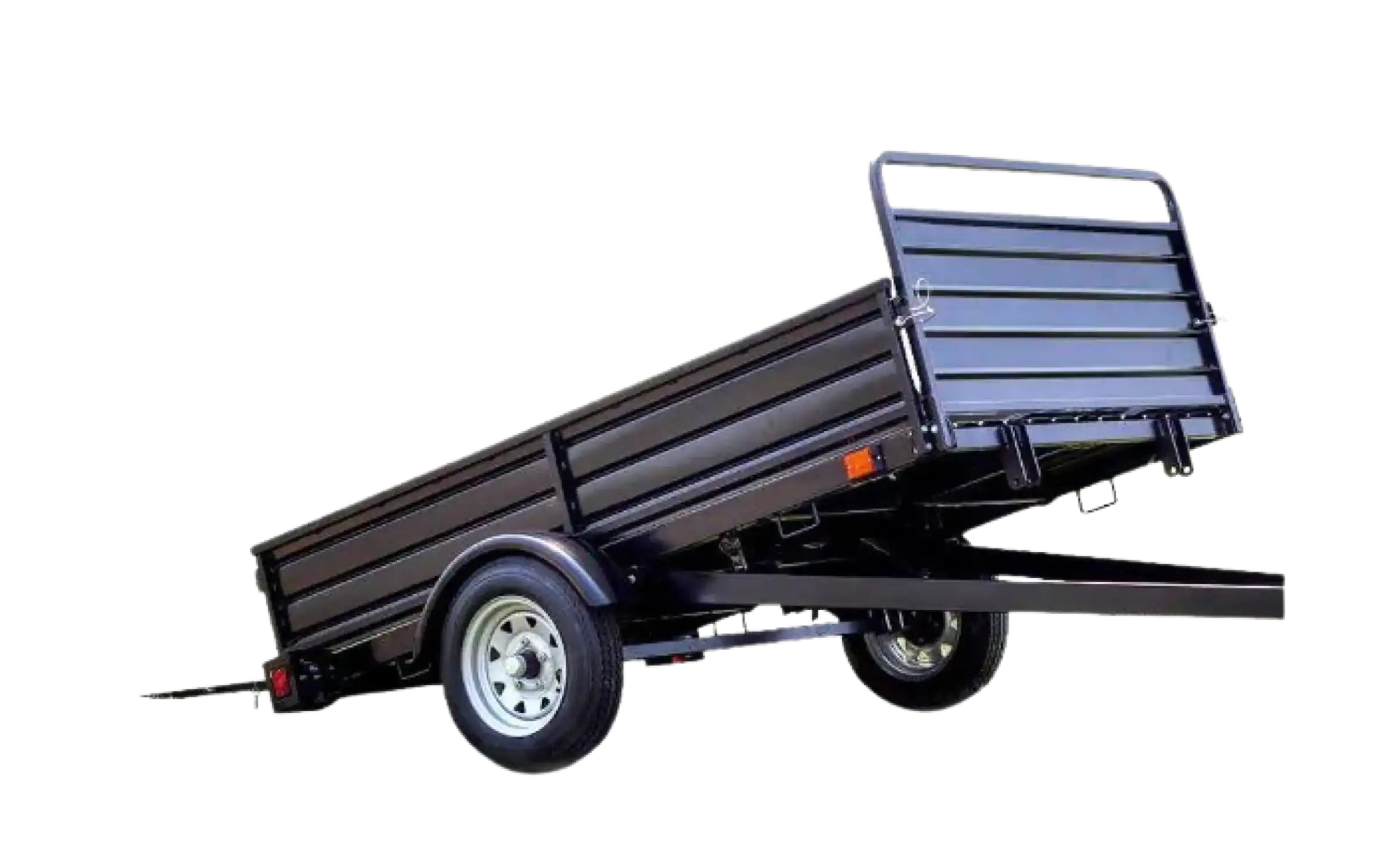

DK2 MMT5X7 1639 lb. Capacity 4.5 ft. x 7.5 ft. Extendable 12 ft Bed Trailer Kit New
Manufacturer: DK2
SKU: MMT5X7
Share
Email
QTY
$ 1,559.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Select Bread as your payment at checkout
In Stock
ON SALE!
USE FOLLOWING CODE AT CHECKOUT FOR $20 OFF: 20dk COPY
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 1 year factory warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 1 year factory warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
Exceptional Customer Service
Manufacturer Direct
Product Overview
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Removable steel side panels
- 100% welded tubular steel frame
- Heavy duty tail light protectors
- Solid square tube cambered axle
- Easy-lube 5 on 4.5 hub assembly
- V-tongue for added strength
- 2 in. coupler with safety chains
- Corrugated solid steel floor
- Extended bed length: nearly 12 ft.
- Heavy duty, best in class, exclusive design
- Quick release lock pin
- 2 position dump bed/axle mount
- Load bearing front and back gate
- Includes (2) 12 in. x 5.3 in. bias ply tires
- Assembly required-approximate assembly time is 1 hour
Specifications
| PAYLOAD CAPACITY | 1,639 LB (743.4 KG) |
| GVW | 2,090 LB (948 KG) |
| CURB WEIGHT | 451 LB (204.6 KG) |
| MAXIMUM SPEED | 65 MPH |
| BED DIMENSIONS | 52 x 88" → 52 x 136" (1.32 x 2.24 m → 1.32 x 3.45 m) |
| OVERALL LENGTH | 177" (4.5 m) TONGUE EXTENDED |
| FLOOR HEIGHT | 20" (50.8 cm) |
| CONSTRUCTION | FULLY WELDED HEAVY DUTY TUBULAR STEEL |
| SIDE PANELS | 14" (35.6 cm) HEIGHT CORRUGATED STEEL |
| DROP GATES | 24" (61 cm) HEIGHT CORRUGATED |
| LIGHTING | PRE-WIRED, QUICK CONNECT LED LIGHTING, USES O.T. STANDARDS. ADJUSTABLE REAR LIGHT PROTECTORS & PROTECTED SIDE MARKERS |
| DUMP BED | 2 POSITION |
| HITCH HEIGHT | 16" (40.6 cm) |
| FLOORING | 100% WELDED, CORRUGATED & REINFORCED STEEL BED |
| SHIPPING DIMENSIONS | 88.5 x 55 x 8" (224.79 x 139.7 x 20.32 cm) |
Package Contents
Trailer
Manual
Warranty
This item comes with a 1 year factory warranty.
Manuals & Documentation
Customer Reviews (5)
Kit was a 2-3 day project, all parts included. Trailer runs smoothly when there is a load in it. Needed warning that help would be needed to flip trailer after assembled.
Assembly went well. Thick metal looks like it will hold up. I like the powder coating, also seems robust.
Assembly was easy for one person. Help is needed to flip over and finish it. The instructions were mostly ok, there's some common sense that's needed to fill in some blanks. It tows smoothly and is solid construction. I love the options this trailer gives me for different scenarios. So happy with this purchase!
Great trailer.
Assembly was according to the provided instructions and was performed by one person except for flipping trailer towards the end. All components were in the box. We haven’t used the trailer yet but appears well built and can be used for multiple purposes. I would recommend it to other buyers.
