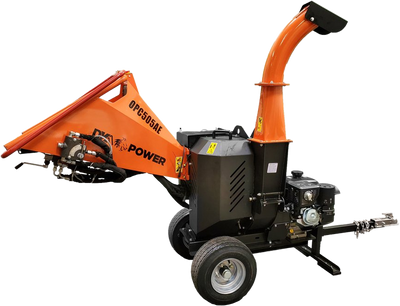

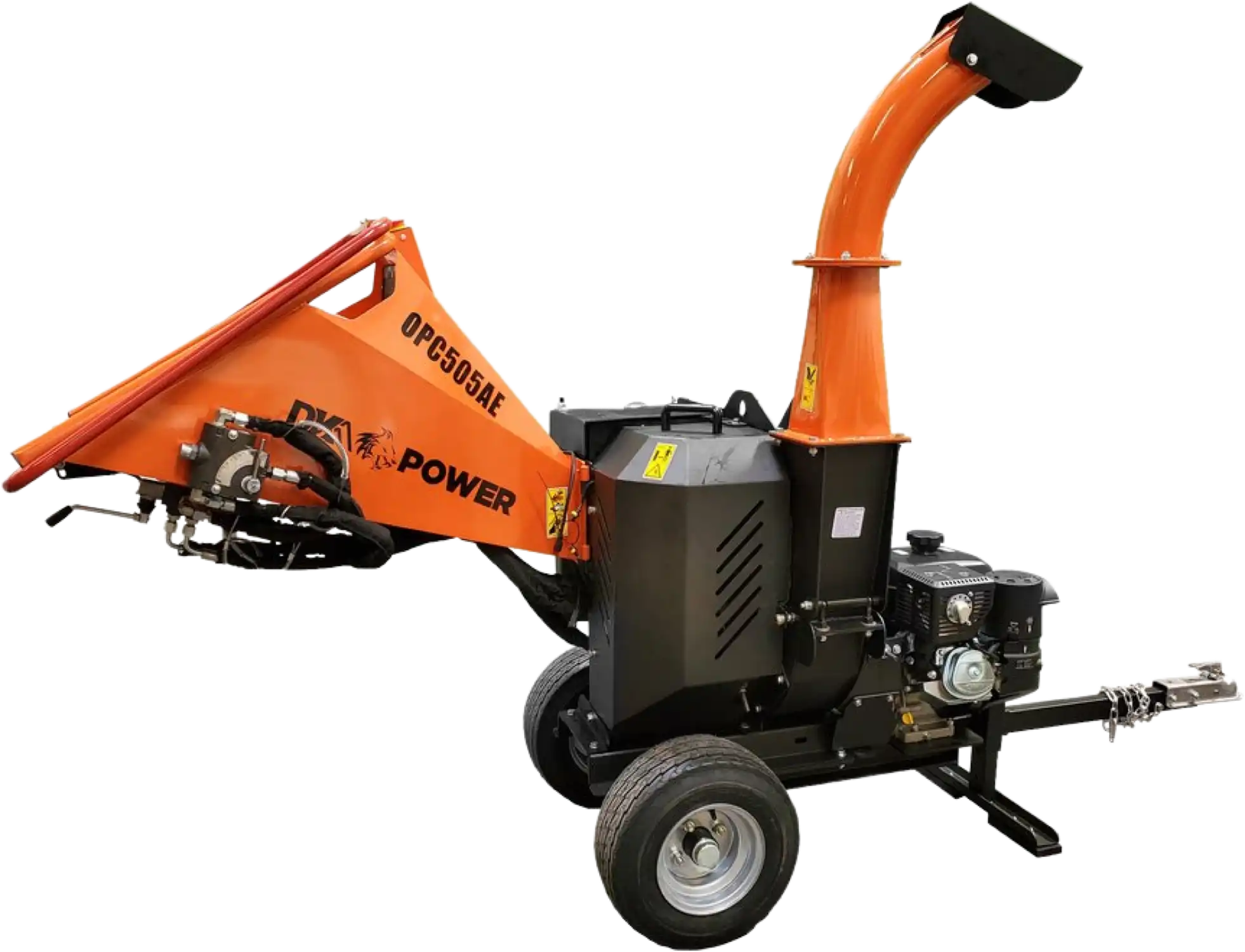

DK2 OPC505AE 429cc 14HP Kohler CH440 engine 5" Auto-Feeding Electric Start Disk Chipper Shredder New
Manufacturer: DK2
SKU: OPC505AE
Share
Email
QTY
$ 5,899.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Manufacturer Direct
Product Overview
The OPC505AE is an all-terrain D.O.T. approved 5-inch high-speed disk chipper shredder powered by a KOHLER® Command PRO® CH440 14HP 429cc engine featuring electric start-up and a self contained auto-feed system with hydraulic roller speeds up to 600RPM pushing out up to 176.5ft/lb (240Nm) max torque and up to 2,900PSI (20MPa) max force.
Featuring a 3600RPM drive and auto-adjusting feed chamber to demolish trees up to 5.25 inches in diameter, internal free-spinning teeth to clear chips and wood from the drum interior, an extra large feed chute, an adjustable pickup height expulsion chute with a tool-free adjustable chip chute pipe that rotates 180° and sits at 61 inches, perfect for pickup truck bed loading.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features

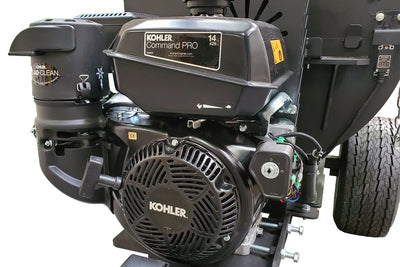

- Powered by a KOHLER® CH440 14 HP Command Pro Commercial Engine

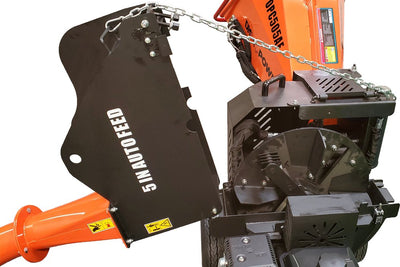

- Dual swing-open chutes for easy drum access
- High speed disk chipper shredder
- 600 RPM feed
- Auto blade feeding system
- Auto adjust cutters for brush up to 5.25 diameter trees
- All-terrain on/off road tires D.O.T. approved (not for highway use) with included 2 inch ball tow bar
- Dual, tool free rotational spout on chip chute

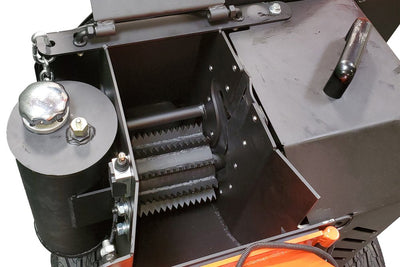

- Internal, free-spinning teeth clears chips and wood from drum interior

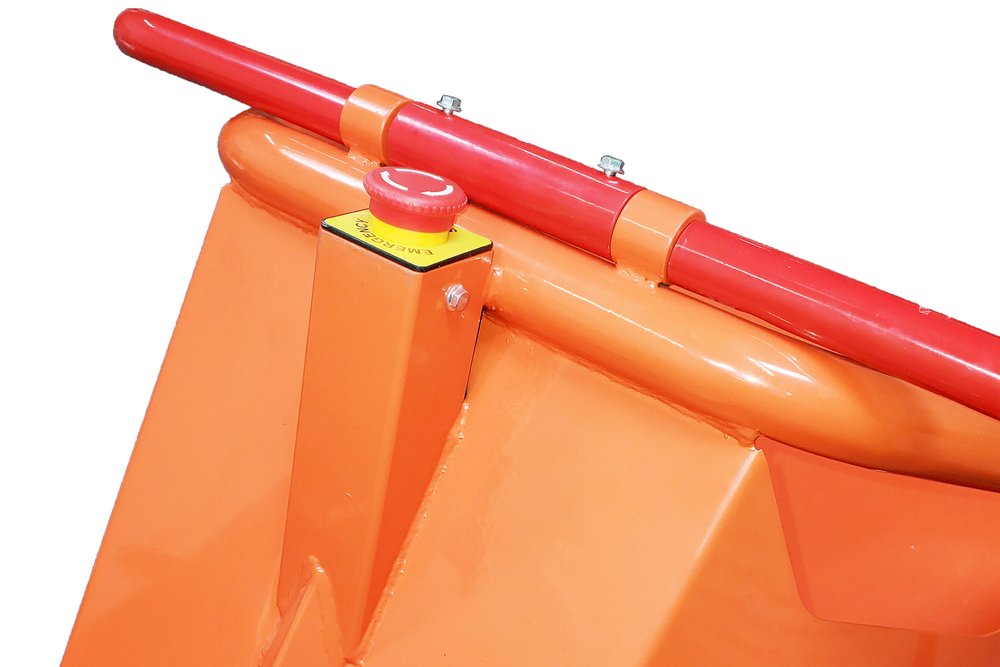

- Extra-large reinforced feed hopper with integrated equipment moving handles
- Electric start - battery included
Specifications
| ENGINE | KOHLER® Command PRO® CH440 14HP 429cc |
| GEARBOX | Direct drive 22.7ft/lb torque |
| WHEELS | D.O.T. approved 18.5 x 8.5-8 up to 25mph (40km/h) |
| WHEELBASE | 37" (94cm) |
| TREE DIAMETER | 5.25" (13.3cm) |
| BLADES | High-speed disk mounted steel |
| TEETH | Free-spinning 45# steel |
| CHIPPER SHREDDER | Auto-adjusting from Ø1/8" (0.32cm) to Ø5.25" (13.3cm) trees and brush |
| BATTERY | 12V 18AH |
| EXPULSION CHUTE | 61" (154.9cm) high with tool-free 180° adjustable chip deflector |
| COUPLER | 2" (5.08cm) |

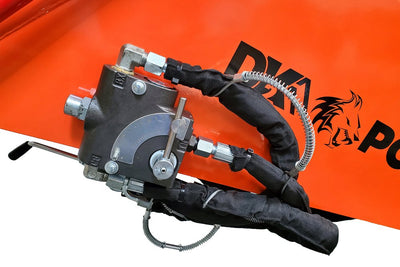

| SELF-FEEDING | Auto blade feeding hydraulic system |
| HYDRAULIC MOTOR | 0-600RPM, 176ft/lb (240Nm) max torque |
| HYDRAULIC PUMP | 2,900PSI (20MPa) max force |
| FLOW RATE | 10ml/r, 1.6GPM (6LPM) max at 600RPM |
| HYDRAULIC OIL CAPACITY | 0.87gal (4L) max |
| TYPE OF HYDRAULIC OIL | AW46 |
| HYDRAULIC OIL FILTER | Paper media, generic |
| DIMENSIONS (LxWxH) | 91" x 40" x 61" (231.1cm x 101.6cm x 154.9cm) |
| WEIGHT | 638lb (289.4kg) |
| SHIPPING DIMENSIONS (LxWxH) | 63" x 33" x 45" (160cm x 83.8cm x 114.3cm) |
| SHIPPING WEIGHT | 726lb (329.3kg) |
Package Contents
Auto-Feeding Electric Start Disk Chipper Shredder
Lockout Keys
Safety Glasses
Ear Protection
Work Gloves
Oil Bottle and Assembly Tools
Operating Manual
Warranty
This item comes with a 1 year factory warranty.
