DK2 S12000 Electric Winch 12,000 lbs. 4 x 4 with Steel Cable New
Manufacturer: DK2
SKU: S12000
Weight Capacity Options
Line Material Options
QTY
or
(888) 999-1522
$ 661.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

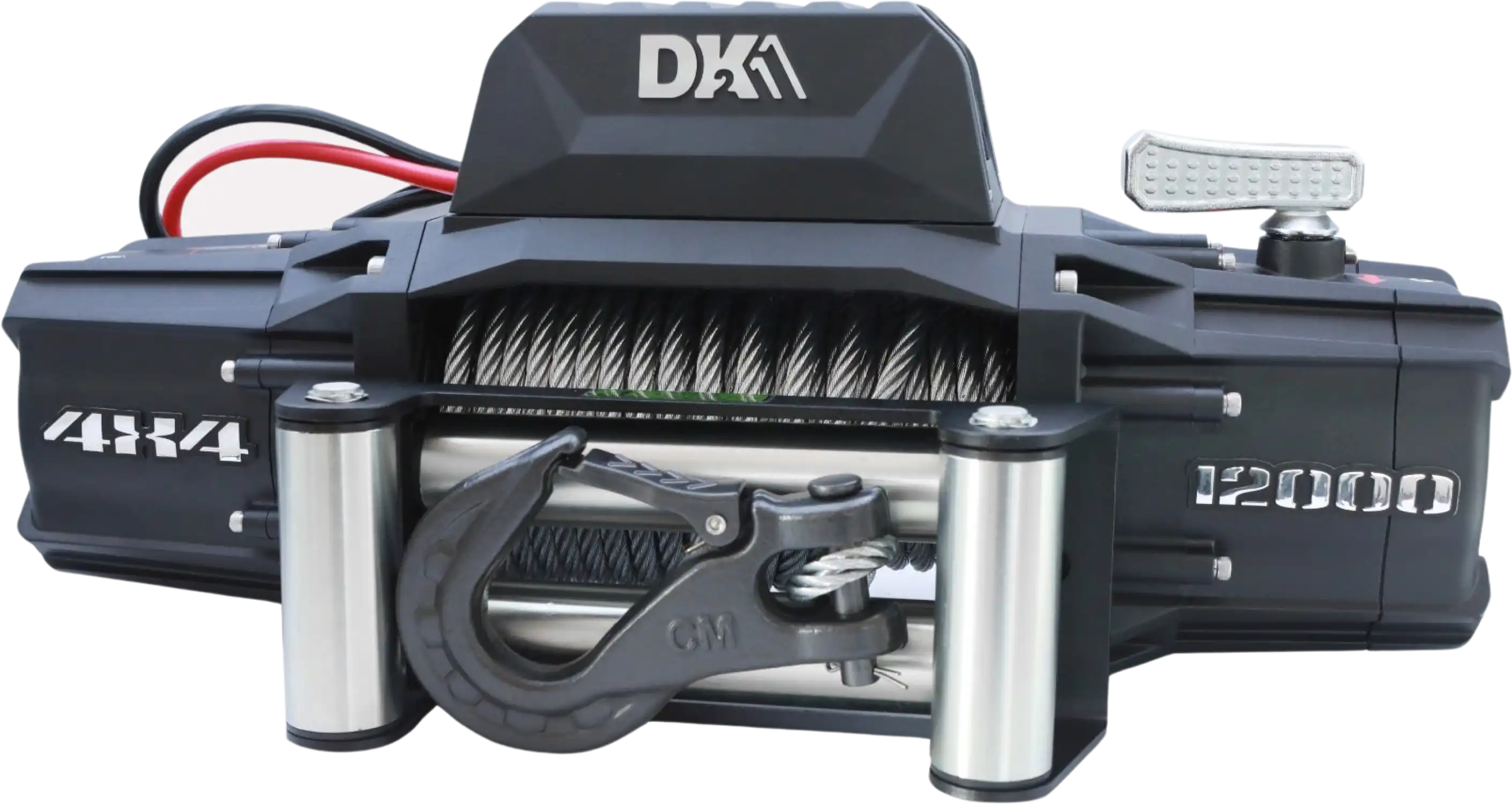

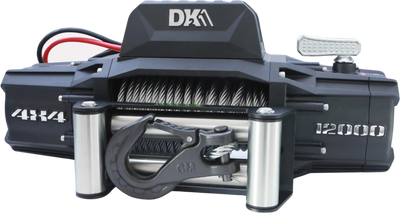

DK2 S12000 Electric Winch 12,000 lbs. 4 x 4 with Steel Cable New
Product Overview
Introducing the DK2 12,000 lb Premium Electric 4x4 Winch – your ultimate off-road companion. With a robust 12,000 lbs. single-rated line pull and a powerful 6 hp (4.5 kW) series wound motor, this winch delivers high torque for demanding 4 x 4 applications. Control is at your fingertips with both wireless and wired remote options, and the 3-stage planetary gear train with a 218:1 gear reduction ratio ensures efficient and smooth winching. Safety is prioritized with the automatic load-holding brake, and the 9.5 mm x 24.4 mm steel cable adds strength and versatility. Installation is easy with the 10 x 4.5 in. (254 x 114.3 mm) mounting pattern, and with a limited lifetime gear train warranty and a 7-year electrical warranty.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Automatic load-holding brake enhances safety by securely holding the load, preventing unintended movement during pauses or power loss
- Includes limited lifetime gear train warranty and 7-year electrical warranty
- Provides a reliable 12,000 lbs. single-rated line pull
- 6 hp (4.5 kW) series wound motor, delivering high torque and performance
- FCC certified wireless and wired remote control options, offering flexibility and ease of operation
- 3-stage planetary gear train, achieving a balance of speed and power
- Freespool clutch to free up the drum for quicker recovery preparation
- 180:1 gear reduction ratio maximizes pulling power, making the winch highly effective in overcoming resistance
- IP68 rated and corrosion resistant, built with stainless steel hardware and UV powder-coated
- Roller fairlead designed to extend the life of your cable or rope
- High-strength, heavy-duty hook for your peace of mind
Specifications
| MATERIAL FINISH | UV Powder Coated |
| COLOR | Black |
| RATED LINE PULL | 12,000 lbs. (5,443.1 kg) |
| CABLE TYPE | Steel cable |
| CABLE/ROPE | Ø0.37 in. x 80.1 ft. (Ø9.5 mm x 24.4 m) |
| MOTOR | 6 HP (4.5 kW series-wound) |
| CONTROL | Wireless / wired remote control |
| GEAR TRAIN | 3-stage planetary |
| GEAR REDUCTION RATIO | 218:1 |
| BRAKING | Automatic load-holding brake |
| DRUM SIZE | 2.5 x 8.8 in. (63.5 x 224 mm) |
| BATTERY | 650 CCA (recommended) |
| MOUNTING PATTERN | 10 x 4.5 in. (254 x 114.3 mm) |
| CERTIFICATION(S) | FCC |
| ASSEMBLED DIMENSIONS (L X W X H) | 22.8 in. x 10 in. x 6.5 in. |
| ASSEMBLED WEIGHT | 90.4 lbs. (41 kg) |
| SHIPPING DIMENSIONS (L X W X H) | 25.7 in. x 13.2 in. x 12.9 in. |
| SHIPPING WEIGHT | 97 lbs. (44 kg) |
| WARRANTY | Limited lifetime (geartrain), 7-year (electrical) |
Package Contents
DK2 S12000 Electric Winch
User Manual
Warranty
This item comes with a 1 year factory warranty.
