DK2 S17500 Electric Winch 17,500 lbs. Heavy Duty with Steel Cable New
Manufacturer: DK2
SKU: S17500
Weight Capacity Options
Line Material Options
QTY
or
(888) 999-1522
$ 999.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

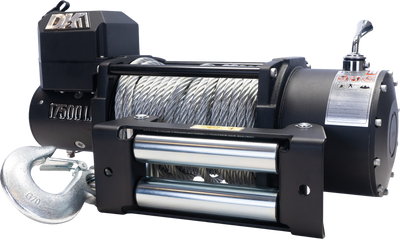

DK2 S17500 Electric Winch 17,500 lbs. Heavy Duty with Steel Cable New
Product Overview
The DK2 S17500 electric winch with Steel Cable is heavy-duty, and even more powerful with 17,500 lbs. single-line pull. Featuring an outstanding 6 hp high-quality double-sealed motor with brass fittings, heavy-duty waterproof contactors, a double-sealed drum on maintenance-free bearings, and quiet, fully sealed efficient full steel planetary gearing. Stainless steel roller fairleads and fittings as standard.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Automatic load-holding brake enhances safety by securely holding the load, preventing unintended movement during pauses or power loss
- Includes limited lifetime gear train warranty and 7-year electrical warranty
- Provides a reliable 17,500 lbs. single-rated line pull
- 6 hp (4.5 kW) series wound motor, delivering high torque and performance
- FCC certified wireless and wired remote control options, offering flexibility and ease of operation
- 3-stage planetary gear train, achieving a balance of speed and power
- Freespool clutch to free up the drum for quicker recovery preparation
- 432:1 gear reduction ratio maximizes pulling power, making the winch highly effective in overcoming resistance
- IP67-rated and corrosion-resistant, built with stainless steel hardware and UV powder-coated
- Fairlead designed to extend the life of your cable or rope
- High-strength, heavy-duty hook for your peace of mind
Specifications
| MATERIAL FINISH | UV Powder Coated |
| COLOR | Black |
| RATED LINE PULL | 17,500 lbs. (7,937.9 kg) |
| CABLE TYPE | Steel cable |
| CABLE/ROPE | Ø0.47 in. x 82 ft. (Ø12 mm x 25 m) |
| MOTOR | 6 HP (4.5 kW series-wound) |
| CONTROL | Wireless / wired remote control |
| GEAR TRAIN | 3-stage planetary |
| GEAR REDUCTION RATIO | 432:1 |
| BRAKING | Automatic load-holding brake |
| DRUM SIZE | 3.5 x 10.5 in. (88 mm x 266 mm) |
| BATTERY | 650 CCA (recommended) |
| MOUNTING PATTERN | 10 x 4.5 in. (254 x 114.3 mm) |
| CERTIFICATION(S) | FCC |
| ASSEMBLED DIMENSIONS (L X W X H) | 22 in. x 7.7 in. x 11.2 in. |
| ASSEMBLED WEIGHT | 111.9 lbs. (50.8 kg) |
| SHIPPING DIMENSIONS (L X W X H) | 24.2 in. x 13.4 in. x 13.8 in. |
| SHIPPING WEIGHT | 134.8 lbs. (61.1 kg) |
| WARRANTY | Limited lifetime (geartrain), 7-year (electrical) |
Package Contents
DK2 S17500 Electric Winch
User Manual
Warranty
This item comes with a 1 year factory warranty.
