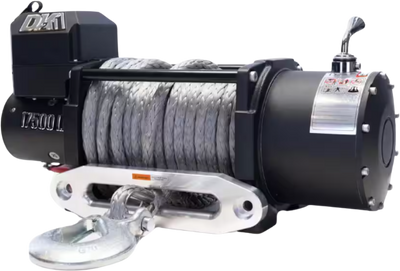

DK2 S17500-SR Electric Winch 17,500 lbs. Heavy Duty with Synthetic Rope New
Manufacturer: DK2
SKU: S17500-SR
Weight Capacity Options
Line Material Options
QTY
or
(888) 999-1522
$ 899.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
DK2 S17500-SR Electric Winch 17,500 lbs. Heavy Duty with Synthetic Rope New
Product Overview
The DK2 S17500 electric winch with Synthetic Rope is heavy-duty, and even more powerful with 17,500 lbs. single-line pull. Featuring an outstanding 7.0 hp high-quality double-sealed motor with brass fittings, heavy-duty waterproof contactors, a double-sealed drum on maintenance-free bearings, and quiet, fully sealed efficient full steel planetary gearing. Stainless steel roller fairleads and fittings as standard.
1 year factory warranty
Ships directly from DK2 out of NV and OH
Authorized DK2 dealer
Features
- Automatic load-holding brake enhances safety by securely holding the load, preventing unintended movement during pauses or power loss
- Includes limited lifetime gear train warranty and 7-year electrical warranty
- Provides a reliable 17,500 lbs. single-rated line pull
- 6 hp (4.5 kW) series wound motor, delivering high torque and performance
- FCC certified wireless and wired remote control options, offering flexibility and ease of operation
- 3-stage planetary gear train, achieving a balance of speed and power
- Freespool clutch to free up the drum for quicker recovery preparation
- 432:1 gear reduction ratio maximizes pulling power, making the winch highly effective in overcoming resistance
- IP67-rated and corrosion-resistant, built with stainless steel hardware and UV powder-coated
- Fairlead designed to extend the life of your cable or rope
- High-strength, heavy-duty hook for your peace of mind
Specifications
| MATERIAL FINISH | UV Powder Coated |
| COLOR | Black |
| RATED LINE PULL | 17,500 lbs. (7,937.9 kg) |
| CABLE TYPE | Synthetic Rope |
| CABLE/ROPE | Ø0.47 in. x 85.3 ft. (Ø12 mm x 26 m) |
| MOTOR | 6 HP (4.5 kW series-wound) |
| CONTROL | Wireless / wired remote control |
| GEAR TRAIN | 3-stage planetary |
| GEAR REDUCTION RATIO | 432:1 |
| BRAKING | Automatic load-holding brake |
| DRUM SIZE | 3.5 x 10.5 in. (88 mm x 266 mm) |
| BATTERY | 650 CCA (recommended) |
| MOUNTING PATTERN | 10 x 4.5 in. (254 x 114.3 mm) |
| CERTIFICATION(S) | FCC |
| ASSEMBLED DIMENSIONS (L X W X H) | 22 in. x 7.7 in. x 11.2 in. |
| ASSEMBLED WEIGHT | 88 lbs. (39.9 kg) |
| SHIPPING DIMENSIONS (L X W X H) | 24.2 in. x 13.4 in. x 13.8 in. |
| SHIPPING WEIGHT | 102.6 lbs. (46.5 kg) |
| WARRANTY | Limited lifetime (geartrain), 7-year (electrical) |
Package Contents
DK2 S17500-SR Electric Winch
User Manual
Warranty
This item comes with a 1 year factory warranty.
