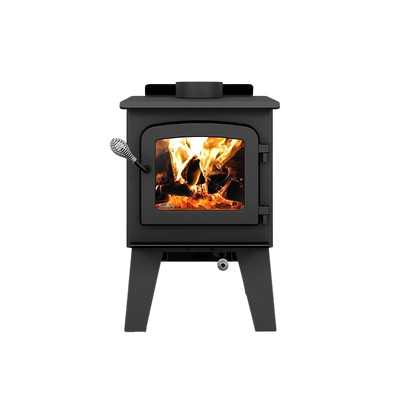

Drolet Spark II EPA Certified 1,200 Sq. Ft. Wood Stove New
Manufacturer: Drolet
SKU: DB03401
QTY
or
(888) 999-1522
$ 999.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Drolet Spark II EPA Certified 1,200 Sq. Ft. Wood Stove New
Product Overview
Amongst the most compact on the market, our Spark II wood stove can heat up to 1,200 ft² with a maximum heat output of 45,000 BTU/h. Non-catalytic and CSA certified at 1.8 g/h, this model can efficiently heat small spaces. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus to be able to empty them much less frequently. Packaged in a rigid cardboard box for ease of transport, this appliance requires simple assembly.
Perfect for areas up to 1,200 sq. ft.
Limited lifetime warranty on parts
Brand new in box
US orders ship from IN. Canada orders ship from QC
Features
- Up to 5 hours burn time
- Up to 17" logs
- 1.55 ft³ firebox
- CSA certified
- Limited lifetime warranty
- Certified for mobile home and alcove installation
Specifications
| Approved for alcove installation | Yes |
|---|---|
| Approved for mobile home installation | Yes |
| Type of door | Simple, glazed or not, with cast iron frame |
| Type of glass | Ceramic glass |
| Blower | Optional (up to 100 CFM) |
| Particulate emission standard | EPA / CSA B415.1-10 |
| USA standard | (Safety) UL 1482, UL 737 |
| Size | 18 1/2" W X 28 7/8" D X 28 3/4" H |
| Combustion type | Non-catalytic |
| Fuel Type | Dry Cordwood |
| Recommended heating area (sq. ft.. ) | 1 250 to 1,200 ft2 (23 to 111 m2) |
| Total firebox volume | 1.7 ft3 (0.0481 m3) |
| EPA loading volume | 1.55 ft3 (0.0439 m3) |
| Maximum burn time | 5 hours |
| Maximum heat output (dry cordwood) | 45,000 BTU/h (13.2 kW) |
| Overall heat output rate (min. to max.) | 12,124 BTU/h to 26,700 BTU/h (3.55 kW to 7.83 kW) |
| Average overall efficiency (Dry cordwood) | 74 % (HHV) 79 % (LVH) |
| Optimum efficiency | 80 % |
| Optimum heat transfer efficiency | 79 % |
| Average particulate emissions rate | 1.8 g/h (EPA / CSA B415.1-10) |
|---|---|
| Average CO | 74 g/h |
| Maximum log length | 17 in (432 mm) north-south |
| Flue outlet diameter | 6 in (150 mm) |
| Recommended connector pipe diameter | 6 in (150 mm) |
| Type of chimney | ULC-S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12 feet |
| Baffle material | Vermiculite |
Package Contents
Wood stove
Steel legs
Air deflector
Ceramic glass
Cast iron door with adjustable hinges
Ash lip
Air damper
Warranty
This item comes with a limited lifetime warranty on parts. See PDF attachment in the below section for further details
