Eagle Air Compressor 2 Stage 175 PSI 80 Gal. 18.5 CFM 5 HP 3-Phase 208/230V 5380V2-CS2 New
Manufacturer: Eagle Compressor
SKU: 5380V2-CS2
QTY
or
(888) 999-1522
$ 2,647.99
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Eagle Air Compressor 2 Stage 175 PSI 80 Gal. 18.5 CFM 5 HP 3-Phase 208/230V 5380V2-CS2 New
Product Overview

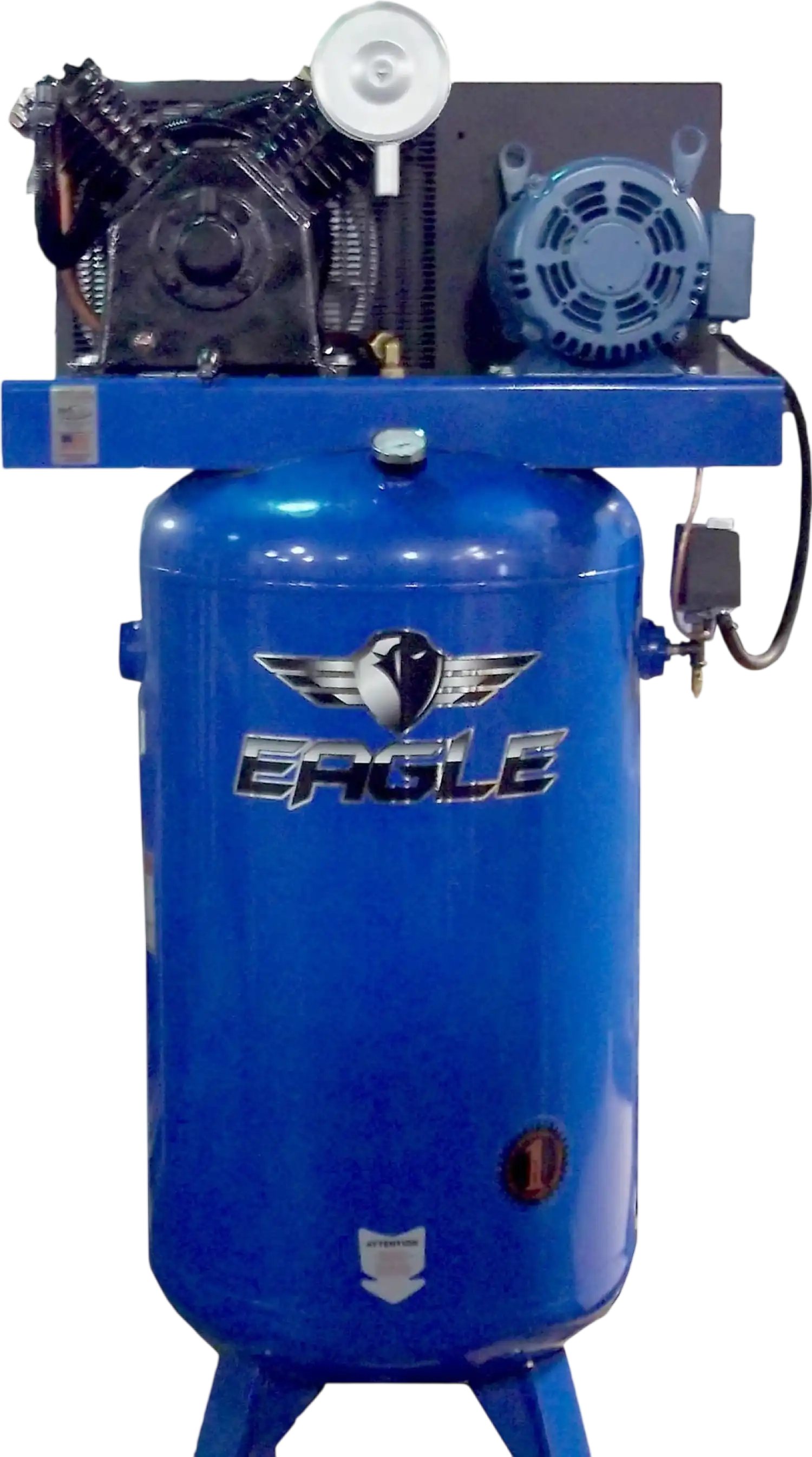

This Eagle 80-gallon two-stage air compressor is built for professional and serious DIY use, delivering high air flow for running multiple tools at once. It features a heavy-duty V-twin cast iron two-stage pump driven by a three-phase 5 HP motor, producing up to 18.5 CFM at 100 PSI with a maximum of 175 PSI. The large capacity 80-gallon vertical tank supports longer run times between cycles. Service-friendly details like an extended oil drain and an easy-view oil sight gauge help simplify maintenance.
Brand new
1 year factory warranty
Manufacturer direct shipping from MS
Authorized Eagle Compressor dealer

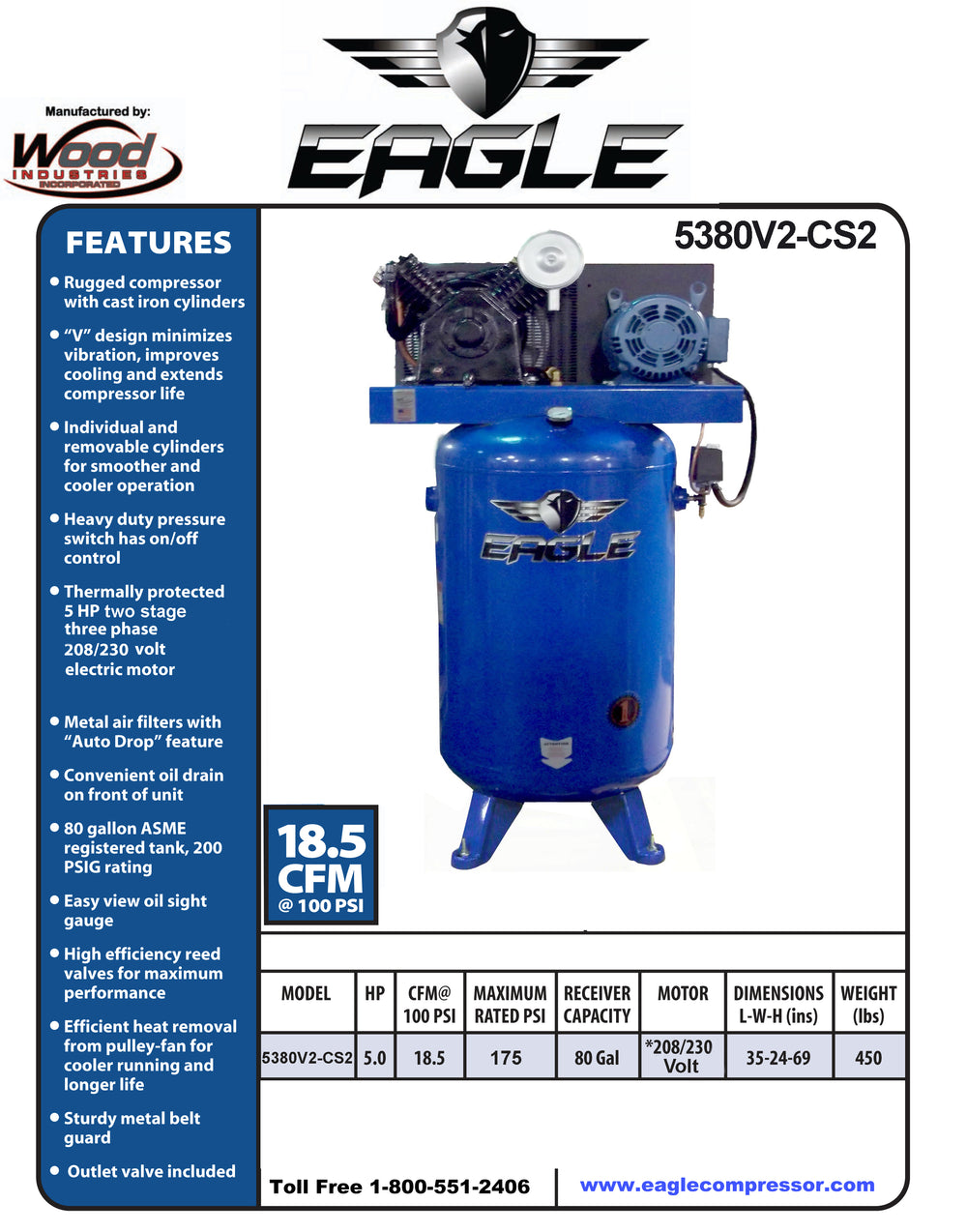

Features
- Rugged compressor with cast iron cylinders
- "V" design minimizes vibration, improves cooling and extends compressor life
- Individual and removable cylinders for smoother and cooler operation
- Heavy duty pressure switch has On/Off control
- Thermally protected 5 HP two-stage three-phase 208/230V electric motor
- Metal air filters with "Auto Drop" feature
- Convenient oil drain on front of unit
- 80 gallon ASME registered tank, 200 PSIG rating
- Easy view oil sight gauge
- High efficiency reed valves for maximum performance
- Efficient heat removal from pulley-fan for cooler running and longer life
- Sturdy metal belt guard
- Outlet valve included
Specifications
| Model | 5380V2-CS2 |
|---|---|
| Air Tank Size | 80 Gallon |
| Voltage | 208/230V |
| Phase | 3-phase |
| Max PSI | 175 |
| CFM @ 100 PSI | 18.5 |
| HP | 5.0 |

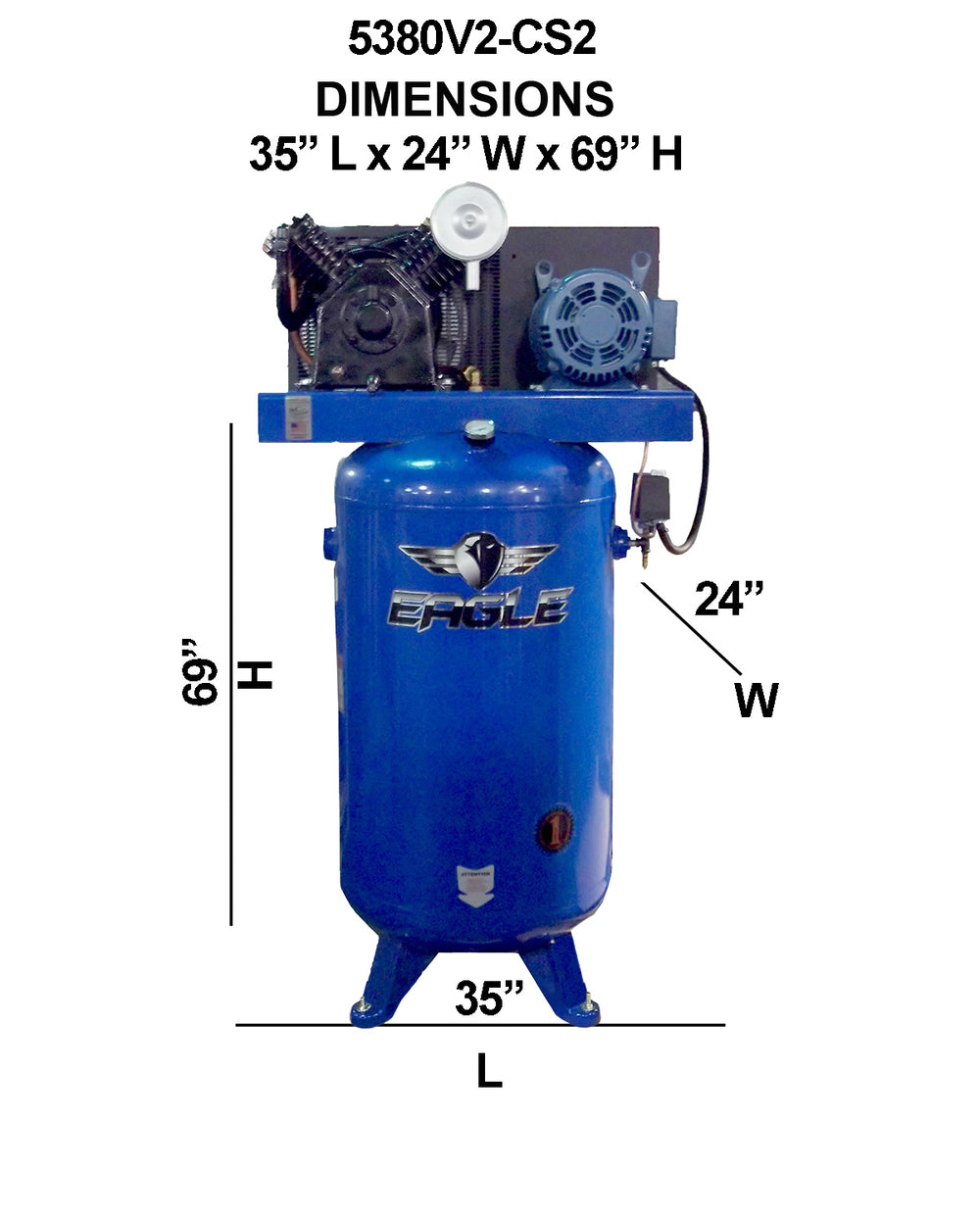

| Dimensions | 35 x 24 x 69 in |
|---|---|
| Weight | 450 lbs |
Package Contents
5380V2-CS2 Air compressor 80 Gal. Stationary Two Stage 3-Phase
User Manual
Warranty
This item comes with a 1 year warranty.
