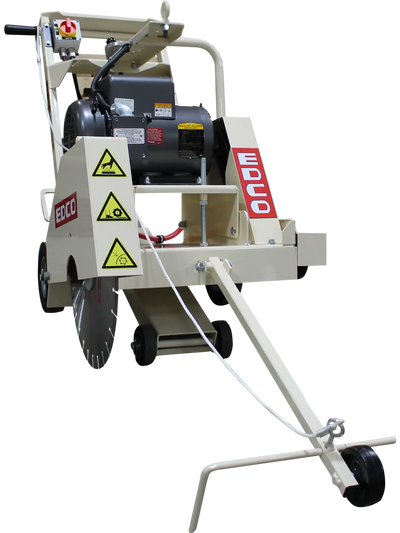

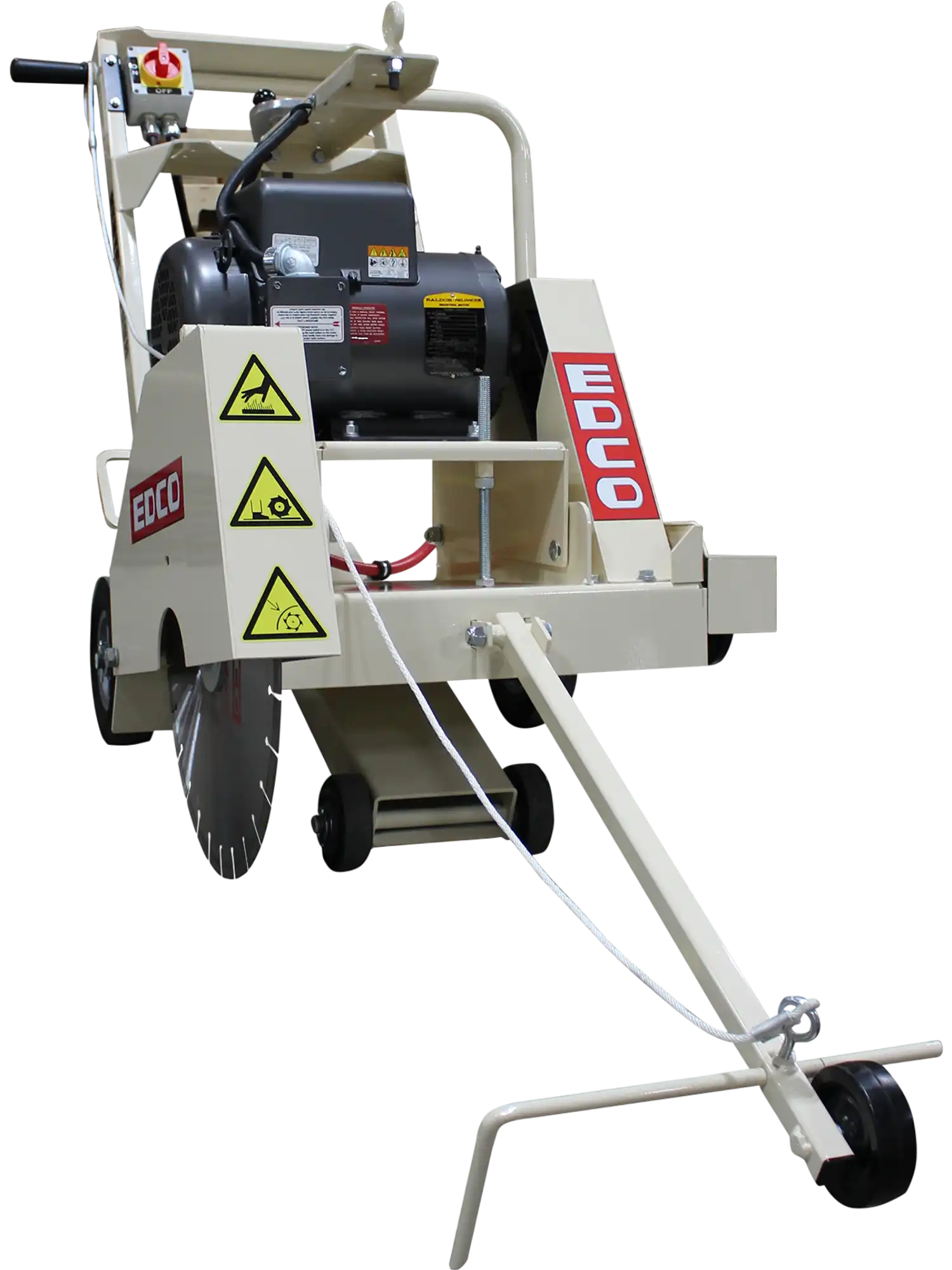

EDCO DS-20E Concrete Saw Walk-Behind Downcut 20" Electric 7.5 HP 230V Three-Phase New
Product Overview
The EDCO DS-20E is a heavy-duty walk-behind downcut saw built for short-run slab cutting, contraction joints, asphalt patch repairs, traffic loop installation, and trenching. It features a 20" blade capacity with a maximum cut depth of 7.75" for demanding cutting applications. This electric model is powered by a 7.5 HP, 230V three-phase motor and includes a durable steel frame, anti-vibration mount, and blade guard for rugged jobsite use. User-friendly controls like the easy-turn crank and large screw-type depth control help improve cutting precision and handling.
Brand new
1 year factory warranty
Manufacturer direct shipping from CA, MD, TN
Authorized EDCO dealer
Features
- 20″ Blade Capacity
- Max Cut Depth: 7.75″
- NEW & Improved throttle cable
- Easy turn crank, for lowering and raising blades in and out of cut
- Heavy-Duty Anti-Vibration engine mount
- Screw boot belt tensioner prevents frame damage
- 7-gauge steel blade guard with welded protective segment flap
- Heavy-Duty lifting bail for easy loading and unloading
- 7.5 HP, 230V Three Phase electric motor
- Heavy-Duty 7-gauge steel laser cut frame
- Large screw-type depth control
- Wide-T handles with rubber grips
- Solid-Steel lifting handles
- High quality molded rubber wheels
- Dual arbor available for 2 saw cuts
Specifications
| Model # | DS-20E |
|---|---|
| Part # | 30300 |
| Cut Type | Downcut |
| Blade Capacity | 20" |
| Max Cut Depth | 7.75" |
| Engine/Motor | Electric |
| Motor Power | 7.5 HP |
| Voltage | 230V |
| Phase | Three-Phase |
| Amps | 12 |
| RPMs | 2880 |
| Length | 50" |
|---|---|
| Width | 27" |
| Height | 39" |
| Weight | 265 lbs |
Package Contents
EDCO DS-20E Concrete Saw
Blade
Manual
Warranty
This item comes with a 1 year manufacturer's warranty.
