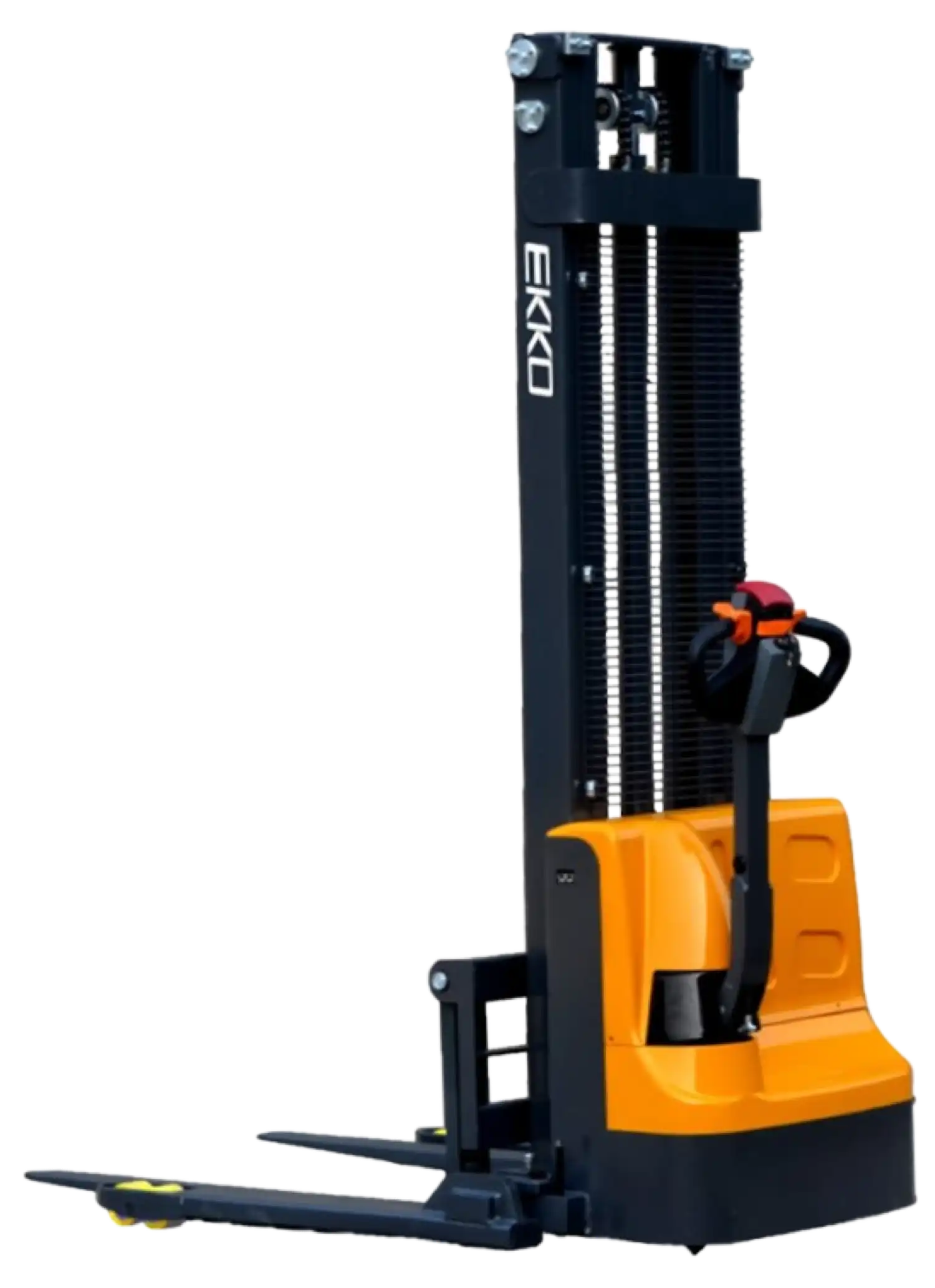

Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New

Manufacturer: Ekko

SKU: EB12E

Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New
Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New

QTY

(888) 999-1522

Add to compare
Add to wishlist
heart-like Created with Sketch Beta.
Remove from wishlist

$ 4,999.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.


or

Pay Over Time

Select Bread as your payment at checkout

in stock checkmark

In Stock

truck icon

Please allow 3-5 business days for processing

Manufacturer Direct Shipping

Extended Warranty

×

Factory Warranty

  • This item comes with a 3 year limited manufacturer's warranty, please see below.

Extended Warranties

  • Brand New

    Extends factory warranty to 2, 3, or 5 total years

  • Brand New

    Covers functionality issues for 2, 3, or 5 years

  • Brand New

    Local repair options always available

  • Brand New

    Free replacement if repair is not possible

  • Brand New

    No deductibles or hidden fees

  • Brand New

    Full parts and labor coverage

$0

(Included)

  • This item comes with a 3 year limited manufacturer's warranty, please see below.

$399.00

(Details)

  • Brand NewExtends factory warranty to 2 total years
  • Brand NewCovers functionality issues for 2 years
  • Brand NewLocal repair options always available
  • Brand NewFree replacement if repair is not possible
  • Brand NewNo deductibles or hidden fees
  • Brand NewFull parts and labor warranty

$499.00

(Details)

  • WarrantyExtends factory warranty to 3 total years
  • WarrantyCovers functionality issues for 3 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

$599.00

(Details)

  • WarrantyExtends factory warranty to 5 total years
  • WarrantyCovers functionality issues for 5 years
  • WarrantyLocal repair options always available
  • WarrantyFree replacement if repair is not possible
  • WarrantyNo deductibles or hidden fees
  • WarrantyFull parts and labor warranty

Warranty has been added in! Please click add to cart.

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Review

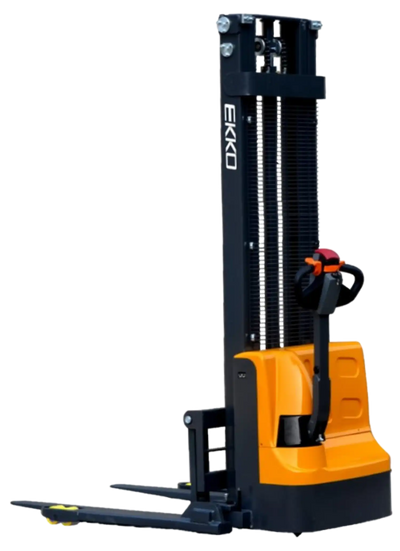

Ekko EB12E Full Powered Straddle Stacker 119.4

Ekko EB12E Full Powered Straddle Stacker 119.4" Height 2640 lbs. New

Product Overview

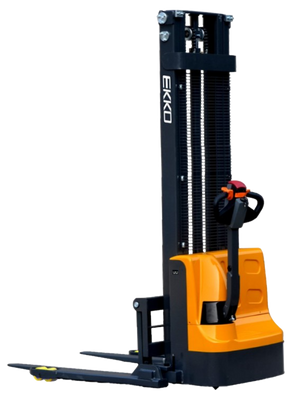

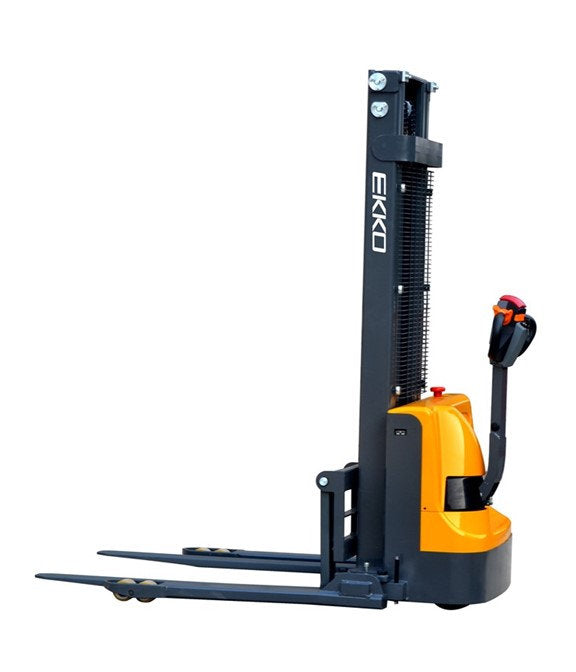

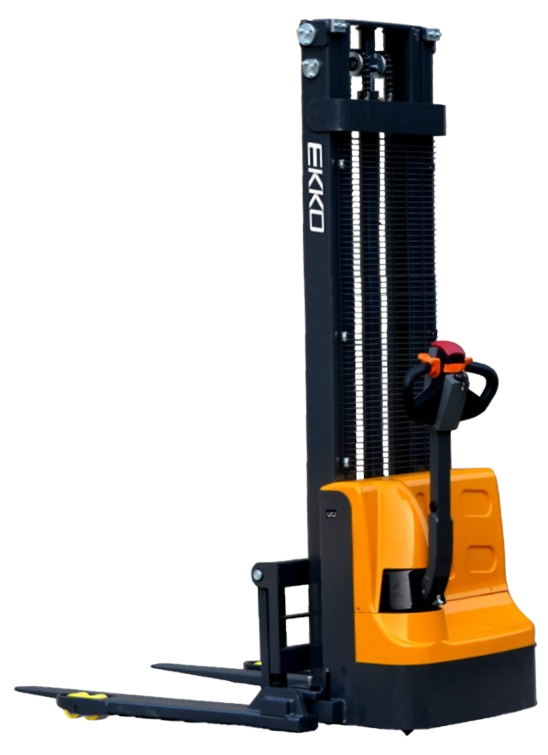

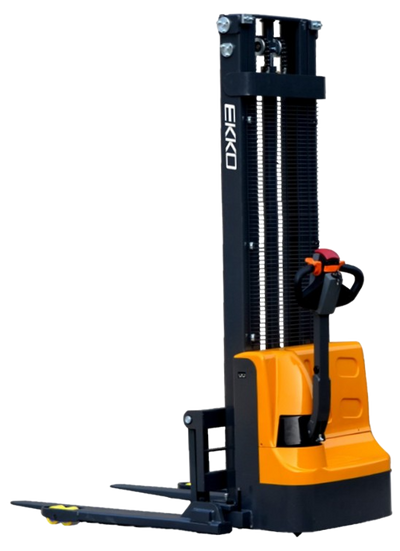

The Ekko EB12E Electric Straddle Stacker is designed with the combination of the versatility of forklift, reach truck and a walkie stacker.



It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

Features

  • Load Capacity 2640 lbs.
  • Raised Height 119.4" (9.95 ft)

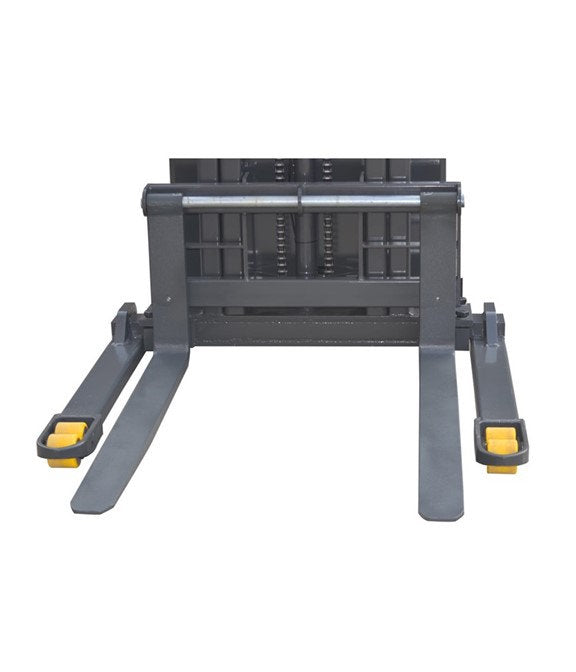

  • Adjustable Forks 8.3 - 33.5"
  • Adjustable Legs 45.7 - 59.1"
  • Fork Length 45.3"
  • Curtis Controller
  • 24V Drive Motor
  • 24V Lift Motor
  • Internal Charger
  • Battery 2 x 12V/100Ah Included
  • Polyurethane Wheels

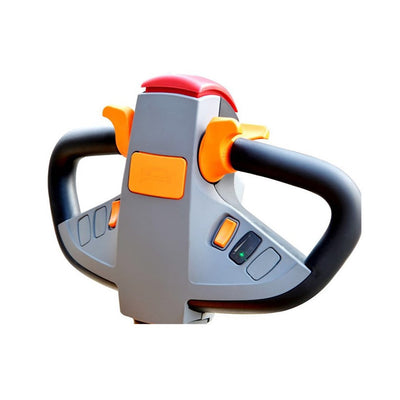

  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • 3 Years Limited Warranty

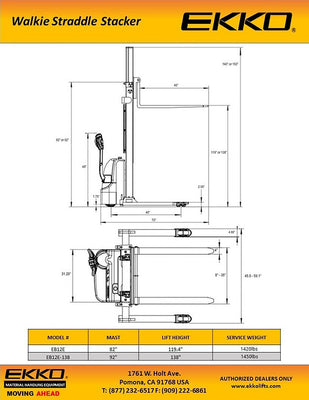

Specifications

Extended mast height (in) 135
Lowered mast height (in) 82
Battery voltage (dimensions) 2 × 12V/100AH(10/6.6/8.5)
Internal charger 24V/15A
Lifting Motor V/Kw 2.2kw.
Lift speed, laden/unladen 92/136mm/s
Lowering speed, laden/unladen 112/98mm/s
Driving Motor 0.75kw.
Driving speed laden/unladen 4.0/4.2km/h
Service Weight (lbs) 1420
Model EB12E
Load capacity (lbs) 2640
The max. lifting height (in) 119.4”
Load center distance (in) 24
Fork length (in) 45.3
Single fork width (in) 4
Overall fork width (in) 8.3 - 33.5
Lowered fork height (in) 2.35
Fixed leg length (in) 36.5
Adjustable legs (in) 45.5 - 59.1
Turning radius (in) 52.6
Overall length (in) 70
Max Overall width (in) 61

Package Contents

Full Powered Straddle Stacker

EB12E Series Brochure

Warranty
