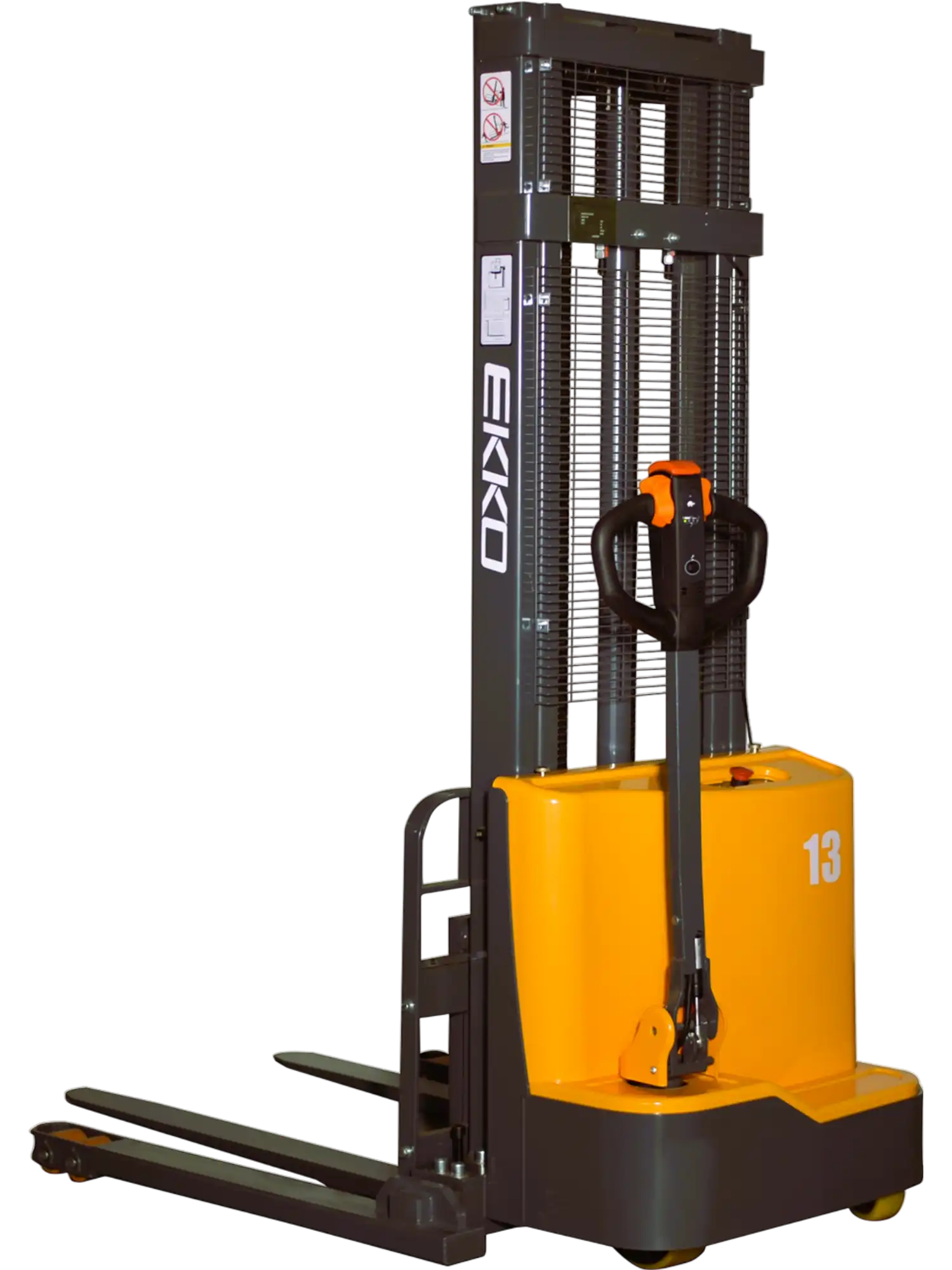

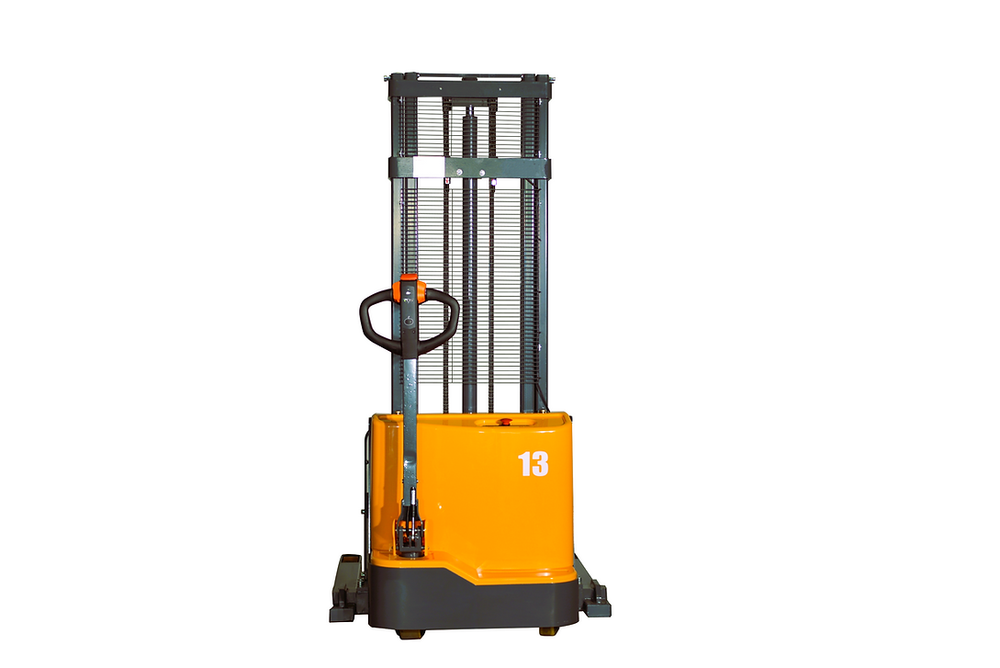

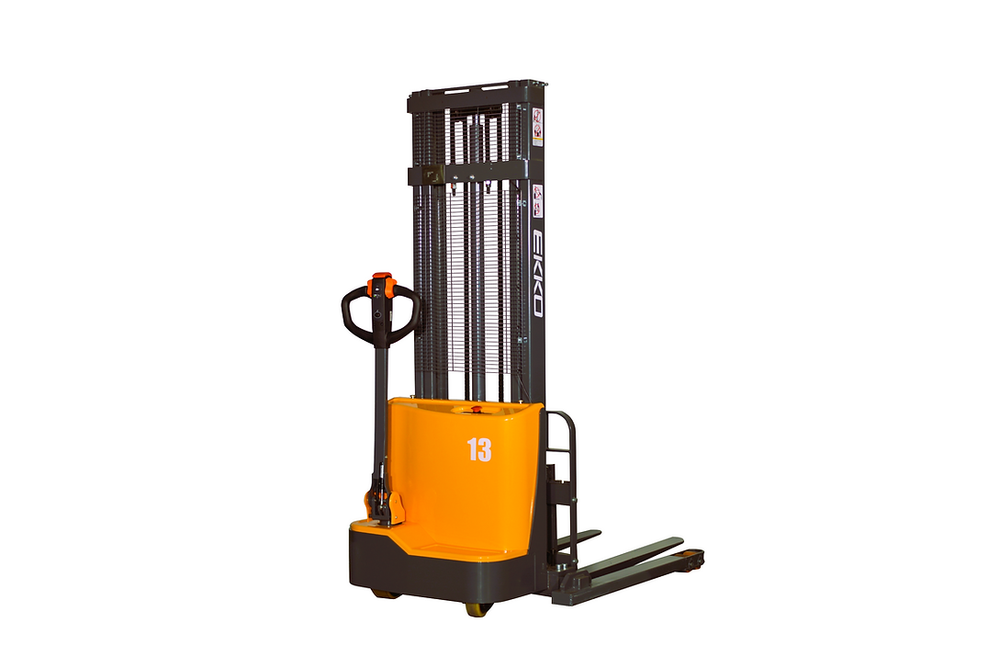

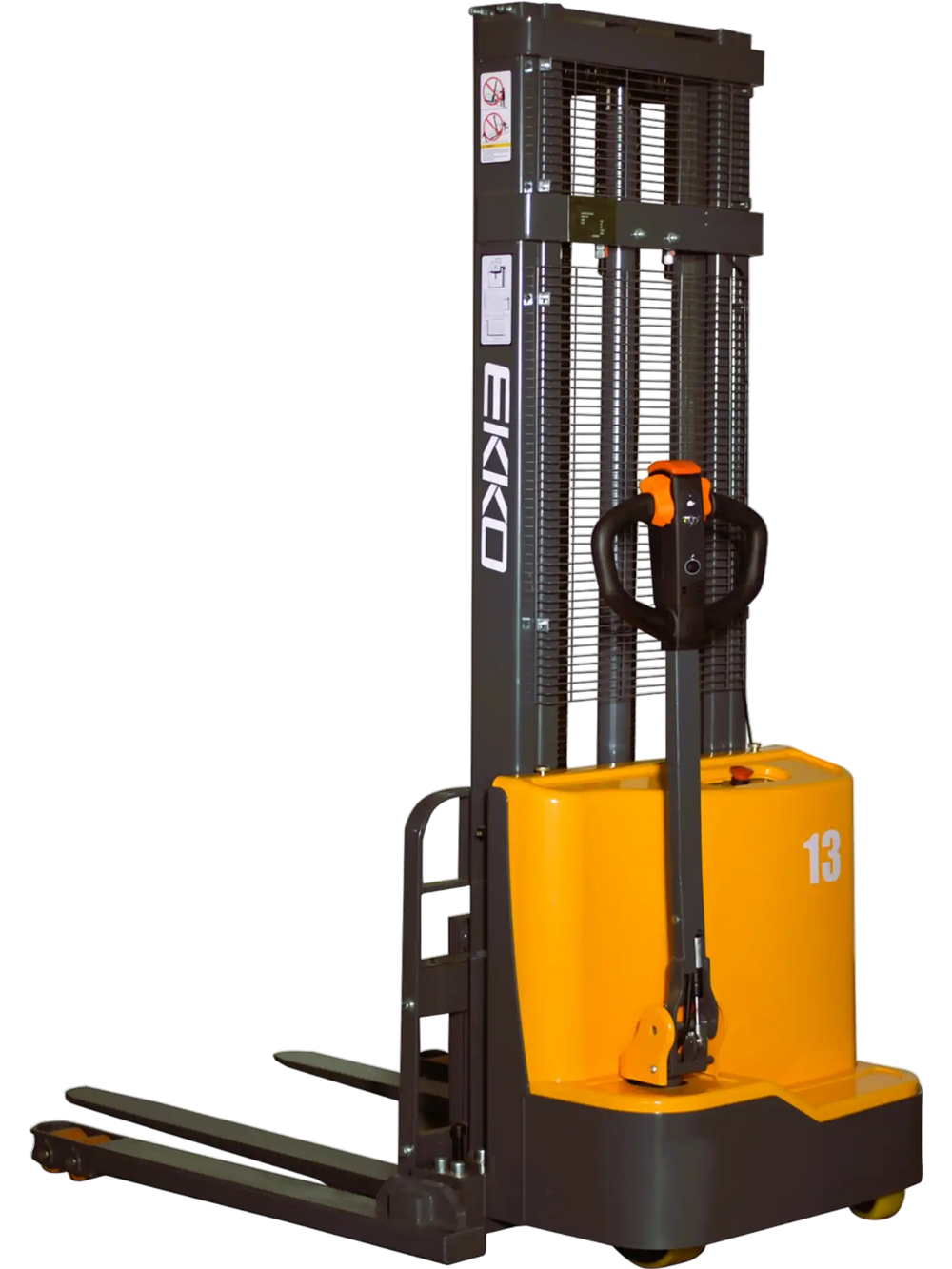

Ekko EB13C-138 Straddle Stacker Full Powered 2800 lbs Capacity 138" Lift Height New
Manufacturer: Ekko
SKU: EB13C-138
QTY
or
(888) 999-1522
$ 5,593.60
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year limited manufacturer's warranty, please see below.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year limited manufacturer's warranty, please see below.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Ekko EB13C-138 Straddle Stacker Full Powered 2800 lbs Capacity 138" Lift Height New
Product Overview
The EKKO EB13C-138 electric straddle stacker combines the versatility of a forklift, reach truck, and walkie stacker for material handling applications. It is designed for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Built from high-quality steel and durable components, it is made to handle demanding terrain, impact, and directional changes with confidence. This full powered unit features adjustable forks and legs, a 2,800 lb load capacity, and a 138" maximum lifting height.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 2800 lb
- Raised Height 138”
- Adjustable Forks 8.6-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/85Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
Specifications
| Model | EB13C-138 |
| Load Capacity | 2800 lbs |
| Max Lifting Height | 138" |
| Load Center Distance | 24" |
| Fork Length | 45.3" |
| Single Fork Width | 4" |
| Fork Adjustment Width | 8.6"-32.1" |
| Lowered Fork Height | 2.56" |
| Adjustable Legs | 35.4"-51.2" |
| Turning Radius | 56.1" |
| Overall Length | 73.4" |
| Max Overall Width | 61" |
| Extended Mast Height | 166.9" |
| Lowered Mast Height | 75.2" |
| Battery Voltage | 24V/85Ah |
| Internal Charger | 24V/10A |
| Lifting Motor | 2.2 kW |
| Driving Motor | 0.75 kW |
| Service Weight | 1390 lbs |
Package Contents
EB13C-138 Full Powered Straddle Stacker
Built-in Charger
Battery
User Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
