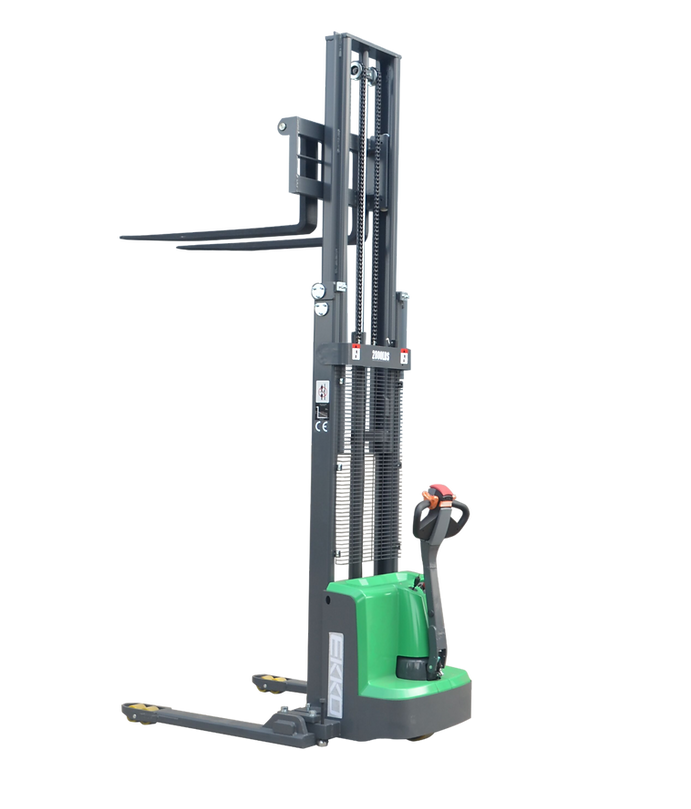

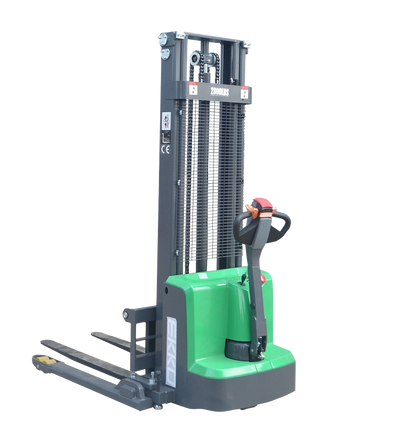

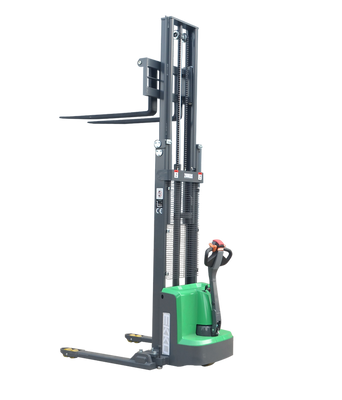

Ekko EB13E-119LI Full Powered Straddle Stacker 119" Height 2800 lbs. New

Manufacturer: Ekko

SKU: EB13E-119LI

Ekko EB13E-119LI Full Powered Straddle Stacker 119" Height 2800 lbs. New
Ekko EB13E-119LI Full Powered Straddle Stacker 119" Height 2800 lbs. New


Ekko EB13E-119LI Full Powered Straddle Stacker 119" Height 2800 lbs. New
Ekko EB13E-119LI Full Powered Straddle Stacker 119" Height 2800 lbs. New

QTY

(888) 999-1522

$ 6,940.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Product Overview

The EKKO EB13E-Li Lithium Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker.



It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

Ekko EB13E-119LI Full Powered Straddle Stacker 119

Ekko EB13E-119LI Full Powered Straddle Stacker 119" Height 2800 lbs. New

Features

  • Load Capacity 2800 lb
  • Raised Height 119”
  • Adjustable Forks 8.3 - 33.5“
  • Adjustable Legs 45.7 - 59.1”
  • Fork Length 45.3“
  • Curtis Instrument Controller
  • 24V Center Drive Motor
  • 24V Lift Motor
  • Battery 24V/50Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3 Year Limited Warranty

Specifications

Extended mast height (in) 135
Lowered mast height (in) 82
Battery voltage (dimensions) (in) 24V/50Ah Lithium
Internal Charger V/A 24V/15A
Lifting Motor V/Kw 2.2kw. Lift speed, laden/unladen
Driving Motor 0.75kw. Driving speed
Service Weight (lbs) 1325
Model EB13E-LI
Load capacity (lbs) 2800
The max. lifting height (in) 119”
Load center distance (in) 24
Fork length (in) 45.3
Single fork width (in) 4
Overall fork width (in) 8.3-33.5
Lowered fork height (in) 2.35
Fixed leg length (in) 36.5
Adjustable legs (in) 45.5-59.1
Turning radius (in) 52.6
Overall length (in) 70
Max Overall width (in) 61

Package Contents

Full Powered Straddle Stacker

EB13E-119LI Series Brochure

Warranty
