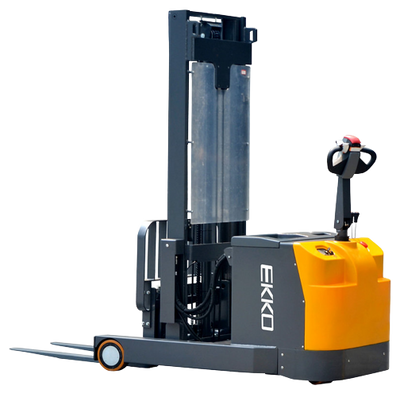

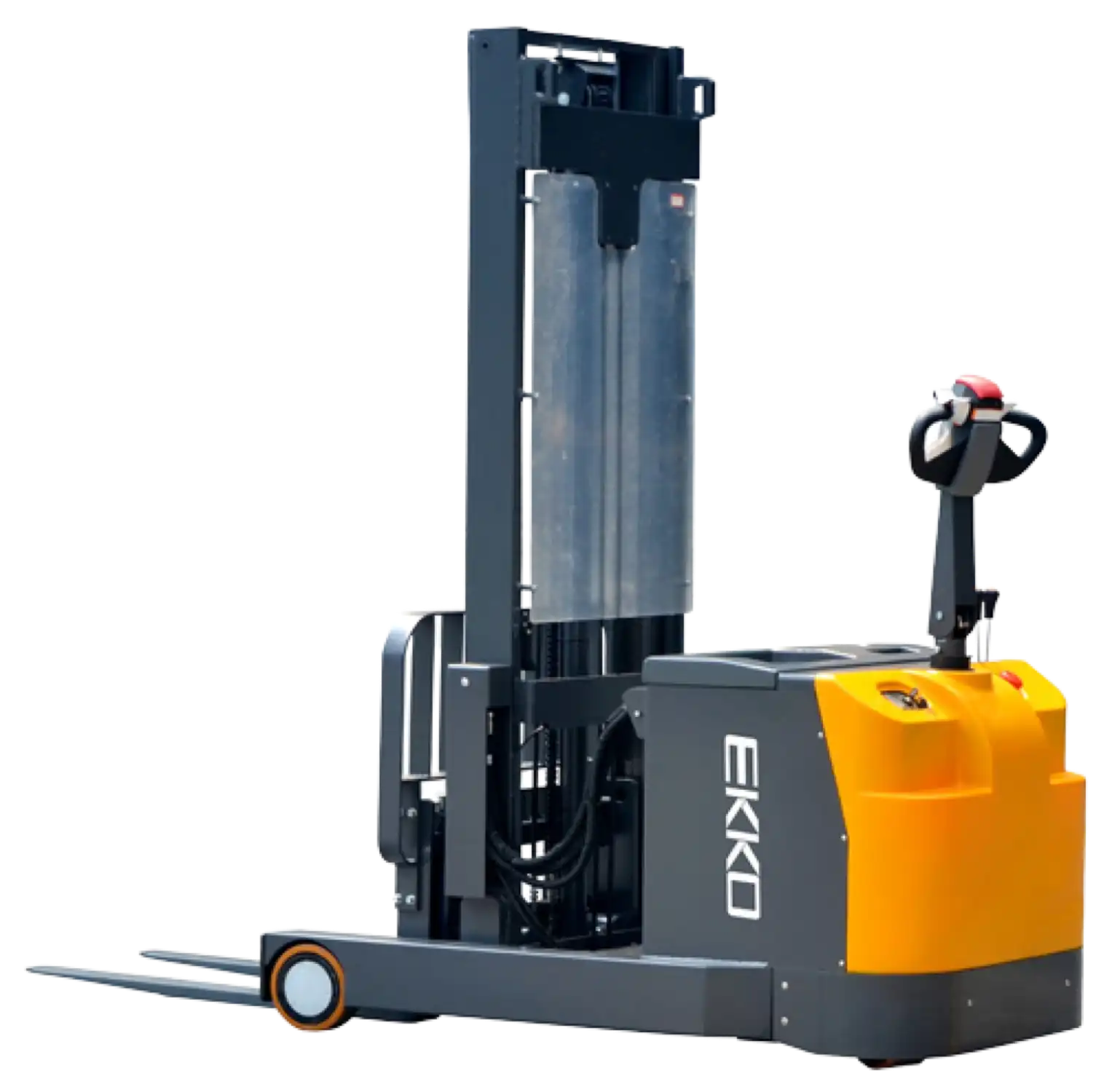

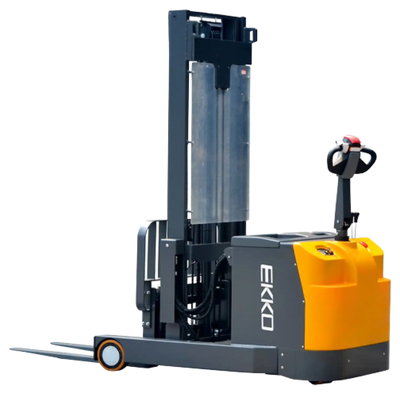

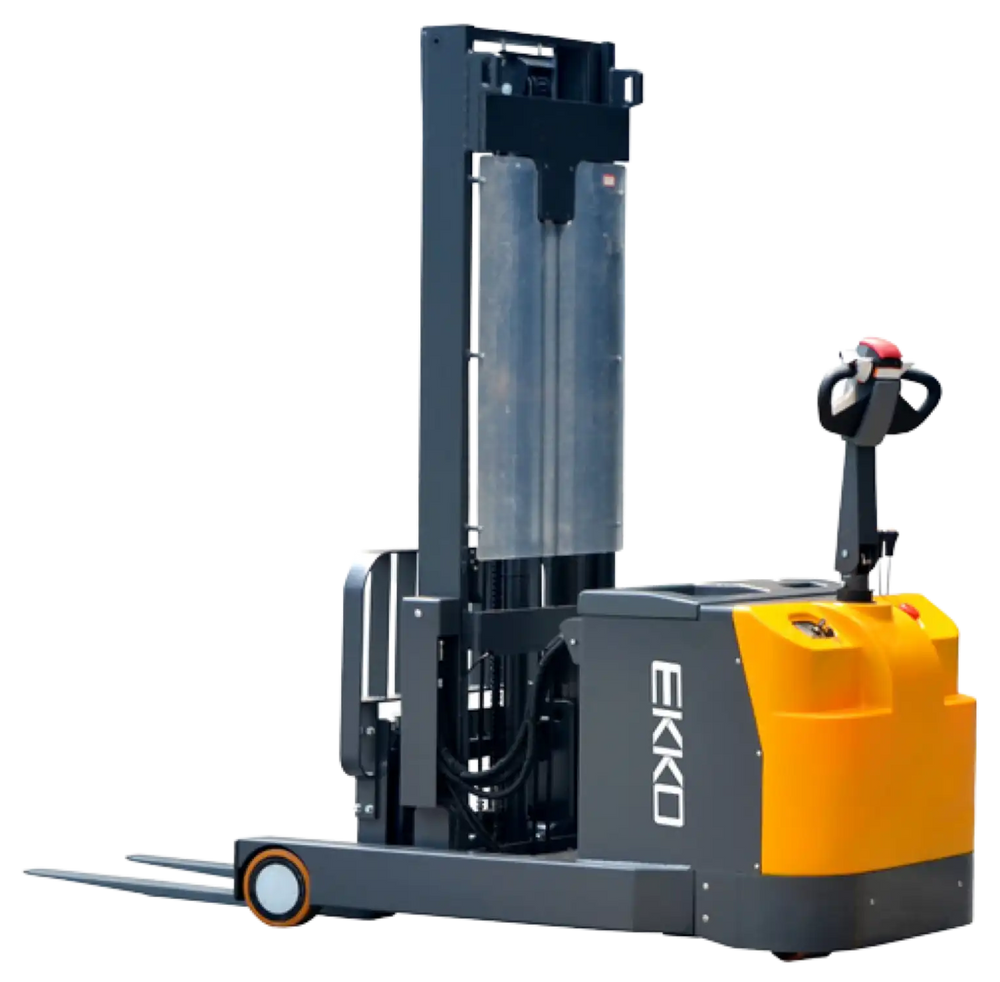

Ekko EH15TH Moving Mast Walkie Reach Truck 216" Lift Height 3300 lbs. Load Capacity New
Product Overview
The Ekko EH15TH Moving Mast Walkie Reach Truck is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 3300 lb
- Raised Height 216" (18' ft.)
- Reach Distance of 19.7"
- Free Lift 68"
- Adjustable Forks 8.7 - 29.1"
- Fork Length 45.2"
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/400Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
Specifications
| Reach Distance | 19.7" |
| Turning radius | 67" |
| Charger | 24V/50A |
| Driving Motor | AC 24V/2.5kw |
| EPS Steering Motor | 24/200W |
| Lifting Motor | 24V/3000W |
| Battery voltage | 24V/400Ah |
| Service Weight | 4915 lbs. |
| Model | EH15TH |
| Lift | Electric |
| Drive | Electric |
| Load capacity | 3300 lbs. |
| Load center distance | 24" |
| Lifting height | 216" |
| Free Lift | 68" |
| Lowered mast height | 97.3" |
| Overall length/Extended | 111.6" |
| Overall width | 41" |
| Fork size, Thick/Width/Length | 1.4/4/45.2" |
| Fork adjust width | 8.7 - 28" |
Package Contents
Moving Mast Walkie Reach Truck
Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
