Ekko EK14-130 Electric Walkie Stacker 3300 lbs. Capacity 130

Ekko EK14-130 Electric Walkie Stacker 3300 lbs. Capacity 130" Lift Height Counterbalanced New

Product Overview

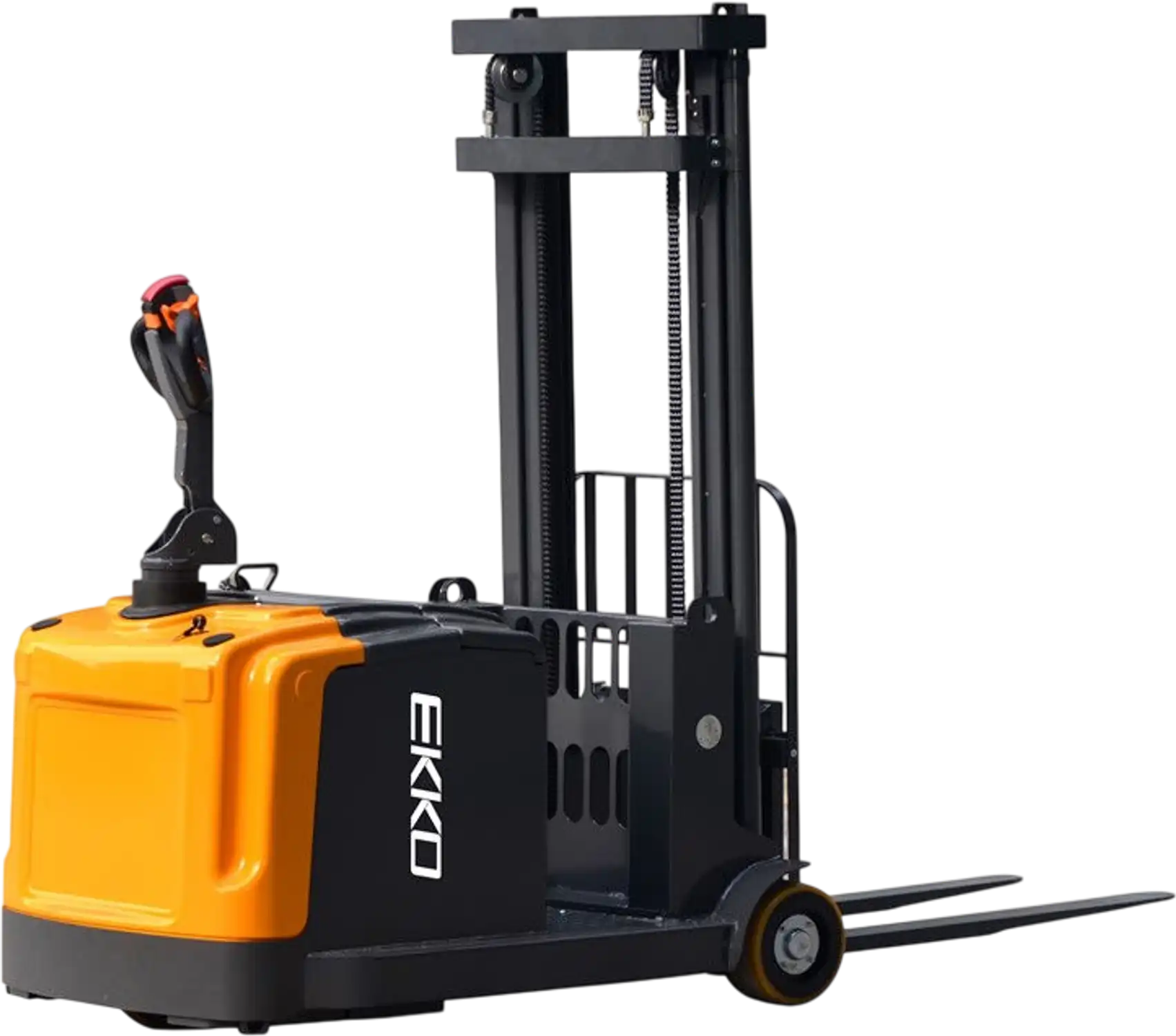

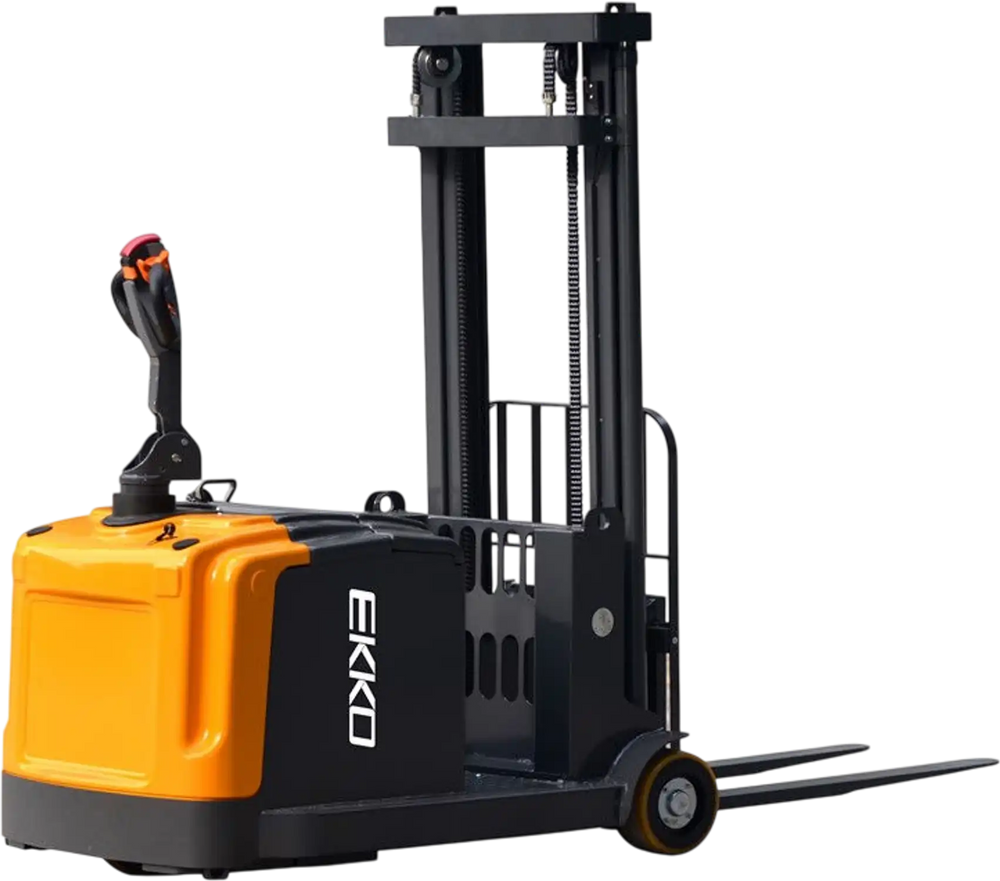

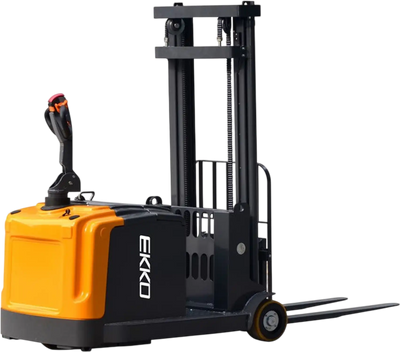

The EKKO EK14 fully powered counterbalanced walkie stacker combines forklift versatility with walkie stacker maneuverability for loading docks, trucks, stock rooms, manufacturing floors, and warehouses. It features a 3,300 lb load capacity with lift height options of 130". Built with high quality steel and durable components, it is designed to handle varied terrain, frequent use, impacts, and directional changes. The unit includes electric lift and drive, EPS electronic power steering, adjustable forks, polyurethane wheels, and an onboard charger.

vendor logo
divider
authorized dealer
checkmark

Brand new

checkmark

3 year limited warranty

checkmark

Manufacturer direct shipping from California

checkmark

Authorized EKKO dealer

Features

  • Load Capacity 3300 lbs
  • Raised Height 130" (10.8')
  • Adjustable Forks 8.6-28.3"
  • Fork Length 45.3"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V AC Drive Motor
  • 24V Lift Motor
  • EPS (Electronic Power Steering)
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger

Specifications

Model EK14-130
Lift Electric
Drive Electric
Load Capacity 3300 lbs
Load Center Distance 24"
Wheel Base 47"
Lifting Height 130"
Free Lifting Height 4"
Lowered Mast Height 84"
Extended Mast Height 167"
Mast/Fork Carriage Tilt Forward/Backward 2/5 degree
Overall Length 109"
Overall Width 39"
Fork Size Thick/Width/Length 1.4" / 4" / 45.3"
Fork Adjust Width 8.6"-28.3"
Turning Radius 57"
Max. Gradient Performance Laden/Unladen 6/10
Lift Speed Laden/Unladen 4"/5.1s
Lowering Speed Laden/Unladen 5.3"/4.7s
Charger 24V/30A
Driving Motor AC 24V/2500W
Lifting Motor 24V/2500W
EPS Steering Motor 24V/200W
Battery Voltage 24V/210Ah side
Service Weight 3840 lbs
Dimensions 109" L x 39" W x 155"-167" H extended mast

Package Contents

EKKO EK14-130 counterbalanced walkie stacker

Charger

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year warranty.
