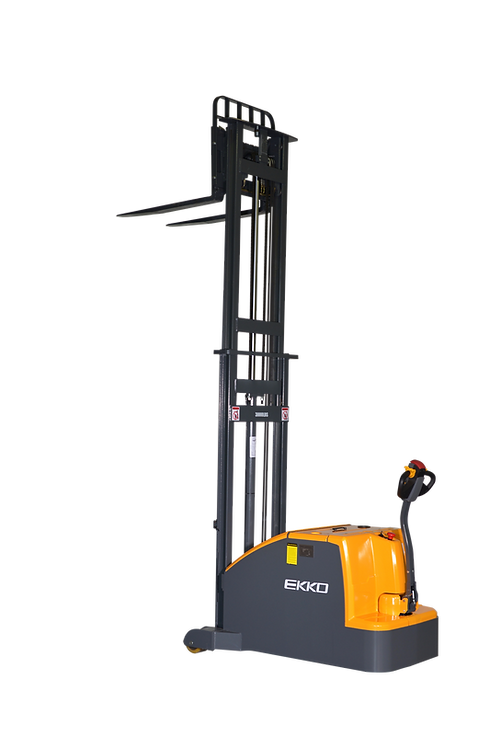

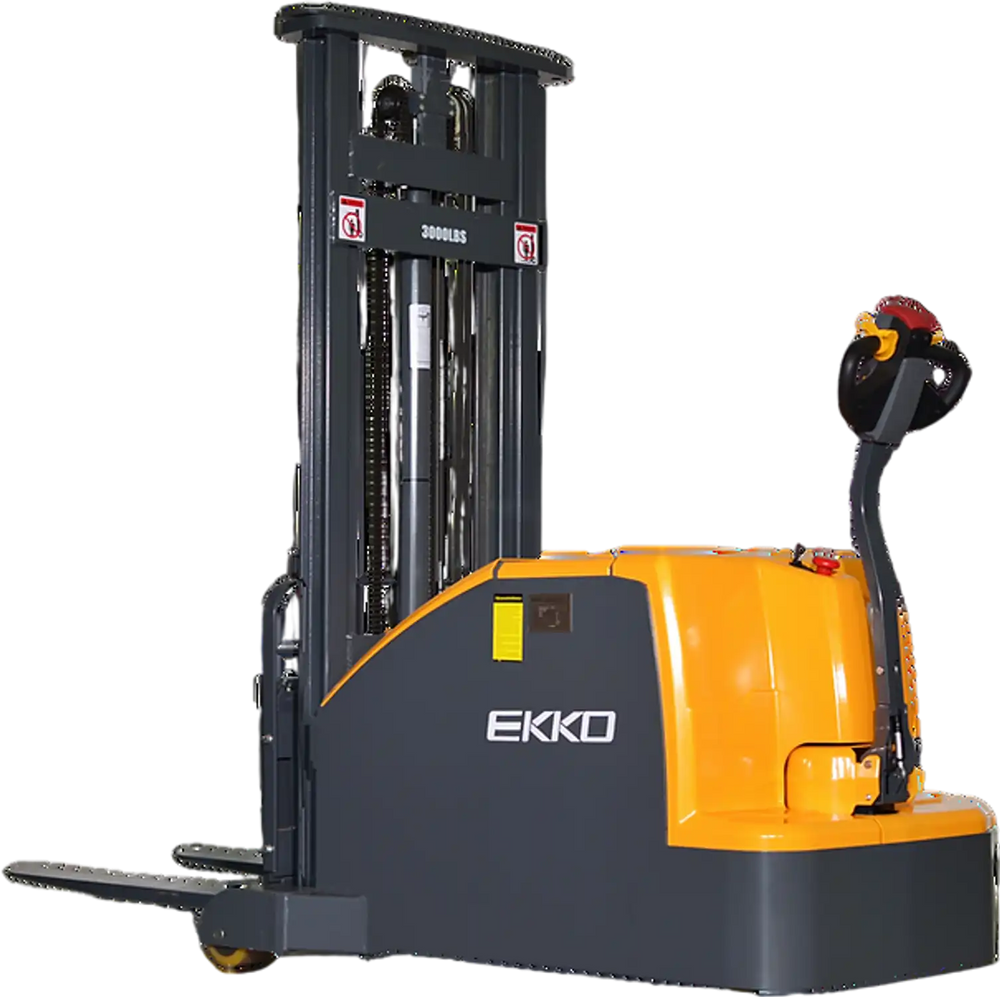

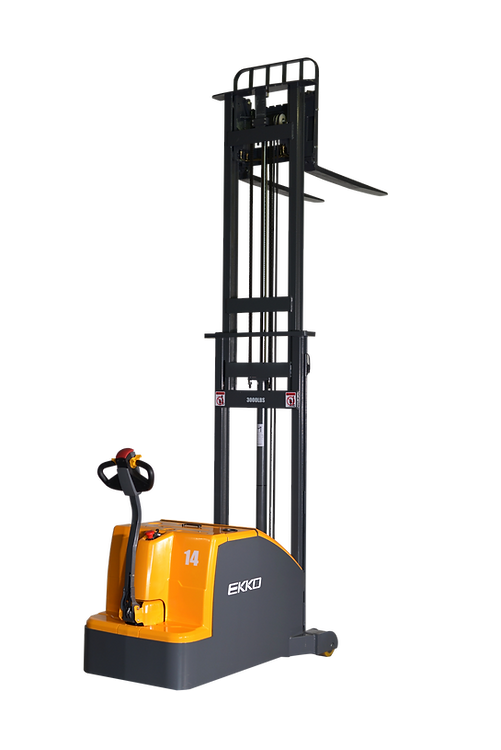

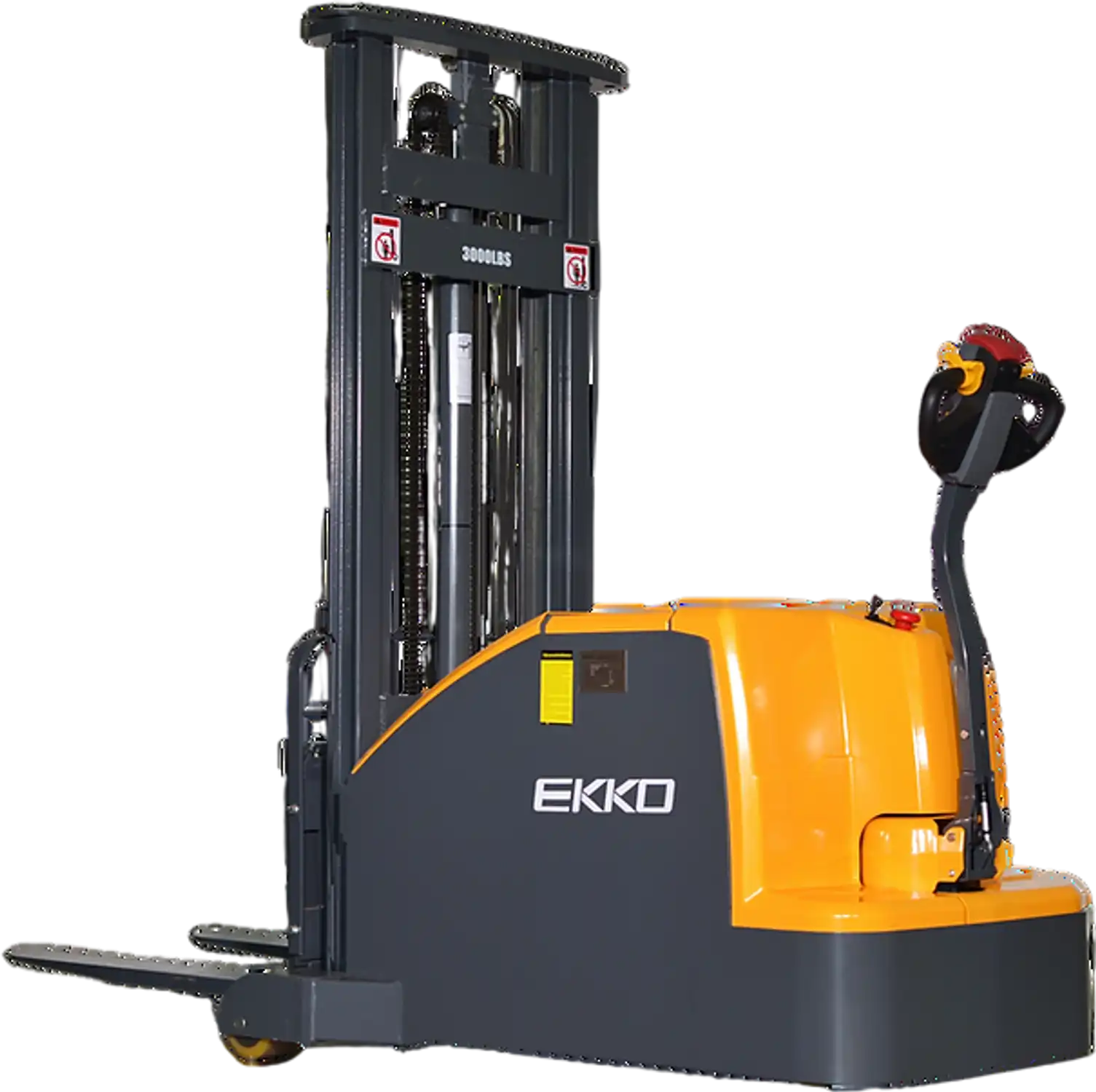

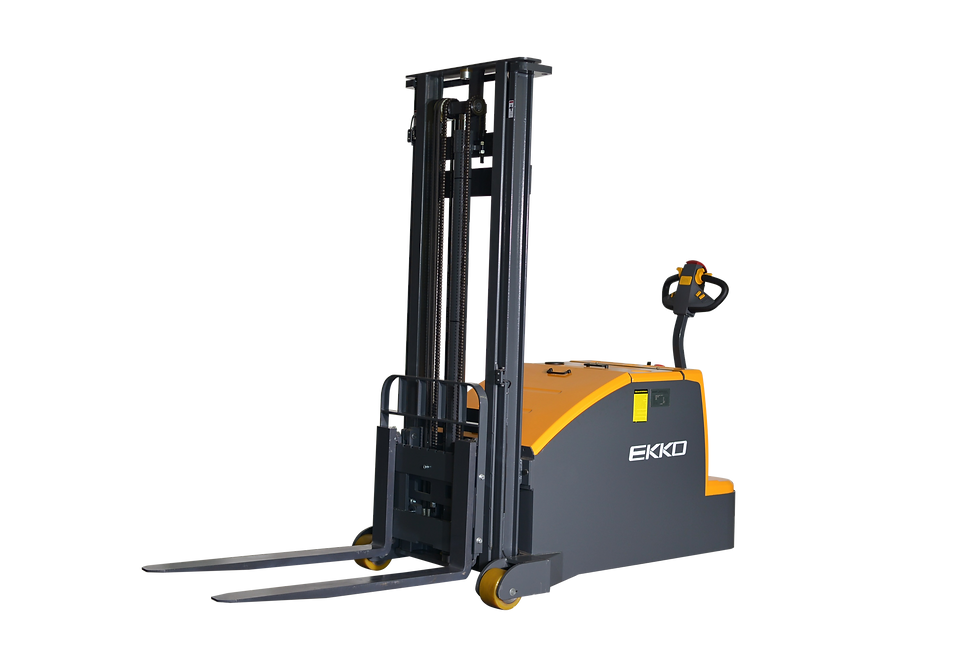

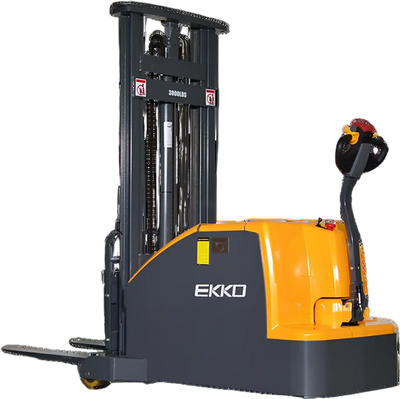

Ekko EK14C-130 Counterbalanced Walkie Stacker 3,000 lbs Capacity 130" Lift Height New
Product Overview
The EKKO EK14C-130 is a fully powered counterbalanced walkie stacker designed to combine the versatility of a forklift with the compact operation of a walkie stacker. It is well suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing applications. Its electric lift and drive system, ergonomic controls, EPS electronic power steering, and durable steel construction support efficient daily material handling. This unit includes a battery and charger, polyurethane wheels, and a Curtis Controller.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 3000 lb
- Raised Height 130" (10.83 ft)
- Adjustable Forks 8.7-26"
- Fork Length 42.1"
- Tilt 2/5 Degree
- Curtis Controller
- 24V AC Drive Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
Specifications
| Model | EK14C-130 |
| Lift Type | Electric |
| Drive Type | Electric |
| Load Capacity | 3000 lbs |
| Load Center Distance | 24" |
| Wheel Base | 44.7" |
| Lifting Height | 130" |
| Free Lifting Height | 4" |
| Lowered Mast Height | 85.6" |
| Extended Mast Height | 158.66" |
| Mast/Fork Carriage Tilt Forward/Backward | 2/5° |
| Overall Length | 118" |
| Overall Width | 39" |
| Fork Size Thick/Width/Length | 1.4" / 4" / 42.1" |
| Fork Adjust Width | 8.6"-26" |
| Turning Radius | 66.3" |
| Max Gradient Performance Laden/Unladen | 6/10% |
| Lift Speed Laden/Unladen | 2.95/3.94 in/s |
| Charger | 24V/30A |
| Driving Motor | 1.5 kW |
| Lifting Motor | 2.2 kW |
| EPS Steering Motor | EPS |
| Battery Voltage | 24V/210Ah |
| Service Weight | 4230 lbs |
Package Contents
EK14C-130 Counterbalanced Walkie Stacker
Battery
Charger
Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
