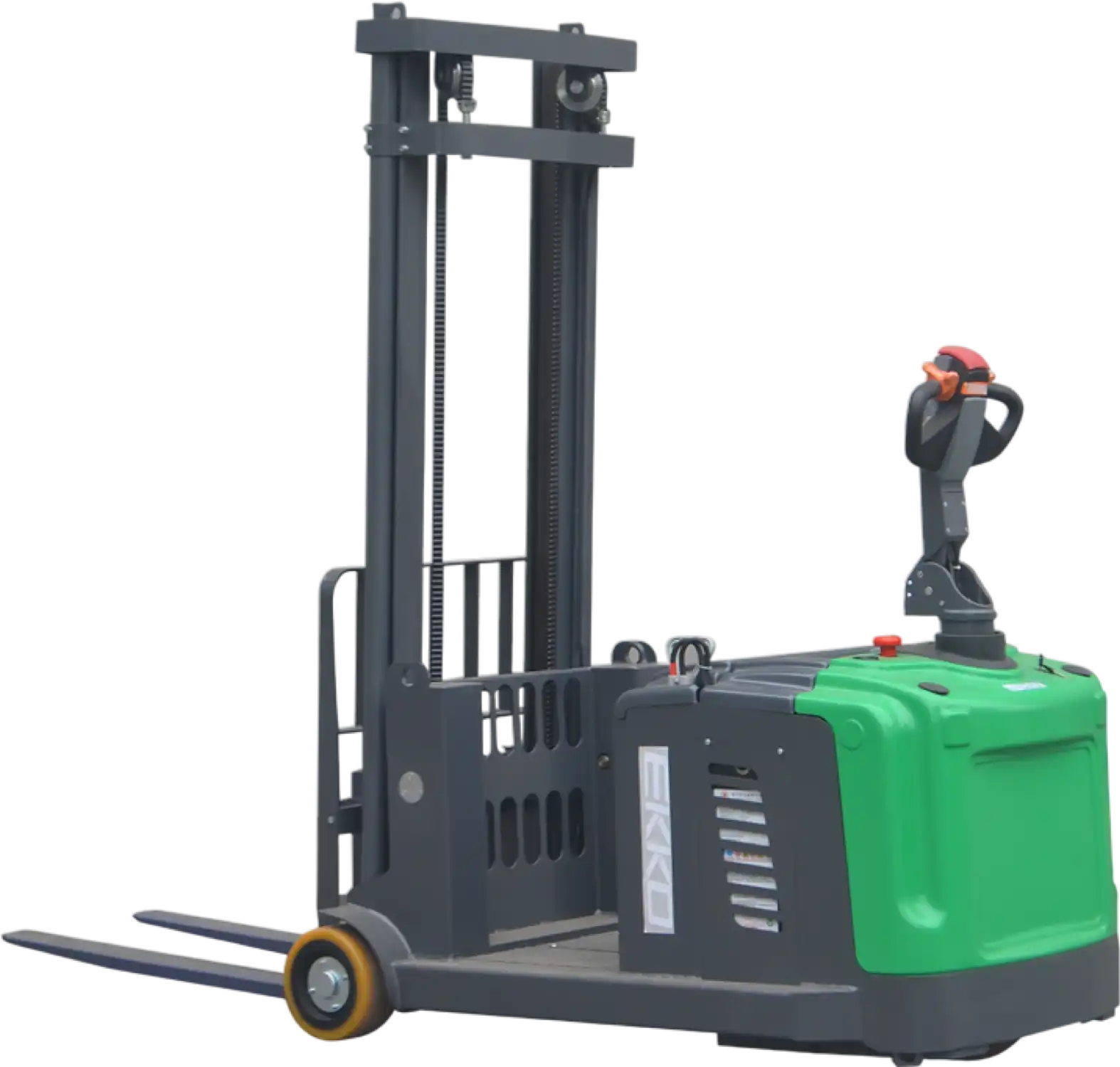

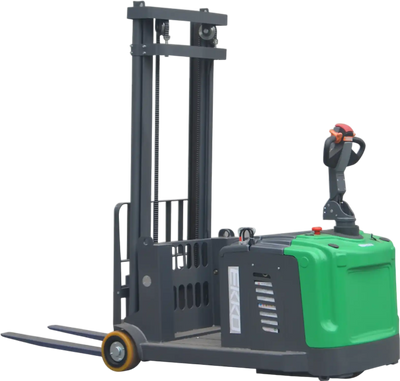

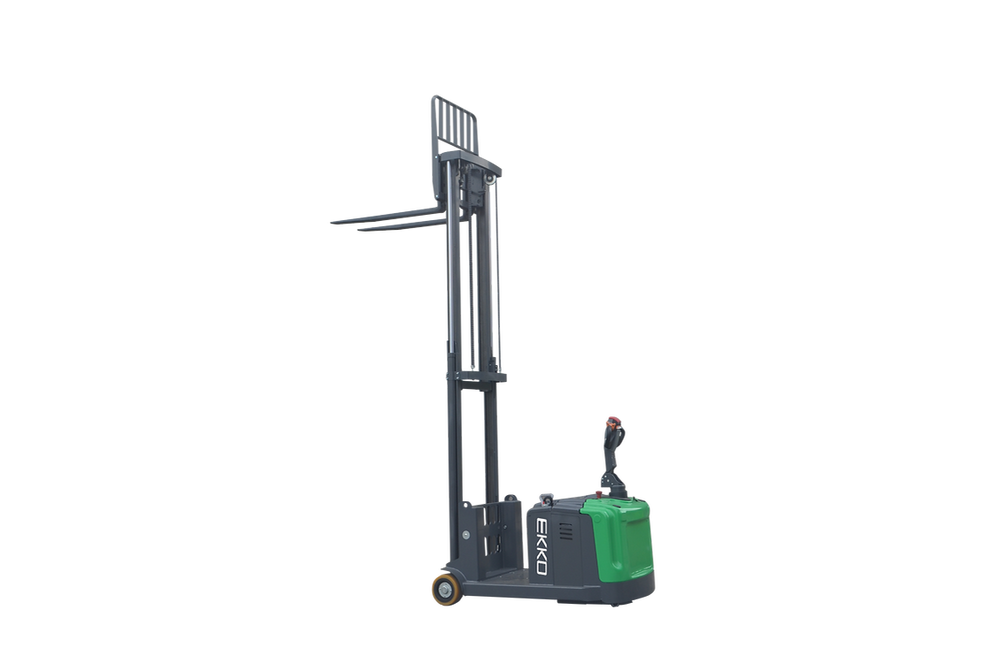

Ekko EK14S-130Li Lithium Walkie Stacker 130" Counterbalanced Side-Shifting New
Product Overview
The EKKO EK14S-130LI counterbalance walkie stacker features side shifting forks and a counterbalance design with no wide front support legs. It can operate in narrow aisles, and the forks side shift, are width adjustable, and tiltable for handling almost any pallet. It offers a significant load capacity of 3,300 lbs. and can lift up to 130 inches. Constructed from high-quality steel and durable components, it's built to withstand challenging conditions and provide reliable performance. Perfect for loading and unloading trucks, operating in loading docks, stock rooms, manufacturing floors, and warehouses.
Brand new
3 year limited warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 3300 lb
- Raised Height 130" (10.83ft)
- SIDE-SHIFTING
- Adjustable Forks 8.6"-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degrees
- Curtis Controller
- 24V Drive and Lift Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Batteries and Charger Included
Specifications
| Model | EK14S-130LI |
| Load Capacity | 3,300 lbs |
| Lifting Height Max | 130" |
| Load Center Distance | 24" |
| Wheelbase | 47" |
| Side-Shifting | 4" |
| Extended Mast Height | 167" |
| Lowered Mast Height | 84" |
| Forward/Backward Tilt | 2° / 5° |
| Fork Adjustable Width | 8.6" - 28.3" |
| Fork Length | 45.3" |
| Turning Radius | 57" |
| Battery Voltage | 24V / 150Ah |
| Charger | 24V / 50A |
| Lift Motor | 2500W |
| Drive Motor | 2500W |
| Overall Dimensions | 113" x 39" x 84" |
| Weight | 3,840 lbs. |
Package Contents
Ekko EK14S-130LI Lithium Counterbalanced Walkie Stacker Side-Shifting
Battery
Charger
Manual
Warranty
This item comes with a 3 year limited warranty on parts, and 1 year battery warranty.
