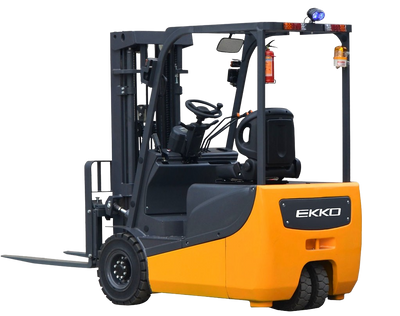

Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New

Manufacturer: Ekko

SKU: EK18AH

  • Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New
  • Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New
  • Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New
  • Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New

QTY

$ 35,998.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service

headset icon

Manufacturer Direct

Ekko EK18AH 3 Wheel Electric Forklift 216

Ekko EK18AH 3 Wheel Electric Forklift 216" Lift 4000 lbs. Capacity New

Product Overview

The Ekko E18AH 3 Wheel Electric Forklift is designed for use for all of your material handling demands.



It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.


vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

Features

  • Load Capacity 4000 lb
  • Raised Height 216" (18ft)
  • Side Shifting Forks
  • Free Lift 72”
  • Adjustable Forks 9.4 - 35.6"
  • Fork Length 45.3“
  • Hydraulic Steering
  • Curtis Instrument Controller
  • ZF AC Drive Motor 7500 Watts
  • 7700 Watts Lifting Motor
  • Battery 48V/425Ah (included)
  • Solid Cushion Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger 48V/65A 480V

Specifications

Model EK18AH
Power unit Electric
Operation Type Rider
Loading capacity 4000 lbs.
Load centre (Inch) 24
Axle centre to fork face (Inch) 17.11
Wheelbase (Inch) 54.33
Service weight with battery 8100 lbs.
Wheels type Solid wheel
Driving wheel size Φ×w (Inch) 6.5 - 10 - 10PR
Bearing wheel size Φ×w (Inch) 15 × 4.5 - 8
Wheels, number front/rear 2× /2
Track width (Inch) 35.04
Mast/fork carriage tilt, fwd/bwd (°) 6/6
Lowered mast height (Inch) 92
Free lift height (Inch) 72
Lift height (Inch) 216
Extended mast height (Inch) 220.87
Height of overhead guard (cabin) (Inch) 82.68
Height of seat/stand-on platform (Inch) 42.5
Towing coupling height (Inch) 19.49
Overall length (Inch) 128.74
Length to fork face (Inch) 80.71
Overall width (mm) 42.52/42.13
Fork dimensions (Inch) 1.58/4.72/45.3
Width of forks (Inch) 36.22
Ground clearance under mast (Inch) 3.54
Min. Ground clearance (Inch) 4.13
Aisle width with pallet 1000 x 1200 across forks (Inch) 131.89
Aisle width with pallet 800 x 1200 along forks (Inch) 136.81
Min. Turning radius (Inch) 64.17
Travel speed, laden/unladen (km/h) 12/13
Lifting speed, with/without load (mm/s) 9.84/15.75
Lowering speed, with/without (mm/s) 9.45/10.16
Climbing ability, with/without (%) 10/15
Service brake Hydraulic
Drive motor, 60-minute rating (kW) 7.5
Lift motor rating at S3 15% (kW) 7.7
Battery voltage/rated capacity (V/Ah) 48/425
Battery weight (± 5%) 1450 lbs.
Power consumption VDI (mm) 38.11/15.43/23.03
Type of drive control AC
Noise level at operator‘s ear (dB(A)) ≤70
Steering type Hydraulic steering

Package Contents

3 Wheel Electric Forklift

Brochure

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year limited manufacturer's warranty, please see below.

Manuals & Documentation
