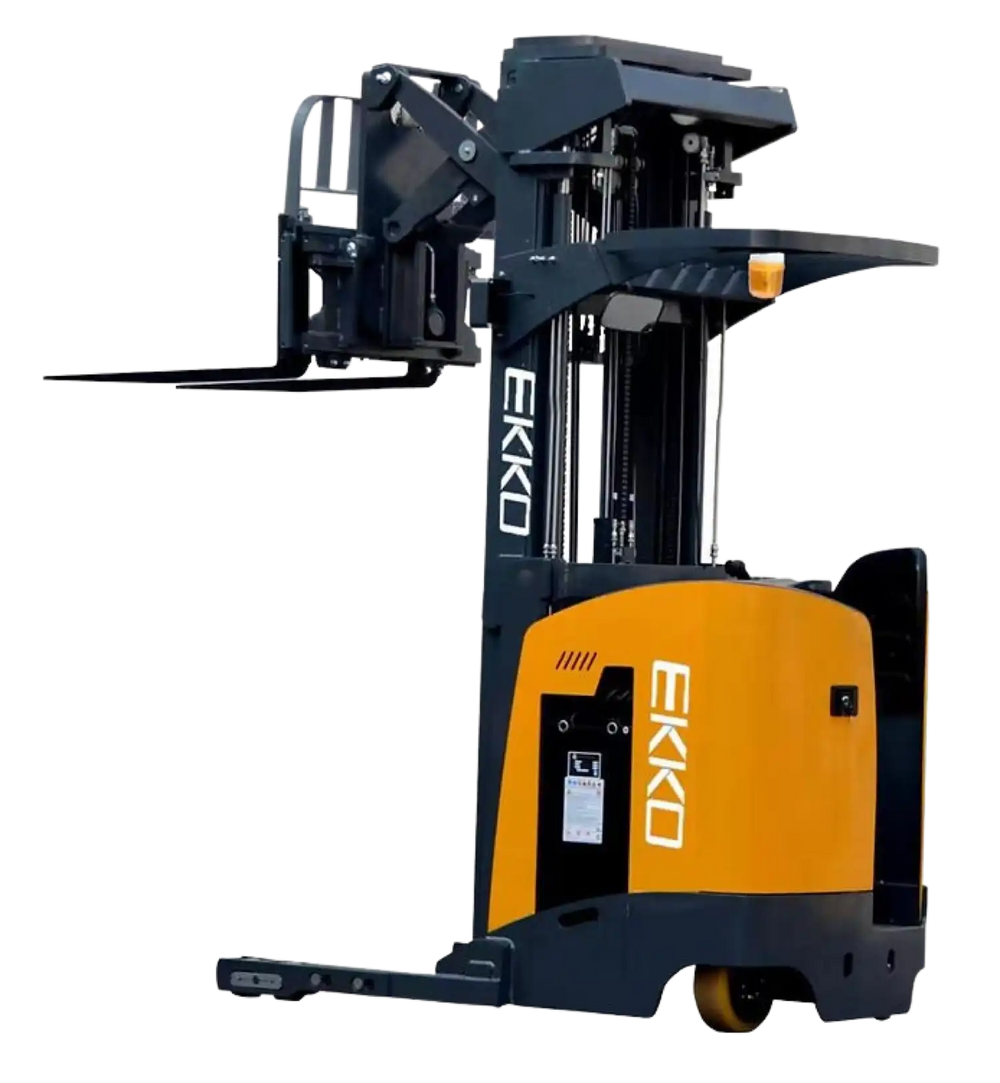

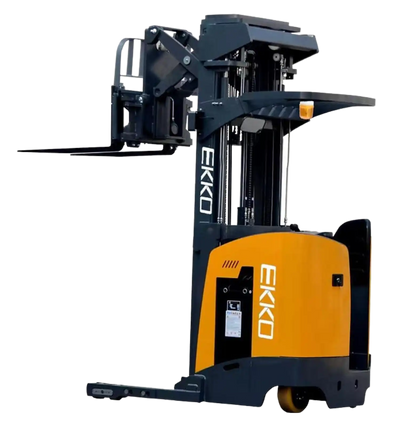

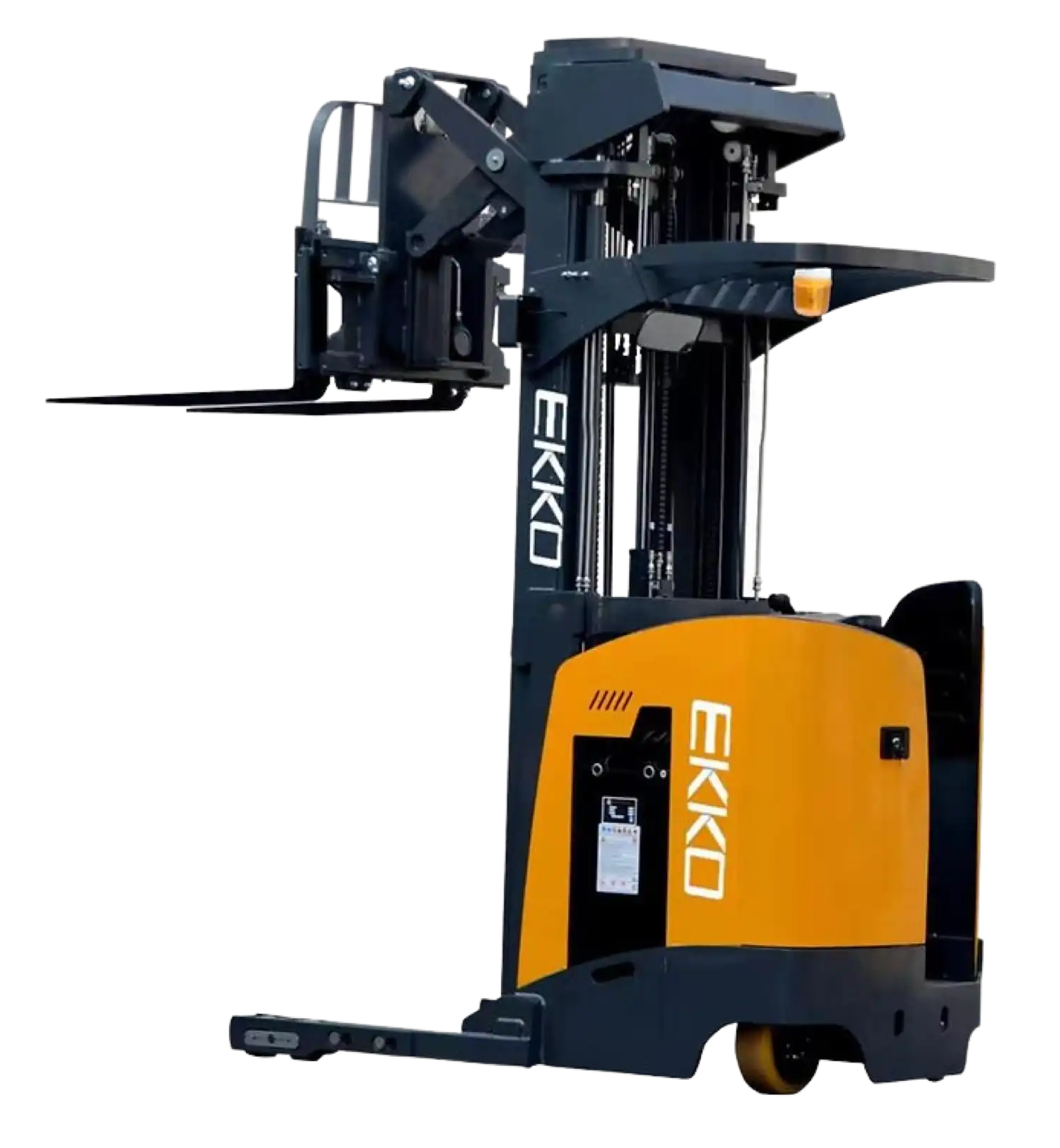

Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New

Manufacturer: Ekko

SKU: EK18RRL

Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New
Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New
Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New
Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New
Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New
Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New
Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New
Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New

QTY

(888) 999-1522

$ 33,998.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

delivery truck icon

Please allow 3-5 business days for processing

Manufacturer Direct Shipping

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Ekko EK18RRL Stand-Up NA Reach Truck 196

Ekko EK18RRL Stand-Up NA Reach Truck 196" Lift Height 4000 lbs. Load Capacity New

Product Overview

The Ekko EK18RRL Stand-up Narrow Aisle Reach Truck is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker.



It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

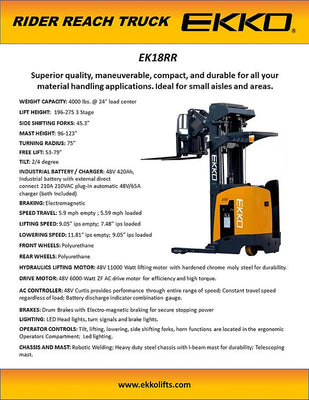

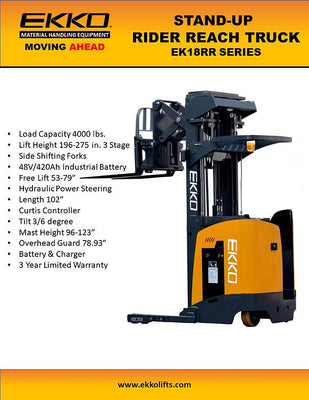

Features

  • Load Capacity 4000 lb
  • Raised Height 196" (16.33 ft.)
  • Reach Distance of 22.44"
  • Side Shifting Forks
  • Free Lift
  • Tilt
  • Adjustable Forks 7.9 - 35.04"
  • Fork Length 45.3"
  • Triple Mast
  • Curtis Instrument Controller
  • EPS (Electronic Power Steering)
  • German AC Drive Motor
  • Battery 48V/420Ah
  • 48V/65A 480V
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Batteries Included

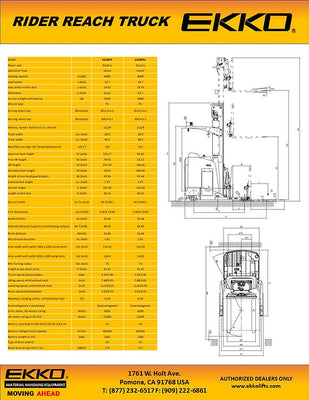

Specifications

Reach Distance 22.44"
Turning radius 75"
Charger 48V/65A
Driving Motor 48V/6000
EPS Steering Motor Yes
Lifting Motor 48V/11000
Battery voltage 48V/420Ah
Service Weight 9000 lbs.
Model EK18RRL
Lift Electric
Drive Electric
Load capacity 4000 lbs.
Load center distance 24"
Lifting height 196"
Side Shifting Forks 3 Way Valve
Free Lift 53.15"
Lowered mast height 96.42"
Overall length/Extended 102.28"
Overall width 54.72"
Fork size, Thick/Width/Length 1.58/4.72/45"
Fork adjust width 35.04"

Package Contents

Stand-Up NA Reach Truck

Brochure

Warranty
