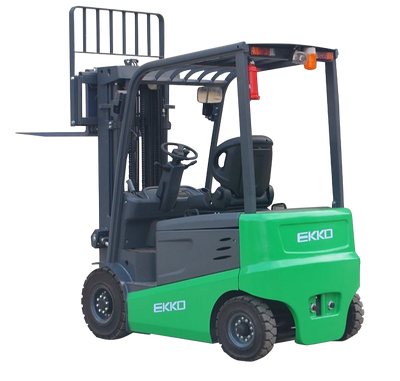

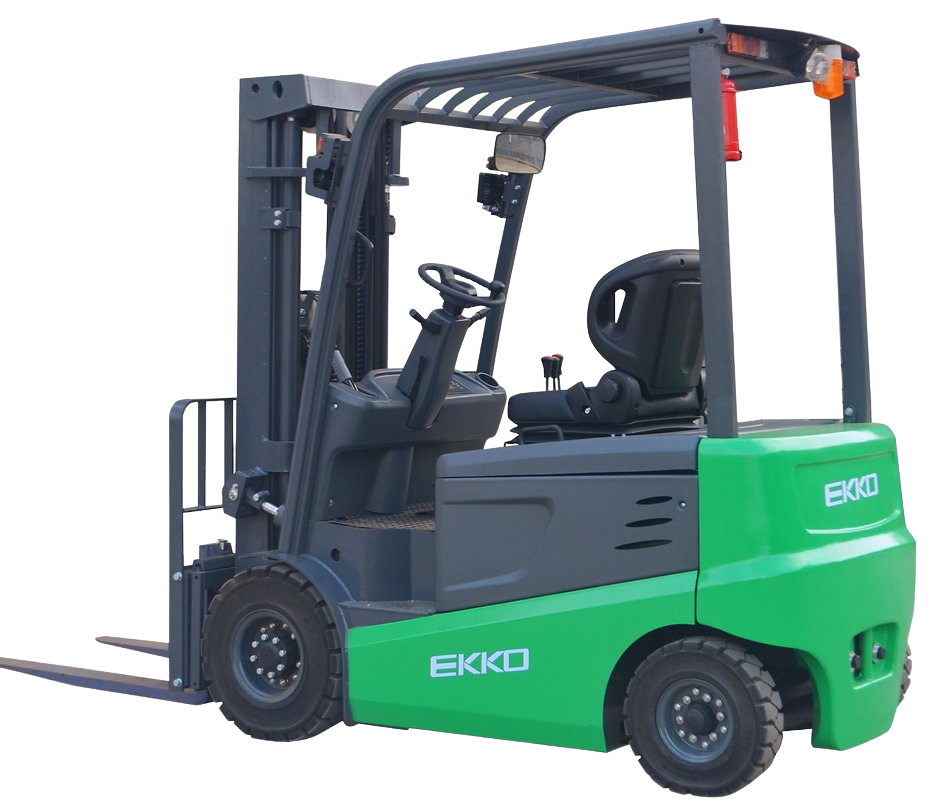

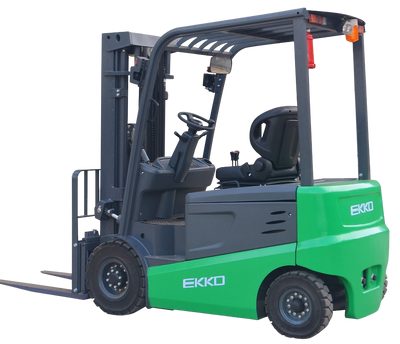

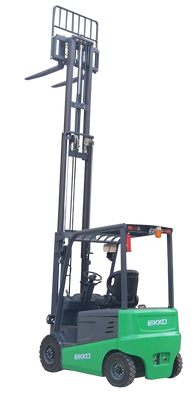

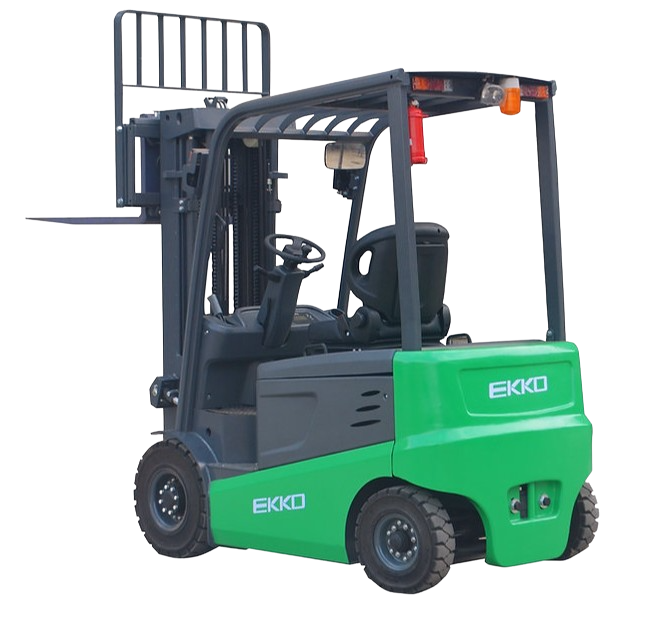

Ekko EK20-189LI 4 Wheel Electric Forklift 189" Lift 4500 lbs. Capacity New
Product Overview
The Ekko EK20-189LI 4 Wheel Electric Forklift with lithium battery is designed for use for all of your material handling demands. It features fast charging abilities (fully charged after 2.5 hours).
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 4500 lb
- Raised Height 189" (15.75ft)
- Side Shifting Forks
- Free Lift 43.4”
- Adjustable Forks 9.4 - 34.25"
- Fork Length 42“
- Hydraulic Steering
- Curtis Instrument Controller
- AC Drive Motor 7500 Watts
- 7700 Watts Lifting Motor
- Battery 48V/350Ah Lithium (Included)
- Solid Cushion Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/60A 480V
Specifications
| Turning radius (in) | 86.02 |
| Maximum gradient performance, laden/unladen (%) | 6/8 |
| Lift speed, laden/unladen (in/s) | 9.45/12.6 |
| Lowering speed, laden/unladen (in/s) | 8/6.8 |
| Charger (v/a) | 48/60 |
| Driving Motor (k/w) | 7.5 |
| Lifting Motor (k/w) | 7.7 |
| Battery voltage (v/ah) | 48/350 Li |
| Service Weight | 8560 lbs. |
| Model | EK20-189LI |
| Lift | Electric |
| Drive | Sit Down |
| Load capacity | 4400 lbs. |
| Load center distance (in) | 19.68 |
| Wheel base (in) | 59.84 |
| Lifting height (in) | 189 |
| Free lifting height (in) | 43.4 |
| Lowered mast height (in) | 83.94 |
| Mast/Fork carriage tilt forward/backward ( °) | 6/6 |
| Side Shifting Forks | 3-way valve |
| Overall length (in) | 132.28 |
| Overall width (in) | 42.12/42.91 |
| Fork size, Thick/Width/Length (in) | 1.57/4.72/42.12 |
| Fork adjust width (in) | 8.7 - 29 |
