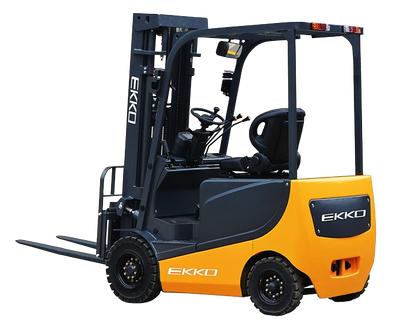

Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
Manufacturer: Ekko
SKU: EK20R
QTY
or
(888) 999-1522
$ 32,999.00
$ 31,799.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Sign up for restock notifications!
Exceptional Customer Service
Authorized Dealer
Ekko EK20R 4 Wheel Electric Forklift 216" Lift 4500 lbs. Capacity New
Product Overview
The Ekko EK20R 4 Wheel Electric Forklift is designed for use for all of your material handling demands.
It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 4500 lb
- Raised Height 216" (18ft)
- Side Shifting Forks
- Free Lift 73”
- Adjustable Forks 9.4-35.6"
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- ZF AC Drive Motor 7500 Watts
- 7700 Watts Lifting Motor
- Battery 48V/420Ah (Included)
- Solid Cushion Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 48V/65A 480V
Specifications
| Turning radius (in) | 84.6 |
| Maximum gradient performance, laden/unladen (%) | 12/15 |
| Lift speed, laden/unladen (in/s) | 7.5/9 |
| Lowering speed, laden/unladen (in/s) | 9.5/10.2 |
| Charger (v/a) | 48/65 |
| Driving Motor (k/w) | ZF AC 48V/7500 |
| Lifting Motor (w) | 7700 Watt |
| Battery voltage (v/ah) | 48V/420 |
| Service Weight | 8000 lbs. |
| Model | EK20R |
| Lift | Electric |
| Drive | Sit-Down |
| Load capacity | 4500 lbs. |
| Load center distance (in) | 24 |
| Wheel base (in) | 55.5 |
| Lifting height (in) | 216 |
| Free lifting height (in) | 73 |
| Lowered mast height (in) | 93 |
| Mast/Fork carriage tilt forward/backward ( °) | 3/6 |
| Side Shifting Forks | 3-way valve |
| Overall length (in) | 134 |
| Overall width (in) | 42 |
| Fork size, Thick/Width/Length (in) | 1.6/4.7/45.3 |
| Fork adjust width (in) | 9.4 - 35.6 |
Package Contents
4 Wheel Electric Forklift
Brochure
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
