Ekko EK25TLP Forklift Propane 5,000 lb. Capacity 4-Wheel Solid Pneumatic Tires New
Manufacturer: Ekko
SKU: EK25TLP
QTY
or
(888) 999-1522
$ 31,195.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Save $50 with coupon
In Stock
ON SALE!
Ships in 1-2 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer

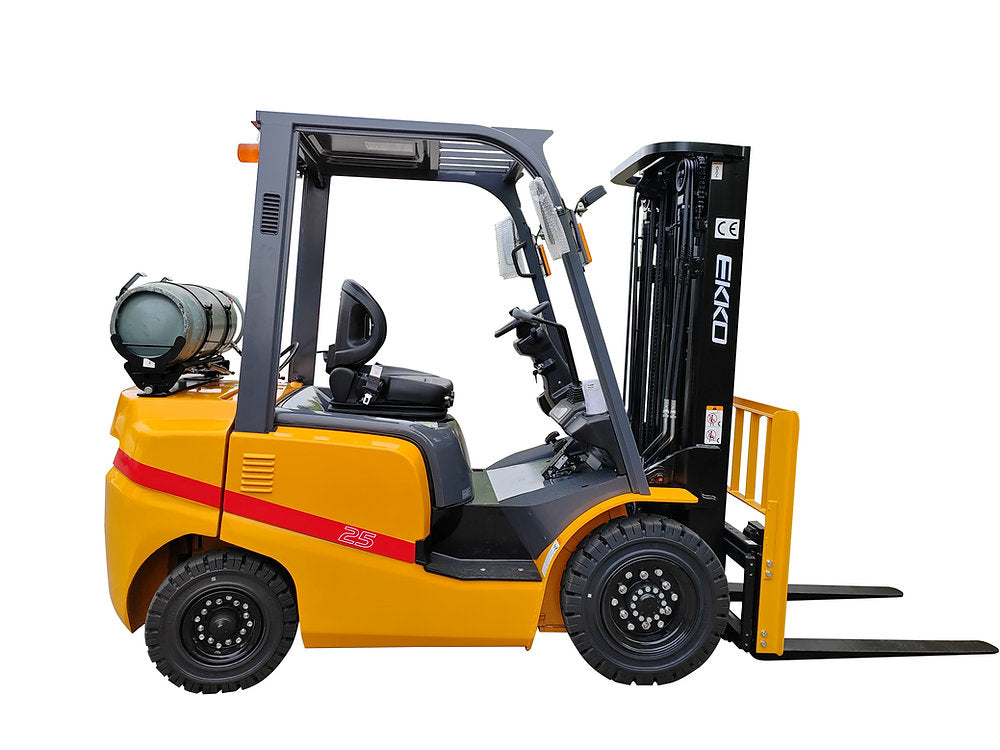

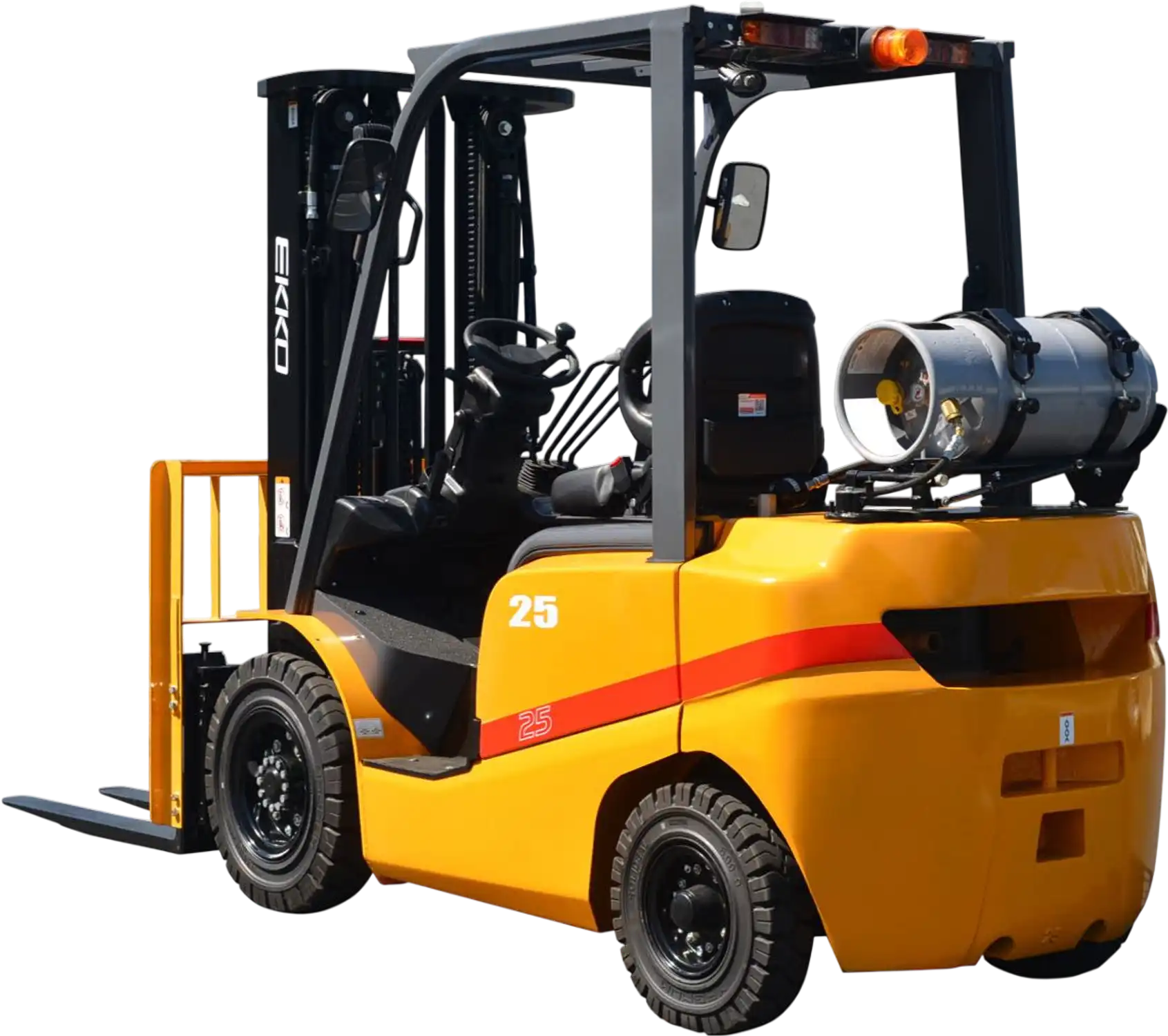

Ekko EK25TLP Forklift Propane 5,000 lb. Capacity 4-Wheel Solid Pneumatic Tires New
Product Overview
The EKKO EK25TLP is a liquid propane 4-wheel forklift built for material handling, warehousing, and distribution applications. It features solid pneumatic tires, a 5,000 lb load capacity, and a 185" lift height for dependable indoor or outdoor operation. The truck is designed for operator comfort with an enlarged operating space, semi-suspension seat, and flexible steering. Its optimized hydraulic system helps improve efficiency while reducing fuel consumption. The unit includes side shift capability, and the small turning radius makes steering flexible and easy.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- The operation space is enlarged with heightened overhead guard and using large arc shape of the guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve driving comfort level
- Cushion connection and whole suspension cab can absorb the vibrations of the truck effectively
- Lowering damping device inside the lifting system reduces mast's shock and vibration
- Small turning radius makes steering flexible and easy
- With optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption

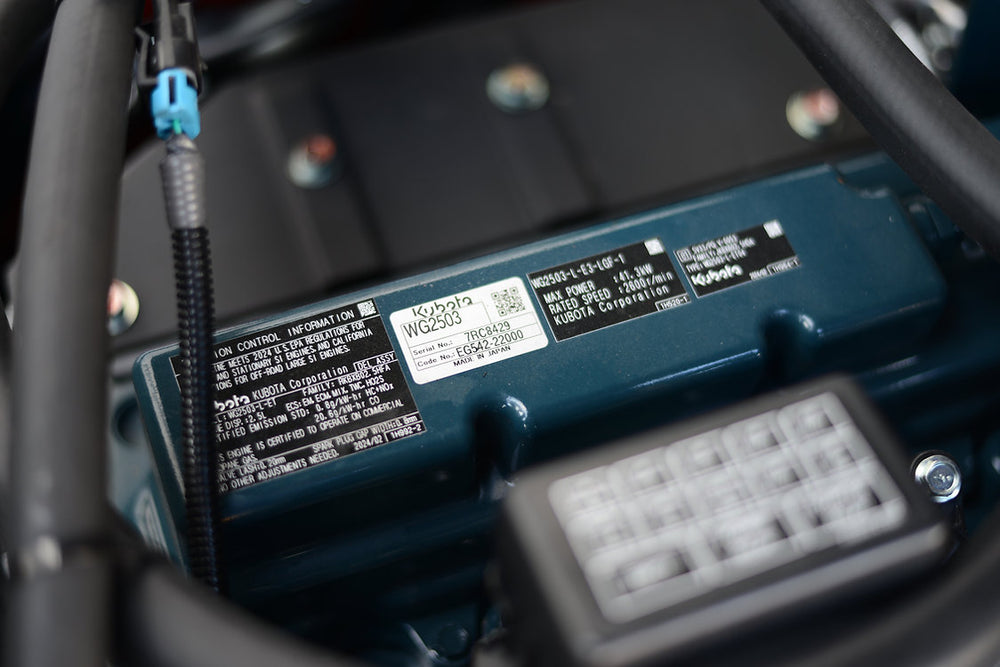

- The engine satisfies the CARB 4 regulation
- Cascade Side Shift
- Shimadzu 4-Way Valve (Pre-Plumbed)
Specifications
| Model | EK25TLP |
|---|---|
| Type of Operation | Propane |
| Load Capacity | 5,000 lbs |
| Load Center | 24" |
| Lift Height | 185" |
| Wheelbase | 62.9" |
| Service Weight | 8,465 lbs |
| Tire Material | Solid Pneumatic Tire |
| Wheel | 7.00-12-12PR/6.00-9-10PR |
| Service Brake | Hydraulic Floor Pedal |
| Overall Width | 45.2" |
| Overall Length with Forks | 144.6" |
| Overall Length without Forks | 99.6" |
|---|---|
| Minimum Ground Clearance at Mast | 4.3" |
| Max Traveling Speed (Loaded / Unloaded) | 10.6 / 11.8 mph |
| Mast Overall Height | 83" |
| Free Lifting Height | 43.7" |
| Overall Height with Forks Lifted | 225" |
| Fork Size | 42.1" x 4.8" x 1.5" |
| Battery | 12V / 60Ah |
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
