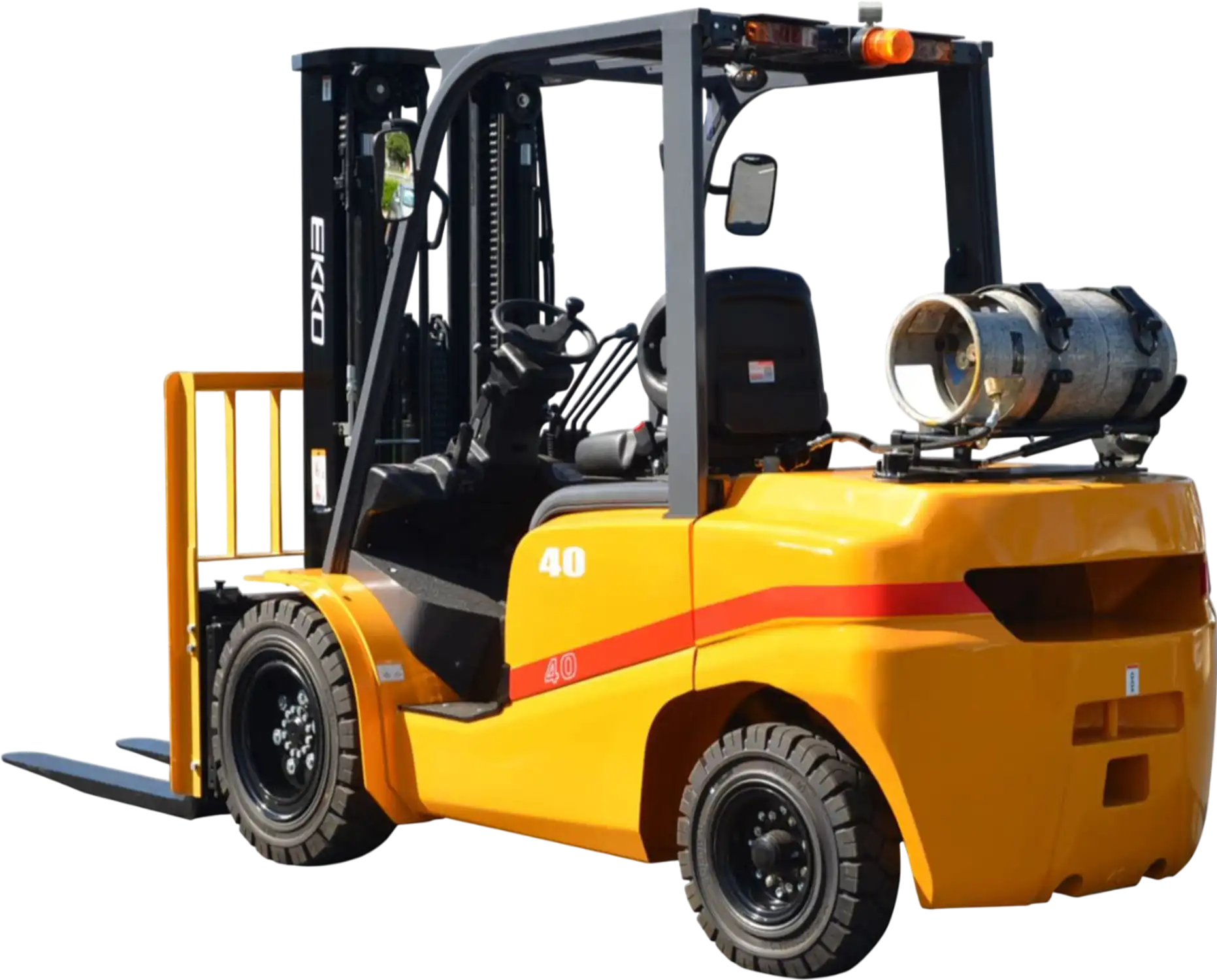

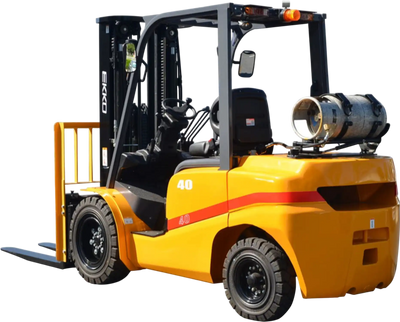

Ekko EK40TLP Forklift 8500 lbs. Capacity 185" Lift Height 4 Wheel Solid Pneumatic Tires New
Manufacturer: Ekko
SKU: EK40TLP
Weight Capacity
QTY
or
(888) 999-1522
$ 43,889.05
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Ekko EK40TLP Forklift 8500 lbs. Capacity 185" Lift Height 4 Wheel Solid Pneumatic Tires New
Product Overview
The EKKO EK40TLP is a liquid propane 4-wheel forklift built for material handling, warehousing, and distribution applications. It features an 8,500 lbs load capacity, a 185" lift height, and solid pneumatic tires for demanding operating environments. This model is designed for operator comfort with an enlarged operating space, semi-suspension seat, and flexible steering. It also includes a Cascade side shift and a Shimadzu 4-way valve pre-plumbed from the factory. Power comes from a PSI 2.4L engine that is Tier 4 EPA compliant.
Brand new
3 year factory warranty
Manufacturer direct shipping from California
Authorized EKKO dealer
Features
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and autombile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
- Cascade® Side Shift
- Shimadzu® 4-Way Valve (Pre-Plumbed)
Specifications
| Model | EK40TLP |
| Load Capacity | 8,500 lbs |
| Load Center | 24" |
| Lift Height | 185" |
| Wheelbase | 70.8" |
| Service Weight | 11,519 lbs |
| Tire Material | Solid Pneumatic Tire |
| Wheel | 250-15-16PR/6.50-10-10PR |
| Service Brake | Hydraulic Floor Pedal |
| Overall Width | 52.9" |
| Overall Length with Forks | 157" |
| Overall Length without Forks | 112" |
| Minimum Ground Clearance at Mast | 4.7" |
| Max Traveling Speed Loaded/Unloaded | 10.3/11.2 mph |
| Mast Overall Height | 86.2" |
| Free Lifting Height | 37.9" |
| Overall Height with Forks Lifted | 234" |
| Fork Size | 42.1" x 5.9" x 1.9" |
| Battery | 12V / 60Ah |
| Engine Model | PSI 2.4L |
| Engine Rated Power | 63 HP at 2700 rpm |
| Dimensions | 157" overall length with forks x 157 | overall width x 52.9 | overall height with forks lifted 234" |
Package Contents
EKKO EK40TLP forklift
User Manual
Warranty
This item comes with a 3 year warranty.
