Ekko Electric Straddle Stacker Full Powered 2800 lbs 138 in. Lift Height EB13E-138 New
Manufacturer: Ekko
SKU: EB13E-138
QTY
or
(888) 999-1522
$ 5,556.55
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Extended Warranty
Factory Warranty
- This item comes with a 3 year limited manufacturer's warranty, please see below.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 3 year limited manufacturer's warranty, please see below.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer

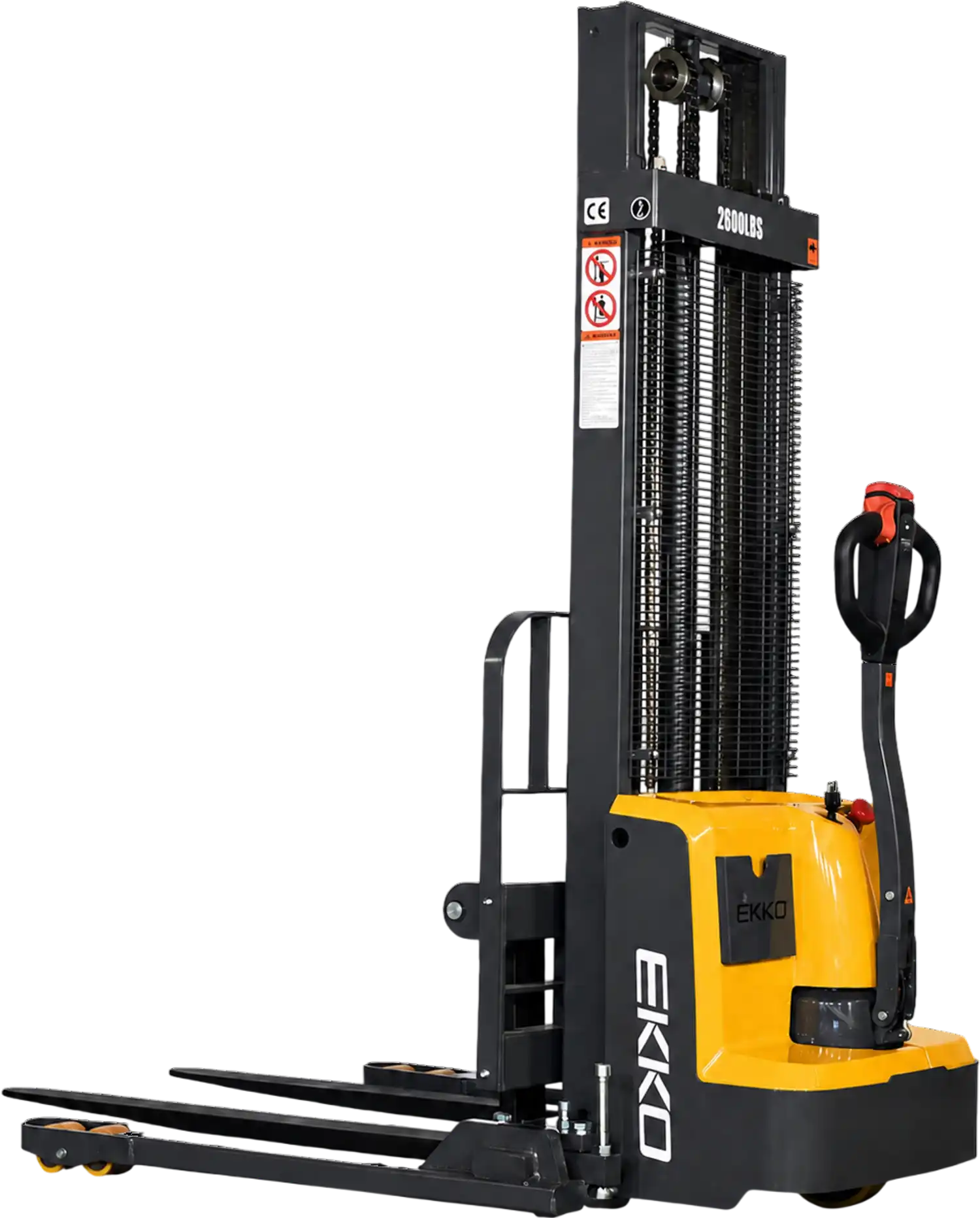

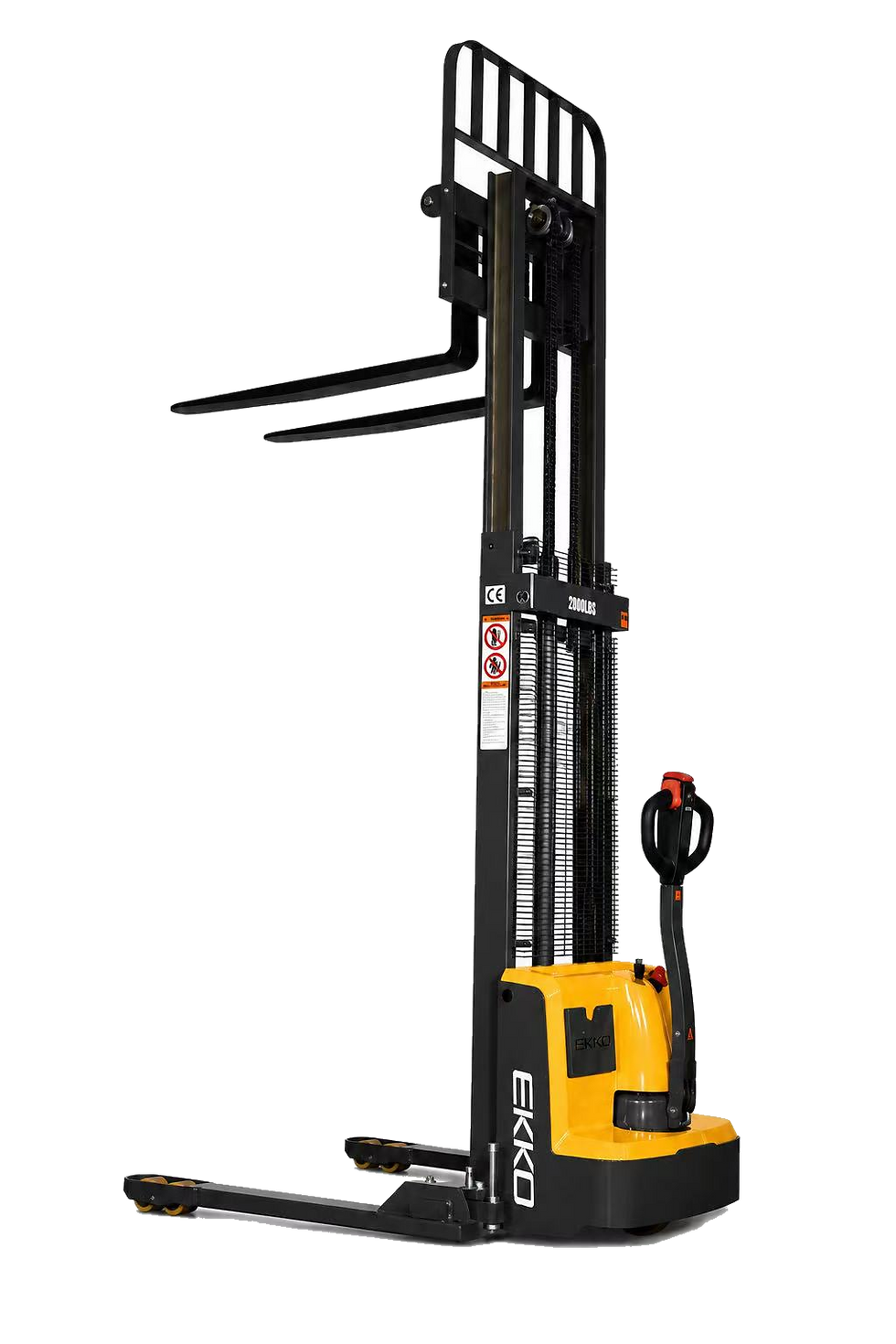

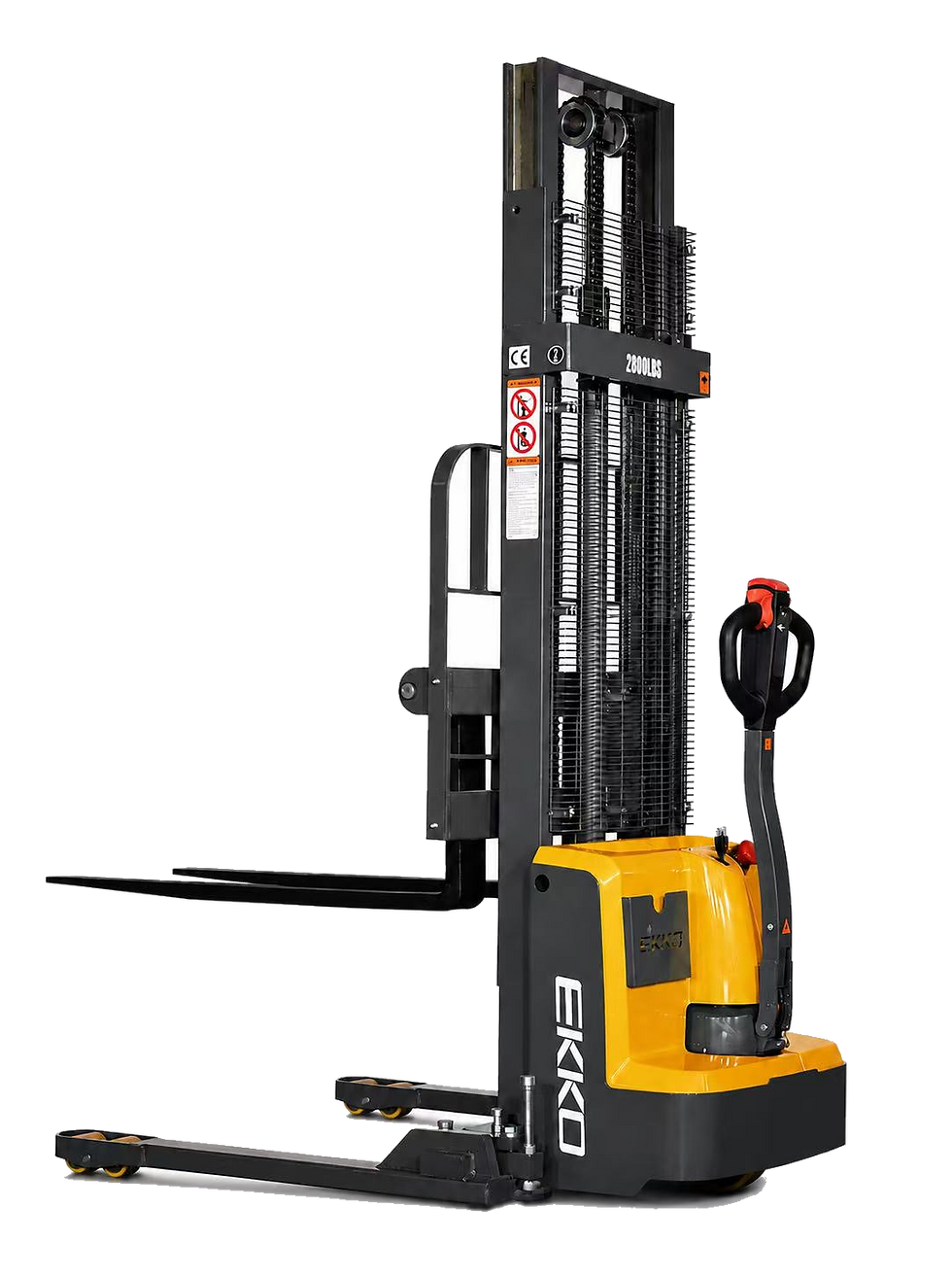

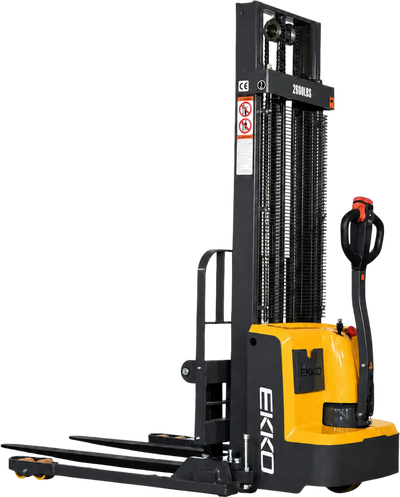

Ekko Electric Straddle Stacker Full Powered 2800 lbs 138 in. Lift Height EB13E-138 New
Product Overview
The EKKO EB13E-138 is a full powered electric straddle stacker designed to combine the versatility of a forklift, reach truck, and walkie stacker. It is suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouse applications. Built with steel construction, durable drive components, and polyurethane wheels, it is made for reliable daily material handling. The unit features adjustable forks and adjustable legs for added flexibility across different pallet sizes. Ergonomic controls and electric lift and drive motors help provide efficient operation and maneuverability.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 2800 lb
- Raised Height 138”
- Adjustable Forks 8.3-33.5“
- Adjustable Legs 45.7-59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 2*12V/100Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
Specifications
| Model | EB13E-138 |
| Load Capacity | 2800 lbs |
| Lift Height | 138" |
| Max Lifting Height | 138" |
| Load Center Distance | 24" |
| Fork Length | 45.3" |
| Single Fork Width | 4" |
| Overall Fork Width | 8.3"-33.5" |
| Lowered Fork Height | 2.35" |
| Fixed Leg Length | 36.5" |
| Adjustable Legs | 45.5"-59.1" |
| Turning Radius | 52.6" |
| Overall Length | 70" |
| Max Overall Width | 61" |
| Extended Mast Height | 154" |
| Lowered Mast Height | 92" |
| Battery | 2 x 12V/100Ah |
| Internal Charger | 24V/15A |
| Lifting Motor | 2.2 kW |
| Lift Speed Laden/Unladen | 92/136 mm/s |
| Lowering Speed Laden/Unladen | 112/98 mm/s |
| Driving Motor | 0.75 kW |
| Driving Speed Laden/Unladen | 2.48/2.6 mph |
| Service Weight | 1450 lbs |
Package Contents
EB13E-138 straddle stacker
Built-in charger
Batteries
User Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
