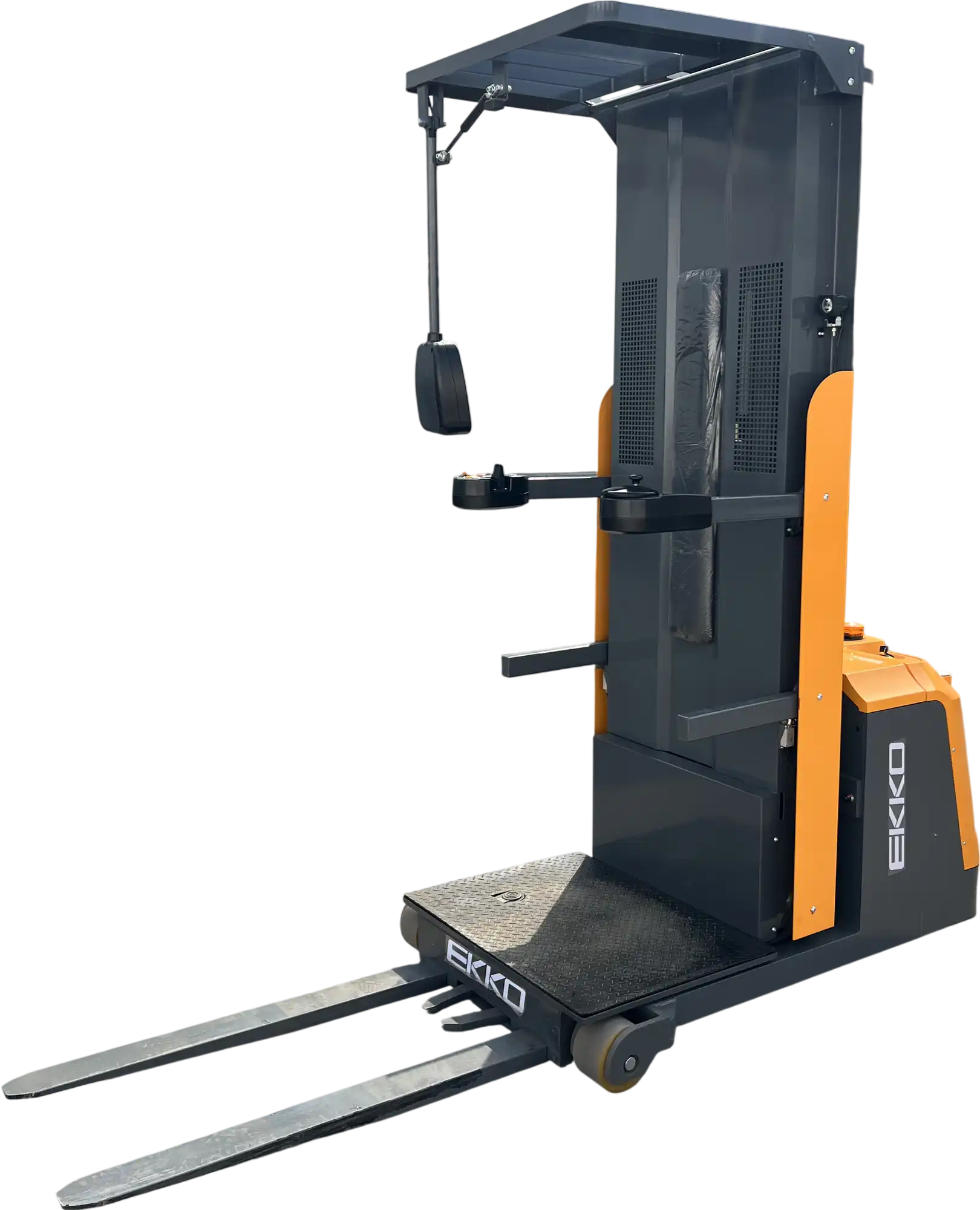

Ekko EOP150-165LI Order Picker Lithium 1500 lbs. Capacity 165" Lift Height New
Manufacturer: Ekko
SKU: EOP150-165LI
Lift Height
QTY
or
(888) 999-1522
$ 35,999.00
$ 34,199.05
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Clip this coupon for $50 off at checkout
Ships in 1-2 business days
Exceptional Customer Service
Authorized Dealer
Ekko EOP150-165LI Order Picker Lithium 1500 lbs. Capacity 165" Lift Height New
Product Overview
The EKKO EOP150 Series Lithium Order Picker is built to efficiently pick orders in racking, storage facilities, manufacturing floors, and warehouses. Its high-quality steel construction and durable components are designed to handle demanding industrial use, impacts, and directional changes. This standing order picker features electronic power steering, AC drive power, and a 24V/200Ah lithium battery for reliable everyday performance. Multiple lift height options make it suitable for a range of order-picking applications.
Brand new
3 year factory warranty
Manufacturer direct shipping from California
Authorized EKKO dealer
Features
- Load Capacity: 1500 lbs
- Raised Height: 165
- Auxiliary Fork
- Electronic Power Steering (EPS)
- AC Drive Motor
- Polyurethane Tires
- Ergonomic Handle and Controls
- Curtis® Controller
- 24V/200Ah Lithium Battery
Specifications
| Model | EOP150-165LI |
| Drive Type | Lithium Order Picker |
| Operation Type | Standing |
| Capacity | 1,500 lbs |
| Overall Length | 101" |
| Chassis Width | 32/37" |
| Fork Size s/e/l | 1.6/5/42" |
| Fork Outside Width | 22" |
| Lift Height | 165" |
| Handle Height | 46" |
| Fork Lowered Height | 2.2" |
| Cabin Ground Clearance | 87" |
| Ground Clearance at Wheelbase Center | 3" |
| Drive/Load Wheel Material | Polyurethane |
| Auxiliary Wheel | 49" |
| Load Center | 20" |
| Front Overhang | 3.4" |
| Turning Radius | 57" |
| Aisle Width 1000×1200 Pallet | 114" |
| Aisle Width 800×1200 Pallet | 118" |
| Travel Speed 1st Gear | 3.10 mph |
| Travel Speed 2nd Gear | 1.55 mph |
| Travel Speed 3rd Gear | 0.75 mph |
| Travel Speed 4th Gear | 0.37 mph |
| Max Gradeability Loaded/Unloaded | 0 |
| Battery Voltage/Capacity Lithium | 24V/200Ah |
| Drive Motor Power | 1.5 kW |
| Lift Motor Power | 3 kW |
| Steering Type | Electric Steering |
| Brake Type | Electromagnetic Brake |
| Battery Replacement Method | Hoist-Lift Type |
| Drive Control Type | AC |
| Dimensions | 101" L x 32/37" W x 165" Lift Height |
Package Contents
EKKO EOP150-165LI lithium order picker
User Manual
Warranty
This item comes with a 3 year warranty.
