Ekko EOP70 Order Picker 196" Lift 2200 lbs. New

Manufacturer: Ekko

SKU: EOP70

Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New





Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New
Ekko EOP70 Order Picker 196" Lift 2200 lbs. New

QTY

$ 23,999.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

in stock checkmark

In Stock

delivery truck icon

Please allow 3-5 business days for processing

Manufacturer Direct Shipping

headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Product Overview

The Ekko EOP70 Electric Mid-Level Order Picker is designed with it's sole purpose to pick your orders from your racking and storage facility rooms, manufacturing floors and warehousing.

vendor logo
divider
authorized dealer
checkmark

Brand new and manufacturer direct

checkmark

3 year limited manufacturer's warranty

checkmark

Ships from manufacturer in CA

checkmark

Fast processing with free shipping

checkmark

Authorized Ekko dealer

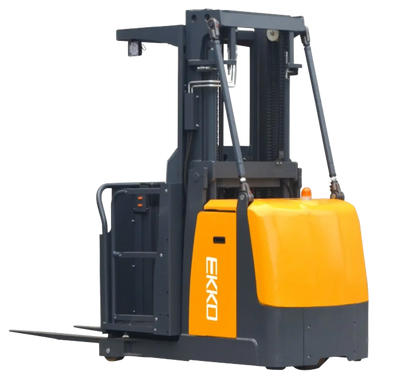

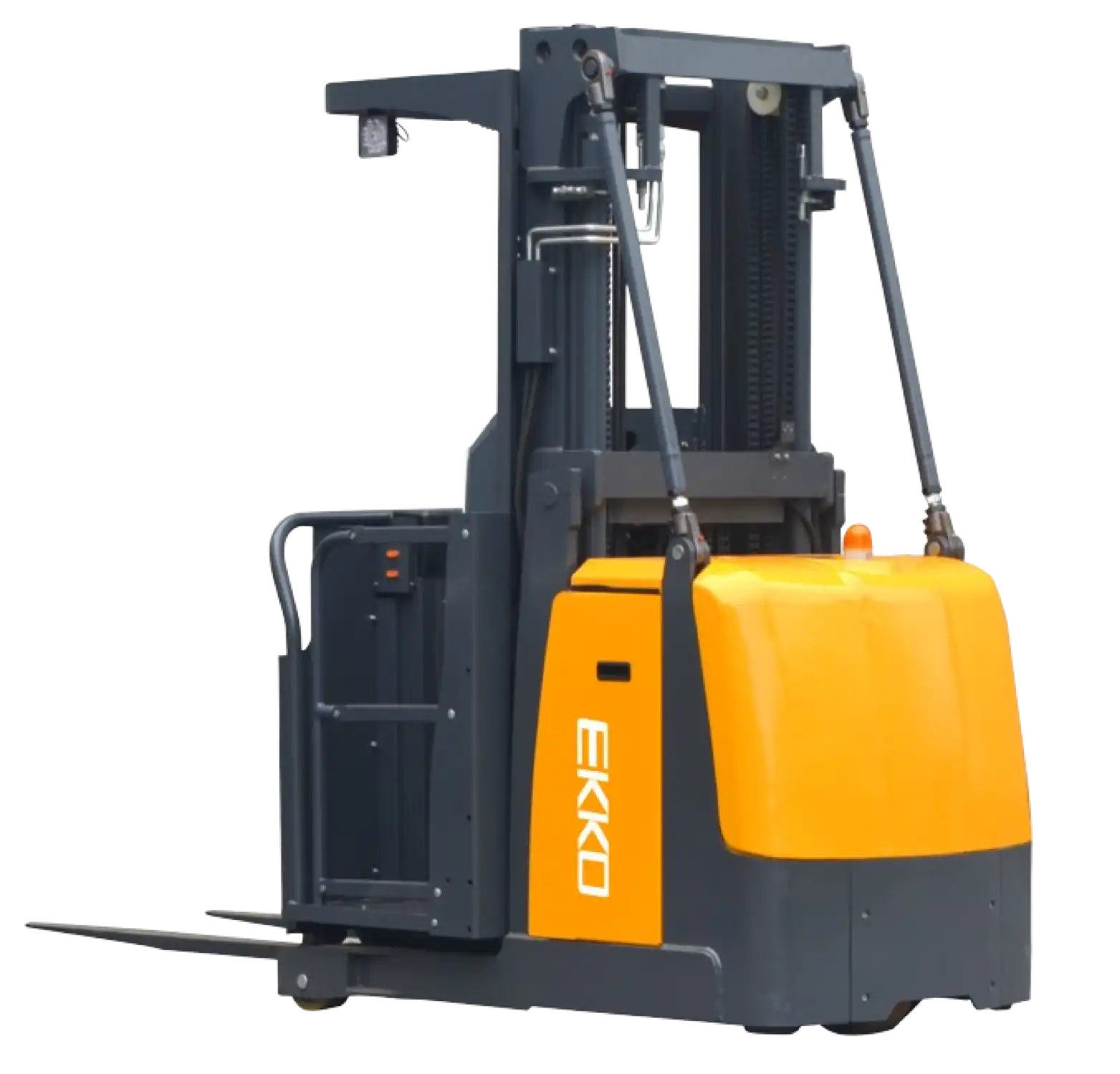

Ekko EOP70 Order Picker 196

Ekko EOP70 Order Picker 196" Lift 2200 lbs. New

Features

  • Load Capacity 2200 lb
  • Raised Height 196" (16.33 ft.)
  • Adjustable Forks
  • Auxiliary Fork
  • Triple Mast
  • Curtis Instrument Controller
  • EPS (Electronic Power Steering)
  • German AC Drive Motor
  • Battery 24V/350Ah
  • 24V/50A
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included

Specifications

Overall length (Inch) 111.41
Body Length (Inch) 69.29
Overall width (Inch) 39.37/145.28
Fork Size (Inch) 1.37/3.93/42.13
Width of fork fixing frame (Inch) 35.83
Outside fork width (Inch) 34.33
Min. Ground clearance (Inch) 1.97
Aisle width for pallets 39.37 x 47.24 crossways (Inch) 122.24
Aisle width for pallets 31.5 x 47.24 lengthways (Inch) 126.77
Turing Radius (Inch) 61.81
Travel speed, laden/unladen (km/h) 8
Climbing ability, with/without load (%) 3/6
Brake Type Electromagnetic brake
Drive Motor (kW) 3
Lift Motor (kW) 6
Battey, DIN 43531/35/36 A,B,C,no no
Battery voltage/rate capacity (V/Ah) 24/350
Type of drive control AC
Noise level (dB(A)) ≤75
Model EOP70
Power unit Electric
Operation Stand on
Rated loading capacity 2200 lbs.
Load center (Inch) 19.68
Between fork backrest and front wheel (Inch) 7.56
Wheelbase (Inch) 53.46
Service weight with battery 6600 lbs.
Wheels type PU
Driving wheel size (Inch) Φ9.84 × 5
Bearing wheel size (Inch) Φ5.9 × 3.23
Wheels, number front/rear 1, /2
Track width (Inch) 37.8
Lowered mast height (Inch) 93.11
Lifting height (Inch) 196"
Extended mast height (Inch) 285
Height of overhead guard (Inch) 89.48
Height of seat/stand-on platform (Inch) 10.67
Additional lift height (Inch) 30.71
Total lift height (Inch) 227
Platform lifting height (Inch) 206.873
Lowered fork height (Inch) 1.97
Picking height (Inch) 258.01

Package Contents

Order Picker

Brochure

Warranty

vendor logo
divider
authorized dealer

This item comes with a 3 year limited manufacturer's warranty, please see below.

Customer Reviews (1)

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100%
(1)
T
Tommy Crabtree
Branch Manager

My Company bought 6 Ekko lifts from Manufatuer 18 months ago we have had all kind of problems
was told parts avalible through out united states which was not true. as of today out of the six only
1 is working if i trade in for a new order picker they will only give me 500.00 for scrap that is pretty bad. we have spent 50,000 just to fix them in last 18 months. these lifts are garbage.
