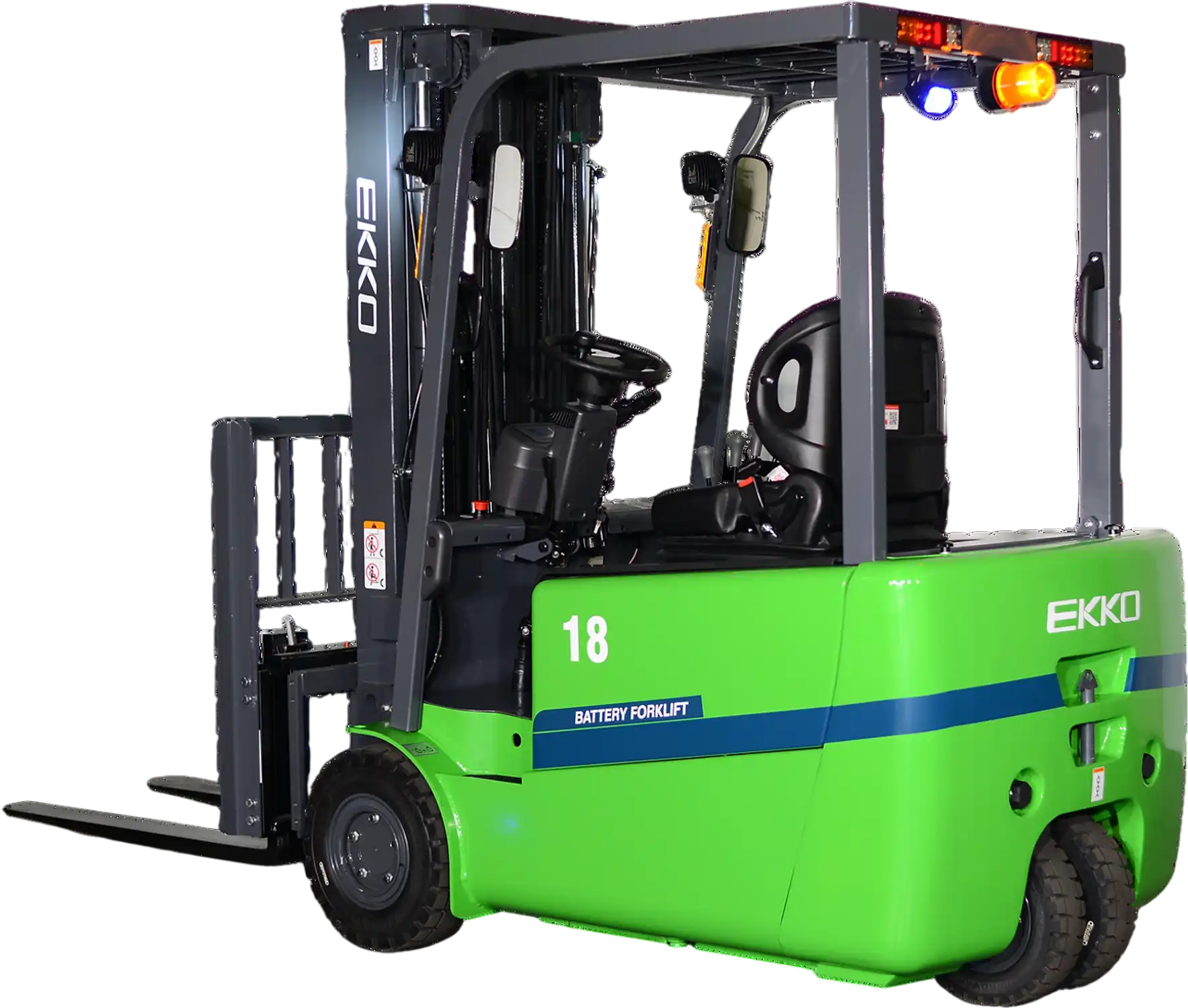

Ekko Forklift 3-Wheel Lithium 4,000 lbs Capacity 185 in. Lift Height EK18AT-185Li New
Product Overview
The EKKO EK18AT-185Li is a 3-wheel lithium forklift built for demanding material handling in warehouses, loading docks, stock rooms, manufacturing floors, and truck loading applications. Its dual-motor design helps provide strong power, stability, and responsive handling for everyday operation. The unit is constructed with robust drives to withstand various terrains, heavy use, impacts, and directional changes. It includes adjustable forks, hydraulic steering, and solid pneumatic tires for dependable performance across a range of environments.
Brand new
5 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity: 4,000 lbs
- Raised Height: 185" (15.4 ft)
- Free Lift: 43.7"
- Adjustable Forks
- Hydraulic Steering
- Solid Pneumatic Tires

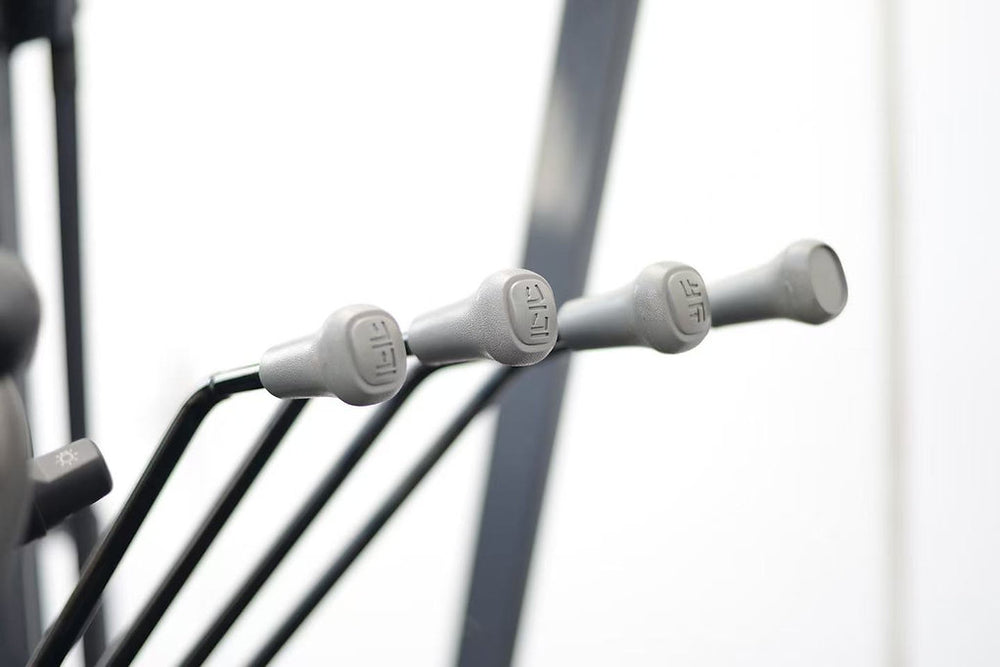

- Ergonomic Handle and Controls
- Steel Construction with Robotic Welding
- 48V/202Ah Lithium Battery (Included)
- 3-Phase 480V Charger (Optional 220V & 110V)
- InMotion® Controller
- Cascade® Side Shift

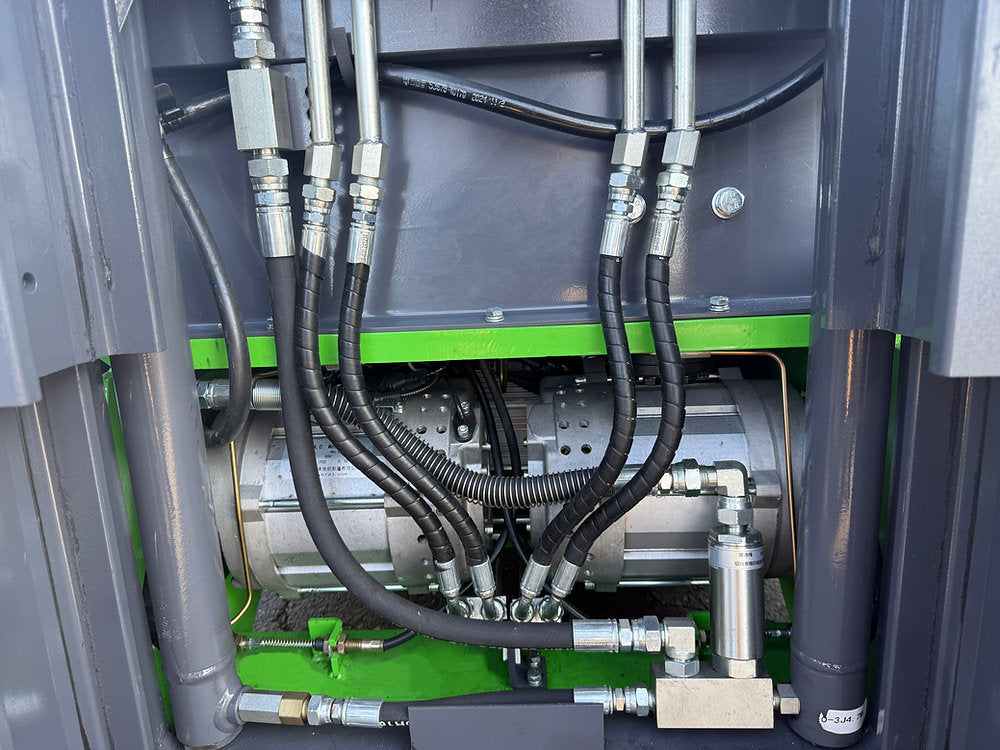

- Shimadzu® 4-Way Valve (Pre-Plumbed)
- 3 Year Limited Warranty
Specifications
| Model | EK18AT-185Li |
|---|---|
| Drive Type | Lithium Forklift |
| Type of Operation | Rider |
| Load Capacity | 4,000 lbs |
| Lift Height | 185 in |
| Load Center Distance | 24 in |
| Wheelbase | 53.5 in |
| Service Weight with Battery | 7,341 lbs |
| Tire Material | Solid Pneumatic |
| Tire Size Front | 200/50-10 |
| Tire Size Rear | 140x55-9 |
| Wheels | 2×/2 |
| Tread, Front | 35.8 in |
| Tread, Back | 7.1 in |
| Lowered Mast Height | 83 in |
| Free Lift Height | 43.7 in |
| Height of Overhead Guard Cabin | 77.6 in |
| Overall Length | 116.9 in |
| Overall Width | 41.5 in |
| Ground Clearance Under Mast | 4.3 in |
| Min. Ground Clearance | 3.7 in |
| Min. Turning Radius | 61 in |
|---|---|
| Travel Speed Laden/Unladen | 10/10 mph |
| Lifting Speed With/Without Load | 13.8 / 20.5 in/s |
| Climbing Ability With Load | 20% |
| Service Brake | Hydraulic |
| Drive Motor | 4.75 kW |
| Lift Motor | 10 kW |
| Tilt Forward/Backward | 3° / 6° |
| Side Shift | Cascade |
| Engine Mode | InMotion Controller |
| Charger | 48V/100A |
| Battery | 48V/202 Ah Lithium |
| Dimensions | 116.9 in L x 41.5 in W x 77.6 in H |
Package Contents
EK18AT-185Li Forklift
48V/202Ah lithium battery
3-Phase 480V Charger
User manual
Warranty
This item comes with a 5 year limited manufacturer's warranty, please see below.
