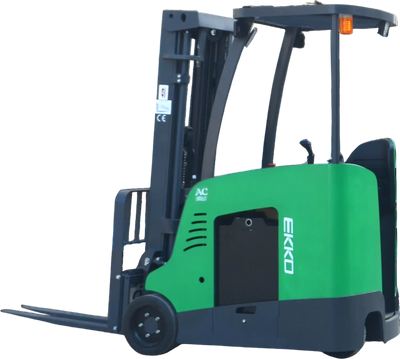

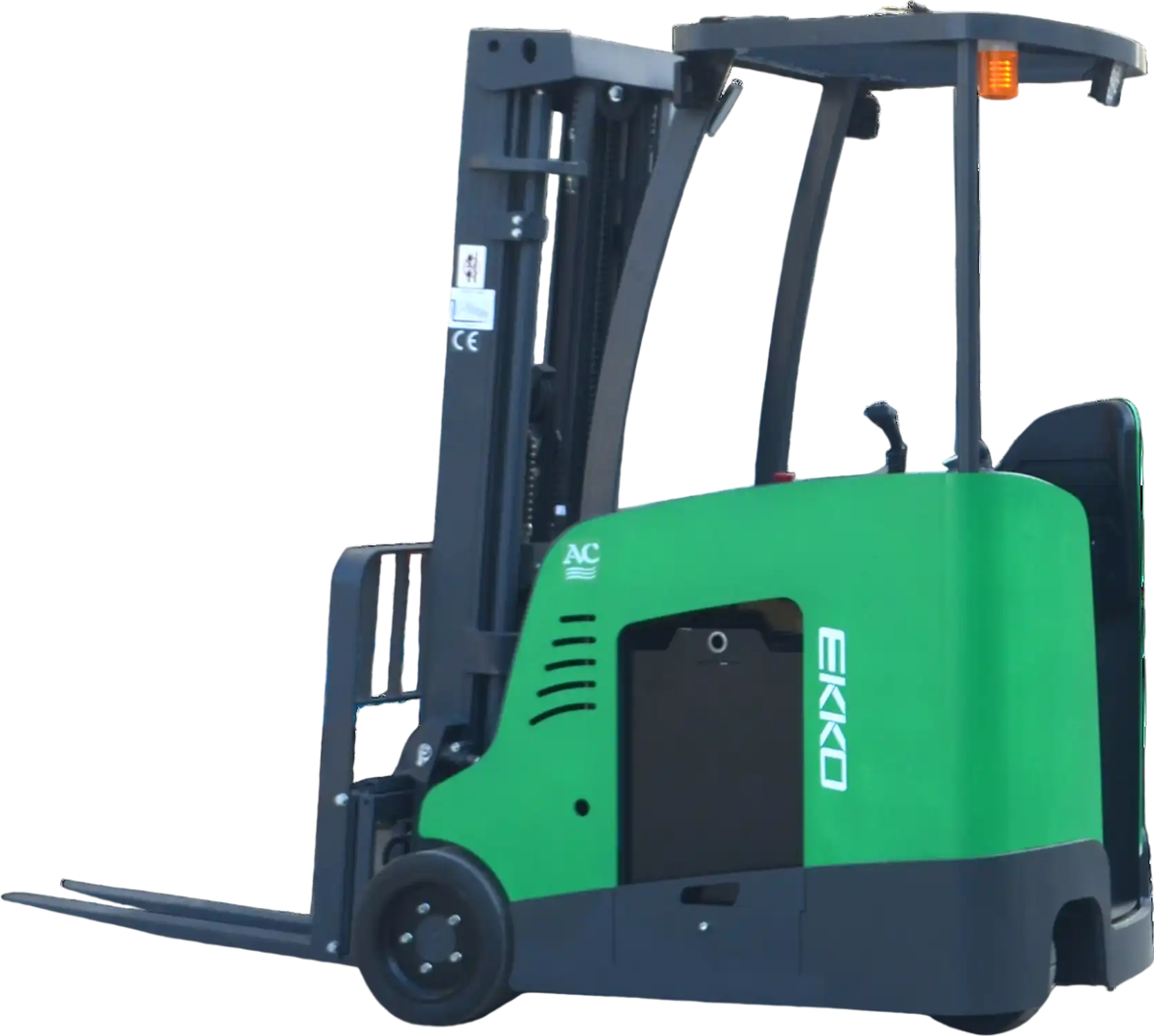

Ekko Forklift Stand-up Rider Lithium 4,000 lb Capacity 216 in. Lift Height EK18RF-Li New
Manufacturer: Ekko
SKU: EK18RF-LI
Lift Height
Lithium Battery
QTY
or
(888) 999-1522
$ 39,899.05
This item ships for free. Freight shipments include liftgate at no additional charge.
Save $50 with coupon
Only 1 left in stock
ON SALE!
Ships in 1-2 business days
Manufacturer Direct Shipping
Exceptional Customer Service
Authorized Dealer
Ekko Forklift Stand-up Rider Lithium 4,000 lb Capacity 216 in. Lift Height EK18RF-Li New
Product Overview

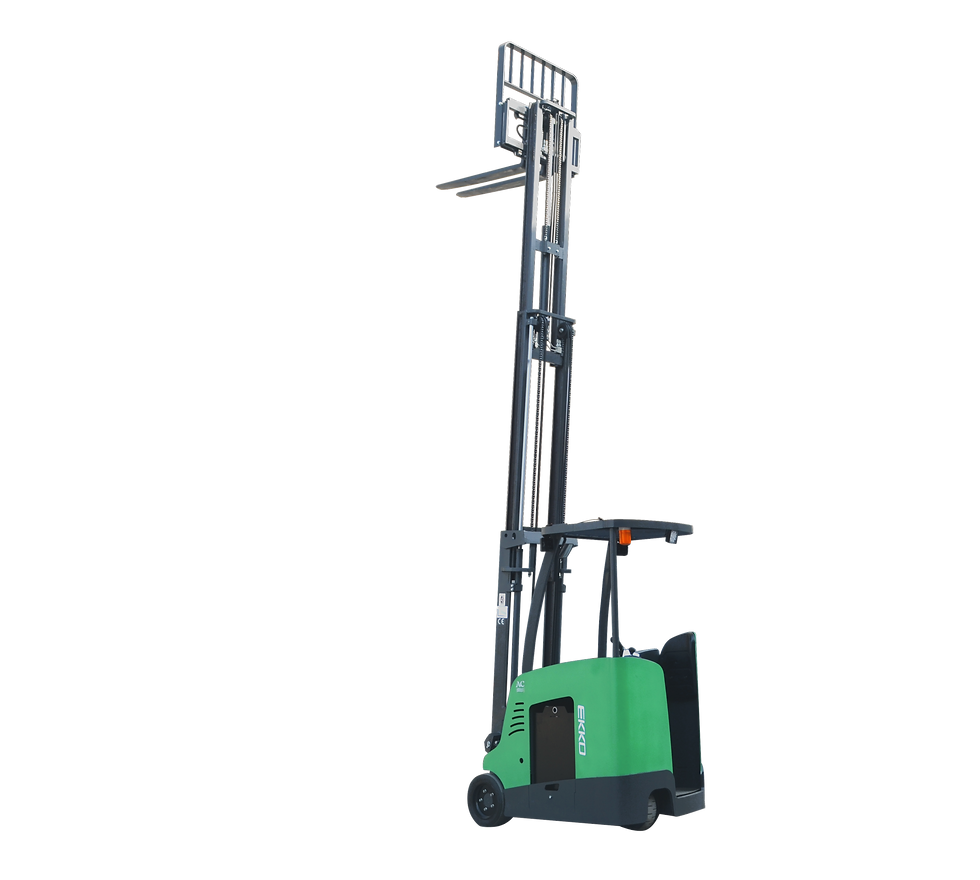

The EKKO EK18RF-Li stand-up rider forklift is built for demanding material handling applications including loading and unloading trucks, docks, stock rooms, manufacturing floors, and warehouses. It features hydraulic steering, side shift, and adjustable forks for versatile load handling. Durable steel construction, robotic welding, and quality drive components are designed to support reliable operation in industrial environments. The forklift also includes a Curtis instrument controller, German AC drive motor, and a 48V/350Ah lithium battery system.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 4000 lb
- Raised Height 216" (18 ft)
- Side Shift
- Adjustable Forks 9.4-35.6"
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/350Ah Lithium
- Solid Cushion Load Tires
- Polyeurathane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 440V three phase
Specifications
| Model | EK18RF-Li |
|---|---|
| Power Unit | Electric |
| Operation Type | Rider |
| Loading Capacity | 4000 lbs |
| Load Center | 24" |
| Axle Centre to Fork Face | 11.5" |
| Wheelbase | 48.8" |
| Service Weight With Battery | 7940 lbs |
| Wheels Type | Solid wheel |
| Driving Wheel Size | 16 x 7-10.5" |
| Bearing Wheel Size | 13.5 x 5.2" |
| Wheels Number Front/Rear | 1x/2 |
| Track Width | 35.04" |
| Mast/Fork Carriage Tilt Forward/Backward | 3/5° |
| Lowered Mast Height | 91.77" |
| Free Lift Height | 61.34" |
| Lift Height | 216.54" |
| Extended Mast Height | 248.43" |
| Height of Overhead Guard Cabin | 90.08" |
| Height of Seat/Stand-on Platform | 9.06" |
| Overall Length | 117.78" |
| Length to Fork Face | 72.52" |
| Overall Width | 42.52" / 42.13" |
| Fork Dimensions | 1.58" x 4.72" x 45.28" |
|---|---|
| Width of Forks | 36.22" |
| Adjustable Fork Range | 9.4" - 35.6" |
| Ground Clearance Under Mast | 2.95" |
| Minimum Ground Clearance | 3.86" |
| Aisle Width Requirement | 10.5' |
| Minimum Turning Radius | 58.5" |
| Travel Speed Laden/Unladen | 12/13 km/h |
| Lifting Speed With/Without Load | 250/400 mm/s |
| Lowering Speed With/Without Load | 240/258 mm/s |
| Climbing Ability With/Without Load | 6/10% |
| Service Brake | Hydraulic |
| Drive Motor 60-minute Rating | 6 kW |
| Lift Motor Rating at S3 15% | 7.7 kW |
| Battery Voltage/Rated Capacity | 48V/350Ah Lithium |
Package Contents
EK18RF-Li Stand-up Rider Forklift
48V/350Ah Lithium Battery
440V 3-phase Charger
User Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
