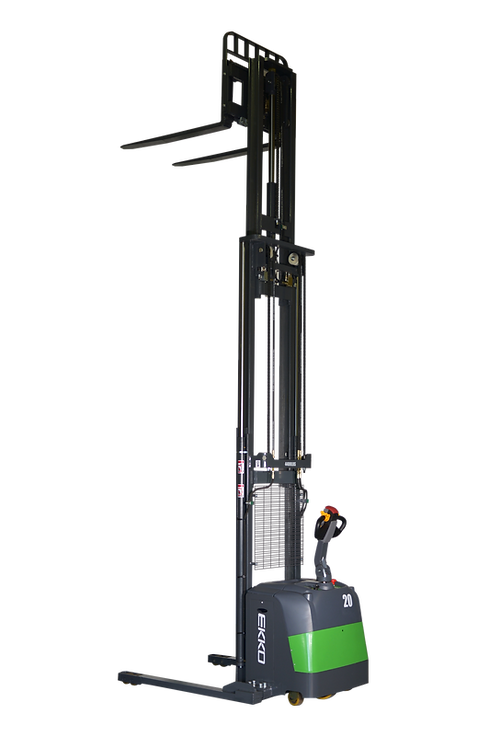

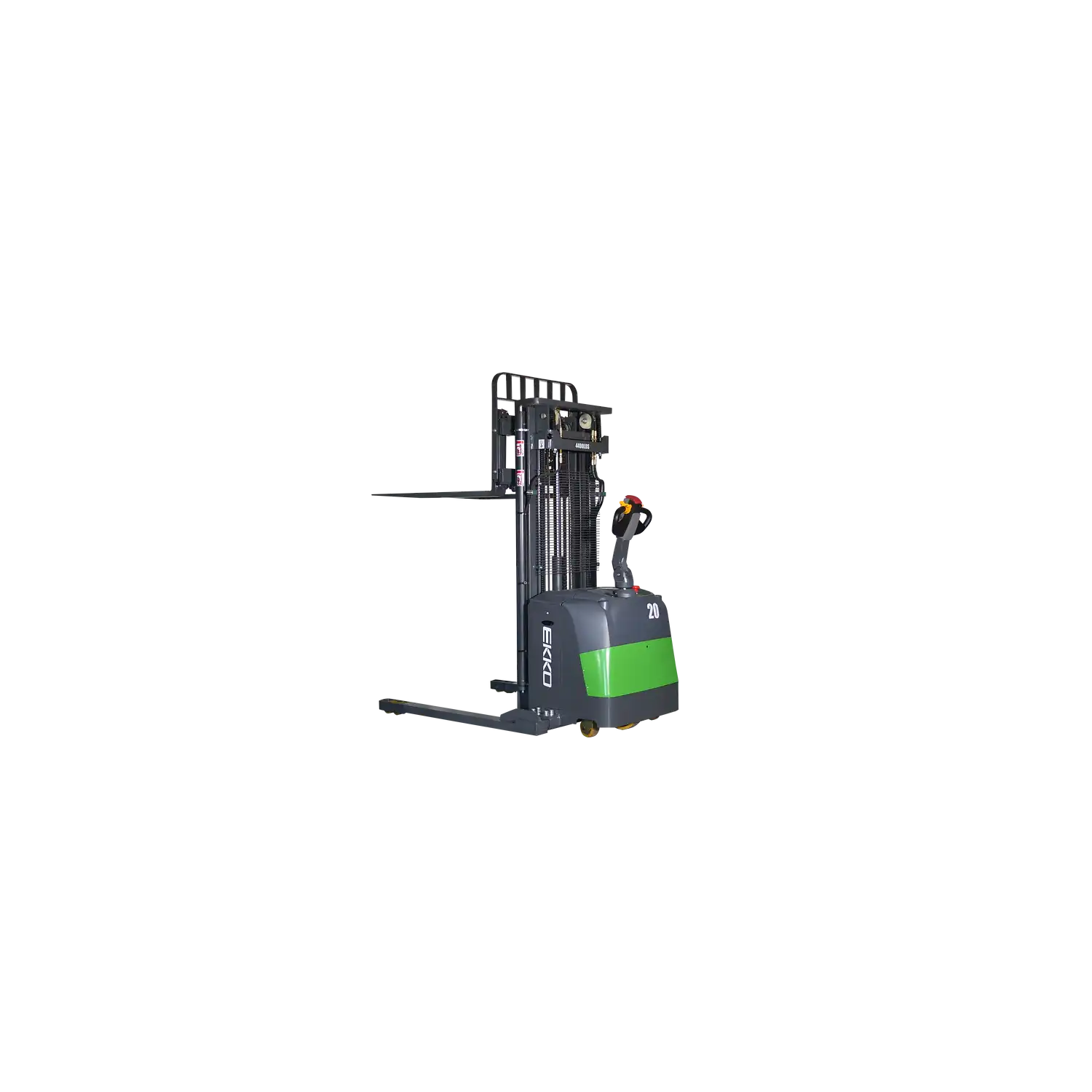

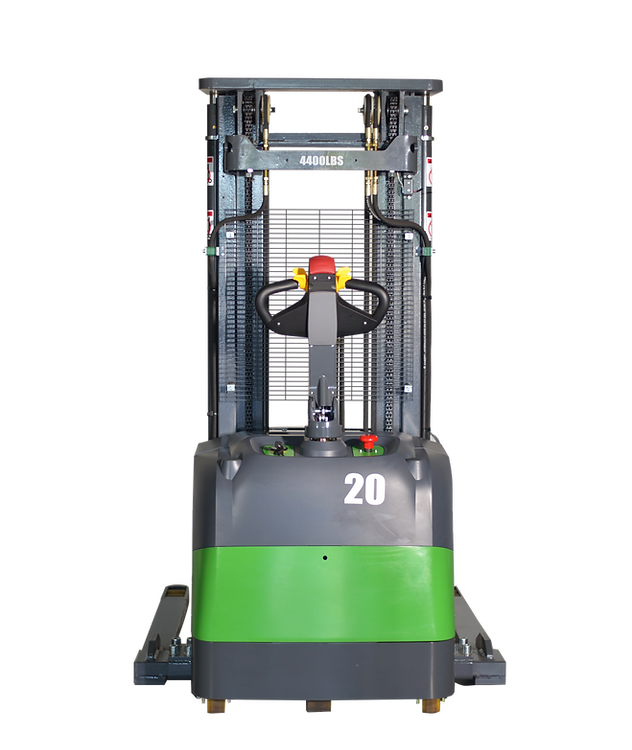

Ekko Lithium Straddle Stacker 177" Lift Height 4400 lbs. Capacity EB20CS-177LI New
Manufacturer: Ekko
SKU: EB20CS-177LI
QTY
or
(888) 999-1522
$ 18,430.00
$ 17,508.50
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer
Ekko Lithium Straddle Stacker 177" Lift Height 4400 lbs. Capacity EB20CS-177LI New
Product Overview
The EKKO EB20CS-177Li Lithium Electric Straddle Stacker features a 79" triple mast with a 177" max lifting height. Combining the versatility of a forklift, reach truck, and walkie stacker, it's ideal for loading and unloading trucks, docks, stockrooms, manufacturing, and warehouses. Built with high-quality steel and durable components, it ensures reliability across various terrains and applications.
Brand new and manufacturer direct
3 year limited manufacturer's warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- Load Capacity 4400 lbs
- Lowered Mast 79"
- Raised Height 177” (14.75 ft)
- Side Shift
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 39.8-55.5”
- Fork Length 45.3“
- Curtis Controller
- 24V Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/150Ah Lithium
- Polyurethane Wheels

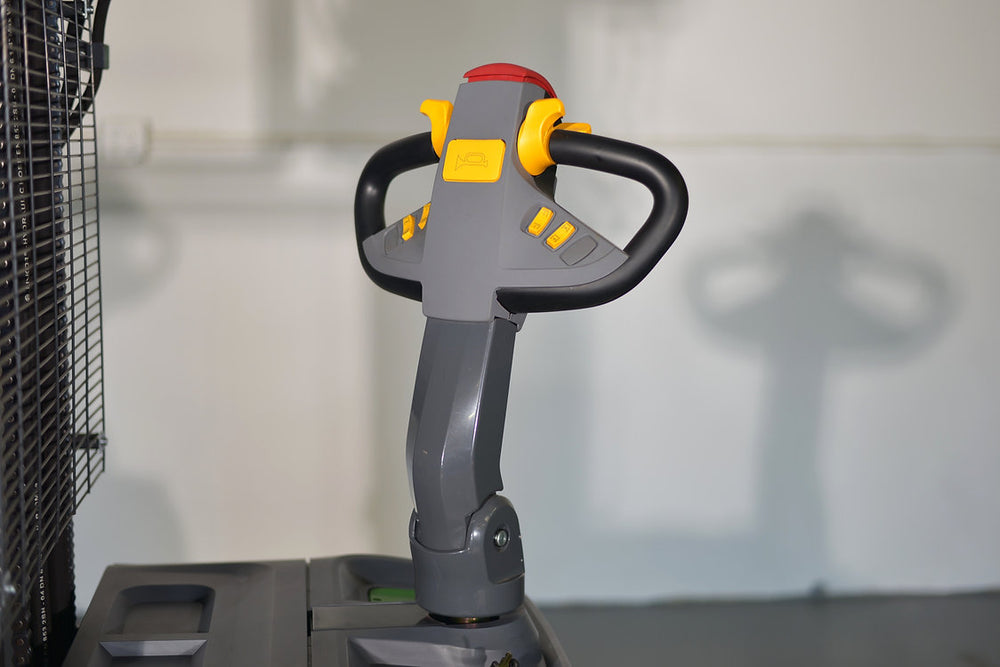

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
Specifications
| Model | EB20CS-177LI |
| Load capacity | 4400 lbs. |
| Load center | 24" |
| Fork Length | 45.3" |
| Single Fork Width | 3.9" |
| Overall Fork Width | 8.7" - 32.1" |
| Lowered Fork Height | 2.6" |
| Adjustable Legs | 39.8" - 55.5" |
| Turning Radius | 65" |
| Min. Ground Clearance | 1.2" |
| Extended Mast Height | 206.3" |
| Lowered Mast Height | 79.3" |
| Battery | 24V/150Ah Lithium |
| Overall Length | 81.9" |
| Service Weight | 2970 lbs |
Package Contents
Ekko EB20CS-177Li Full Powered Lithium Straddle Stacker
User Manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
