Ekko Lithium Straddle Stacker 189" Height 4,400 lbs. Capacity EB20CS-189LI New
Product Overview

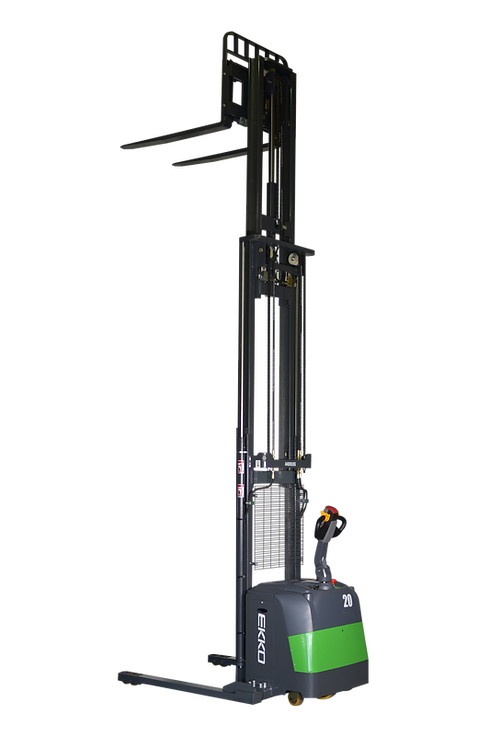

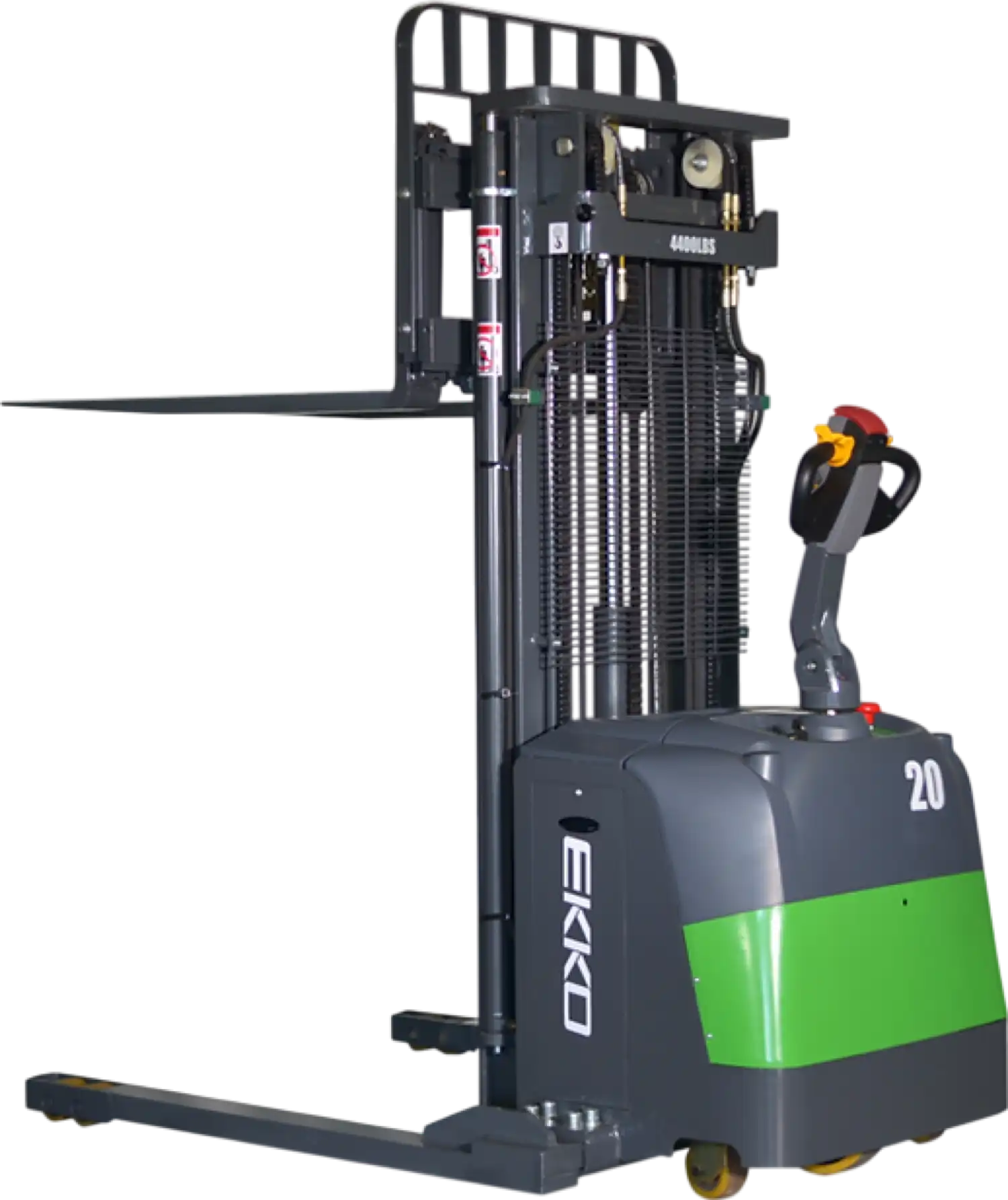

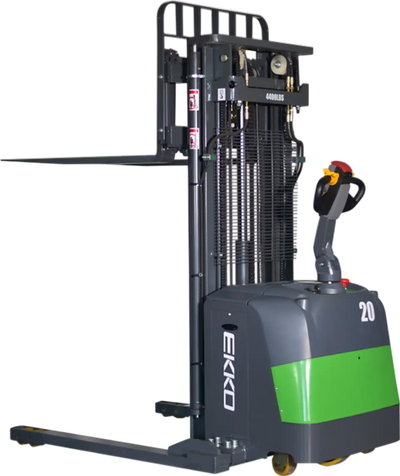

The EKKO EB20CS-189Li Electric Straddle Stacker is designed to combine the versatility of a forklift, reach truck, and stacker. Engineered to operate in tight spaces, the stacker features adjustable forks and legs, making it versatile for different loading tasks. It offers a significant load capacity of 4,400 lbs. and can reach a height of up to 189 inches. Constructed from high-quality steel and robust components, it's built to withstand challenging conditions and provide reliable performance. Perfect for loading and unloading trucks, operating in loading docks, stock rooms, manufacturing floors, and warehouses.
Brand new
3 year limited warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- 4,400 lbs load capacity
- Raised Height 189" (15.75 ft)
- Side Shift
- Adjustable Forks 8.7"-32.1"
- Adjustable Legs 39.8"-55.5"
- Fork Length 45.3"
- Curtis Controller
- Triple Mast
- Battery 24V/150Ah Lithium
- Polyurethane Wheels

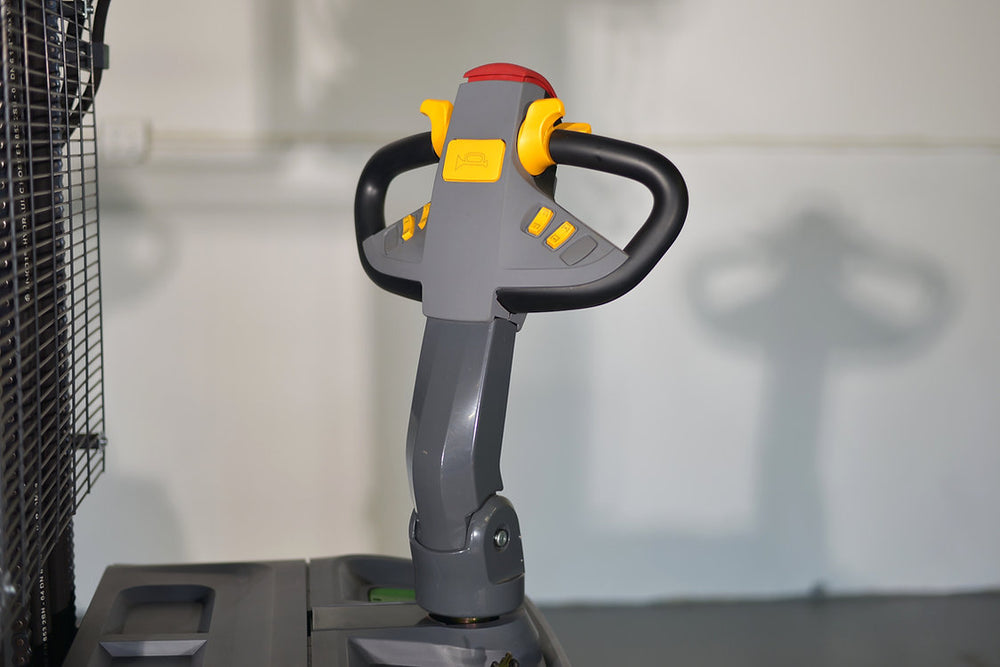

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
Specifications
| Model | EB20CS-189Li |
| Load Capacity | 4,400 lbs |
| Lifting Height Max | 189" |
| Load Center Distance | 24" |
| Fork Length | 45.3" |
| Single Fork Width | 3.9" |
| Overall Fork Width | 8.7-32.1" |
| Lowered Fork Height | 2.6" |
| Adjustable Legs | 39.8"-55.5" |
| Turning Radius | 65" |
| Extended Mast Height | 217.7" |
| Lowered Mast Height | 83.1" |
| Battery Voltage | 24V / 150Ah |
| Charger | 24V / 50A |
| Lift Motor | 3000W |
| Driving Motor | 1500W |
| Overall Dimensions | 81.9" x 39.8" x 83.1" |
| Weight | 3,000 lbs. |
Package Contents
Ekko EB20CS-189Li Lithium Electric Straddle Stacker
Battery
Charger
Manual
Warranty
This item comes with a 3 year limited warranty on parts, and 1 year battery warranty.
