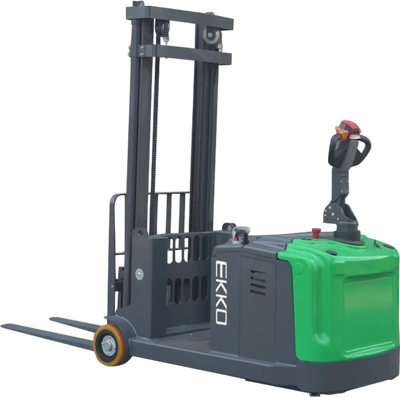

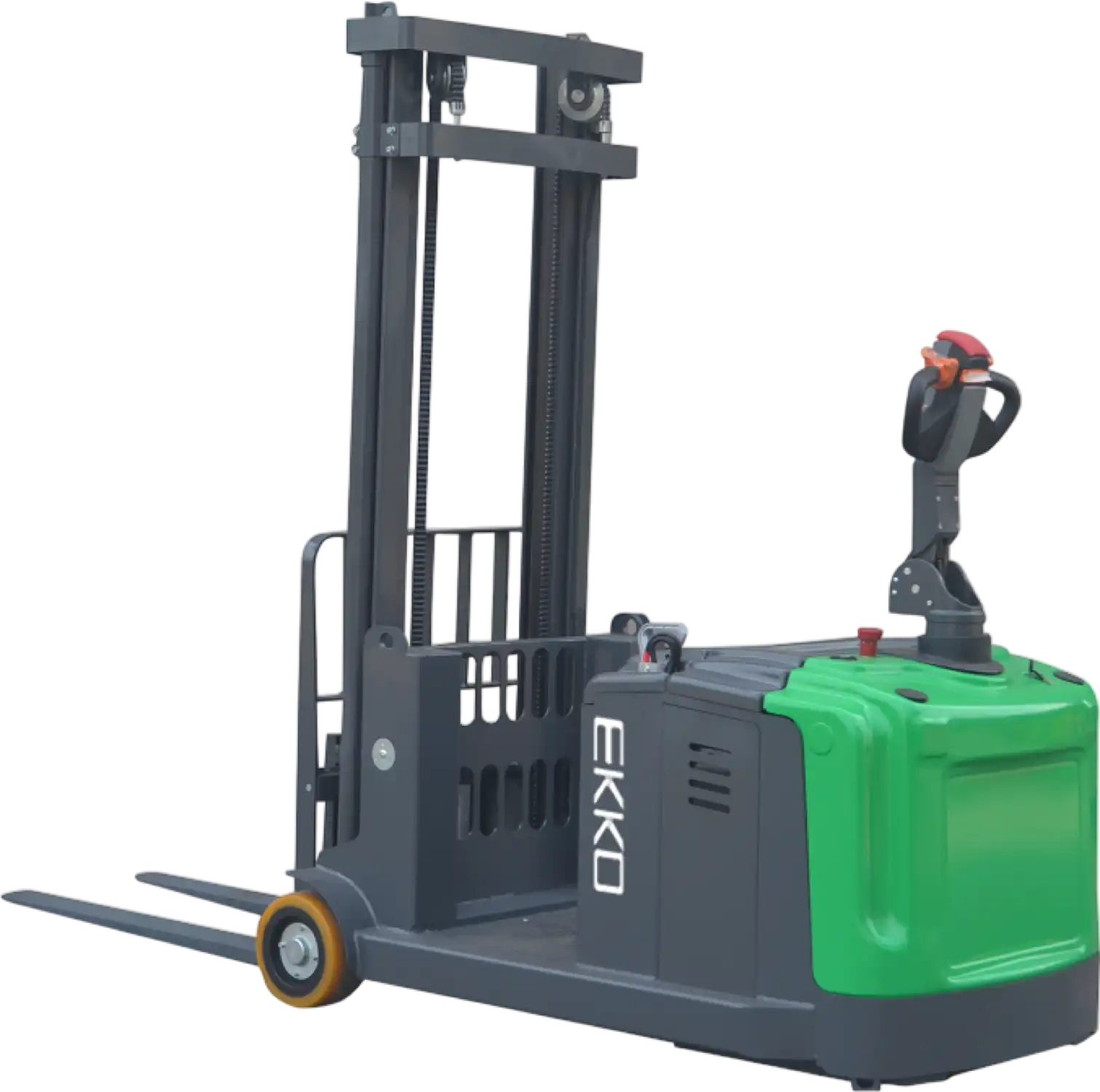

Ekko Lithium Walkie Stacker Counterbalanced 130" Lift 3,300 lbs. Capacity EK14-130Li New
Product Overview
The EKKO EK14-130Li Lithium Walkie Stacker is designed to combine the versatility of a forklift and walkie stacker. The stacker features adjustable width forks with forward/backward tilt, allowing for precise material positioning. It offers a strong load capacity of 3,300 lbs. and can lift up to 130 inches. Constructed from high-quality steel and robust components to withstand challenging conditions. Perfect for loading and unloading trucks, operating in loading docks, manufacturing floors, and warehouses.
Brand new
3 year limited warranty
Ships from manufacturer in CA
Fast processing with free shipping
Authorized Ekko dealer
Features
- 3,300 lbs load capacity
- 130" Lift Height (10.8 ft)
- Adjustable Forks 8.6"-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degree
- Curtis Controller
- Battery 24V/150Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Battery and Charger Included
Specifications
| Model | EK14-130Li |
| Load Capacity | 3,300 lbs |
| Lifting Height Max | 130" |
| Load Center | 24" |
| Wheelbase | 47" |
| Tire Material | PU |
| Driving Wheel Size | Φ9.8" × 3.1" |
| Front Wheel Size | Φ9.84" × 4.71" |
| Mast Tilt (Forward/Backward) | 2° / 5° |
| Lowered Mast Height | 84" |
| Extended Mast Height | 155" |
| Fork Width | 8.7" - 28" |
| Fork Size | 37" x 4" x 1.4" |
| Ground Clearance | 2.4" |
| Turning Radius | 62" |
| Lift Speed | 4 / 5.5 in/s |
| Lowered Speed | 5.3 / 4.7 in/s |
| Drive Motor | 2.5kW |
| Lift Motor | 3kW |
| Overall Dimensions | 105" x 39" x 84" |
| Weight | 3,750 lbs |
Package Contents
Ekko EK14-130Li Lithium Counterbalanced Walkie Stacker
Battery
Charger
Manual
Warranty
This item comes with a 3 year limited warranty on parts, and 1 year battery warranty.
