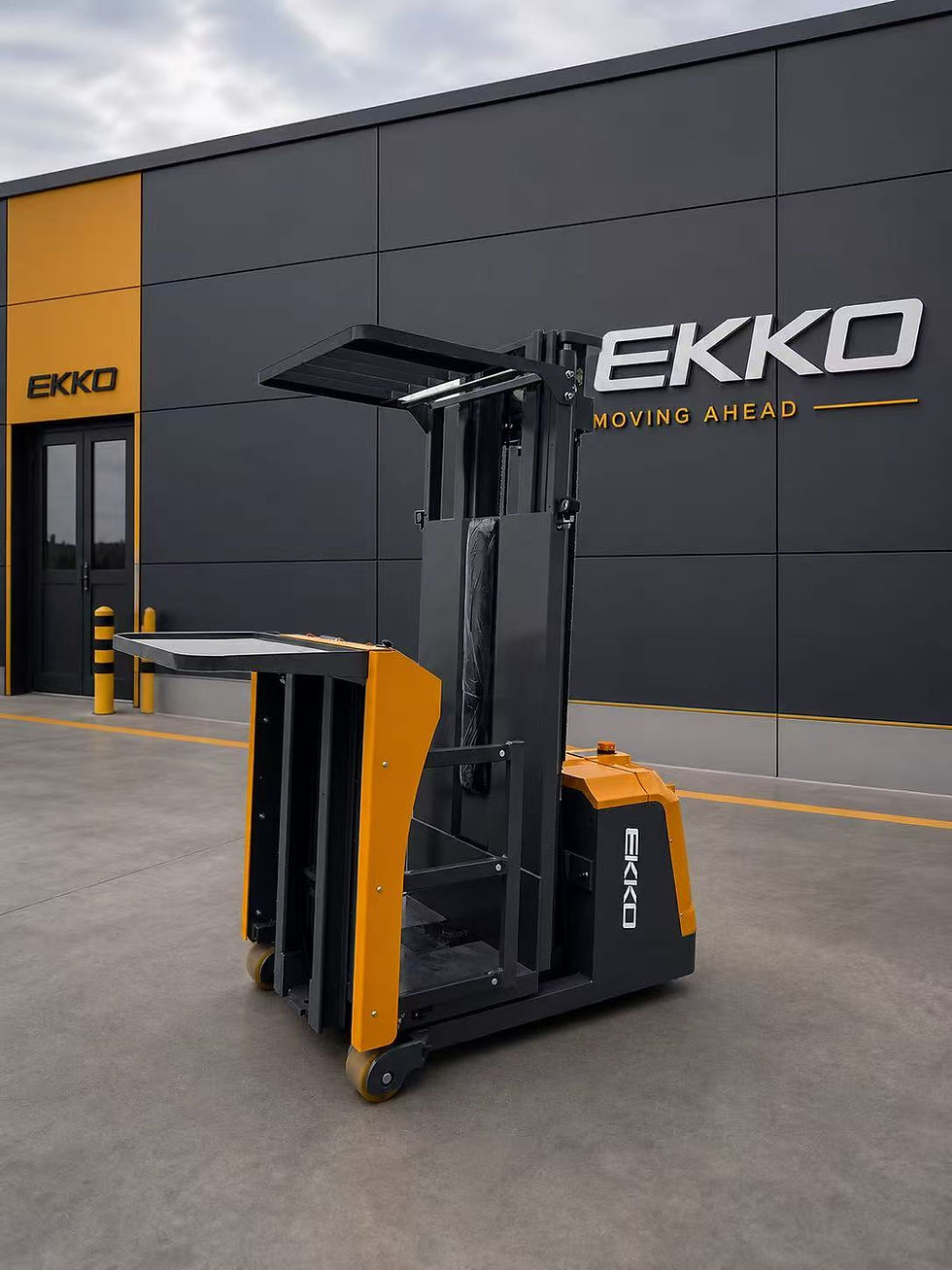

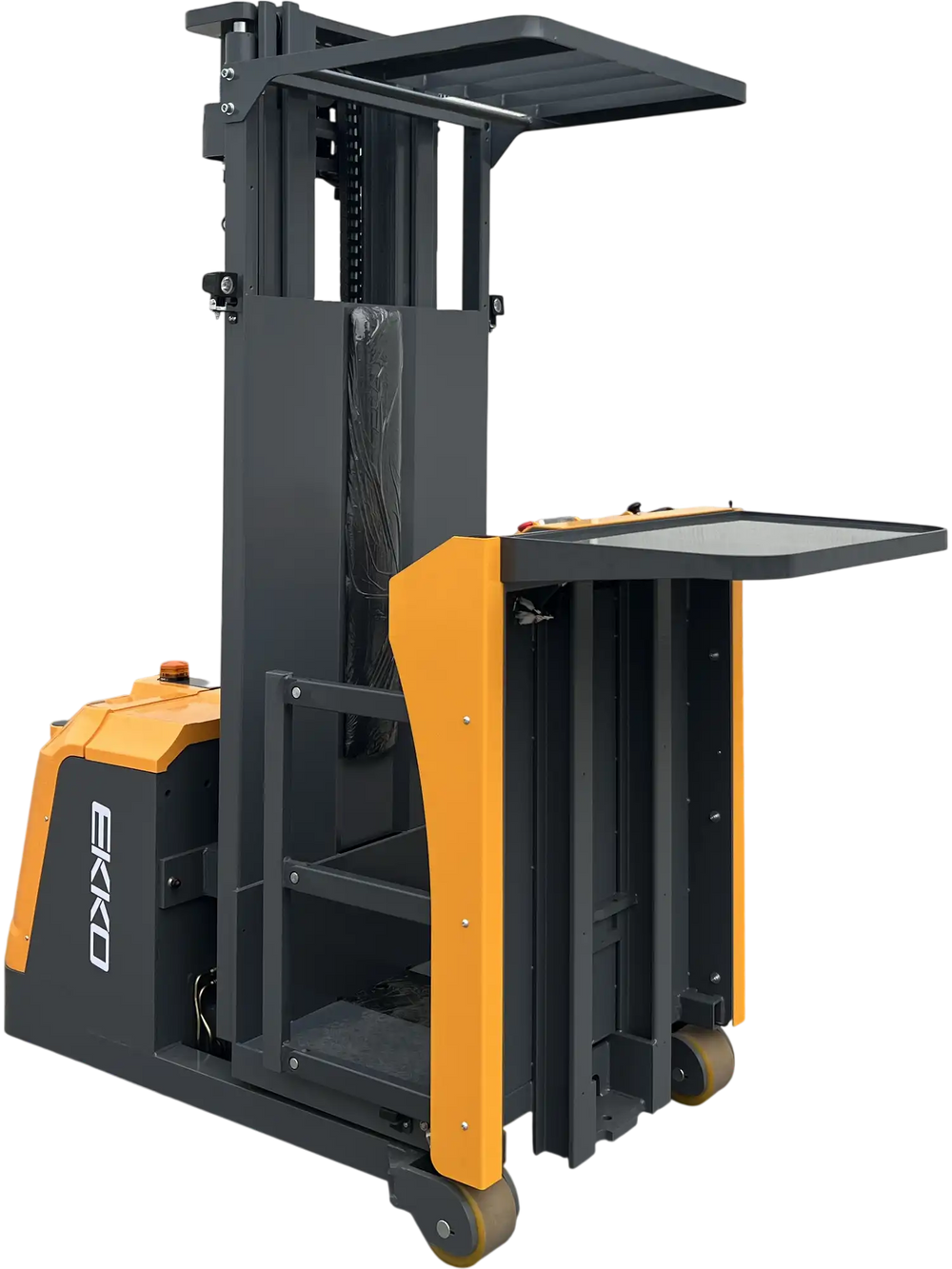

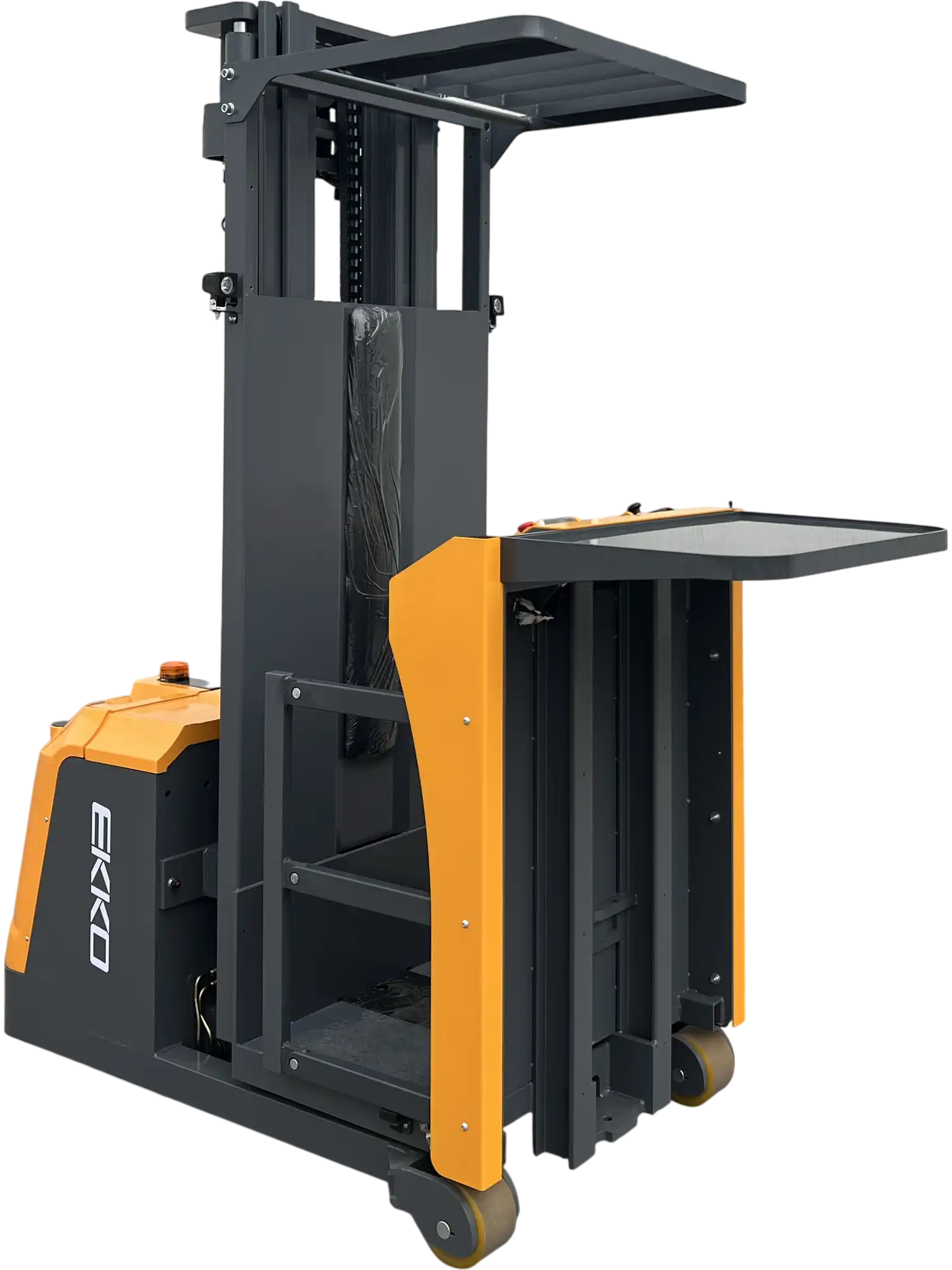

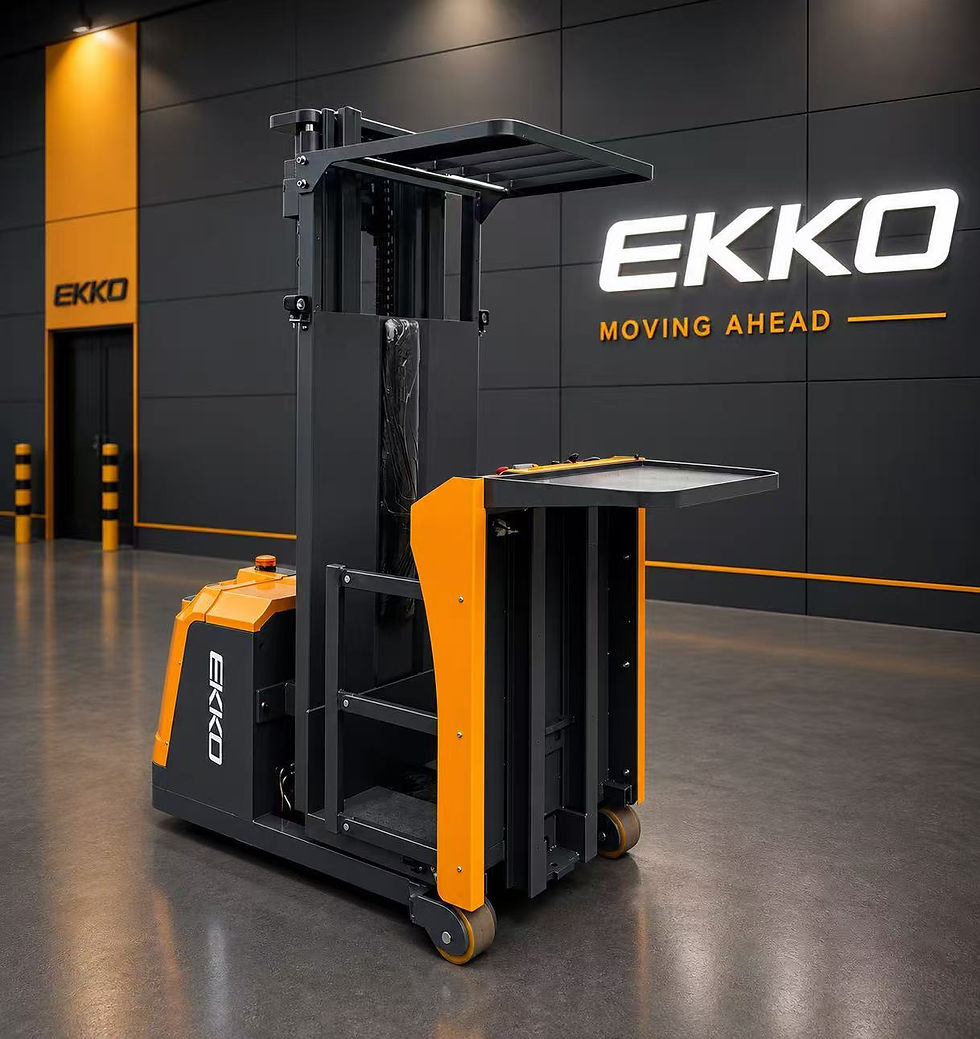

Ekko Order Picker Lithium Electric 220 lbs Capacity 216 in. Lift Height EOP22-216Li New
Product Overview
The EKKO EOP22 Series lithium electric order picker is built to efficiently pick orders in industrial environments. It is constructed with high-quality steel and durable components for dependable performance in demanding industrial environments. This standing order picker features electric steering, an AC drive system, and a 24V/200Ah lithium battery. Its compact design and polyurethane wheels support smooth maneuverability and reliable daily operation. With a max lift height of 216", and 220 lb load capacity, it is fit for storage facilities, manufacturing floors, and warehouses.
Brand new
5 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity: 220 lbs
- Lift Height: 216"
- Electronic Power Steering (EPS)
- AC Drive Motor
- Polyurethane Tires
- Ergonomic Handle and Controls
- Curtis® Controller
- 24V/200Ah Battery Lithium
Specifications
| Model | EOP22-165Li |
| Operation Type | Standing |
| Capacity | 220 lbs |
| Overall Length | 98" |
| Chassis Width | 37" |
| Platform Width | 33" |
| Max Platform Height | 216" |
| Overhead Guard Height | 76" |
| Handle Height | 41" |
| Cabin Ground Clearance | 87" |
| Ground Clearance at Wheelbase Center | 3" |
| Drive/Load Wheel Material | Polyurethane |
| Load Center | 16" |
| Front Overhang | 6.7" |
| Turning Radius | 57" |
| Travel Speed - 1st Gear | 3.10 mph |
| Travel Speed - 2nd Gear | 1.55 mph |
| Travel Speed - 3rd Gear | 0.75 mph |
| Travel Speed - 4th Gear | 0.37 mph |
| Max Gradeability Loaded/Unloaded | 0 |
| Battery Voltage/Capacity | 24V/200Ah |
| Drive Motor Power | 1.5 kW |
| Lift Motor Power | 3 kW |
| Steering Type | Electric Steering |
| Brake Type | Electromagnetic Brake |
| Battery Replacement Method | Hoist-Lift Type |
| Drive Control Type | AC |
Warranty
This item comes with a 5 year limited manufacturer's warranty, please see below.
