Ekko Straddle Stacker Lithium 2640 lbs Capacity 145 in. Lift Height Side Shift EB13ES-145Li New
Product Overview

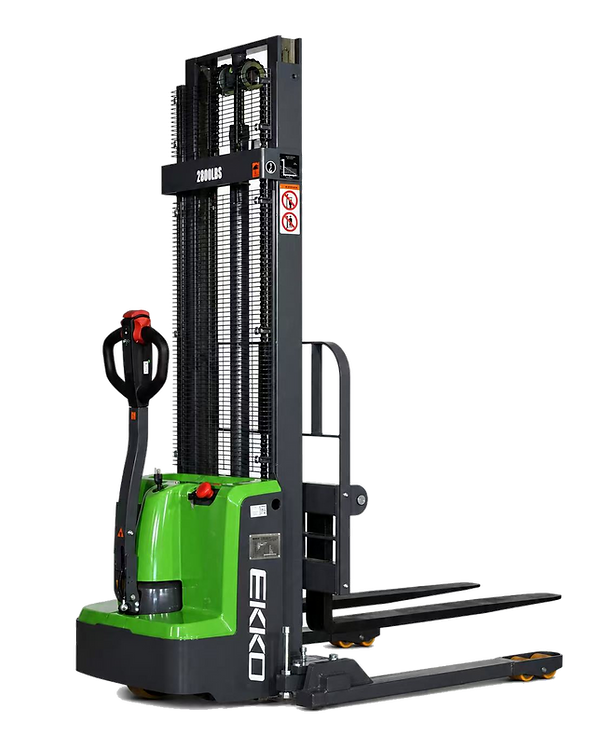

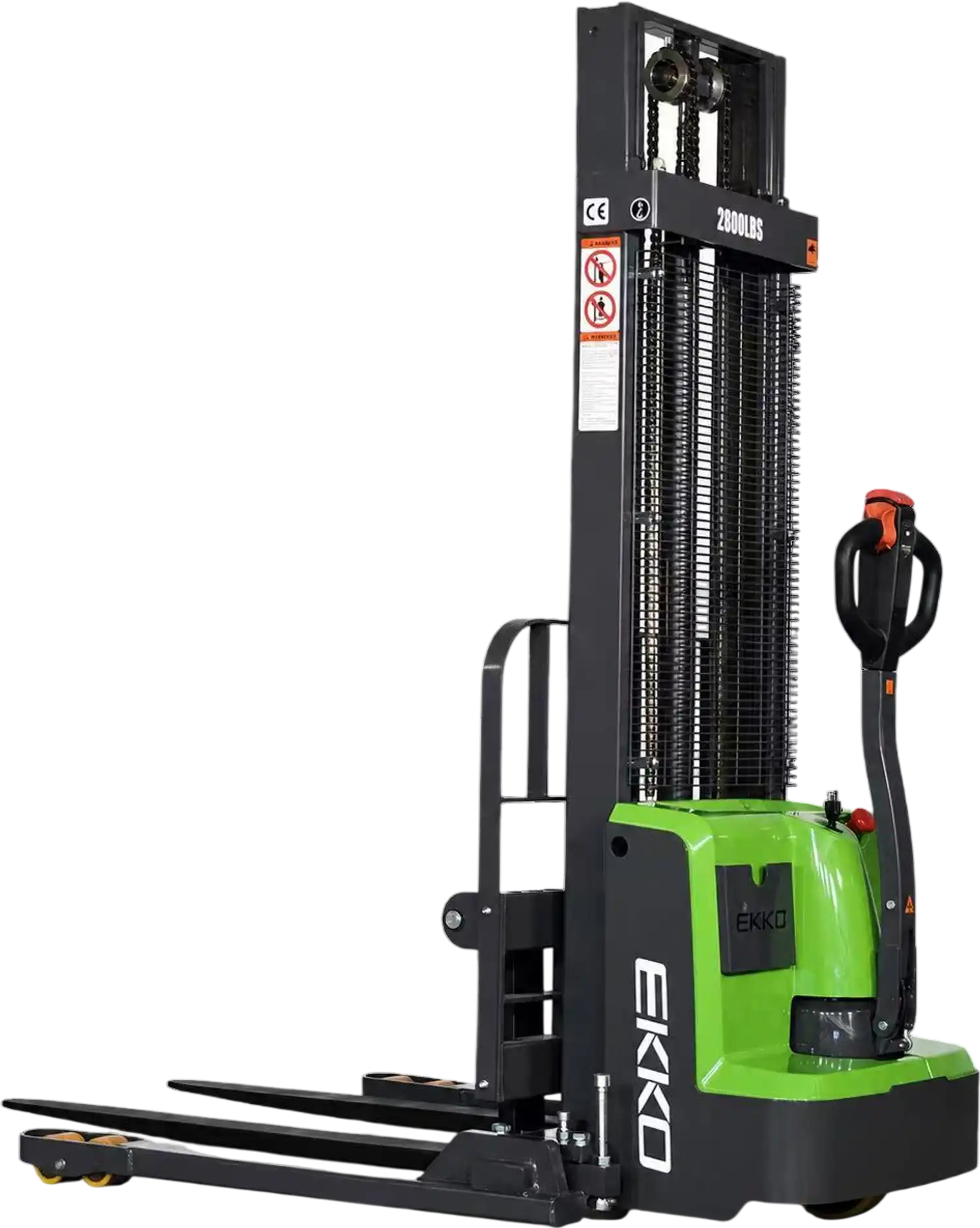

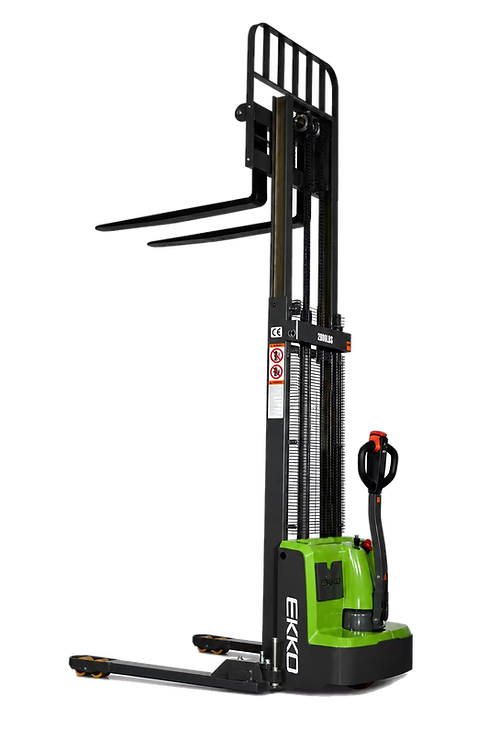

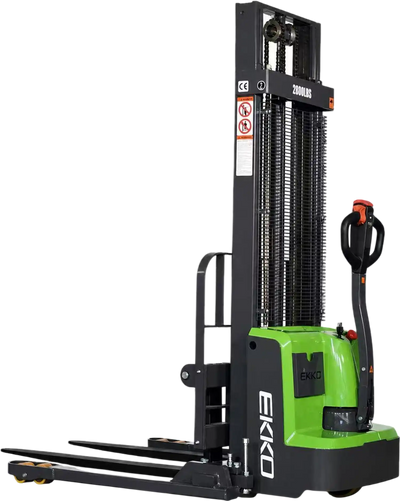

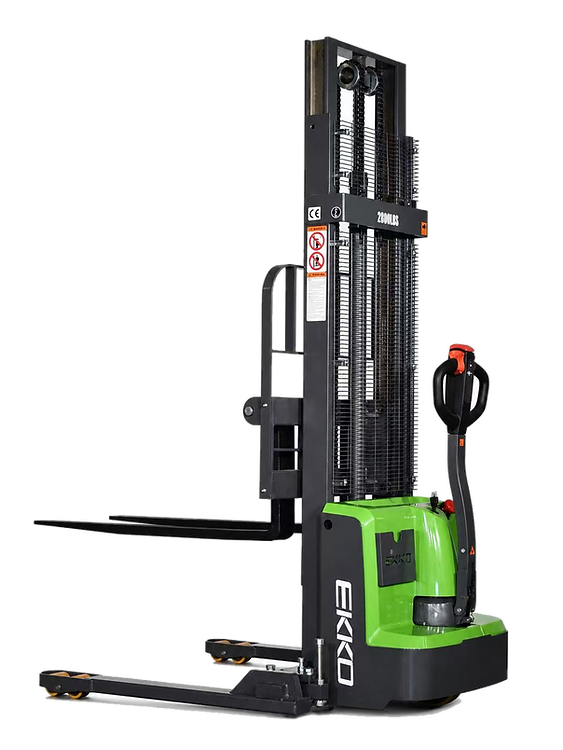

The EKKO EB13ES-145Li lithium straddle stacker combines the versatility of a forklift, reach truck, and walkie stacker for material handling in warehouses, stock rooms, loading docks, and manufacturing floors. It features a 2,640 lb load capacity, 145" maximum lift height, adjustable forks, side shift, and adjustable legs for flexible pallet handling. Built with steel construction, polyurethane wheels, and robotic welding, it is designed for durability and dependable daily use. The unit includes a Curtis instrument controller, ergonomic handle and controls, and a 24V/50Ah lithium battery with internal charger.
Brand new
3 year limited manufacturer's warranty
Manufacturer direct shipping from CA
Authorized Ekko dealer
Features
- Load Capacity 2640 lb
- Raised Height 145”
- SIDE- SHIFTING
- Adjustable Forks 8.3-33.5“
- Adjustable Legs 45.7-59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
Specifications
| Model | EB13ES-145Li |
| Load Capacity | 2640 lbs |
| Max Lifting Height | 145" |
| Load Center Distance | 24" |
| Fork Length | 45.3" |
| Single Fork Width | 4" |
| Overall Fork Width | 8.3"-33.5" |
| Lowered Fork Height | 2.35" |
| Fixed Leg Length | 36.5" |
| Adjustable Legs | 45.5"-59.1" |
| Turning Radius | 52.6" |
| Overall Length | 70" |
| Max Overall Width | 61" |
| Extended Mast Height | 167" |
| Lowered Mast Height | 95.66" |
| Battery | 24V/50Ah Lithium |
| Internal Charger | 24V/15A |
| Lifting Motor | 2.2 kW |
| Lift Speed Laden Unladen | 92/136 mm/s |
| Lowering Speed Laden Unladen | 112/98 mm/s |
| Driving Motor | 0.75 kW |
| Driving Speed Laden Unladen | 4.0/4.2 km/h |
| Service Weight | 1495 lbs |
Package Contents
EB13ES-145Li straddle stacker
24V/50Ah lithium battery
24V/15A internal charger
User manual
Warranty
This item comes with a 3 year limited manufacturer's warranty, please see below.
