Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New

Manufacturer: Emporia

SKU: EMEVSE1UL

Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New
Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New

QTY

(888) 999-1522

$ 399.00

+
shipping box
FREE Shipping
×

This item ships for free. Freight shipments include liftgate at no additional charge.

Sign up for restock notifications!

Notify Me
headset icon

Exceptional Customer Service


headset icon

Authorized Dealer

Shopper Award
FactoryPure BBB Business Rating: A+
Emporia EMEVSE1UL 48A 24' Cable 22

Emporia EMEVSE1UL 48A 24' Cable 22" NEMA 14-50 Energy Smart Electric Vehicle EV Charger New

Product Overview

The Emporia EV Charging Station is a Level 2 electric vehicle charger that charges any EV up to 40 amps with 22" NEMA 14-50P or up to 48 amps with hardwired installation. It comes with a 24’ cable with an SAE J1772 connector so it works with all electric cars. Its watertight NEMA Type 4 enclosure is made to withstand the elements outdoors.

vendor logo
divider
authorized dealer
checkmark

1 year factory warranty

checkmark

Brand new in box

checkmark

Ships directly from Emporia out of CO

checkmark

Authorized Emporia dealer

Features

  • UL and ENERGY STAR CERTIFIED LEVEL 2 EV CHARGER. DEFAULT CHARGE RATE is 40A. WiFi Internet connection is required to raise or lower charge rate. Pair with an Emporia Vue Smart Home Energy Monitor to automatically charge only with excess solar power and curb charging during peak demand.
  • UL LISTED WITH YOUR SAFETY IN MIND. Manufactured to meet the safety criteria defined by these industry standards: NEC 625, SAE J1772, UL 817, UL 991, UL 2231, UL 2251, and UL 2594. INSTALLS INDOORS OR OUTDOORS. Your charger will be safe from the elements with a rugged watertight NEMA Type 4 enclosure. PROTECTED BY A 3-YEAR WARRANTY.
  • HARDWIRED OR PLUGGED INSTALLATION - 11.5kW (240V/48A) / 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A) (up to 48A hardwired or up to 40A NEMA Type 14-50P with 24" cable compliant with 2017 NEC Section 625.17(A)(3)). Requires a dual-pole, dedicated breaker at 60A+ for a 48A charge or 50A+ for a 40A charge. A professional electrician is recommended for hardwiring or installing a NEMA Plug.

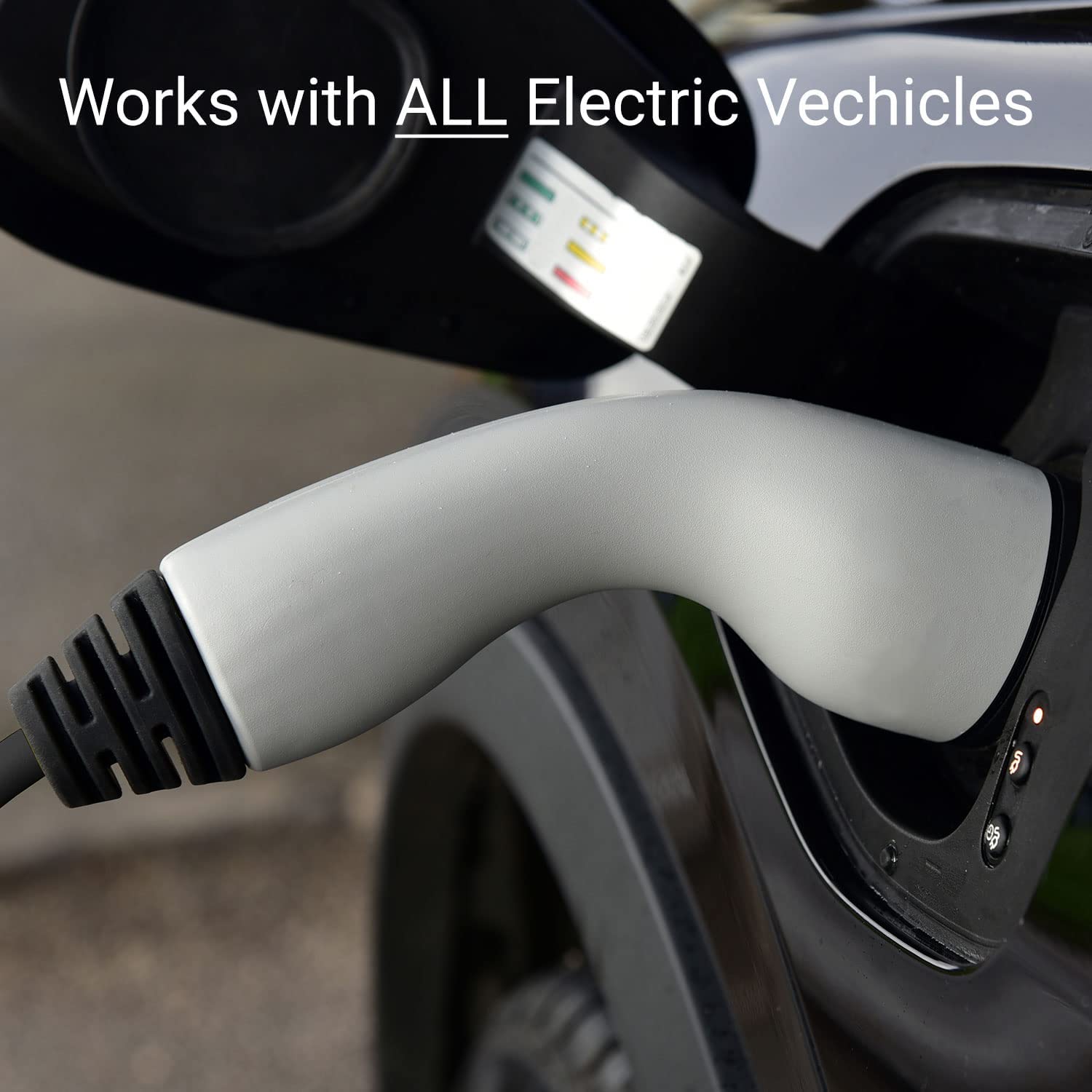

  • COMPATIBLE WITH ANY EV. The charger comes with a SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.

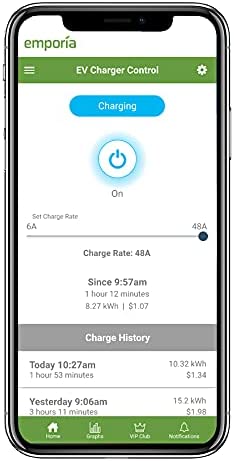

  • REAL-TIME ENERGY DATA: REQUIRES 2.4 GHz WIFI WITH AN INTERNET CONNECTION to monitor energy use and charging sessions with iPhone / Android / Web Browser app. Schedule charging with app. Easily manage the parameters to handle variable utility rate charges.
  • QUALIFIES FOR REBATES AND INCENTIVES. Qualifies for Federal alternative fuel tax credit for 30% of the cost of the charger and installation (up to $1,000). Your state, province, or local utility may also offer rebates and incentives. Find out if you qualify for additional United States incentives or additional Canadian incentives. Consult your tax professional for more information.

Specifications

Input Voltage 208/240VAC 50/60Hz
Power Charge 11.5kW (240V/48A) / 9.6kW (240V/40A); 10kW (208V/48A) / 8.3kW (208V/40A)
Required Breaker Dedicated 50A+ dual pole for 40A; Dedicated 60A+ dual pole for 48A

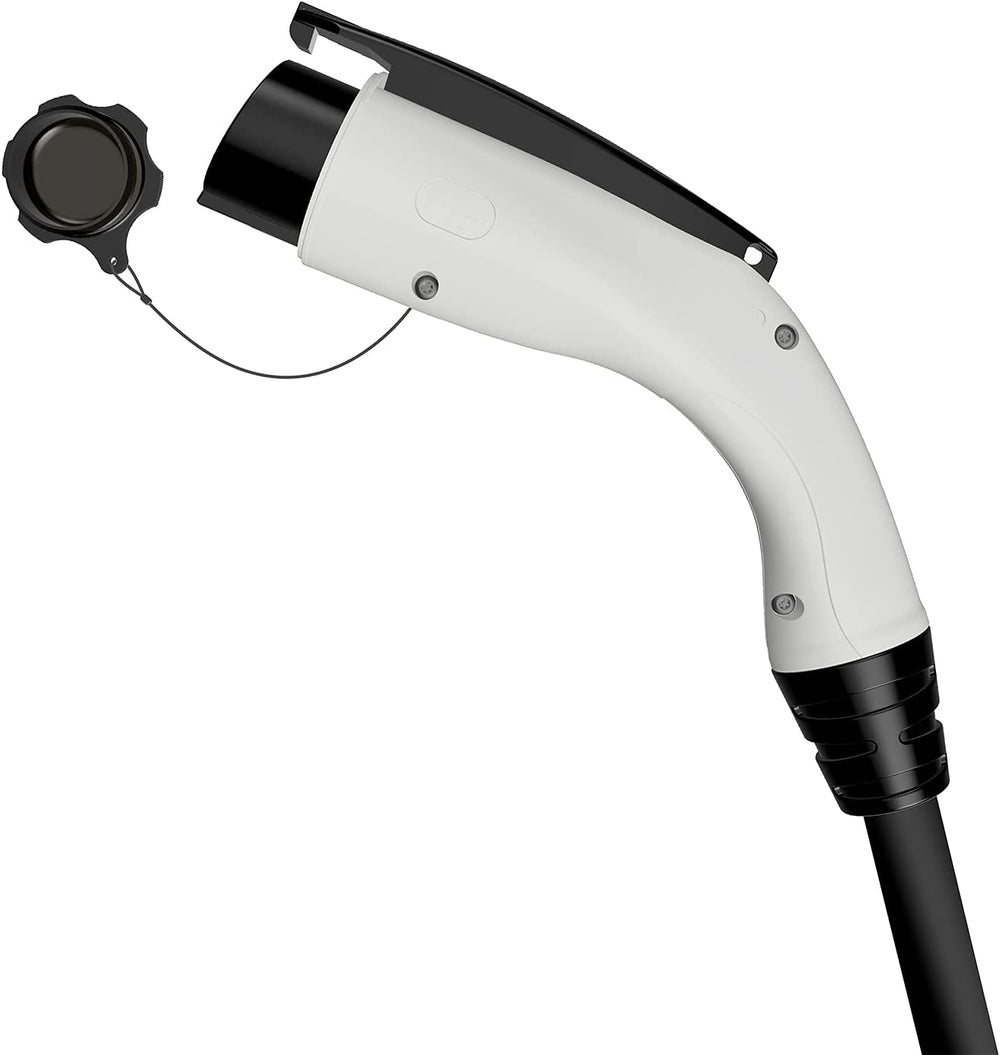

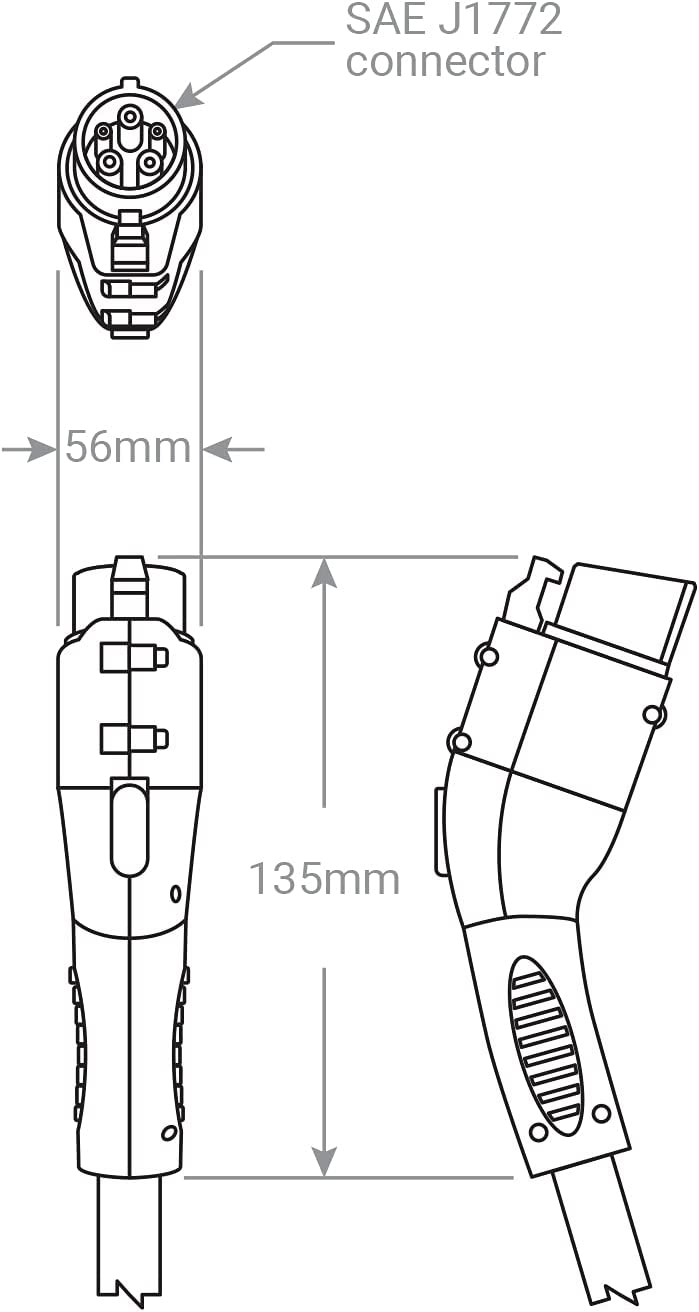

Connector 24’ cable SAE J1772 connector
Power Wiring NEMA Type 14-50P (up to 40A) with 24" cable compliant with 2017 NEC Section 625.17(A)(3) / Hardwired (up to 48A)
Enclosure Watertight NEMA Type 4 indoor/outdoor
Temp Range -22°F to 122°F (-30°C to 50°C)
Product Dimensions 9"D x 12.6"W x 3.5"H
Weight 19.76 pounds

Package Contents

EV Chargers

Instruction Manual

Warranty

vendor logo
divider
authorized dealer

Emporia guarantees that the hardware will be free from defects in materials and workmanship for a period of one year from the date of delivery following the original retail purchase.

Manuals & Documentation

Customer Reviews

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Richard
A Class Charger

It Charges very well & if you do as I did hard wire faster with more amps Thus in less time, All the extras work fine & the price well why pay more.

M
Marilyn Mahon
Emporia Charger

Bought new EV recently and had an Emporia charger installed in my garage. I absolutely love it!

J
James Carlson
Our Emporia Charger

The charger has been a great addition to our house. We use it to charge two cars, an Mustang and a Volt.

R
Rick Durmon
An easy affordable charging option

Every step in acquiring, installing and using this Emporia Charger has been flawless. Hardwired by a local electrician. I had the unit wall mounted on the far wall of a 3 car garage from my breaker box. Install cost was less than $600. The unit provides rock solid 46 amps. The App provides more info than the Ford App. Couldn’t be happier.
