Everlast Cyclone 253DPi Welder Digital Inverter Pulse MIG/Stick/TIG 250A 240V New
Manufacturer: Everlast
SKU: CLN-253DPI
QTY
or
(888) 999-1522
$ 2,849.00
$ 2,199.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 5 year parts and labor warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 5 year parts and labor warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Everlast Cyclone 253DPi Welder Digital Inverter Pulse MIG/Stick/TIG 250A 240V New
Product Overview
The Cyclone 253DPi features multiple process ability with MIG, Pulse MIG (single and double pulse), Flux-Cored (with and without gas), DC Lift TIG, and DC Stick capability. This unit features an intuitive HD LCD screen designed to simplify setup with less toggling and no hidden menus. The bright full-color screen is intuitive to use and allows users to setup the machine quickly and accurately. The new PowerSet program option simplifies setup even more by allowing users to enter basic operating parameters such as material type, wire diameter, and material thickness; available in all processes. As a pulse MIG, the Cyclone 253DPi excels by offering single and double pulse (pulse on pulse/twin pulse) functions.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Digitally Controlled IGBT Inverter
- 60% Duty Cycle at 250A
- Single and Double (Pulse on Pulse/Twin) MIG
- DC Lift Start TIG Capable with optional gas valve torch
- Stick function with E6010 capability

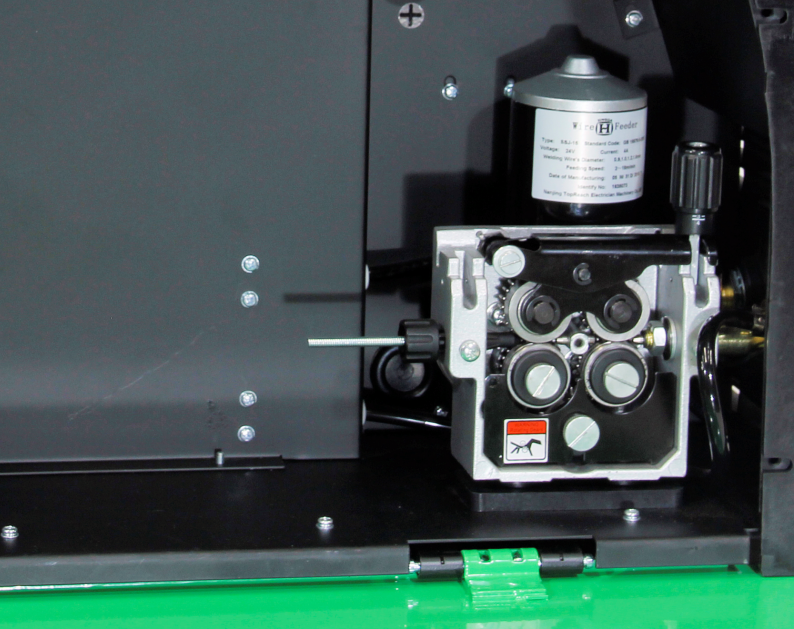

- HD 4 roller driver roll system
- Hold 8" (10-12 lbs) or 12" (up to 44 lbs) spools
- Euro Quick-Connect with 24 series MIG gun
- Weld Steel, Stainless, Aluminum, or Bronze with Manual and Pulse MIG
- Self Shielded Flux-Core Capable
- Generation 2 Power Set mode makes setup easy
- Aluminum Push/Pull Capable

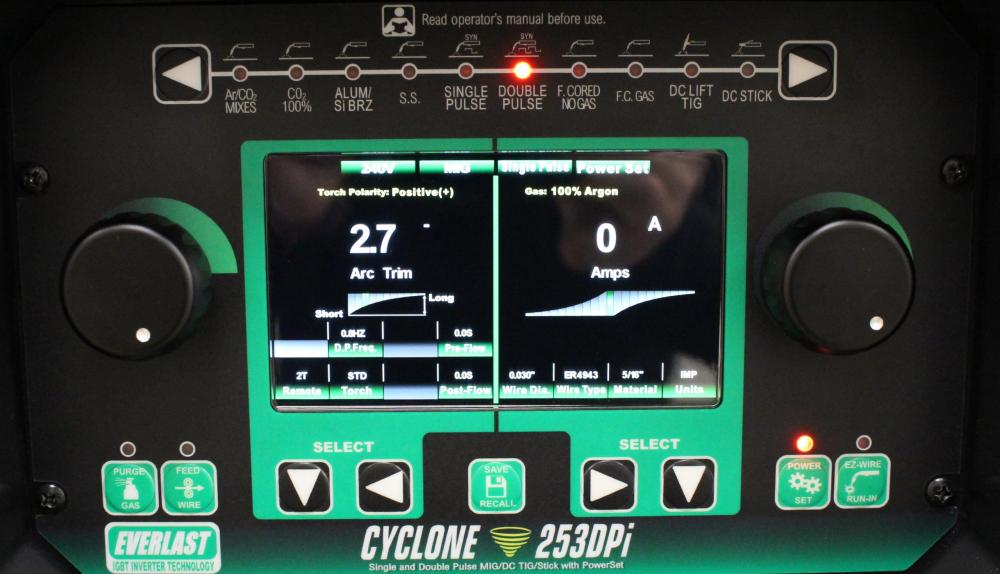

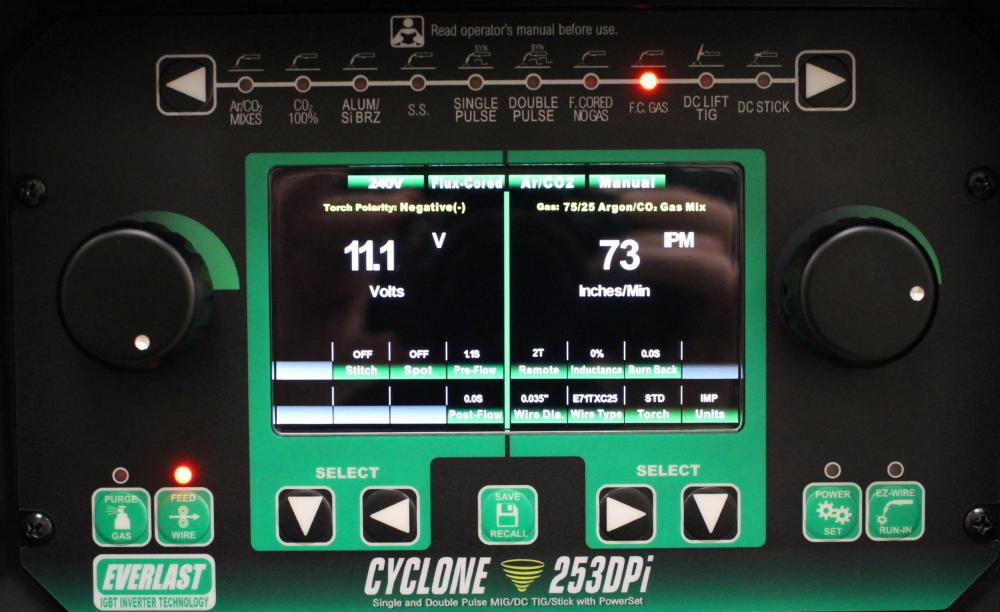

- 4.3" HD LCD Color Display
- Easy to use and navigate screen and controls
- All settings on single screen
- Adjustable Inductance (MIG) and Arc Force (Stick)
- Save and name up to 30 individual programs
- Can use included U groove drive rolls and PTFE liner to weld aluminum if needed.
- Low spatter arc while MIG welding
Specifications
| Output/ Process Type | MIG, DC TIG, DC Stick |
| Voltage/Phase | 220/24V, 1/3 Phase |
| Max Rated MIG Amps | 250A |
| Max Rated TIG Amps | 250A |
| Max Rated Stick Amps | 200A |
| MIG Amps/Volts @ Rated Duty Cycle | 250A/26.5V @ 60% Duty Cycle |
| TIG Output Amps/Volts @ Rated Duty Cycle | 250A/20V @ 60% Duty Cycle |
| Stick Amps/Volts @ Rated Duty Cycle | 200A/28V @ 60% Duty Cycle |
| Max Inrush Amps | 1 Ph: 46A / 3 Ph: 23A |
| Max Rated Input Amps | 1 Ph: 36A / 3 PH: 18A |
| OCV | 75V |
| MIG Output Range | 30-250A/ 15.5-26.4V |
| TIG Output Range | 10A-250A/ 10.4-20V |
| Stick Output Range | 10-200A/ 20.4-26.4V |
| Variable MIG Inductance/ Stick Arc Force Control | Yes |
| Spool Gun Capable | Yes |
| Pulse | Double/ Pulse on Pulse |
| Pulse Frequency | Synergically Controlled (MIG only) |
| Pulse Time On | Synergically Controlled (MIG only) |
| Standard Drive Roll wire size | .035”-.045” |
| Separate wire feeder | No, self contained |
| Number of Drive rollers | 4 |
| Max Wire Feed Speed | 600IPM |
| Max Wire Roll Diameter | 12” (full size up to 44lb) |
| Memory | Yes |
| Air Carbon Arc | No |
| Torch Type | 24 Series with Euro Connect |
| Other Features | PowerSet Mode, Fully synergic MIG |

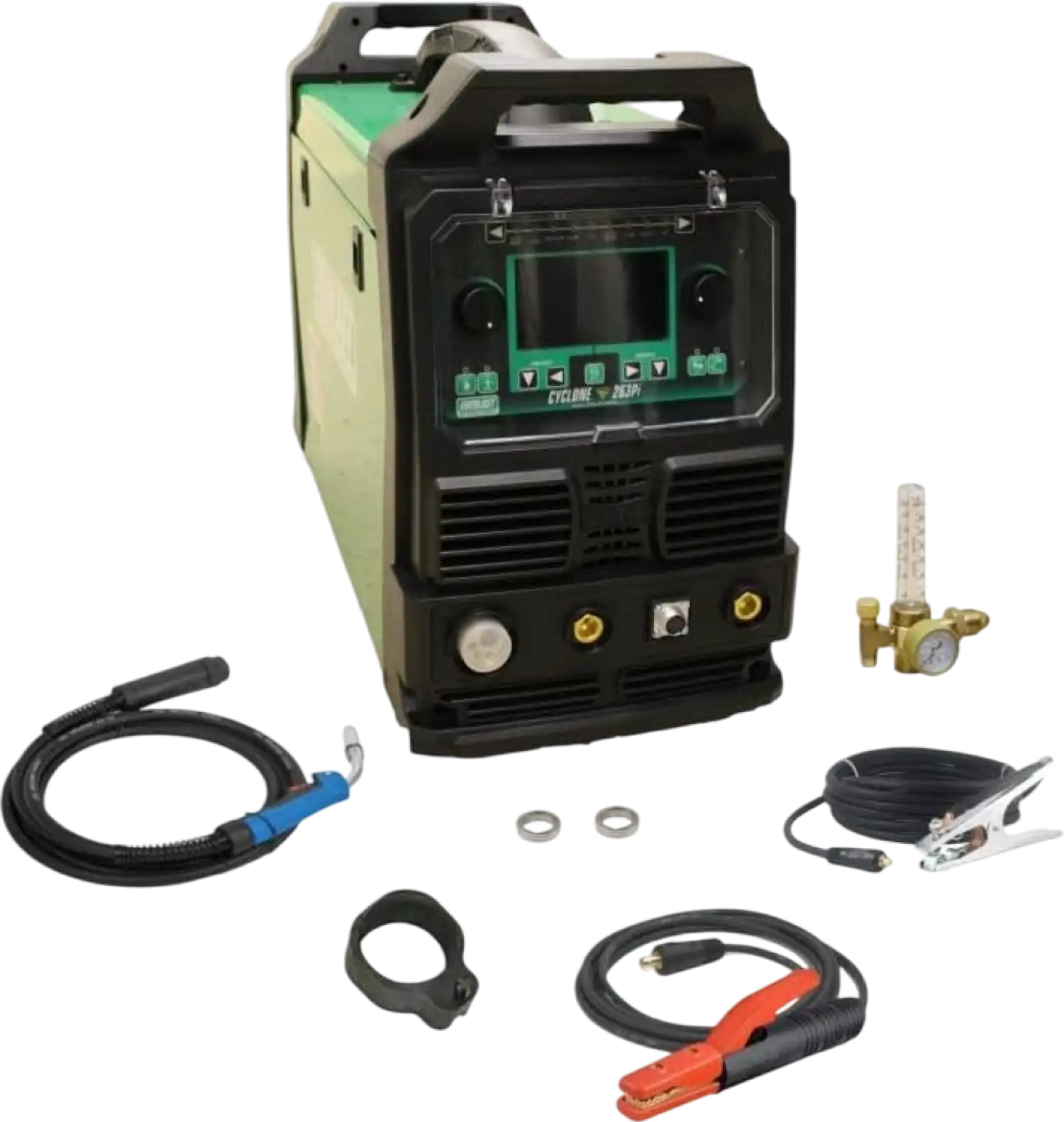

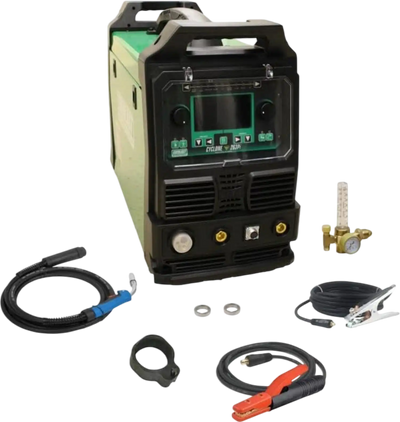

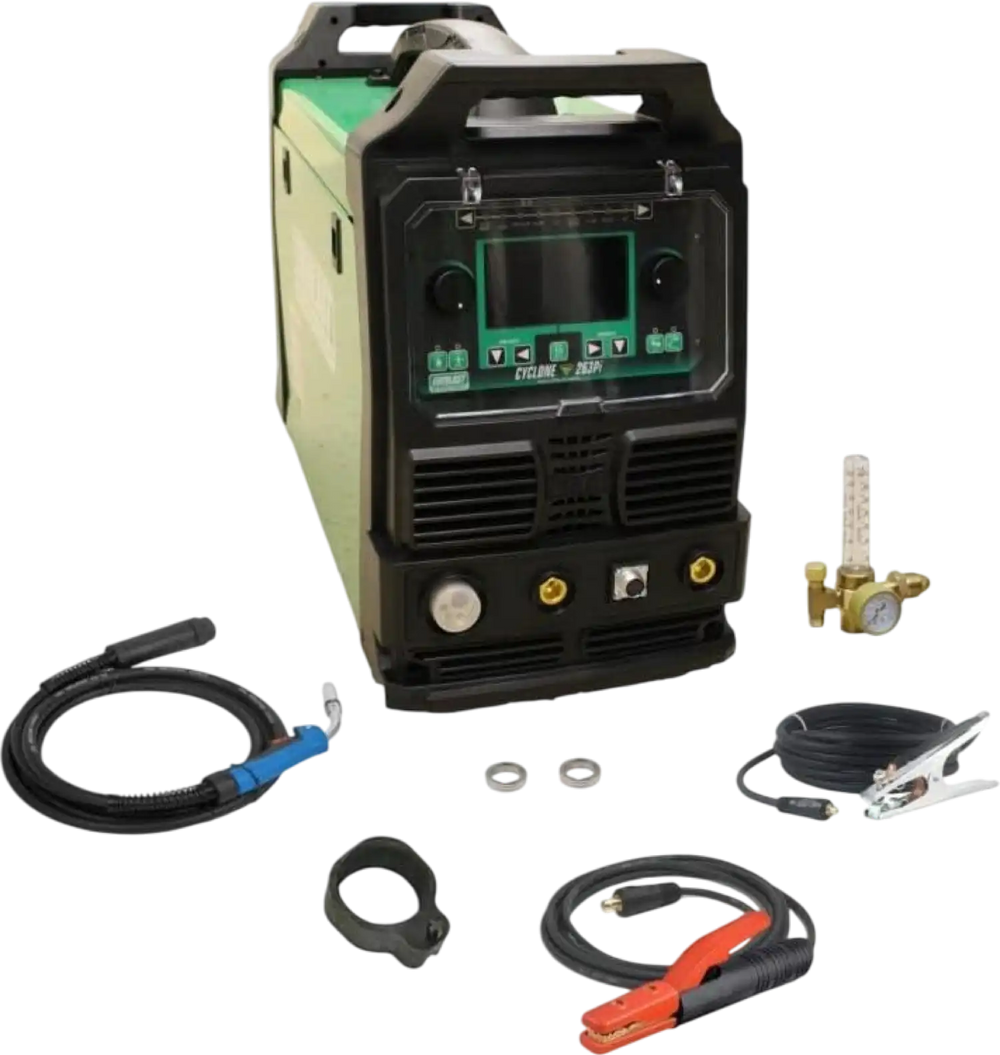

Package Contents
Cyclone 253DPi Welder
24 series MIG Gun with 10 ft. cable
Ground Clamp with 10 ft. cable and 35 DINSE connector
Electrode Stick Holder with 10 ft. cable and 35 DINSE connector
RH-191 Ar/CO2 Regulator / Flowmeter with Hose
Drive Roll V Groove .035"-.045" (Double) (installed)
Spare Drive Roll V Groove .030"-.040" (Double)
Spare Drive Roll U Groove .035"-.045" (Double)
Spare MIG Contact Tips .035" and .045"
Spare MIG Contact Tips .045" for Aluminum (Double)
Red Teflon Liner .035"-.045" for Aluminum wire
Spool Adapter 8"
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
