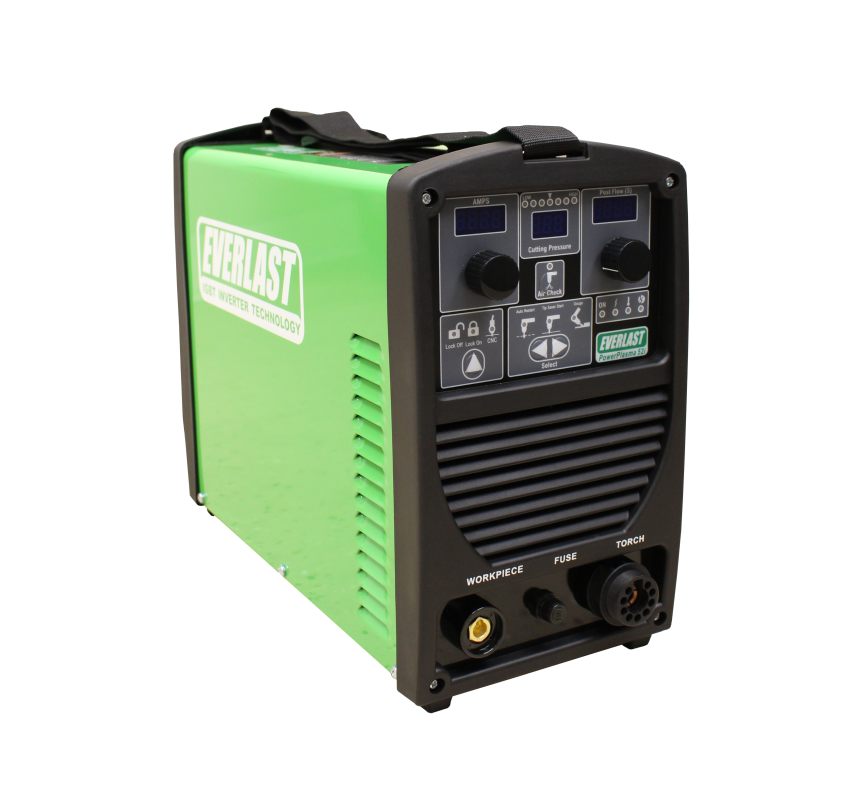

Everlast PowerPlasma 52i Plasma Cutter IGBT Inverter 20-50A 120/240V New
Product Overview
For customers looking for a compact and reliable plasma cutter, the PowerPlasma 52i offers the latest in IGBT inverter design technology. This unit features a full digital design, with reduced circuit complexity and improved reliability. The new air-pressure guide system offers digital display of actual air-pressure along with a LED system that guides the operator to the optimal air pressure for the mode being used. Additionally, you can adjust the Post-Flow time with a quick turn of the dial to suit different duty and job requirements. The blow-back torch design features two pilot arc modes, one with continuous re-light for cutting expanded material, and the other featuring a tip saver function that limits pilot arc on time to preserve consumable life.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Dual Voltage 120/240V for maximum portability
- Adjustable Post-Flow timer extends consumable and torch life

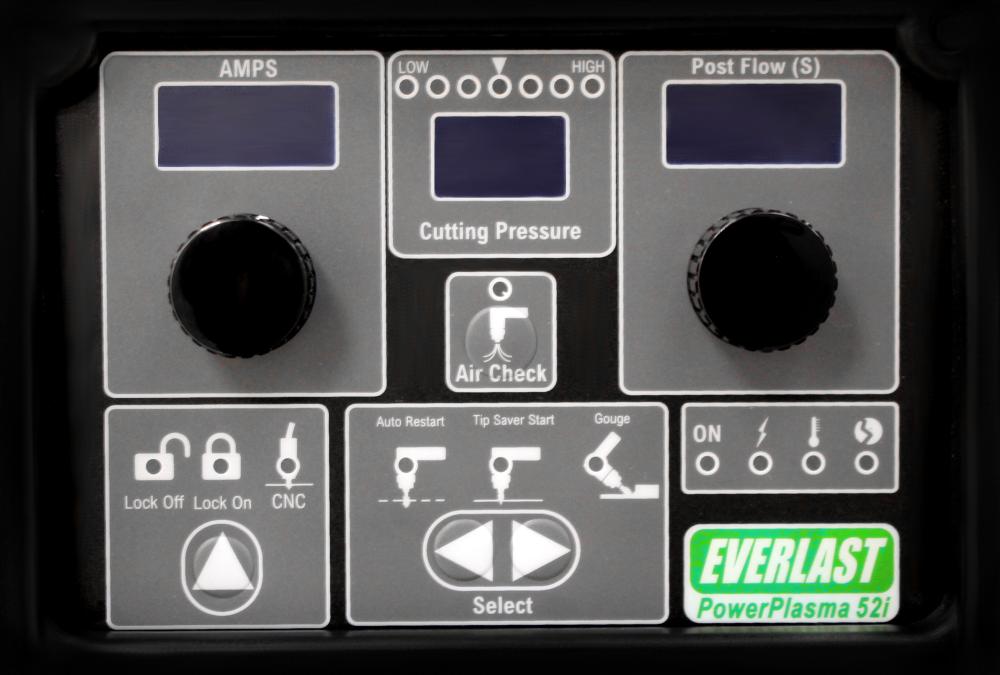

- Large, super bright digital displays for Amps, Air Pressure, and Post Flow
- Digital Air Pressure Setting Guide adapts programming for different cutting modes
- Separate Gouge and CNC modes
- Euro style "Central" quick connect torch adapter
- Improved consumable life
- Features the Italian designed "back striking" iPT 60 torch with improved cutting capacity and improved consumable life
- Inexpensive consumables can usually be bought locally
- 60% duty cycle is fit for commercial use
- Clean cuts and less bevel with the iPT 60 torch and new digitally controlled cutting arc
- Self-Diagnosing mode (Error Code)
- Consumables in Place Indicator
- Pilot arc tip saver feature limits pilot arc activity to 3 seconds. Continuous Pilot arc mode is standard as well.
- Can be used with 8500 watt clean power generators (less than 5% total harmonic distortion)
Specifications
| Type | IGBT |
| Voltage/Phase | Dual Voltage 120/240V, 1 Ph |
| Output Amp/Volt Range | 120V: 20A/88V-25A/90V; 240V: 20A/88V-50A/100V |
| OCV | 200V |
| Max Inrush Amps | 120V: 32.1A; 240V: 35.8A |
| Max Rated Input Amps | 120V: 24.9A; 240V: 27.9A |
| Duty Cycle at Rated Amps/Volts | 120V: 60% @ 25A/90V; 240V: 60% @ 50A/100V |
| Arc Start Type | Blow Back (Piston type) |
| Pilot Arc | Yes |
| Torch Type | Italian designed iPT 60 |
| CNC Interface Port | Yes |
| Adjustable Post Flow Timer | Yes |
| Gouging | Light or Occasional |
| Recommended Cutting Air Pressure | 72-75 psi |
| Recommended Compressor Capacity | 5 cfm or better with 25 gal. tank |
| Dimensions | 16" x 7" x 13" |
| Weight | 32 lbs |

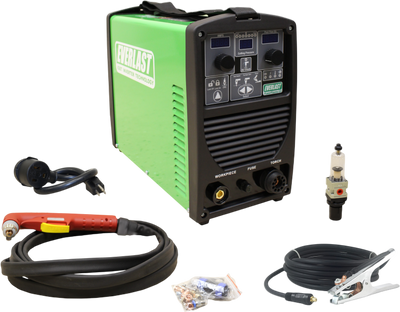

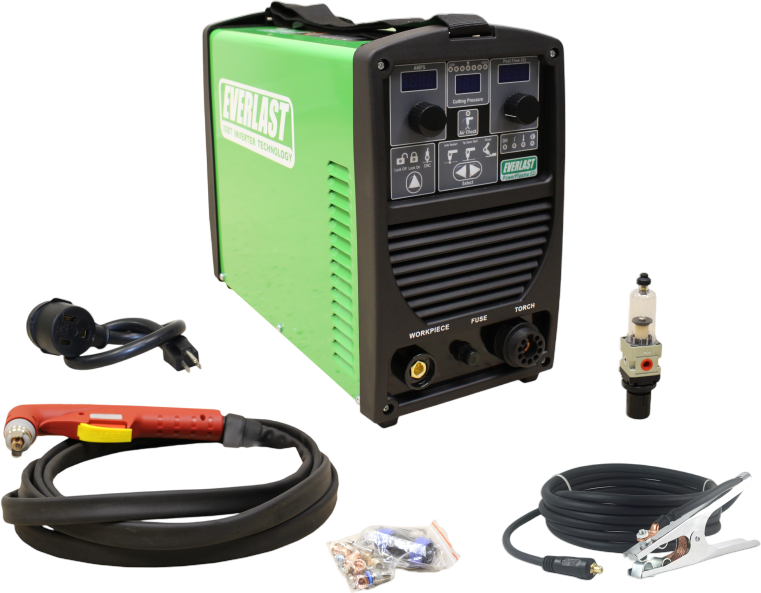

Package Contents
PowerPlasma 52i Plasma Cutter
IPT-60 Handheld Torch w/ 14ft Cable
Ground Clamp w/ 10ft Cable
AW2000-02 Air Filter / Water Trap (gauge not included)
Air Hose
WEiPU SP21 CNC Connector 12-pin
Starter Consumable Kit
PigTail Adapter 120V/240V
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
