Everlast PowerPlasma 82i Plasma Cutter IGBT Inverter 20-80A 220/240V New
Product Overview
The PowerPlasma 52i features the latest in IGBT inverter design technology. This unit boasts a full digital design, with reduced circuit complexity and improved reliability. The digital air-pressure guide system offers digital display of actual air-pressure along with a LED system that guides the operator to the optimal air pressure for the mode being used. Additionally, you can adjust the Post-Flow time with a quick turn of the dial to suit different duty and job requirements. With 60% duty cycle, this unit has the highest rated duty cycle of any plasma cutter on the market on 1-phase 240V input.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Easy starting with Blow Back Pilot arc allows easy cutting of rusty and painted metals
- Cuts virtually any type of metal with ease
- Simple to use torches with inexpensive service parts and consumables
- Commercial/Industrial class, 60% Duty cycle at 80 amps
- Clean, smooth cuts and improved consumable life with the new Italian designed iPT 80 torch
- Blowback start, starts arc without the need of High Frequency which can interfere with surrounding electronics
- Pilot arc improves performance and cutting on dirty, painted, or rusted metals
- 3 Second pilot arc tip saver feature shuts down pilot arc after 3 seconds of contiuous operation if no cutting is present to prevent premature consumable wear
- Adjustable post flow control up to 50 seconds to improve consumable and torch life

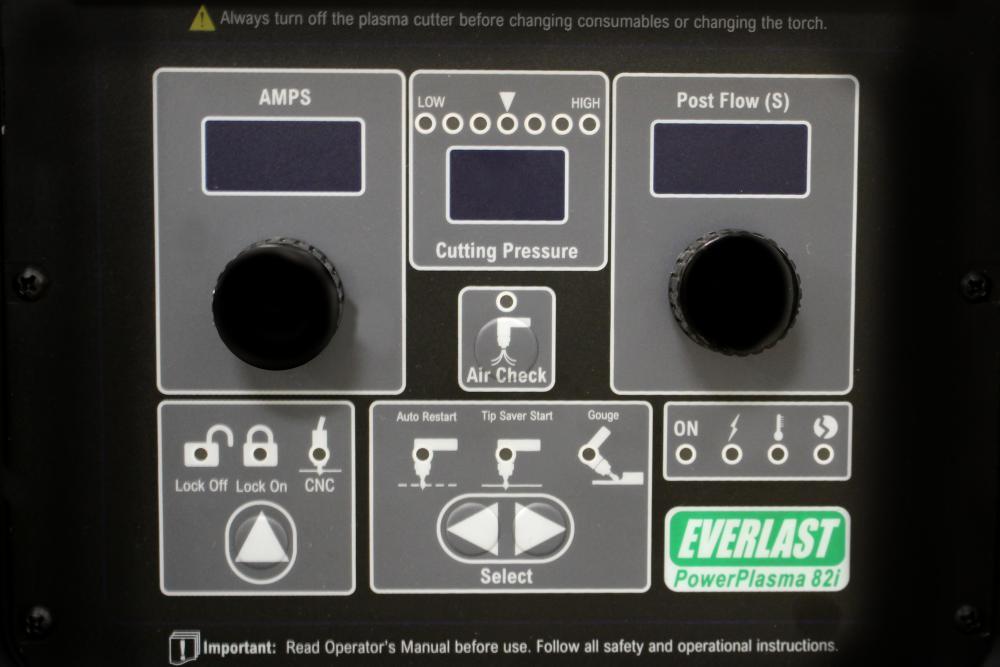

- Digital air pressure gauge
- Over Current and Duty Cycle protection indicates fault with a dedicated warning/diagnostic light, and shuts down output until condition is resolved
- Digital Air Pressure guide makes air pressure adjustment a no-brainer.
- CNC socket for CNC use on plasma tables (machine torch optional)
Specifications
| Type | IGBT |
| Voltage/Phase | 220/240V, 1 Ph |
| Output Amp/Volt Range | 20-80A/ 88V-112V |
| OCV | 240 |
| Max Inrush Amps | 58A |
| Max Rated Input Amps | 45.2A |
| Duty Cycle at Rated Amps/Volts | 60% @ 80A/112V; 100% @ 63A/105V |
| Arc Start Type | Blow Back (Piston type) |
| Pilot Arc | Yes |
| Torch Type | Italian designed iPT 60 |
| CNC Interface Port | Yes |
| Adjustable Post Flow Timer | Yes |
| Gouging | Light to Medium |
| Recommended Cutting Air Pressure | 70-75 psi |
| Recommended Compressor Capacity | 7 CFM @ 90 psi/ 60 gallon tank |
| Amps/Volts @ 60% Duty Cycle | 80A/112V |
| Dimensions | 25" x 9.5" x 15" |
| Weight | 53 lbs |

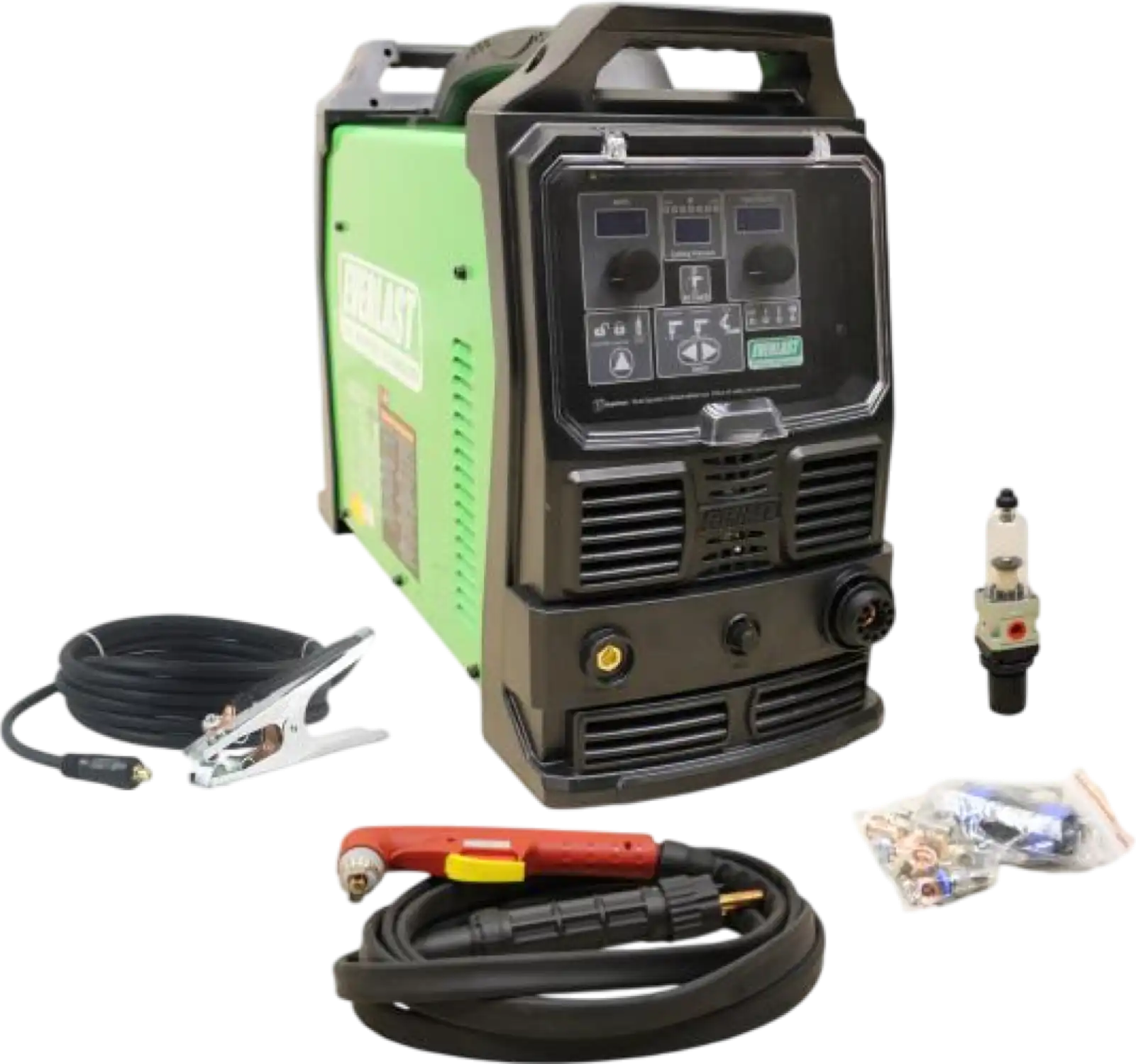

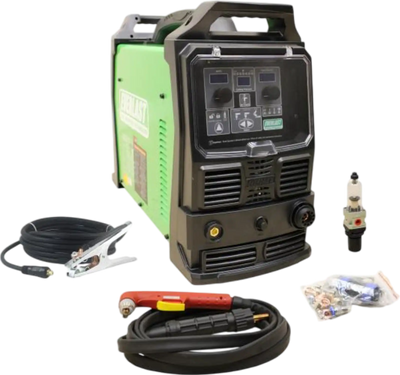

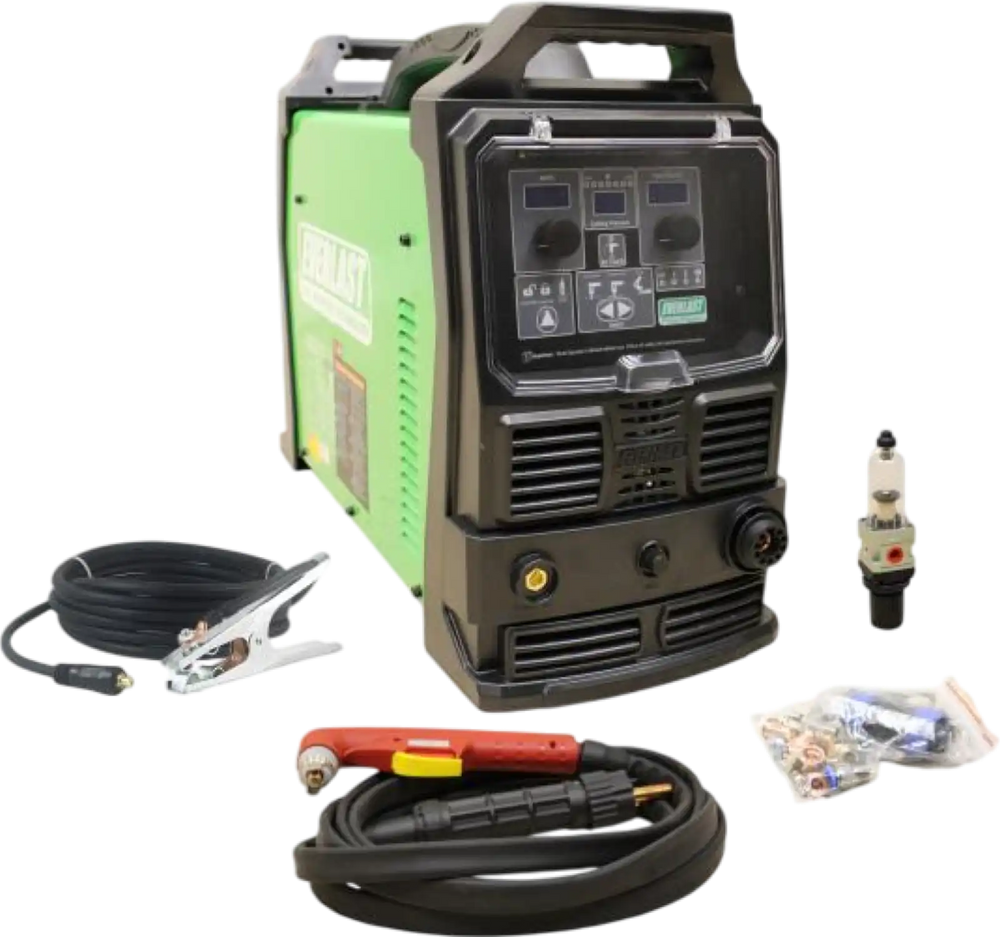

Package Contents
PowerPlasma 82i Plasma Cutter
IPT-80 Handheld Torch w/ 14ft Cable
Ground Clamp
Air Pressure Regulator/ Water Trap (separate air dryer is required to reduce consumable wear and prevent torch damage)
WEiPU SP21 CNC Connector 12-pin
Starter Consumable Kit
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
