Everlast PowerPro 205Si Welder Plasma Cutter TIG/Stick IGBT Inverter AC DC 220/240V New
Manufacturer: Everlast
SKU: PP-205SI
QTY
or
(888) 999-1522
$ 1,719.00
$ 1,469.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

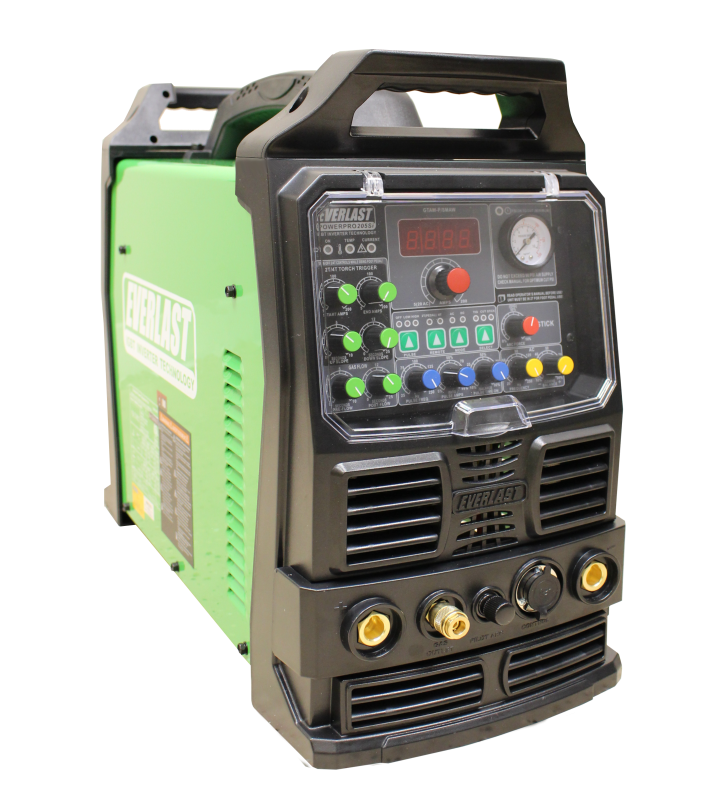

Everlast PowerPro 205Si Welder Plasma Cutter TIG/Stick IGBT Inverter AC DC 220/240V New
Product Overview
The PowerPRO 205Si is an all-around welder with plasma cutter capabilities. With 200 Amp TIG, 160 Amp Stick, and 50 Amp Plasma cutting, the digitally controlled IGBT inverter welder/cutter is an all-in-one solution. Stable arc performance helps both hobbyists and professionals to make quality repairs in the field or in the fab shop. The TIG pulse capability further extends the unit's capabilities, as well as the fully adjustable AC frequency and AC balance for improved aluminum welding.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- All-in-one portability
- Compact IGBT Inverter design and low power consumption is ideal for portable use
- Compact yet powerful TIG welding/Plasma cutting features

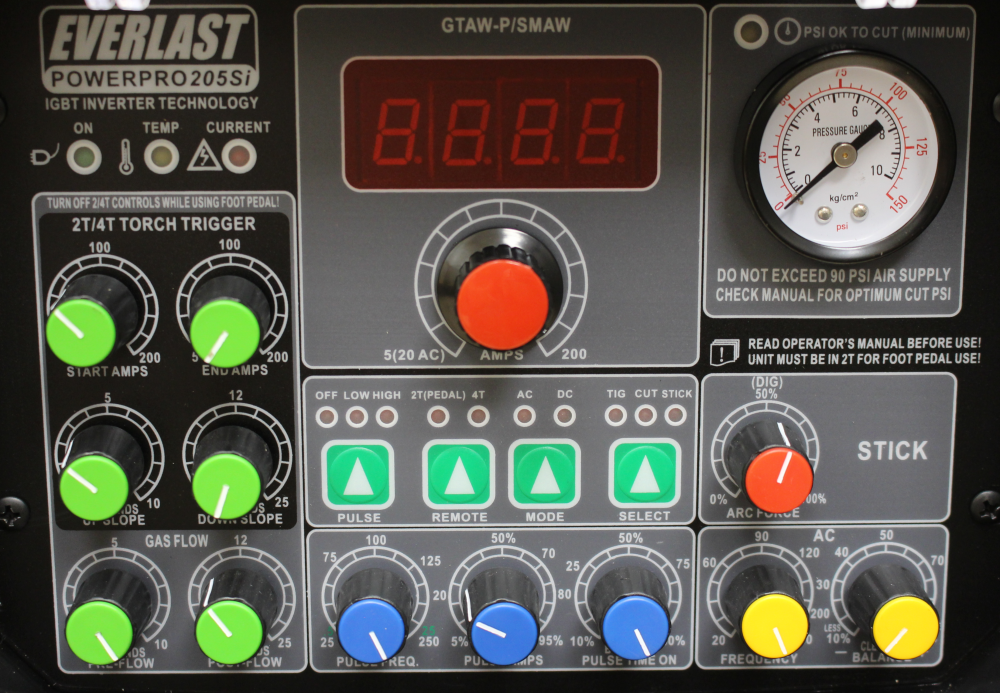

- Easy to use controls with simple selector switch for process changeover
- Quick change out of torches for easy change from TIG to plasma back to TIG
- Good duty cycle ratings for TIG, Stick, and Plasma
- Duty cycle, over-current, and air pressure indicators ensure safe operation and prevent damage by interrupting output when necessary
- Low dross cuts on steel up to 5/8" with up to 3/4" maximum capacity (under ideal conditions)
- Exceptional arc stability for TIG/Stick functions
Specifications
| Inverter Type | IGBT |
| Voltage/Phase | 220/240V, 1 Ph |
| TIG Output Type | AC/DC |
| TIG Start Type | High Frequency Only |
| Pulse | Yes, Adjustable |
| Plasma Cutter Arc Start Type | Blow Back (Piston type) |
| Pilot Arc | Yes |
| AC Frequency | 20-250Hz |
| AC Balance (cleaning) | 10-90% |
| OCV | 85V TIG/Stick, 250V Plasma |
| Max Inrush Amps | 30A |
| Max Rated Input Amps | 24A |
| TIG Output Amps/Volts @ Duty Cycle | 200A/18V @ 60% Duty Cycle; 160A/16.4V @ 100% Duty Cycle |
| Stick Output Amps/Volts @ Duty Cycle | 160A/26.4V @ 35% Duty Cycle; 130A/25.2V @ 60% Duty Cycle; 100A/ 24V @ 100% Duty Cycle |
| Plasma Output Amps/Volts @ Duty Cycle | 50A/100V @ 35% Duty Cycle; 40A/96V @ 60% Duty Cycle; 30A/92V @ 100% Duty Cycle |
| TIG AC Amp/Volt Range | 20A-200A; 10.8V-18V |
| TIG DC Amp/Volt Range | 5A-200A; 10.2V-18V |
| Stick Amp/Volt Range | 5A-160A; 20.2V-26.4V |
| Plasma Amp/Volt Range | 20A-50A; 88V-100V |
| Start/End Amps | DC: 5A-200A; AC: 20A-200A |
| Down Slope TIme | 0-25 seconds |
| Up Slope Time | 0-10 seconds |
| Preflow Time | 0-10 seconds |
| Post Flow Time | 0-25 seconds |
| TIG Pulse Frequency | .5-250 Hz |
| TIG Pulse Time On | 10-90% |
| Stick Arc Force Control | Yes, 10-100% |
| Torch Type | PT/iPT 60 |
| Recommended Cutting Air Pressure | 75 psi |
| Recommended Compressor Capacity | 5 CFH @ 90 PSI/ 25 gallon |

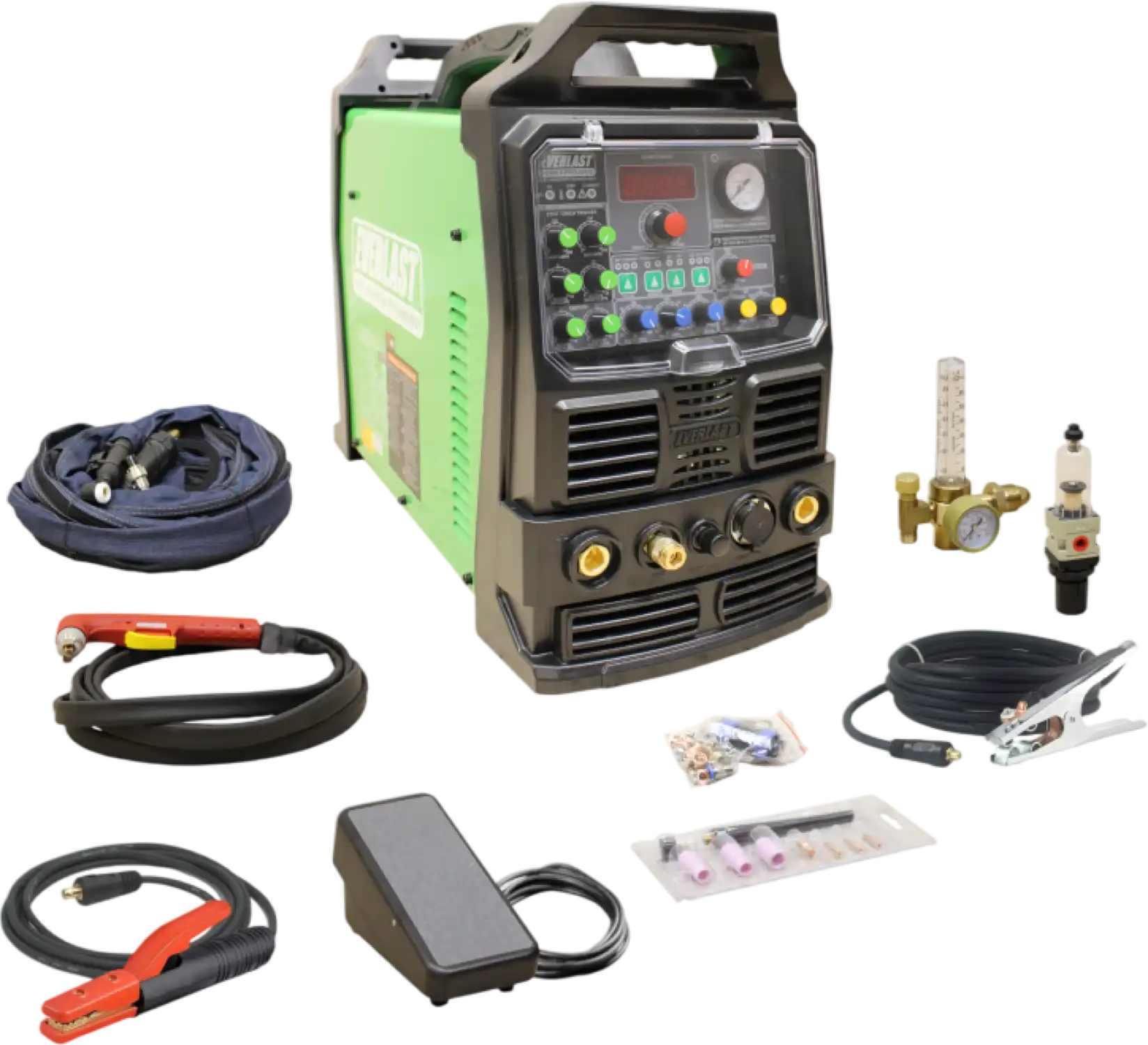

Package Contents
PowerPRO 205Si Welder Plasma Cutter
Air-Cooled TIG Torch w/ 15ft Cable
Stick Electrode Holder w/ 10ft Cable
Plasma Torch w/ 14ft Cable
Foot Pedal
Argon Regulator for TIG
Air Pressure Regulator w/ Water Trap (Note: This is not an air dryer. A separate, inline air dryer, supplied by the customer should be installed)
Consumable Starter Kit for TIG and Plasma (tungsten not included)
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
