Everlast PowerTIG 250EX Welder Digital Inverter TIG/Stick AC DC 250Amp 220/240V New
Product Overview

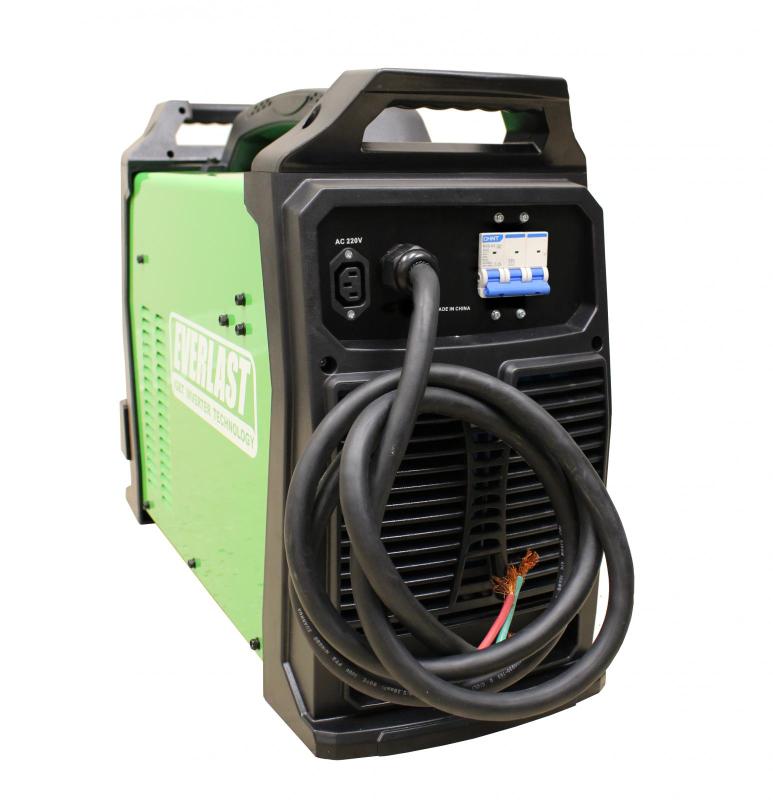

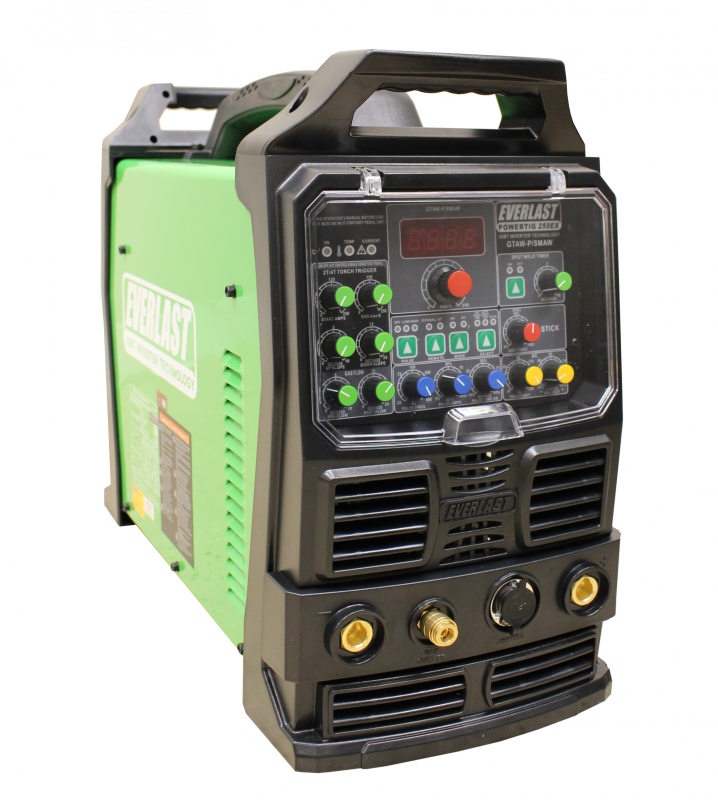

The PowerTIG 250EX is a versatile solution for welding enthusiasts and professionals in need of an AC/DC TIG welder. This unit outputs 250 amps of TIG welding power on single phase 240V, with a 60% duty cycle. It's equipped with useful features like fully adjustable pulse, AC frequency, AC balance control, stick function with arc force control, and 2T/4T remote control functions. This welder will operate efficiently on both 240V single phase, and 240V 3-phase power.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer

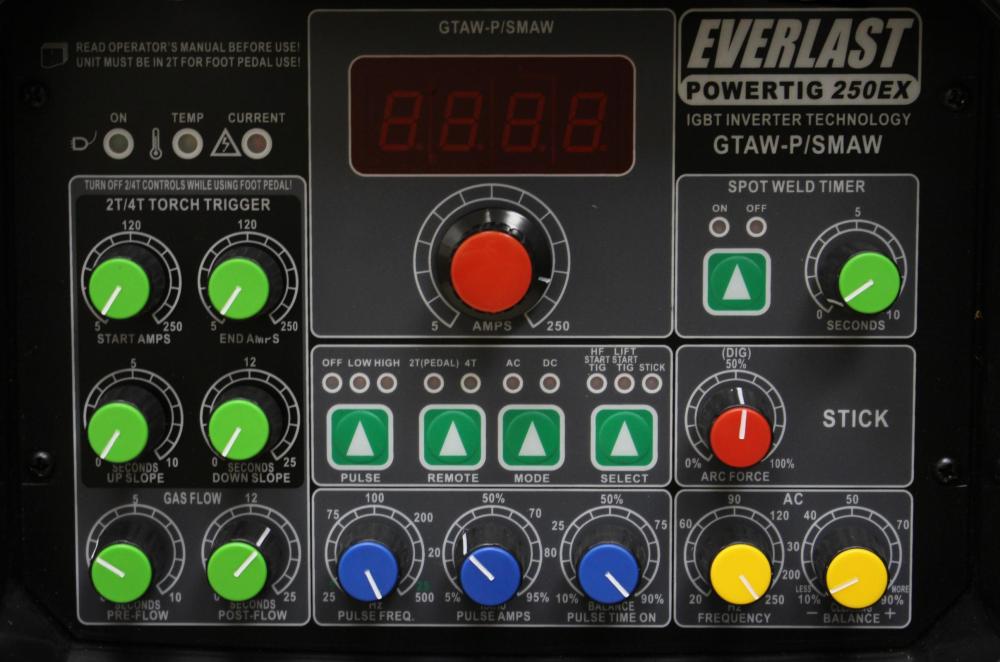

Features
- IGBT Power Modules increase reliability and performance
- Low 5 amp Start for TIG in AC and DC modes (+/- 2 amps)
- 2T/4T amp/slope parameters for welding with torch switch
- Pre flow and Post flow control for maximum shielding gas protection before and after
- Improved HF start circuit for reduced maintenance issues
- Lift Start function for use when HF is not desireable
- Expanded AC cleaning range offers the most adjustability in its class for optimum aluminum welding performance
- Color coded controls are easy to find and understand
- Arc force control for stick reduces spatter and helps improve arc performance in short arc conditions
- Pulse up to 500 Hz in AC or DC modes
- Built in 240V receptacle for PowerCool 300 water cooler
- Works on single phase 240V or three phase 240V input
- HV Start - This is an advanced type of HF arc start with electronic control rather than point gap style starts
- Fan-On-Demand, runs when it's needed starting on arc start and shuts off as the welder cools down
Specifications
| IGBT Type | Module IGBT |
| Inverter Type | Digital/Micro-controlled |
| Output Type | AC/DC TIG, DC Stick |
| Voltage/Phase | 220V/240V, 1/3 Ph |
| Max Rated TIG Amps | 250A |
| Max Rated Stick Amps | 200A |
| TIG Amps @ Rated Duty Cycle | 250A/20V @ 60% Duty Cycle; 200A/18V @ 100% Duty Cycle |
| Stick Amps @ Rated Duty Cycle | 200A/28V @ 35% Duty Cycle; 160A/26.4V @ 60% Duty Cycle; 130A/ 25.2V @ 100% Duty Cycle |
| OCV | TIG: 80V / Stick: 80V |
| TIG Output Range DC | 5A-250A/ 10.2V-20V |
| TIG Output Range AC | 5A-250A/ 10.2V-20V |
| Stick Output Range DC | 5A-200A/ 20.2V-28V |
| Stick Hot Start Amps | Auto Regulated |
| Stick Function | Adjustable Arc Force Control |
| Stick Hot Start Type | Auto Adaptive Hot Start |
| 6010/Cellulose Capable | Limited to 6011 |
| Min Amp TIG Start | DC: 5A; AC: 5A |
| TIG Start Type | Solid State HF and Lift Start |
| HF and Lift | HV (solid state simulated HF); Lift start with remote |
| Memory | No |
| Upslope Time | 0-10 seconds |
| Down Slope Time | 0-25 seconds |
| Pre-Flow Time | 0-10 seconds |
| Post Flow Time | 0-25 seconds |
| TIG Pulse | Yes |
| Standard Pulse Frequency | DC: 0.5-500 Hz; AC: 0.5-500Hz |
| Pulse Time On (Duty Cycle) | 10-90% |
| Pulse Amp Range | 5-95% |
| AC Frequency | 20-250Hz |
| AC Balance | 10-90% of Electrode Positive |
| AC Wave Forms | Advanced Square |
| Remote Control | 2T/4T |
| Foot Pedal | Standard |
| Dimensions | 25" x 9.5" x 15" |
| Weight | 65 lbs |

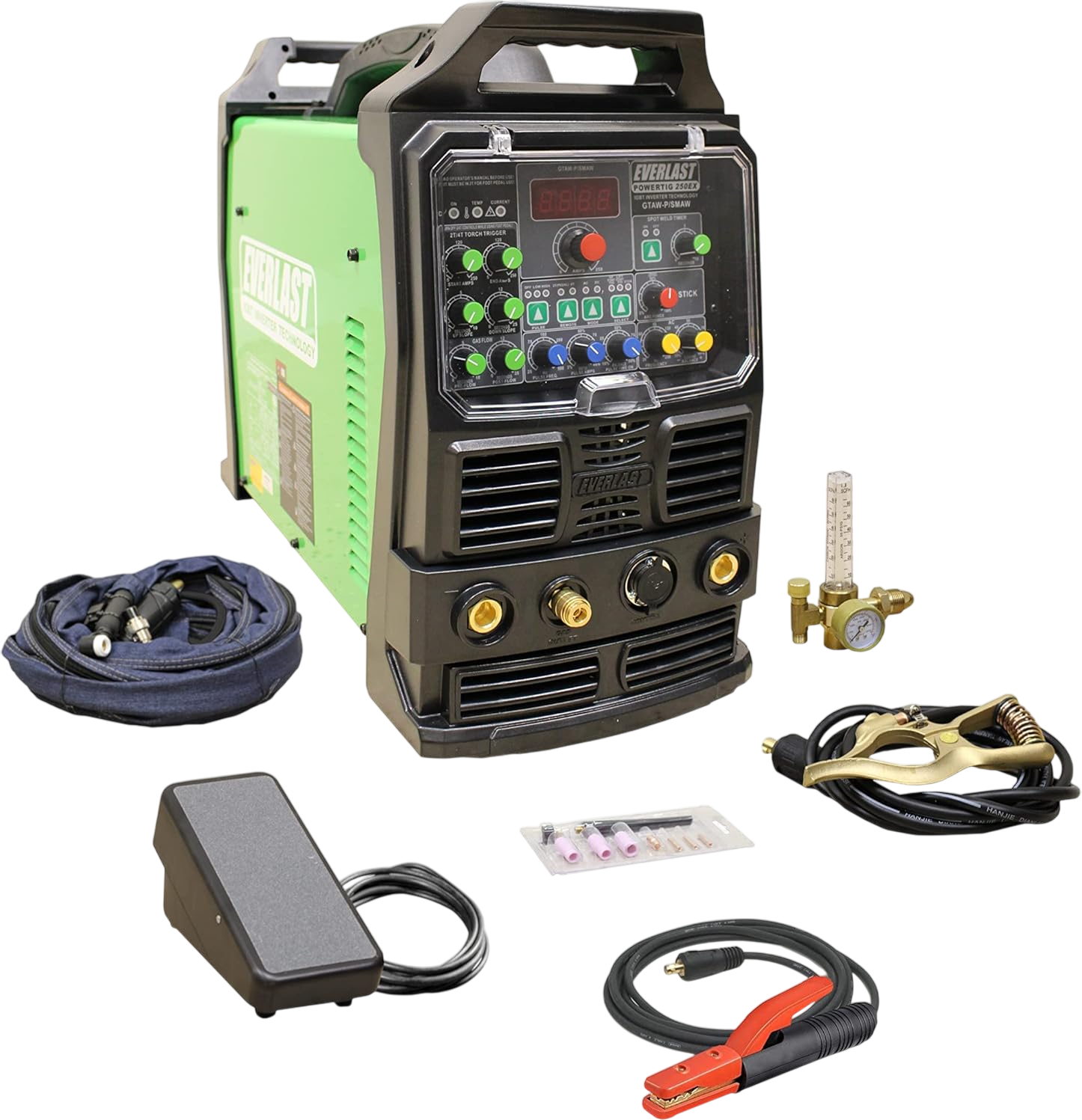

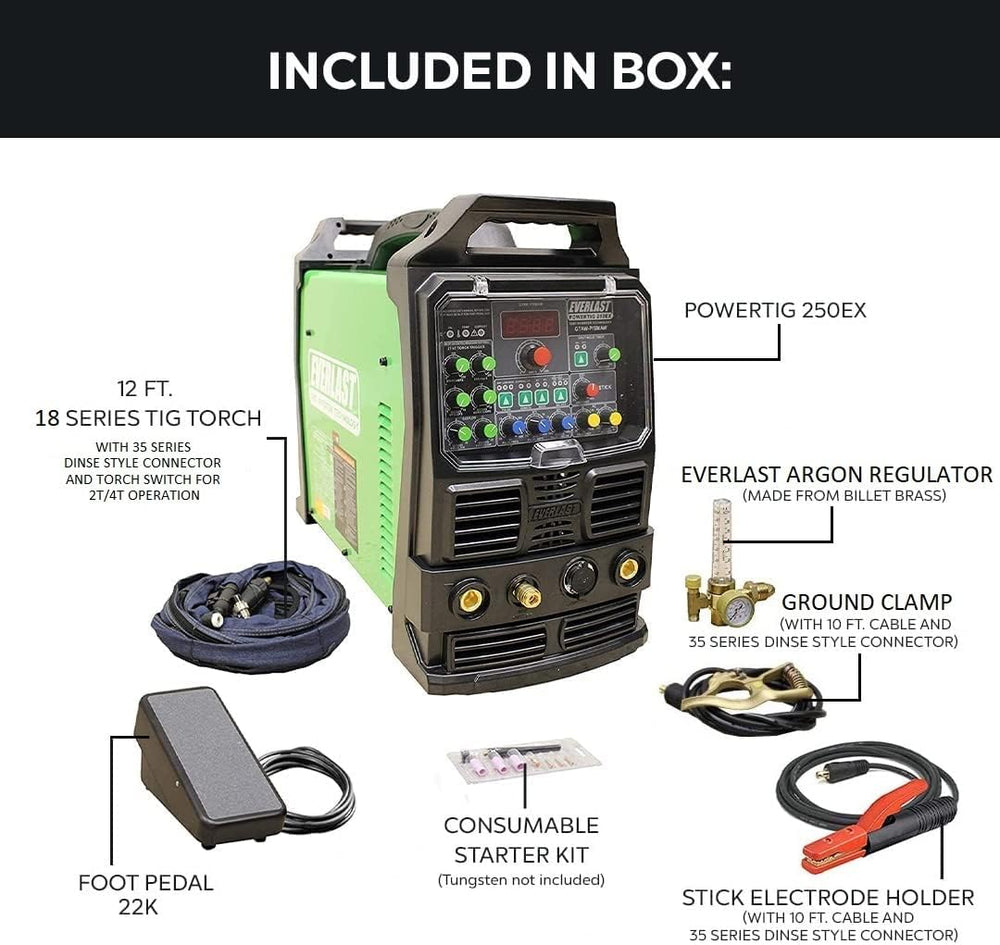

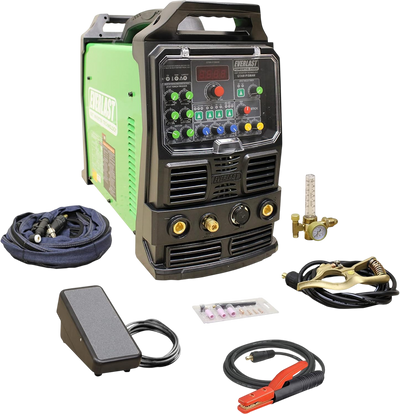

Package Contents
PowerTIG 250EX Welder
Water-cooled TIG Torch
Torch Switch for 2T/4T Operation
Stick Electrode Holder
Ground Clamp
Foot Pedal
Everlast Regulator
Consumable Starter Kit (tungsten not included)
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
