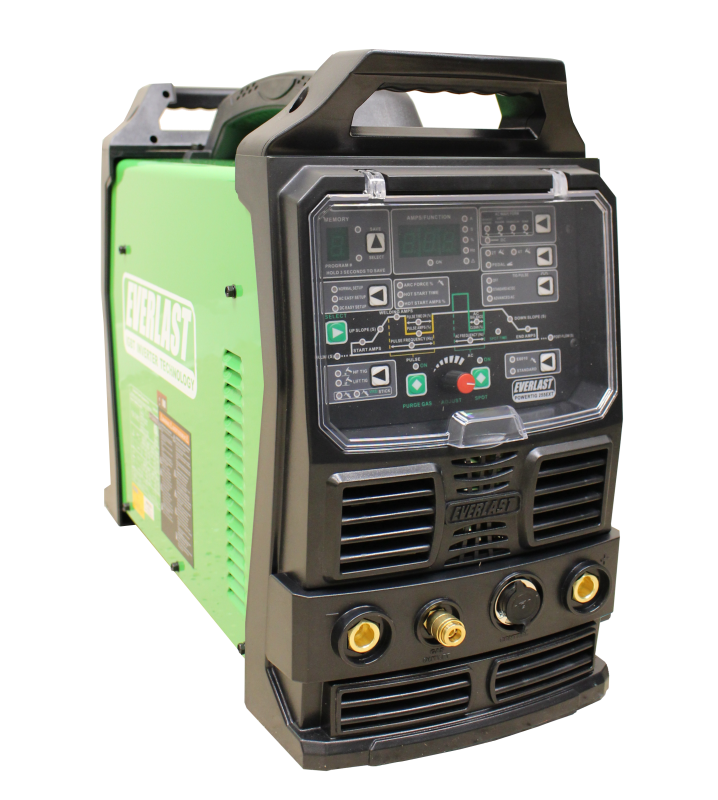

Everlast PowerTIG 255EXT Welder TIG/Stick Digital Inverter AC DC 150 Amp 120/240V New
Product Overview
The digital inverter-based PowerTIG 255EXT delivers exceptional power and performance at a budget friendly price. Equipped with a digital microprocessor, it features memory, pulse, and wave form functions. Advanced pulse is a new feature improving top and low end performance on aluminum, and the unit can be setup to increase penetration on thick aluminum up to 25%. This unit also excels as a stick welder featuring hot start time and intensity, and arc force control adjustments, making it perfect for E6010 or E7018 welding. The PowerTIG 255EXT operates on 120V or 240V. Max output during 120V operation is 150 Amps for TIG, and 120 Amps for stick.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Digital microprocessor control
- Heavy-Duty IGBT Power Modules increase reliability and performance
- True low amp operation down to 3 Amps DC and 5 Amps AC
- 2T/4T/ Pedal operation modes with additional 2T/4T mode for torch amptrol operation.
- Wave form control in AC provides 4 wave forms: Sine, Triangular, Soft Square and Advanced Square Wave

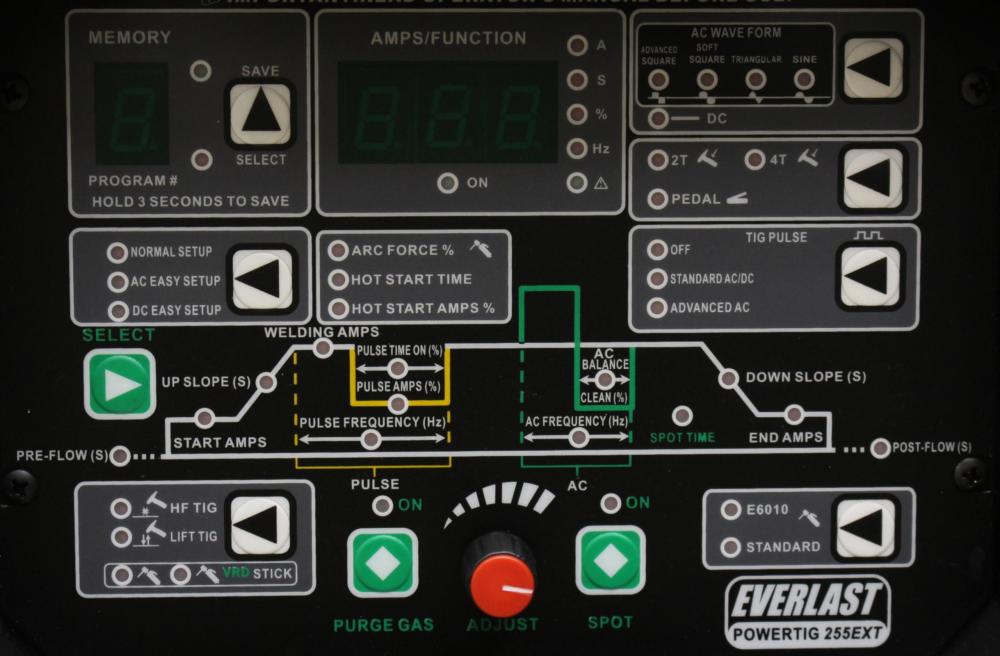

- Simplified menu design allows settings to be quickly selected and adjusted
- Easy Start Up feature in AC or DC modes to make setup quick and easy for the beginner, or the advanced user
- Pulse up to 500Hz in DC, 250 Hz AC
- 10Hz Advanced AC Pulse mode improves penetration on thicker metals, and can reduce warping and burn through on thinner metals
- Arc force control, Hot start time, Hot start intensity settings for Stick welding to improve performance
- VRD function to help reduce chance of shock or electrocution in areas where a VRD is required or needed for stick welding
- Spot Weld Timer
- 6010/Cellulose Stick welding capability
- Fan-on-Demand. Fan runs automatically, switching on and off as needed.
- HV start replaces older point gap HF style for less maintenance and smoother starts
Specifications
| IGBT Type | Module IGBT |
| Inverter Type | Digital/Micro-controlled |
| Output Type | AC/DC TIG, DC Stick |
| Voltage/Phase | Dual Voltage 120V/240V, 1 Ph |
| Max Rated TIG Amps | 240V: 250A, 120V: 150A |
| Max Rated Stick Amps | 240V: 200A, 120V: 120A |
| TIG Output Range DC | 120V: 3-150A/10.1-16V; 240V: 3A-250A/10.1-20V |
| TIG Output Range AC | 120V: 5-150A/10.2-16V; 240V: 5-250A/ 10.2-20V |
| Stick Output Range DC | 120V: 20-120A/ 20.8-24.8V; 240V: 20-200A/ 20.8-29V |
| Stick Hot Start Amps | 0-100% |
| Stick Function | Adjustable Arc Force Control |
| Stick Hot Start Type | Adjustable Hot Start |
| Stick Hot Start Time | 0-2 seconds |
| Min Amp TIG Start | DC: 3A; AC: 5A |
| TIG Start Type | HV and Lift Start |
| Memory | Yes |
| Upslope/Downslope Time | 0-25 seconds |
| Pre-Flow Time | 0-25 seconds |
| Post Flow Time | 0-50 seconds |
| TIG Pulse | Yes |
| Standard Pulse Frequency | DC: .1-500 Hz; AC: .1-250Hz |
| AC Advanced Pulse Frequency | .1-10Hz |
| Pulse Amp Range | 5-90% |
| AC Frequency | 20-250Hz |
| AC Wave Forms | Advanced Square, Soft Square, Triangular, Sine |
| Remote Control | 2T/4T with Torch Amptrol Settings |
| Foot Pedal | Standard |
| Dimensions | 25" x 9.5" x 15" |
| Weight | 67 lbs |

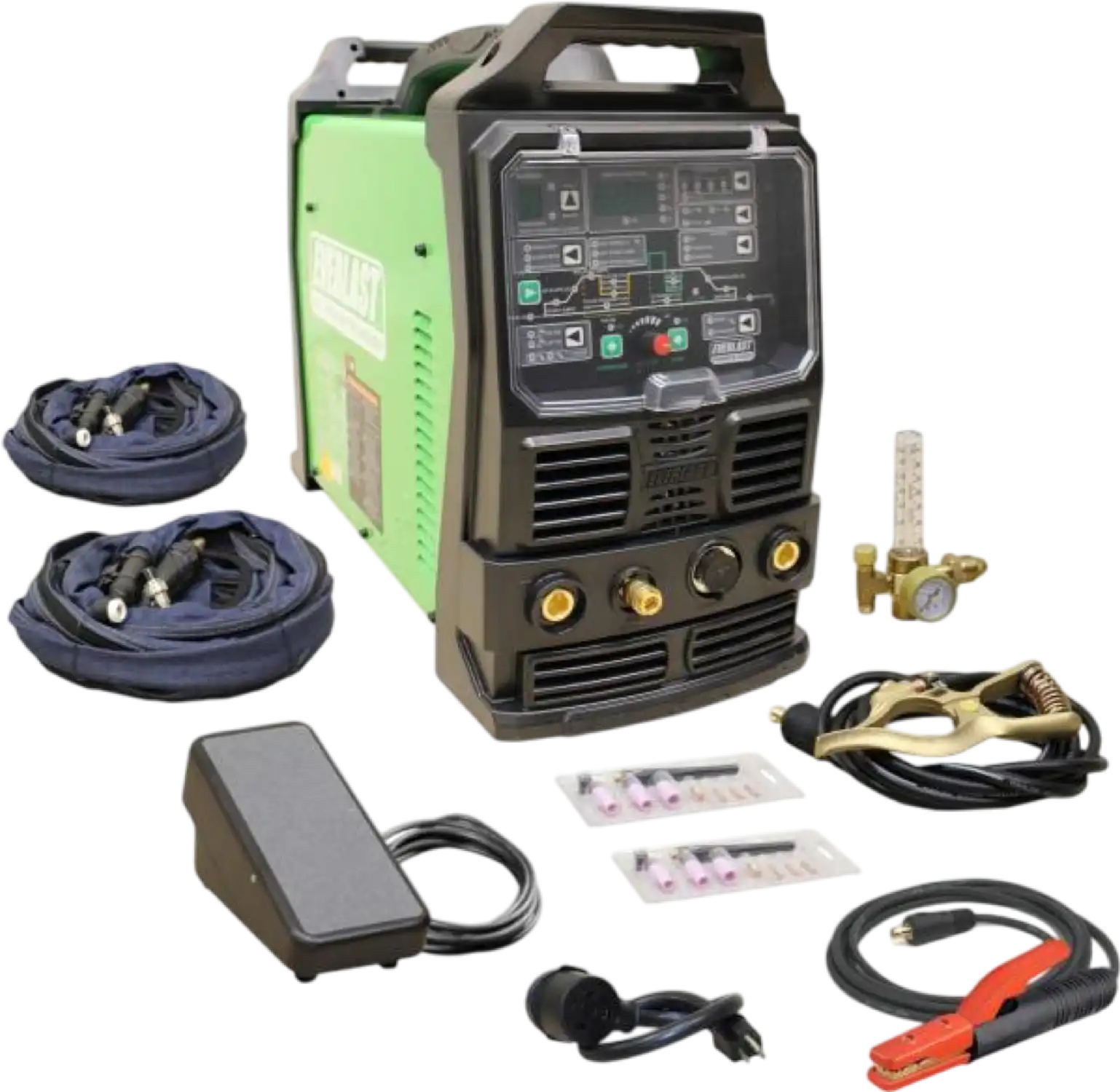

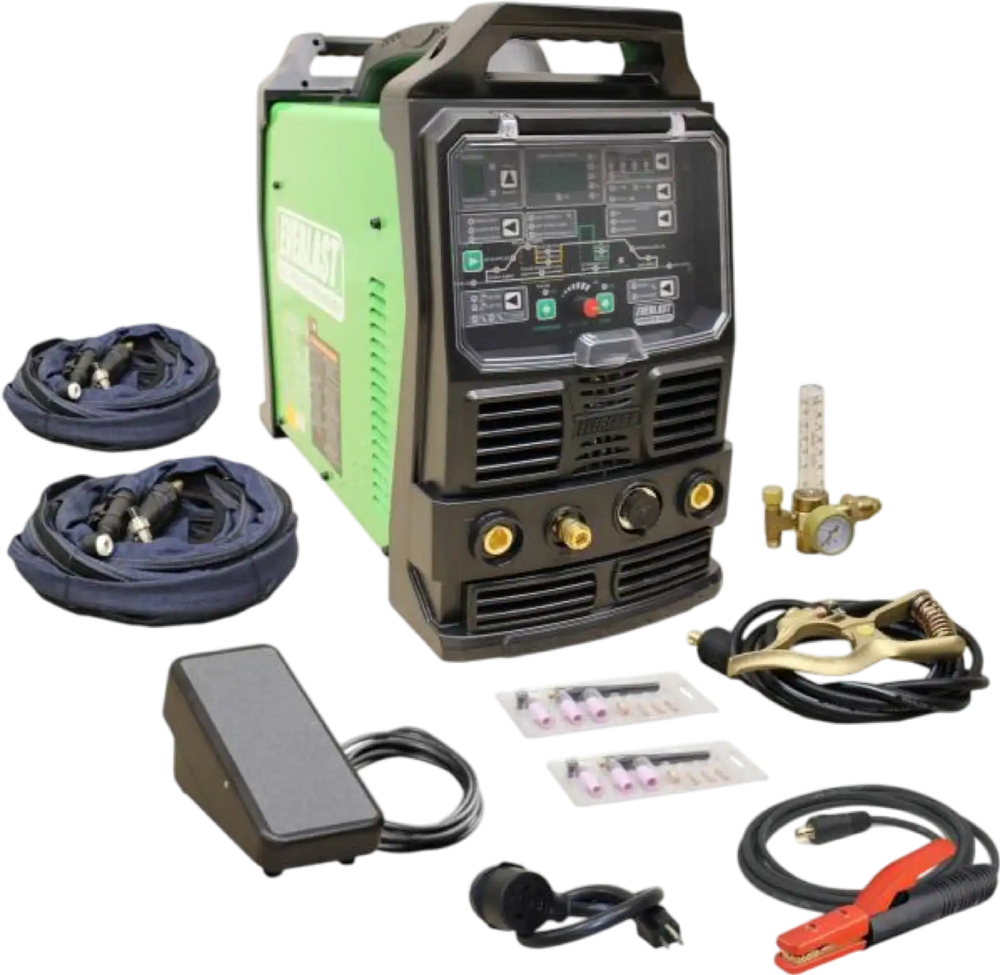

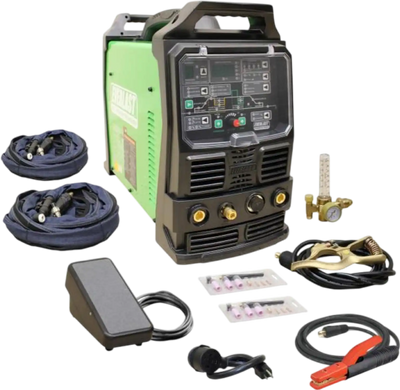

Package Contents
PowerTIG 255EXT Welder
Water-cooled TIG Torch
Air-cooled TIG Torch
(2) Torch Switch TIG for 2T/4T Operation
Stick Electrode Holder
Ground Clamp
Power Pedal TIG Deluxe 22K
RH-191 Argon Regulator with Hose
Starter Consumable Kit (tungsten not included)
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
