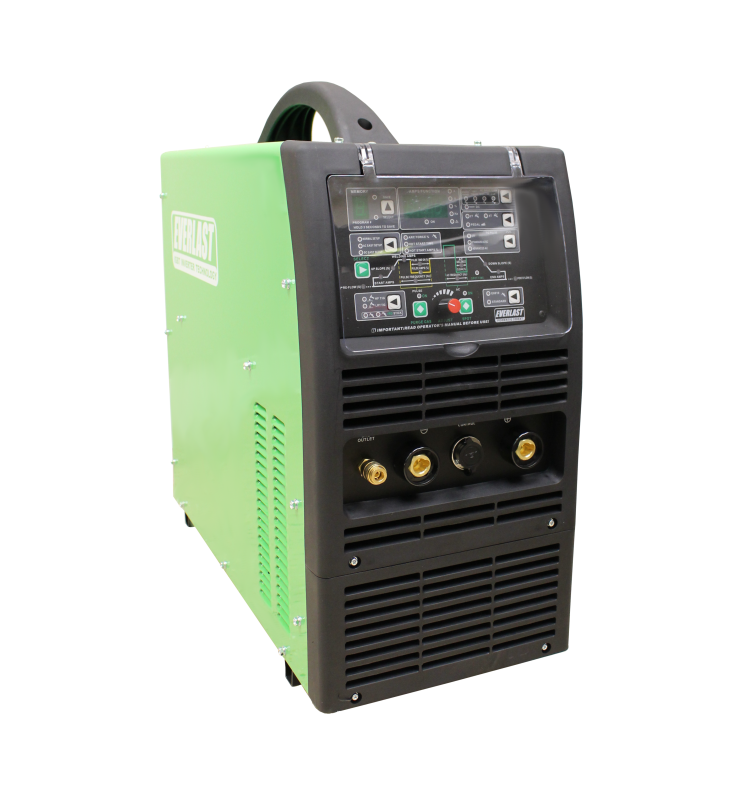

Everlast PowerTIG 400EXT Welder TIG/Stick Digital Inverter AC DC 400Amp 3-Phase 480V New
Manufacturer: Everlast
SKU: PT-400EXT-480
Model
QTY
or
(888) 999-1522
$ 3,949.00
$ 3,290.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Only 6 left in stock
ON SALE!
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 5 year parts and labor warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 5 year parts and labor warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Everlast PowerTIG 400EXT Welder TIG/Stick Digital Inverter AC DC 400Amp 3-Phase 480V New
Product Overview
The PowerTIG 400 EXT is the most powerful member of Everlast's PowerTIG series of TIG/Stick welders. 35% duty cycle at 400A ensures enough power for most any TIG welding task. With 480V 3-phase power, it delivers a full 400A in TIG mode thanks to its high output cooling fan. The welder has a generous 315A output at 35% duty cycle in stick mode to tackle any common stick fabrication or repair chore with up to 1/4" electrode. With the advanced AC pulse feature, the 400 EXT is capable of delivering more TIG welding capability (thickness) than any other unit in its class.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features

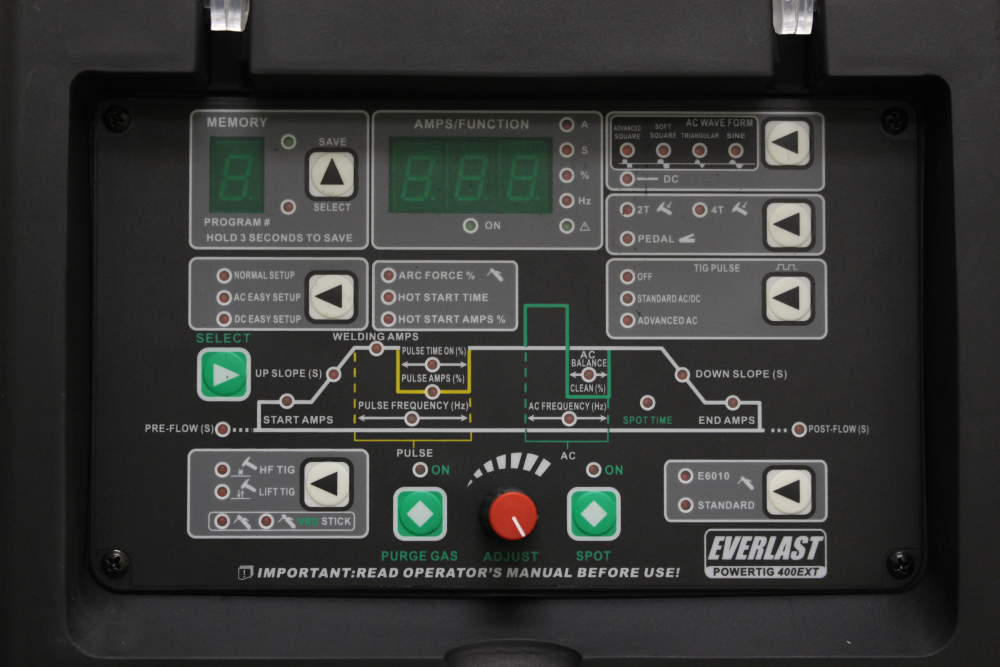

- Digital microprocessor control
- Heavy-Duty IGBT Power Modules increase reliability and performance
- Low amp operation down to 5 Amps DC and 10 Amps AC
- 2T/4T Pedal operation modes with additional 2T/4T mode for torch amptrol operation.
- Wave form control in AC provides 4 wave forms: Sine, Triangular, Soft Square and Advanced Square Wave
- New High Frequency start design reduces maintenance issues and improves start reliability
- Easy Start Up feature in AC or DC modes to make setup quick and easy for beginners or advanced users
- Pulse up to 500Hz in DC, 250 Hz AC
- 10Hz Advanced AC Pulse mode improves penetration on thicker metals, and can reduce warping and burn through on thinner metals
- Arc force control, Hot start time, Hot start intensity settings for Stick welding to improve performance
- VRD function to help reduce chance of shock or electrocution in areas where a VRD is required or needed for stick welding
- Full time fan for maximum duty cycle operation
- 480V 3 phase operation
- Spot Weld Timer
- 6010/Cellulose Stick welding capability
- HF point gap starting
- Fan runs on demand when arc starts and terminates automatically after arc stops

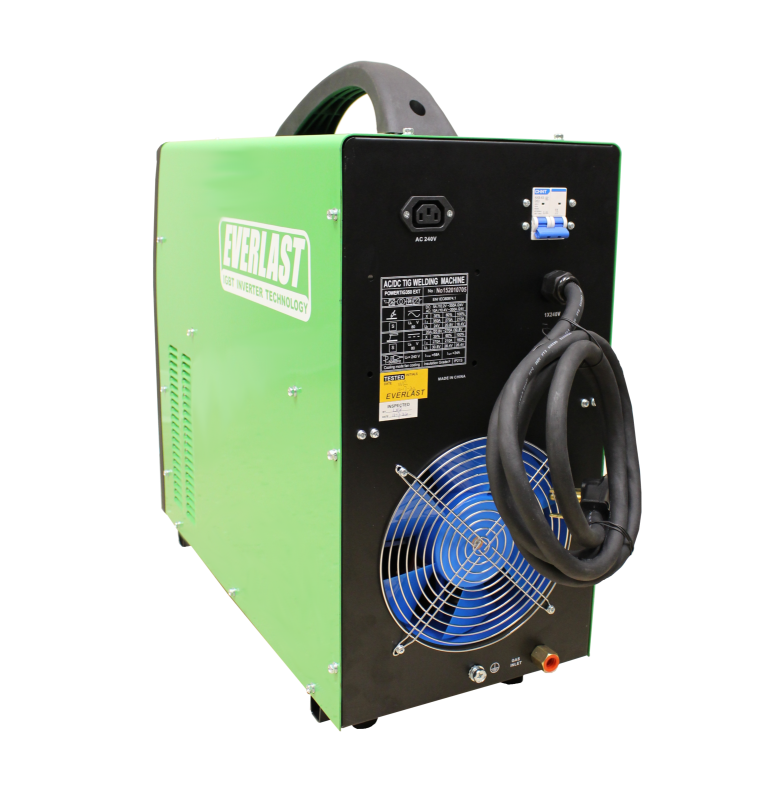

- 240V cooler plug located on rear
Specifications
| IGBT Type | Module IGBT |
| Inverter Type | Digital/Micro-controlled |
| Output Type | AC/DC TIG, DC Stick |
| Voltage/Phase | 480V, 3-Phase |
| Max Rated TIG Amps | 400A |
| Max Rated Stick Amps | 315A |
| TIG Output Range DC | 5-400A/10.2-26V |
| TIG Output Range AC | 10-400A/10.4-26V |
| Stick Output Range DC | 20A-315A/20.6V-32.6B |
| Stick Function | Adjustable Arc Force Control |
| Stick Hot Start Type | Adjustable Hot Start |
| Stick Hot Start Time | 0-2 seconds |
| Upslope/Downslope Time | 0-25 seconds |
| TIG Pulse | Yes |
| AC Frequency | 20-250Hz |
| AC Wave Forms | Advanced Square, Soft Square, Triangular, Sine |
| Remote Control | 2T/4T with Torch Amptrol Settings |
| Foot Pedal | Standard |
| Dimensions | 26" x 11" x 20" |
| Weight | 122 lbs |

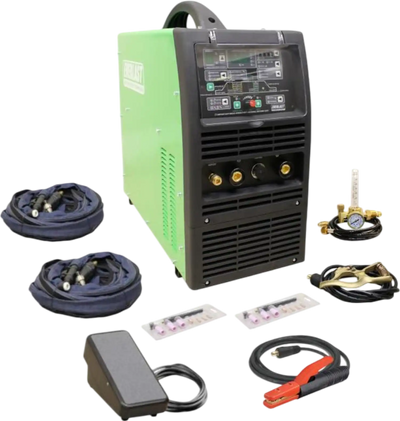

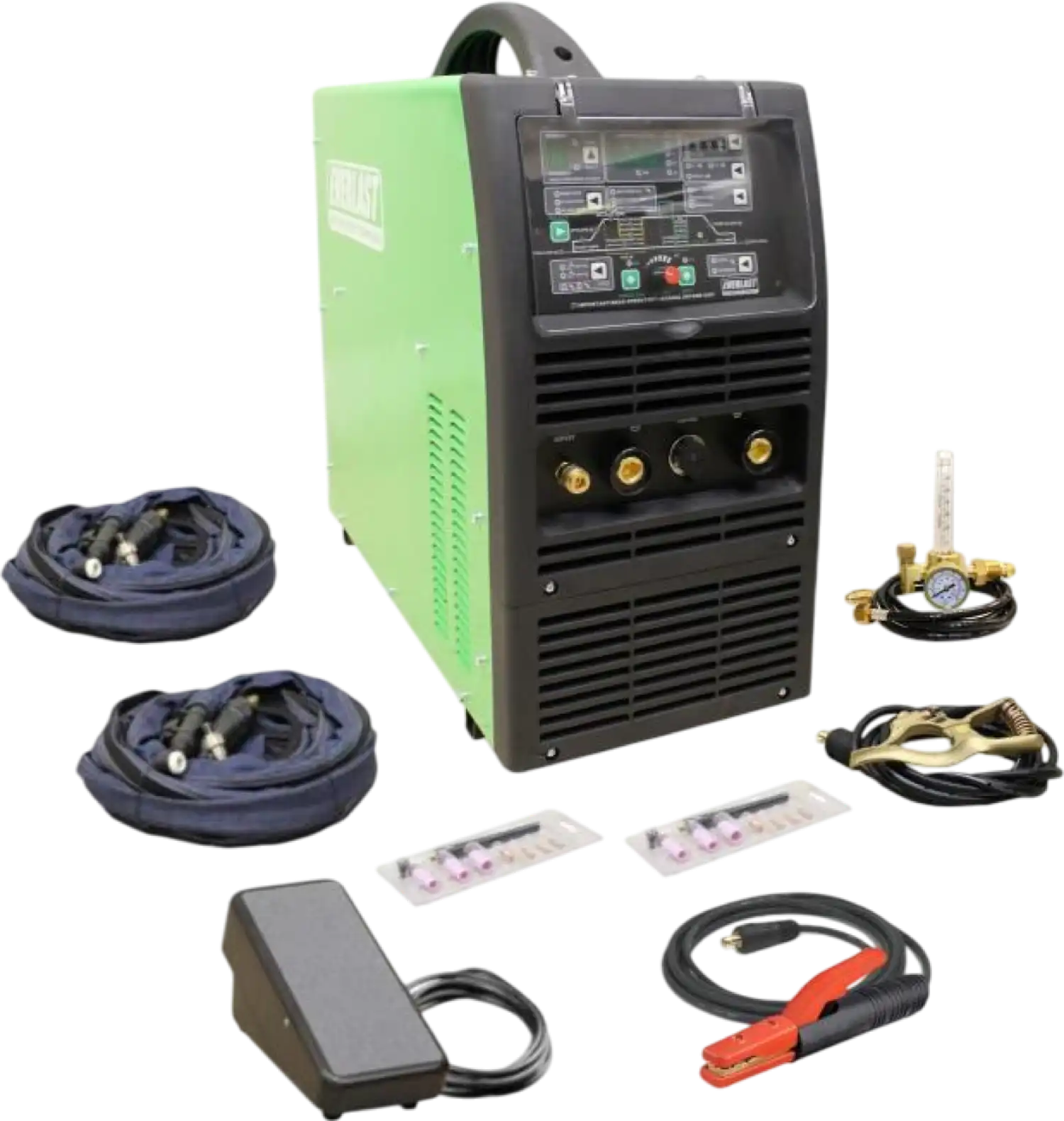

Package Contents
PowerTIG 400EXT Welder 480V
Water-cooled TIG Torch
Air-cooled TIG Torch
Stick Electrode Holder
HD Ground Clamp
Foot Pedal
Regulator
Starter Consumable TIG Kit (tungsten not included)
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
