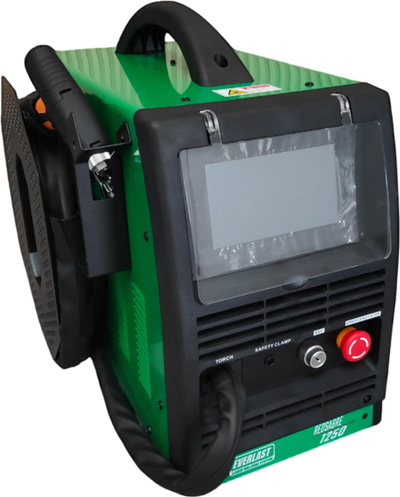

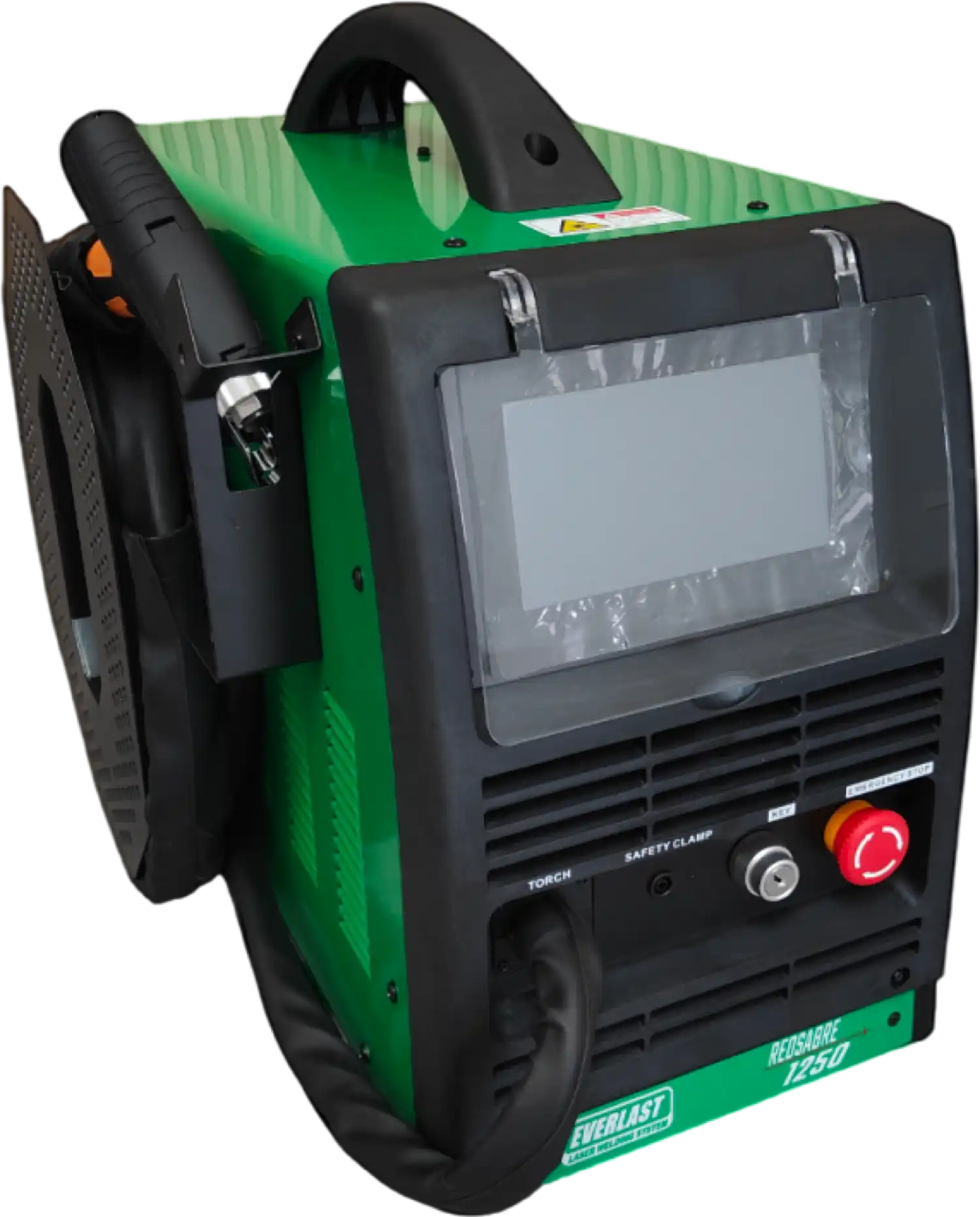

Everlast RedSabre 1250 Laser Welder Air-Cooled Class 4 1250W 240V New
Product Overview
The RedSabre 1250 is a table-top laser welder, which is the perfect compact air-cooled laser for portable operations. The air-cooled design of the RedSabre is a new and innovative way to cool lasers without heavy, large water cooling systems. The high volume fan and high temperature diode design of the RedSabre 1250 reduces the footprint of the welder. The ergonomic gun design and safety features are hallmarks of the RedSabre model line. This model can weld, cut, and descale rust and paint.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Optical Pump powered by GW
- 240V, 1 phase, 50/60Hz Input
- Class 4 Laser
- 18A Input (4500W max input)
- 1250 Watt Fiber Laser
- Air-Cooled Design
- Can be used to create Autogenous welds
- Gas Type: Argon or Nitrogen(N2)
- Cut Gas: Air or Nitrogen (N2)
- Gas Flow Rate for Welding 30 CFH
- Travel speed up to 5 inches per second
- Good Duty Cycle with a 6 Hour 100% rating at Max output
- Travel speed up to 5 inches per second, depending upon thickness and settings
Specifications
| Process Type | Weld, Cut, Descale |
| Voltage | 240V, 1Ph, 50/60Hz |
| Laser | 1250W, Class 4 |
| Gas Type | Argon or Nitrogen |
| Cut Gas | Air or Nitrogen |
| Travel Speed | Up to 5" per second |
| Maximum Weld Mild/Stainless Steel | 1/8" (3.5mm) |
| Maximum Weld Aluminum | 3/32" (2.5mm) |
| Maximum Cut Mild/Stainless Steel | 5/32" (4mm) |
| Maximum Cut Aluminum | 7/64" (3mm) |
| Weight | 66 lbs |
Package Contents
RedSabre 1250 Laser Welder
Laser Gun with 30 ft. cable
(5) Spare Protective Lens Kit
D20F50CT 3.5 (50mm focal length) Collimation Lens
D20F150CT 3.5 (150mm focal length) Focus Lens (installed)
Data Cable
Safety Goggles
Key
Starter Consumables Kit (with nozzles for welding, cleaning, and cutting)
Owner’s Manual
Warranty
This item comes with a 5 (2+3) year parts and labor warranty.
