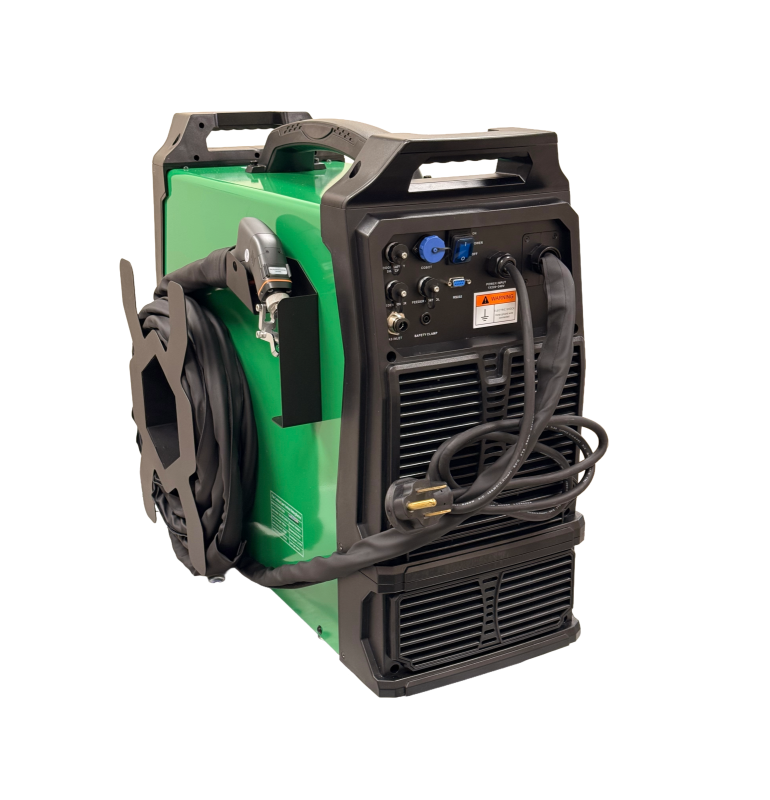

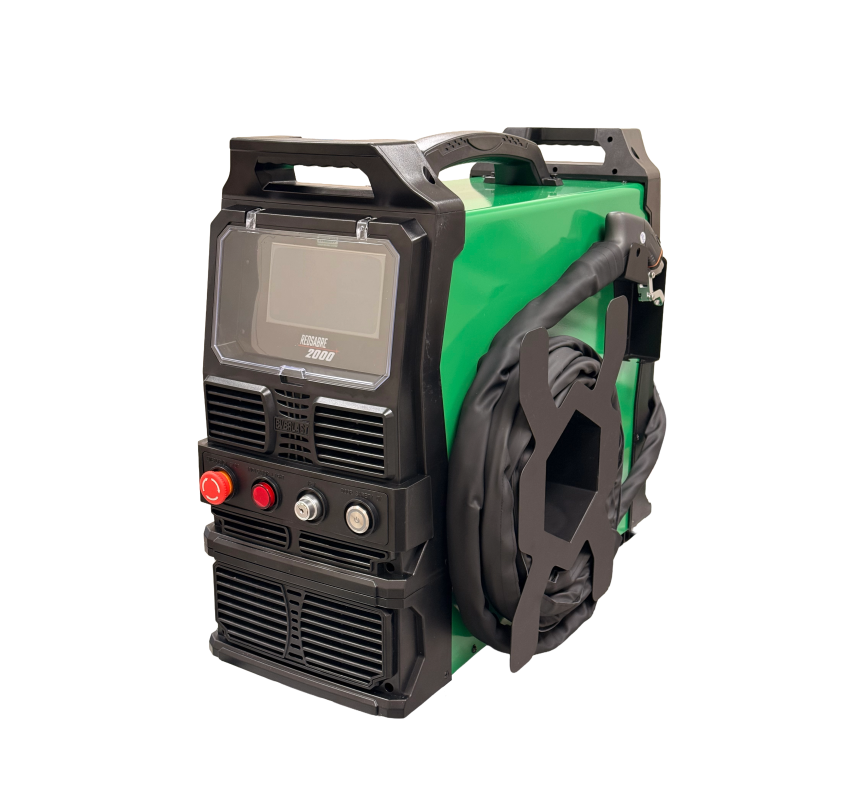

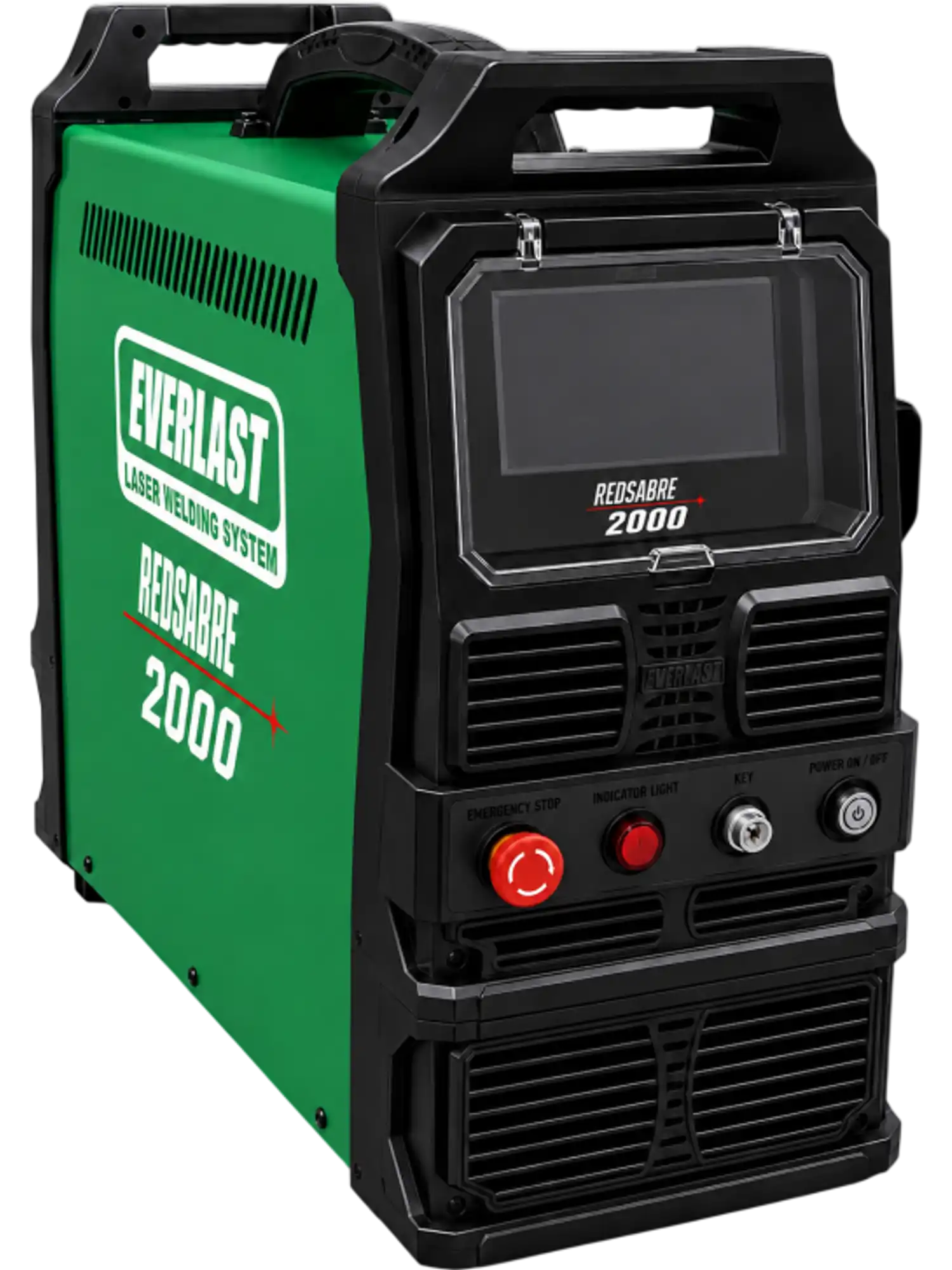

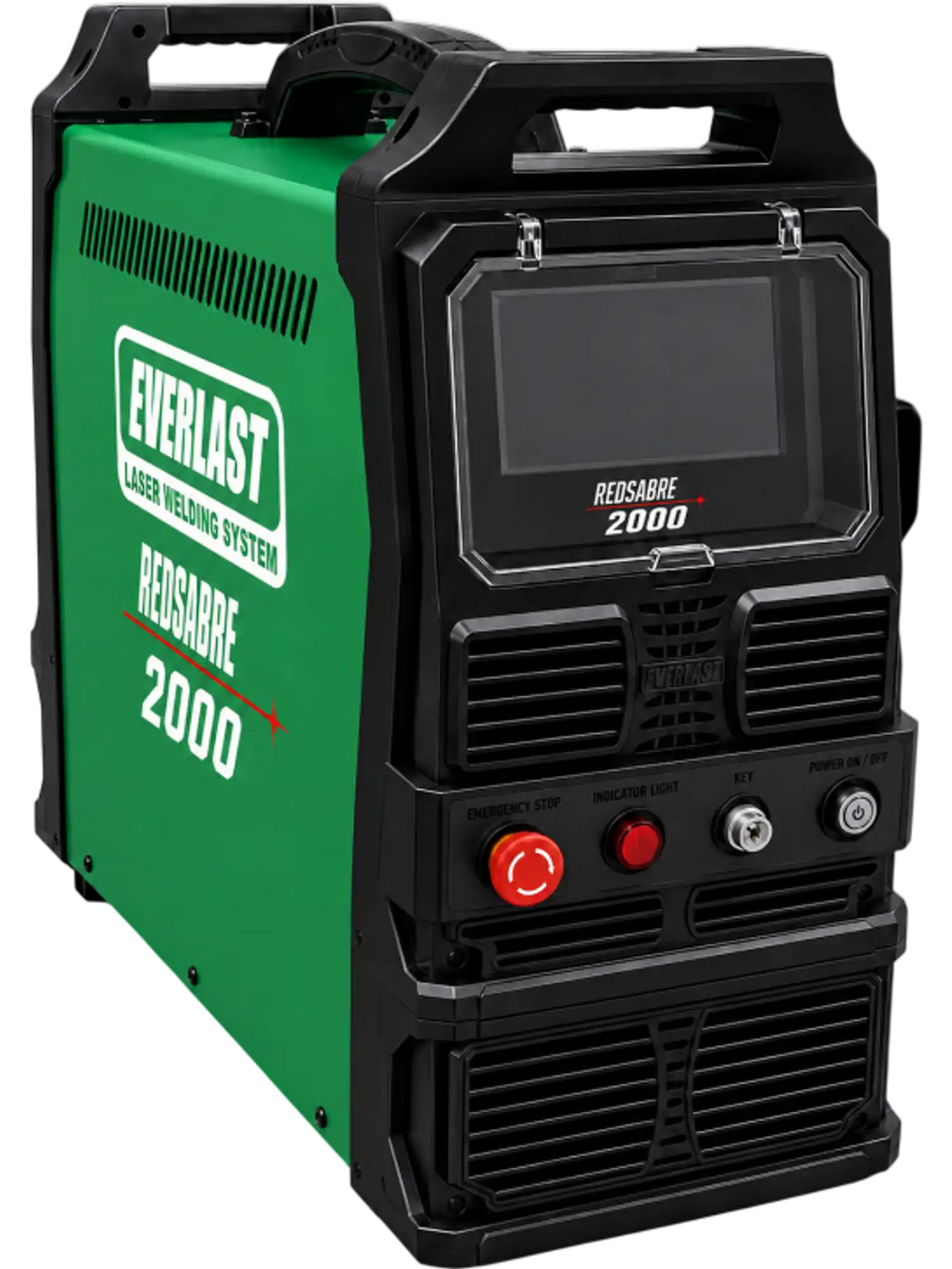

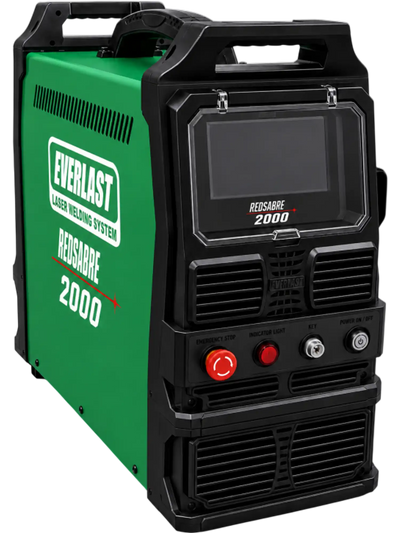

Everlast RedSabre 2000 Laser Welder Air-Cooled Class 4 2000W 240V New
Product Overview

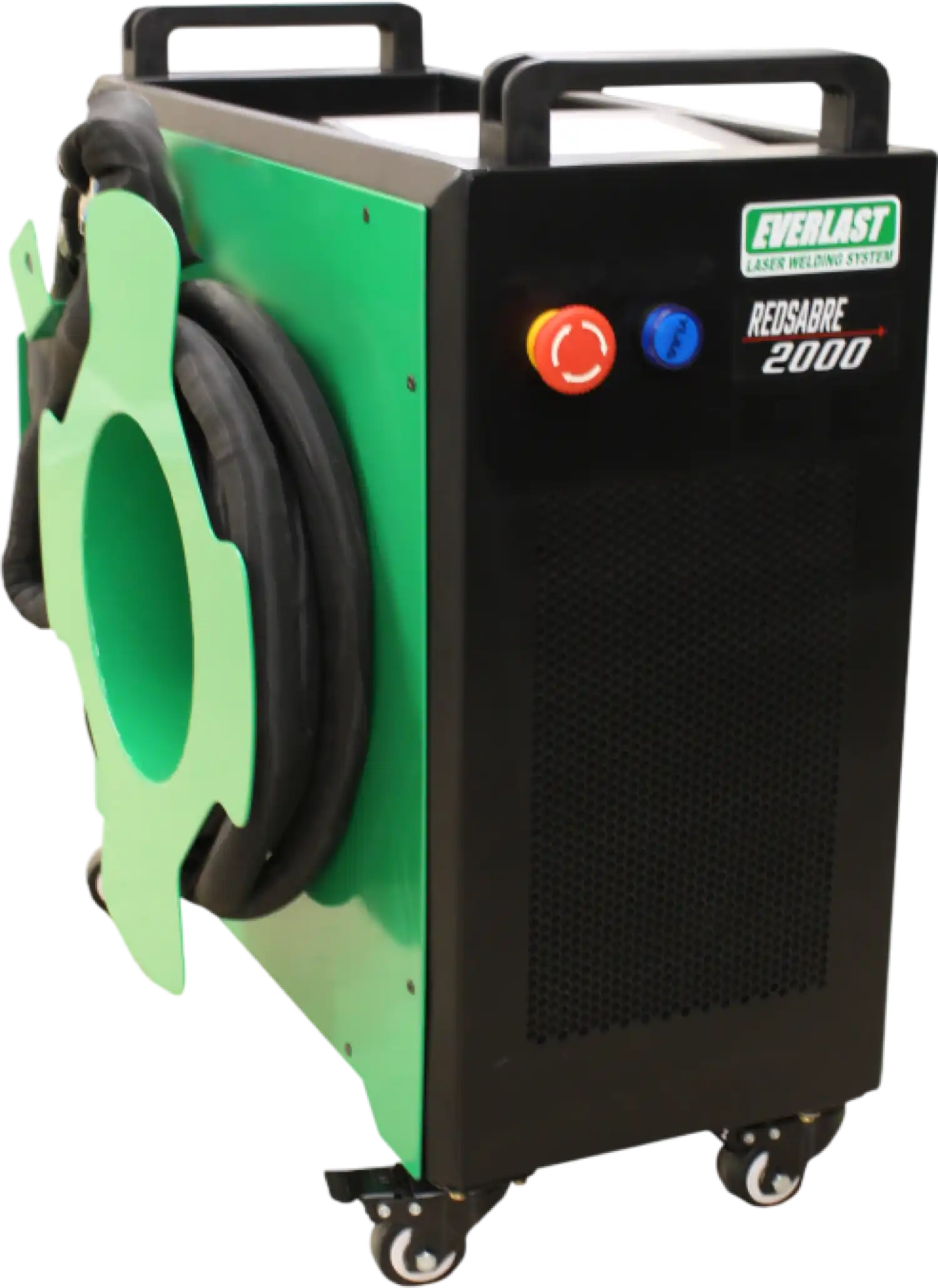

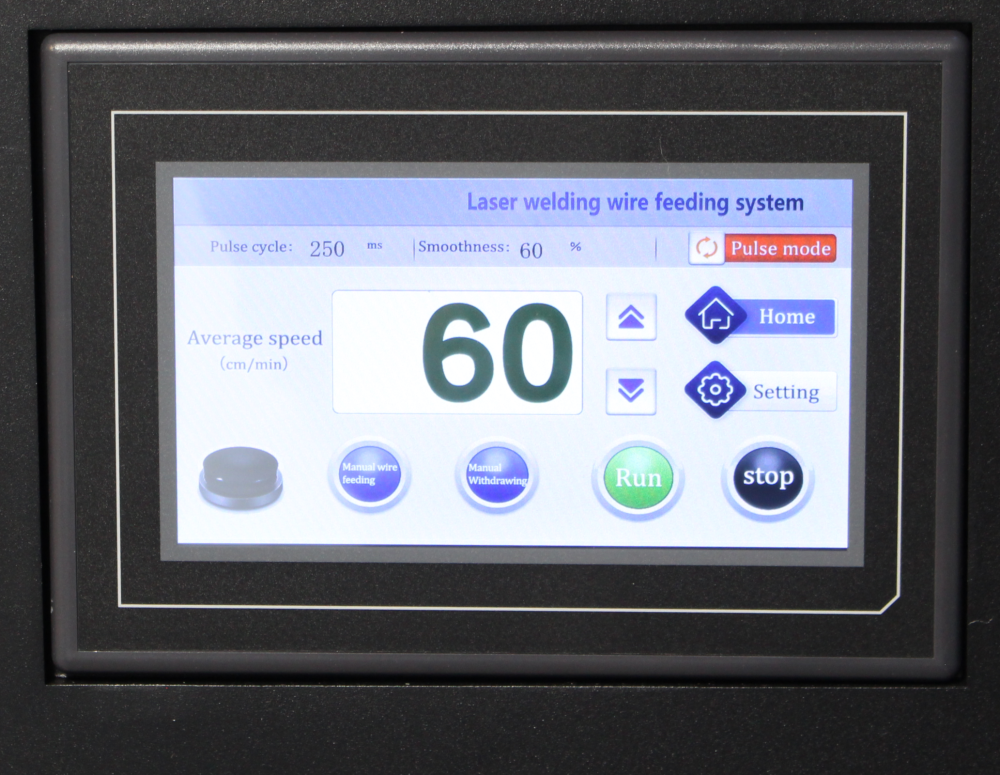

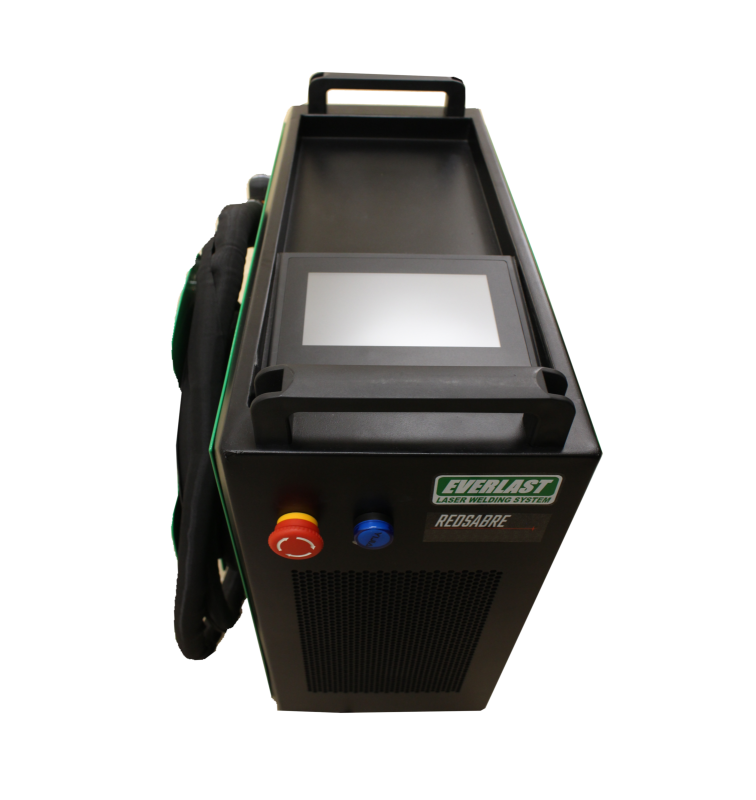

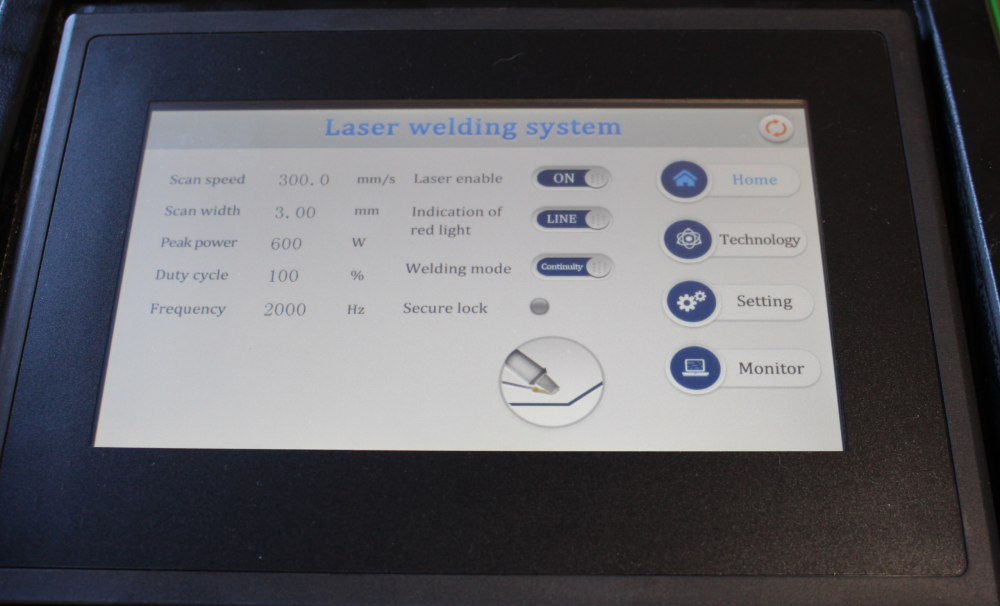

The RedSabre 2000 is a 2000-watt, air-cooled portable laser welder designed for compact size and portability. The air-cooled design of the RedSabre is a new and innovative way to cool lasers without heavy, large water cooling systems. The high volume fan and high temperature diode design of the RedSabre 2000 reduces the footprint of the welder. The ergonomic gun design and safety features are hallmarks of the RedSabre model line. This model can weld, cut, and descale rust and paint. Includes detachable touch screen LCD controls and synchronizing wire feeder.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Optical Pump Powered by RLASER
- 240V 1 phase 50/60Hz Input
- Class 4 Laser
- 4500W Rated Input
- 2000 Watt Fiber Laser
- Air-Cooled Design
- Wire Feeder included
- Can be used to create Autogenous welds
- Gas Type: Argon or Nitrogen(N2)
- Cut Gas: Air or Nitrogen (N2)
- Gas Flow Rate for Welding 30 CFH
- Travel speed up to 5 inches per second
- Good Duty Cycle with 6 Hour 100% rating at Max output
- Travel speed up to 5 inches per second, depending upon thickness and settings
Specifications
| Process Type | Weld, Cut, Descale |
| Voltage | 240V, 1Ph, 50/60Hz |
| Rated Input | 4500W |
| Laser | 2000W, Class 4 |
| Gas Type | Argon or Nitrogen |
| Cut Gas | Air or Nitrogen |
| Travel Speed | Up to 5" per second |
| Gap Fill (Root) w/o Wire | 1.0mm/.040" |
| Gap Fill (Root) Single Wire Feeder | 1.6mm/.062"(≤1/16") |
| Gap Fill (Root) Double Wire Feeder | 2.0mm/ .080" (≤ 5/64") |
| Single Side Weld Steel/S.S. Max | 6.0mm/ .24" (≤ 1/4") |
| Single Side Weld Aluminum Max | 4.5mm/ .18" (≤ 3/16") |
| Single Side Weld Copper Max | 3.0mm/ .12" (≤ 1/8") |
| Cut Thickness Steel Max | 6.0mm/ .24" (≤ 1/4") |
| Cut Thickness Aluminum Max | 5.0mm/ .20" (≤7/32") |
| Dimensions | 32" x 18" x 32" |
| Weight | 135 lbs |

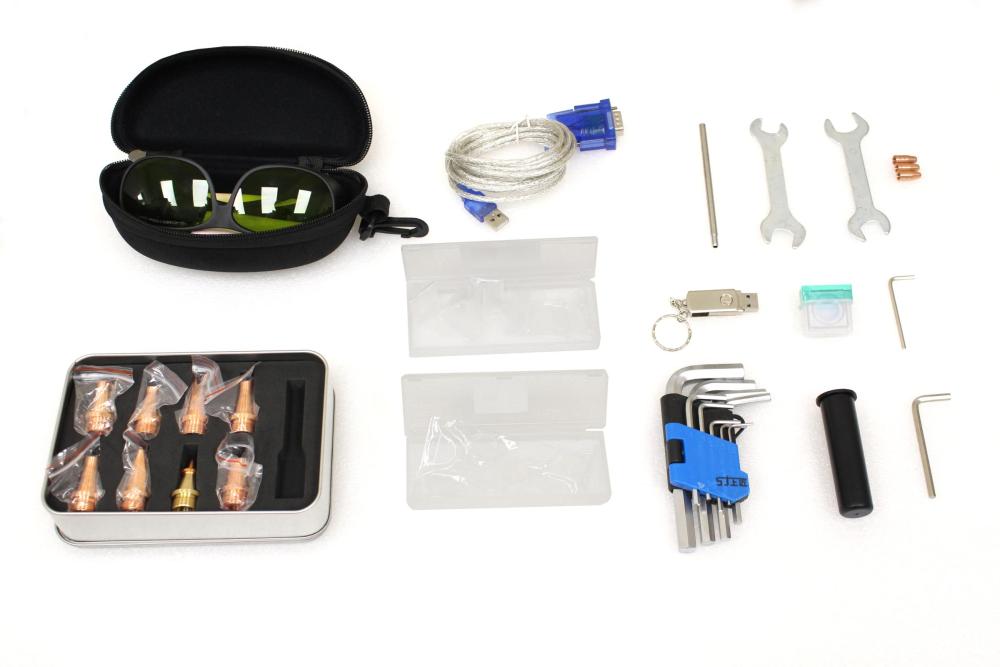

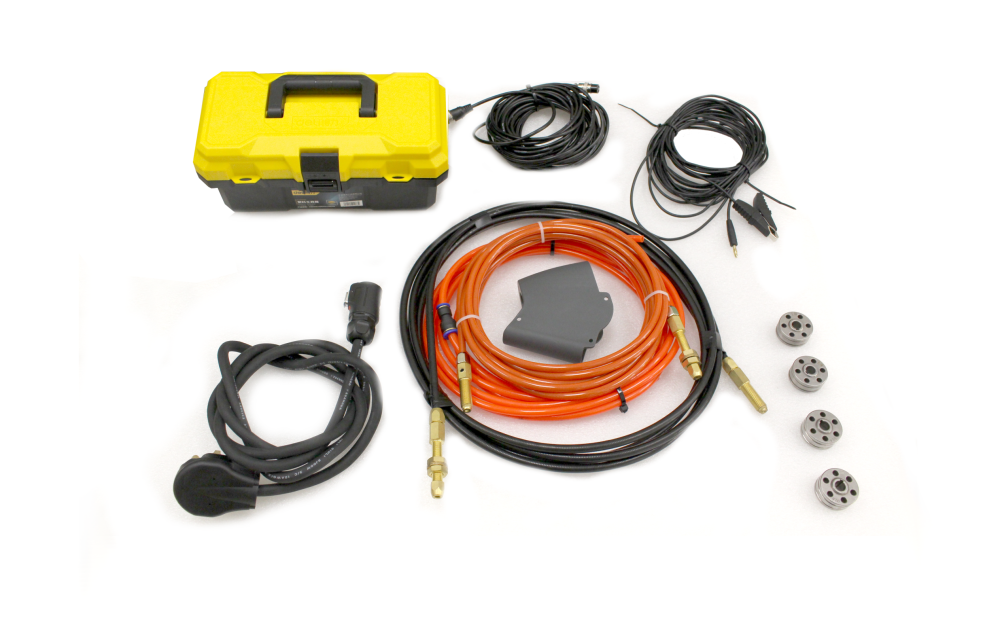

Package Contents
RedSabre 2000 Laser Welder
Synchronizing Wire feeder attachment

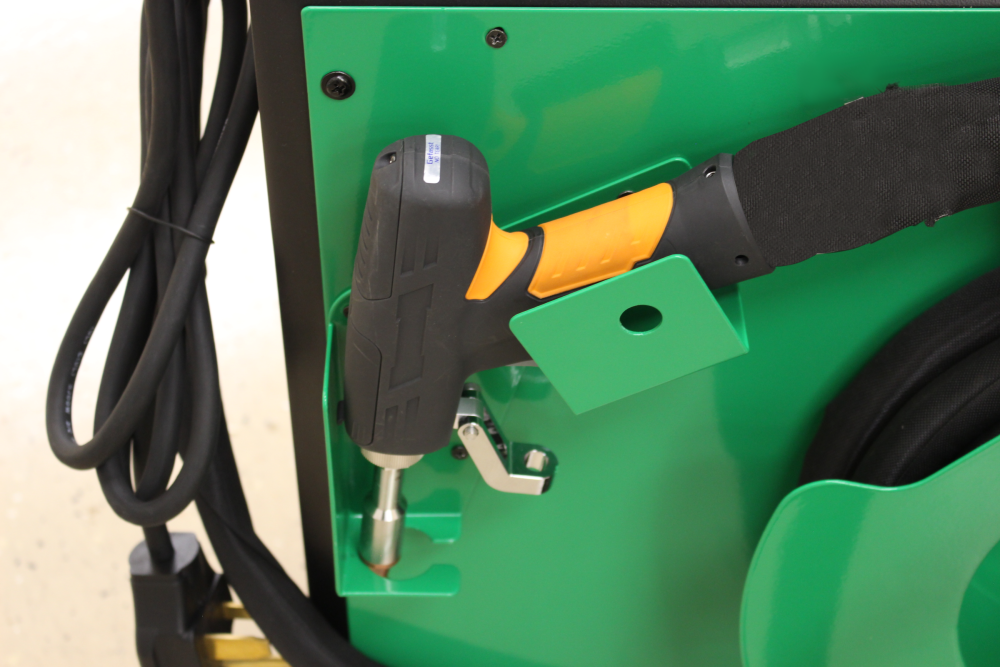

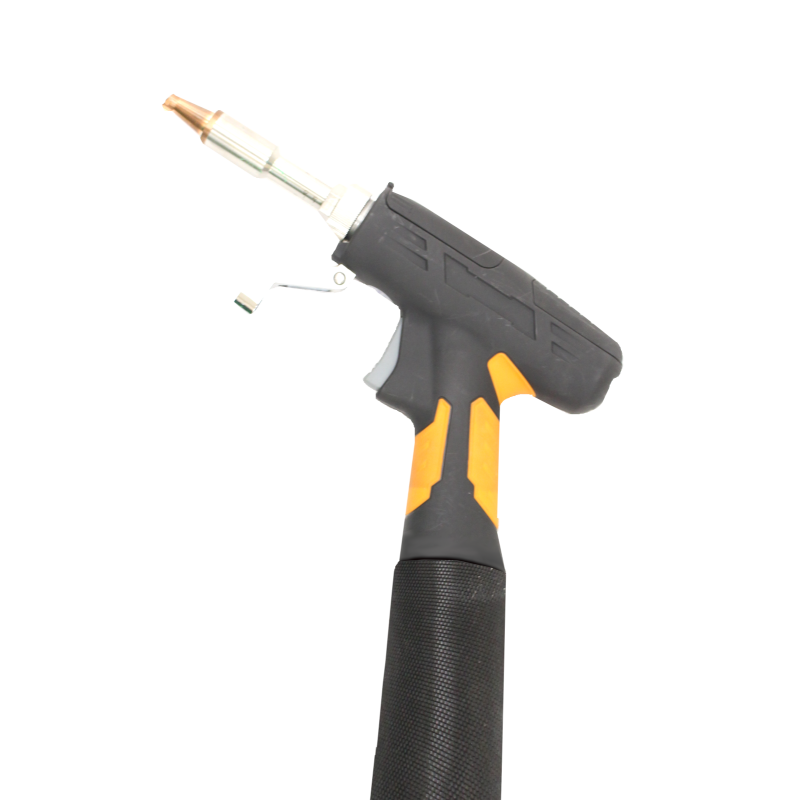

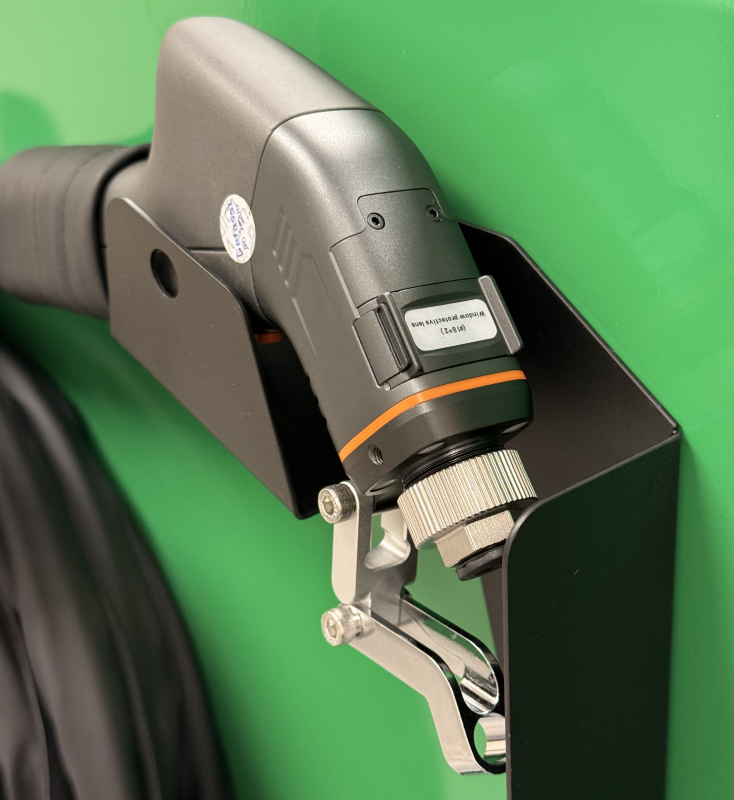

Ergonomic Laser Gun with 30 ft. cable
D18T2 Protective Lens Kit: 5 pc
D20T4.5 F800 Focus Lens
Data Cable
Safety Goggles
Key
Starter Consumables Kit (with nozzles for welding, cleaning, and cutting)
Owner’s Manual
Warranty
This item comes with a 5 (2+3) year parts and labor warranty.
