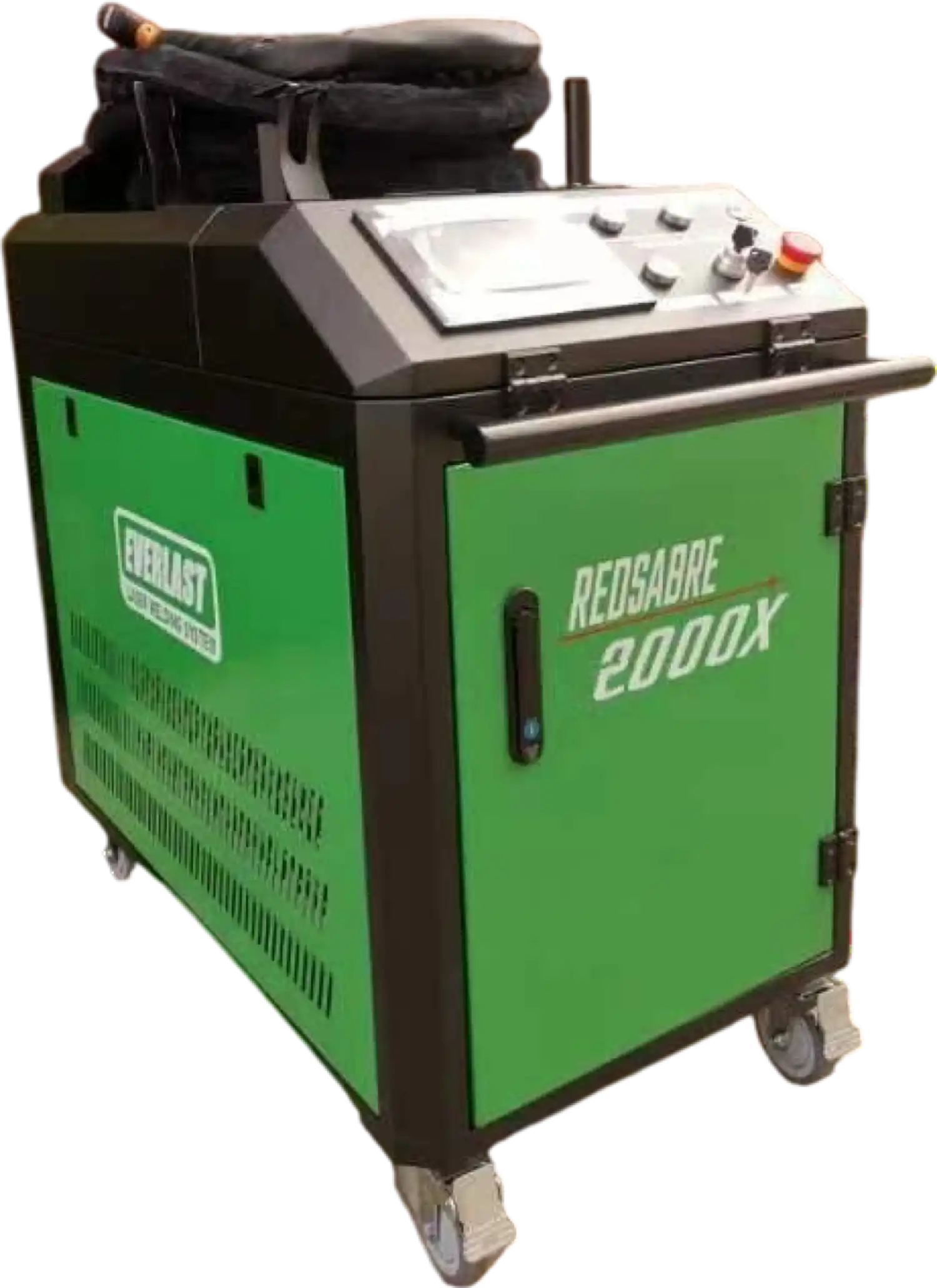

Everlast RedSabre 2000X Laser Welder Refrigerated Class 4 2000W 240V New
Manufacturer: Everlast
SKU: EV-LRS-2000X
QTY
or
(888) 999-1522
$ 13,999.00
$ 12,090.00
This item ships for free. Freight shipments include liftgate at no additional charge.
Exceptional Customer Service
Authorized Dealer

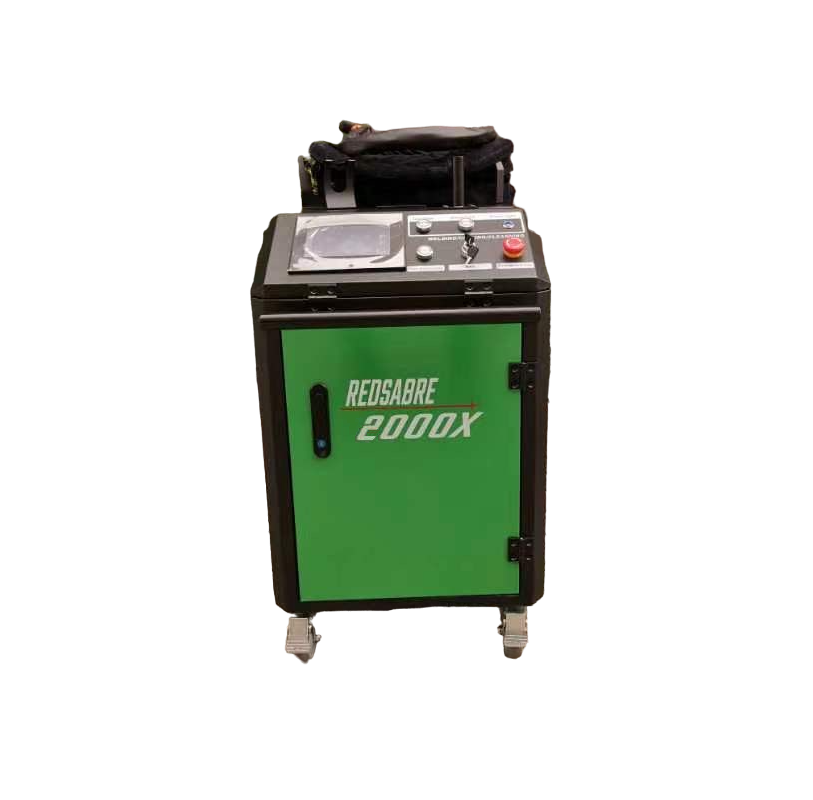

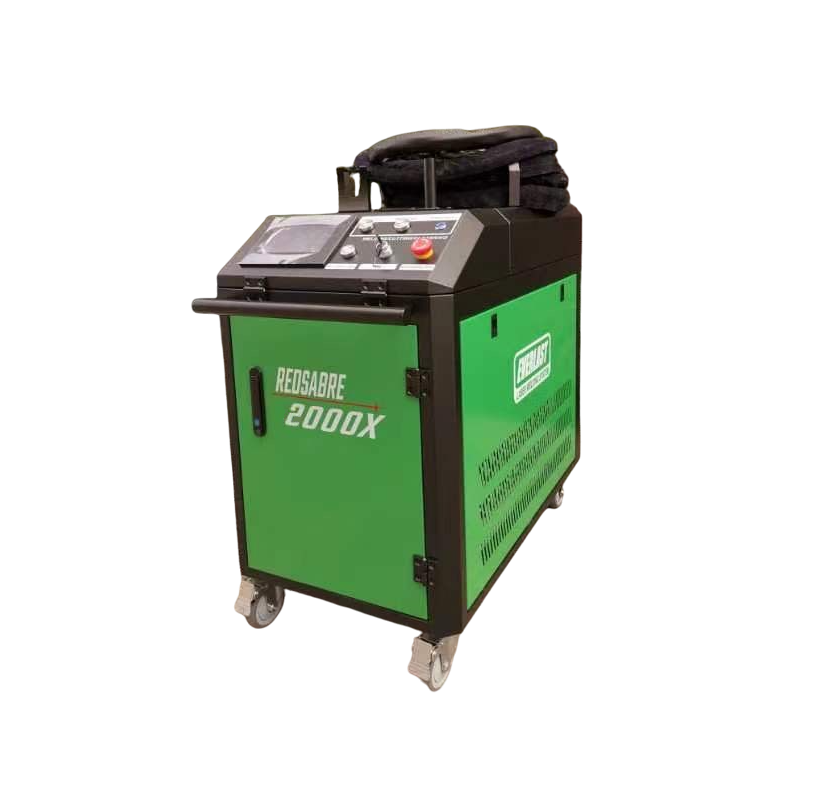

Everlast RedSabre 2000X Laser Welder Refrigerated Class 4 2000W 240V New
Product Overview

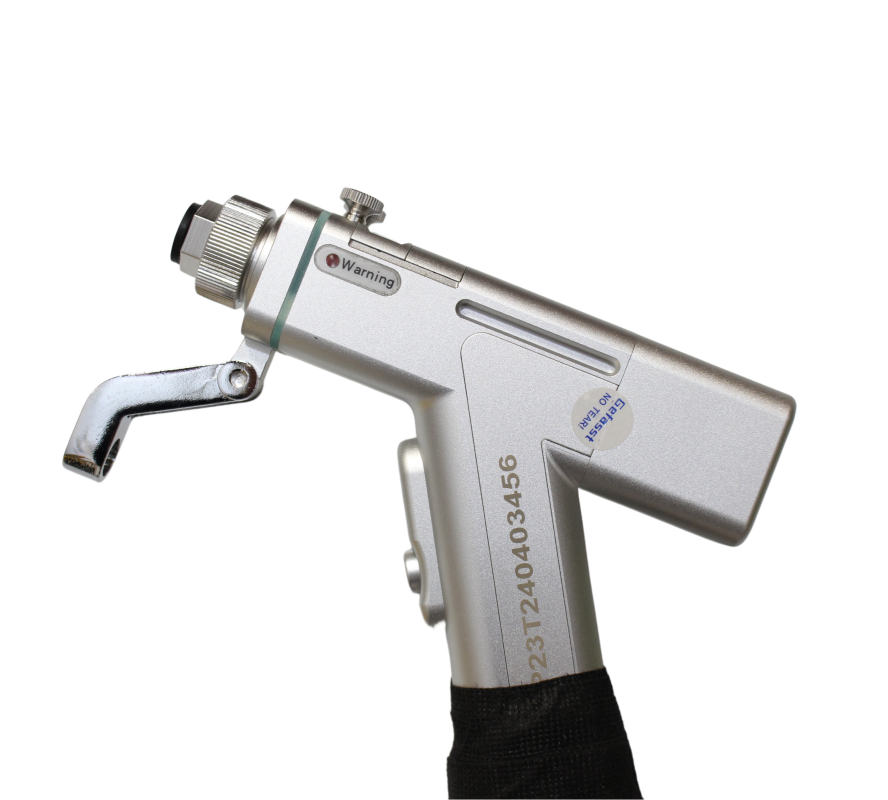

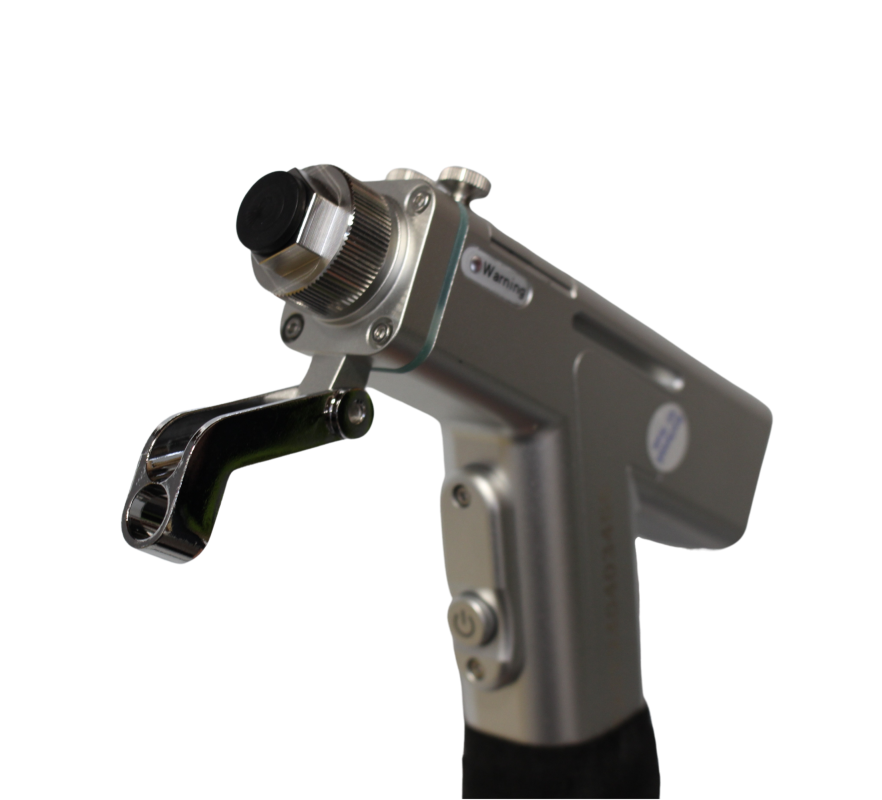

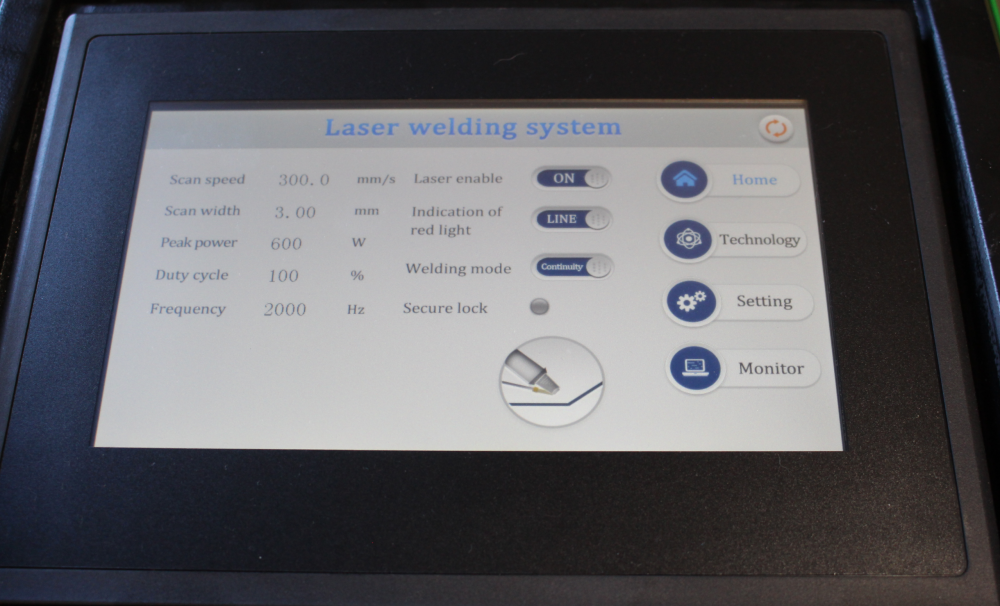

The RedSabre 2000X employs a novel method of cooling compared to water or air-cooled design: refrigeration. The refrigerated design reduces size and weight while improving cooling so that units can run non-stop for up to 12+ hours. This model can Weld, Cut, and descale rust and paint. It includes all the attachments and lenses needed to do so. All you will need to do is provide filler wire, shielding gas, or compressed air (depending upon the process). The ergonomic SUP21T gun is compact and powerful with a fatigue reducing gun handle angle and a molded grip. Includes detachable touch screen color LCD controls and synchronizing wire feeder.
Brand new in box
5 year factory warranty
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Optical Pump powered by GW
- 240V Input
- Class 4 Laser
- 20A Rated Input
- 2500 Watt Fiber Laser
- Refrigeration-Cooled Design
- Wire Feeder included
- Can be used to create Autogenous welds
- Gas Type: Argon or Nitrogen (N2)
- Cut Gas: Air or Nitrogen (N2)
- Gas Flow Rate for Welding 30 CFH
- Great Duty Cycle with 100% duty cycle with 12 hour rating at max output
- Travel speed up to 5 inches per second, depending upon thickness and settings
Specifications
| Process Type | Weld, Cut, Descale |
| Voltage | 240V, 1Ph, 50/60Hz |
| Rated Input | 7700W |
| Laser | 2000W, Class 4 |
| Cooling Type | Refrigerated |
| Gas Type | Argon or Nitrogen |
| Cut Gas | Air or Nitrogen |
| Travel Speed | Up to 5" per second |
| Gap Fill (Root) w/o Wire | 1.0mm/.040" |
| Gap Fill (Root) Single Wire Feeder | 1.6mm/.062"(≤1/16") |
| Gap Fill (Root) Double Wire Feeder | 2.0mm/ .080" (≤ 5/64") |
| Single Side Weld Steel/S.S. Max | 6.0mm/ .24" (≤ 1/4") |
| Single Side Weld Aluminum Max | 4.5mm/ .18" (≤ 3/16") |
| Single Side Weld Copper Max | 3.0mm/ .12" (≤ 1/8") |
| Cut Thickness Steel Max | 6.0mm/ .24" (≤ 1/4") |
| Cut Thickness Aluminum Max | 5.0mm/ .20" (≤7/32") |
| Dimensions | 50" x 27" x 47" |
| Weight | 300 lbs |

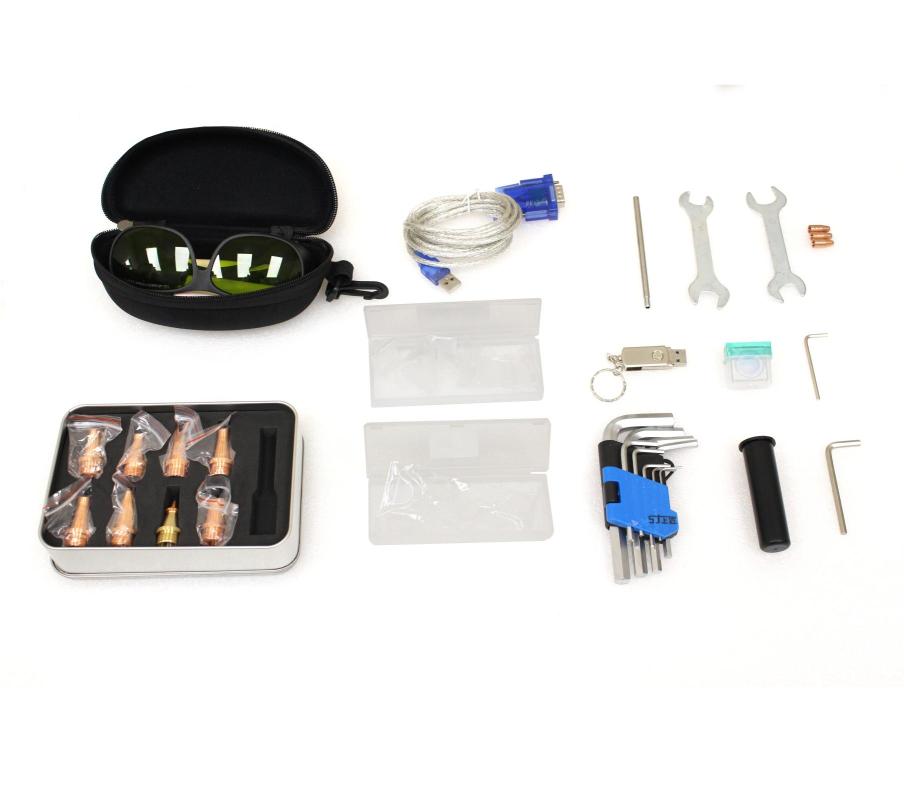

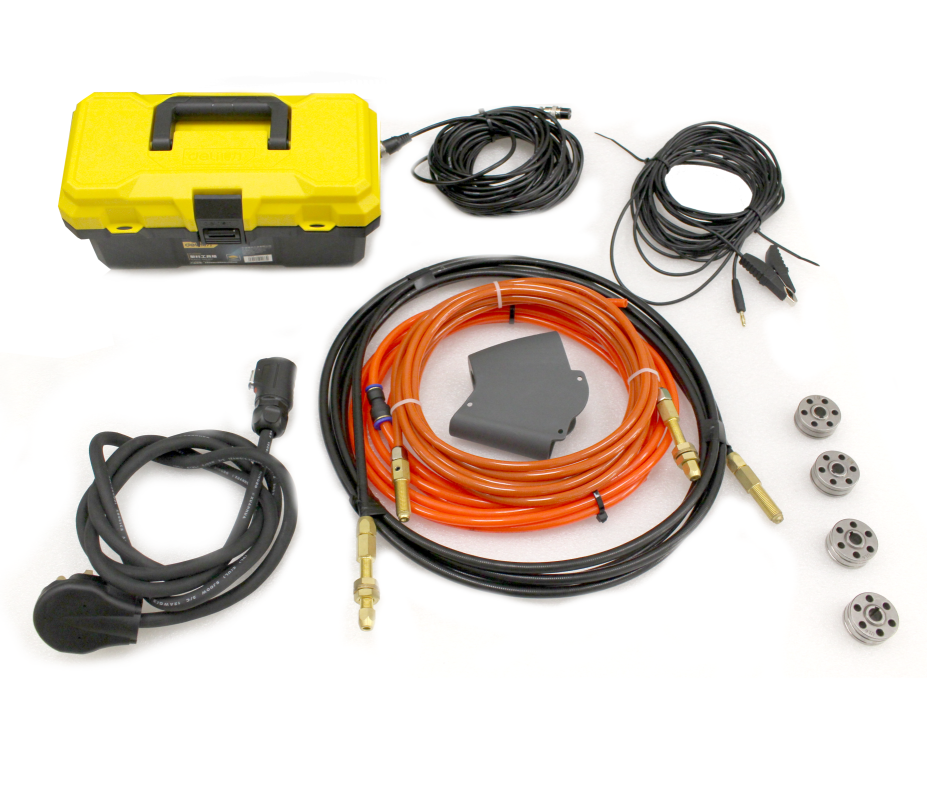

Package Contents
RedSabre 2000X Laser Welder

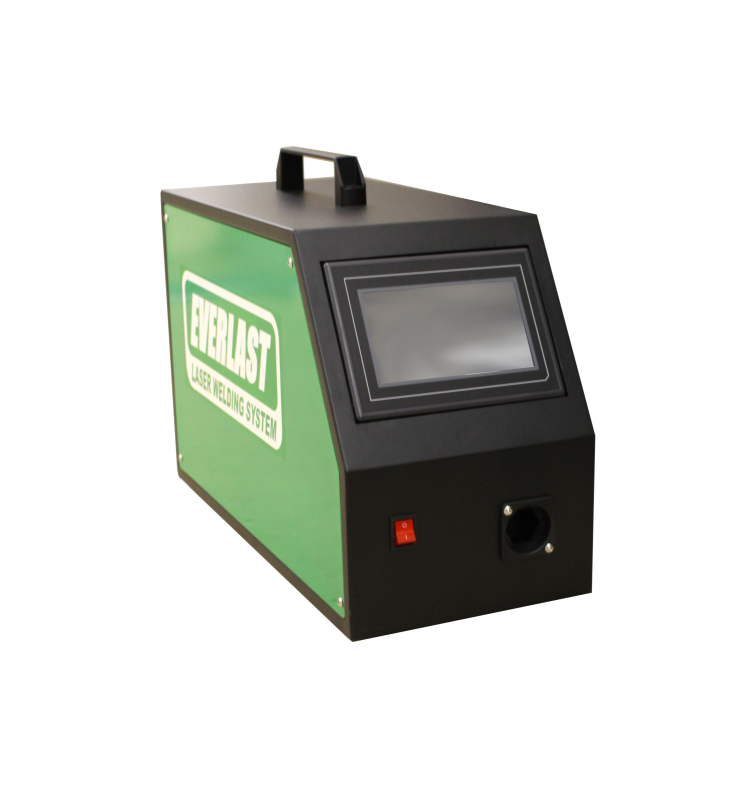

Synchronizing Wire feeder attachment
Ergonomic Laser Gun with 30 ft. cable
D18T2 Protective Lens Kit: 5 pc
D20T4.5 F800 Focus Lens
Data Cable
Safety Goggles
Key
Starter Consumables Kit (with nozzles for welding, cleaning, and cutting)
Owner’s Manual
Warranty
This item comes with a 5 (2+3) year parts and labor warranty.
