Everlast Typhoon 230 Welder Digital Inverter TIG/Stick AC DC 230A Dual Voltage 120/240V New
Manufacturer: Everlast
SKU: TYP-230
QTY
or
(888) 999-1522
$ 3,750.00
$ 2,250.00
This item ships for free. Freight shipments include liftgate at no additional charge.
In Stock
ON SALE!
Ships in (est) 1-2 business days
Manufacturer Direct Shipping
Extended Warranty
Factory Warranty
- This item comes with a 5 year parts and labor warranty.
Extended Warranties
-
Extends factory warranty to 2, 3, or 5 total years
-
Covers functionality issues for 2, 3, or 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor coverage
$0
(Included)
- This item comes with a 5 year parts and labor warranty.
(Details)
-
Extends factory warranty to 2 total years
-
Covers functionality issues for 2 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 3 total years
-
Covers functionality issues for 3 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
(Details)
-
Extends factory warranty to 5 total years
-
Covers functionality issues for 5 years
-
Local repair options always available
-
Free replacement if repair is not possible
-
No deductibles or hidden fees
-
Full parts and labor warranty
Exceptional Customer Service
Authorized Dealer
Similar Products
Customers Also Purchased
Everlast Typhoon 230 Welder Digital Inverter TIG/Stick AC DC 230A Dual Voltage 120/240V New
Product Overview
The Typhoon 230 sets a new class standard with 70% duty cycle at maximum output. It also features a large 5.1" HD LCD screen with crystal-clear resolution and brightness. The new functions of Amplitude control in AC and split positive and negative wave form control offer astounding advances of tungsten life, arc quality, and stability over older wave form technology. The Typhoon has 5 AC wave forms to offer the maximum level of puddle and bead control while welding aluminum. Other performance-driven features like DC pulse wave form shaping, AC DC stick output, and excellent 6010 performance make the Typhoon 230 a premier welder for all metal categories.
5 year factory warranty
Brand new in box
Manufacturer direct shipping from CA
Authorized Everlast Welders Dealer
Features
- Advanced Digital IGBT Inverter Technology.

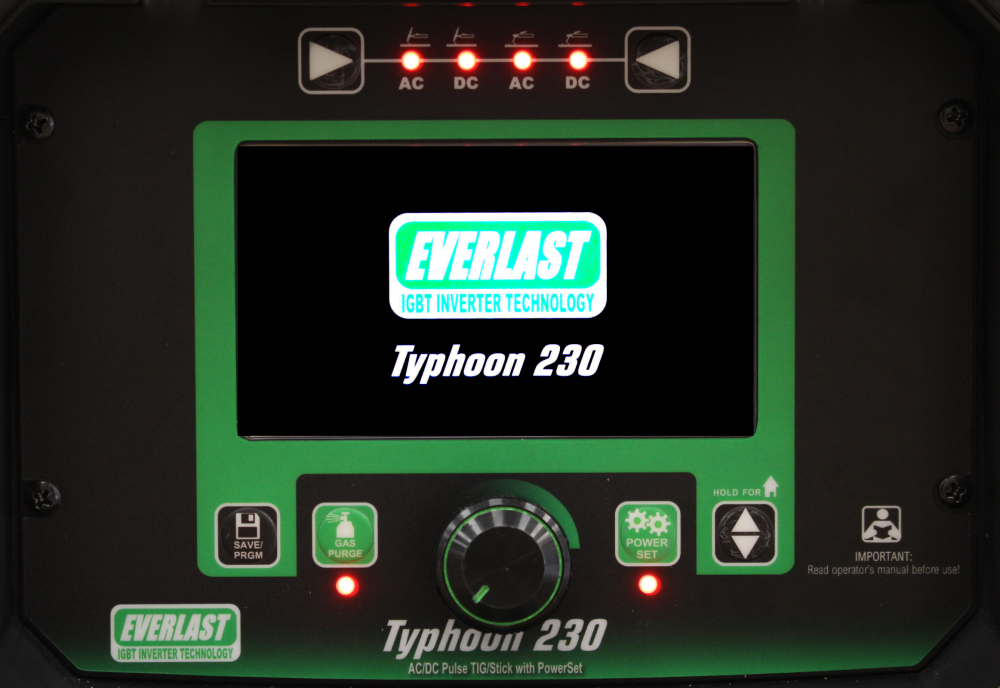

- HD (720) 5.1" LCD color screen with easy to read contrast.
- Intuitive navigation and layout of settings.
- Power Factor Correction.
- Dual 120/240V operation.

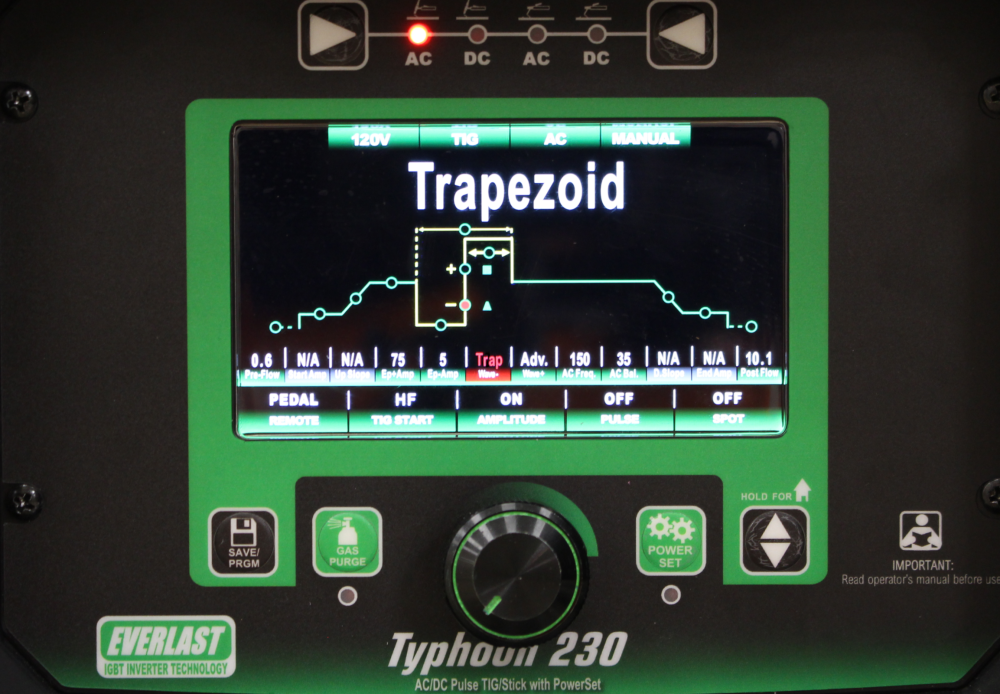

- 5 AC Wave forms: Adv. Square, Soft Square, Trapezoid, Triangle, and Sine.
- Split AC Wave form control technology. Select wave form shape of individual half-waves in AC.
- Independent Amplitude Control over EN and EP Amps in AC.
- DC Wave form shaping for more control.
- DC Pulse up to 999.9 Hz. AC Pulse up to 400 Hz.
- AC Adv. Pulse (Mixed AC/DC pulse up to 10 Hz) increases Aluminum penetration similar to 350A or greater standard machines.
- AC frequency up to 400Hz.
- True low amp starts measured at 2A DC and 3A AC.
- Single page layout without hidden menus to access.
- Capacitive HV/HF arc starting: No Points to adjust.
- Advanced PowerSet menu makes setup easy and quick.
- 70% Duty Cycle TIG and Stick at max output.
- 230A TIG/ 200A Stick maximum output.
- 30 program memory with lock function to prevent tampering.
Specifications
| IGBT Type | Module IGBT |
| Inverter Type | Digital/Micro-controlled |
| Output Type | AC/DC TIG, DC Stick |
| Voltage/Phase | 120V/240V, 1 Ph |
| Max Rated TIG Amps | 230A |
| Max Rated Stick Amps | 200A |
| TIG Amps @ Rated Duty Cycle | 120V: 125A/15V @ 70%; 240V: 230A/19.2V @ 70% |
| Stick Amps @ Rated Duty Cycle | 120V: 100A/24V @ 70%; 240V: 200A/28V @ 70% |
| OCV | TIG: 90V / Stick: 83V |
| TIG Output Range DC | 120V: 2-125A/ 10.1-15V; 240V: 2-230A/ 10.1-19.2V |
| TIG Output Range AC | 120V: 3-125A/ 10.2-15V; 240V: 3-230A/ 10.2-19.2V |
| Stick Output Range DC | AC or DC 120V: 10-100A/ 20.4-24V; AC or DC 240V: 10-200A/ 20.4-28V |
| Stick Hot Start Amps | 0-100% |
| Stick Function | Adjustable Arc Force Control |
| Stick Hot Start Type | Adjustable Hot Start |
| 6010/Cellulose Capable | Yes |
| Min Amp TIG Start | DC: 2A; AC: 3A |
| TIG Start Type | HV/HF, Lift with Remote and Life Lift |
| Upslope TIme | 0-30 seconds |
| Down Slope Time | 0-60 seconds |
| Preflow Time | 0-30 seconds |
| Post Flow Time | 0-60 seconds |
| TIG Pulse | Yes |
| Standard DC Pulse Frequency | 0-999.9 Hz |
| Standard AC Pulse Frequency | 400 Hz |
| AC Advanced Pulse Frequency | 0-10 Hz |
| AC Frequency | 20-400 Hz |
| AC Wave Forms | Adv. Square, Soft Square, Trapezoid, Triangular, Sine |
| Remote Control | 2T/4T with Torch Amptrol Settings |
| Foot Pedal | Standard |
| Dimensions | 25" x 9.75" x 18" |
| Weight | 58 lbs |

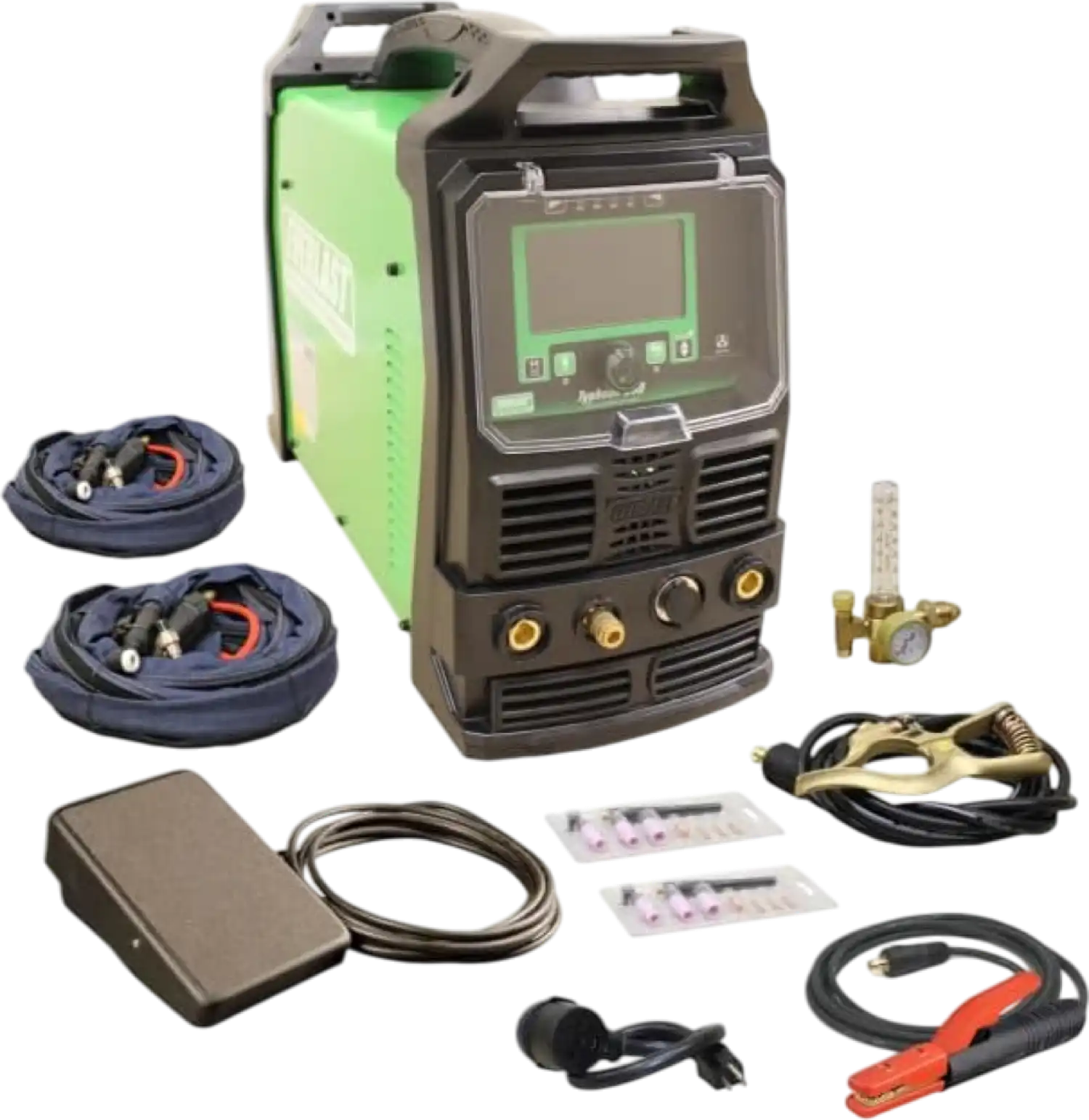

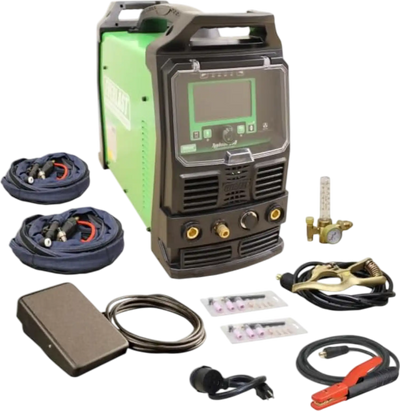

Package Contents
Typhoon 230 Welder
NOVA Rigid-Neck 9 series Air-Cooled TIG Torch
NOVA Rota-Flex 20 series Water-Cooled TIG Torch
(2) Torch Switch TIG for 2T/4T operation
Stick Electrode Holder
Ground Clamp
RH-191 Ar/Mix Gas Flowmeter CFH with Hose
NOVA Foot Pedal TIG 7 Pin
Starter Consumable Kit (tungsten not included)
Owner’s Manual
Warranty
This item comes with a 5 year parts and labor warranty.
