Product Overview

The Typhoon 330 is a powerful addition to Everlast's lineup of TIG welders, outputting 330A at max TIG while sustaining a 40% duty cycle. It features a large 5.1" HD LCD screen with crystal-clear resolution and brightness. With a long list of functions like AC Amplitude control and split AC wave form control, you can tailor the settings to any project. The Typhoon 330 has 5 AC wave forms to offer the maximum level of puddle and bead control while welding aluminum. Other performance-driven features like DC pulse wave form shaping, AC DC stick output, and excellent 6010 performance make the Typhoon 230 a premier welder for all metal categories. This unit is capable of welding on 240V 1-phase or 3-phase input power.

vendor logo
divider
authorized dealer
checkmark

5 year factory warranty

checkmark

Brand new in box

checkmark

Manufacturer direct shipping from CA

checkmark

Authorized Everlast Welders Dealer

Features

  • Advanced Digital IGBT Inverter Technology.

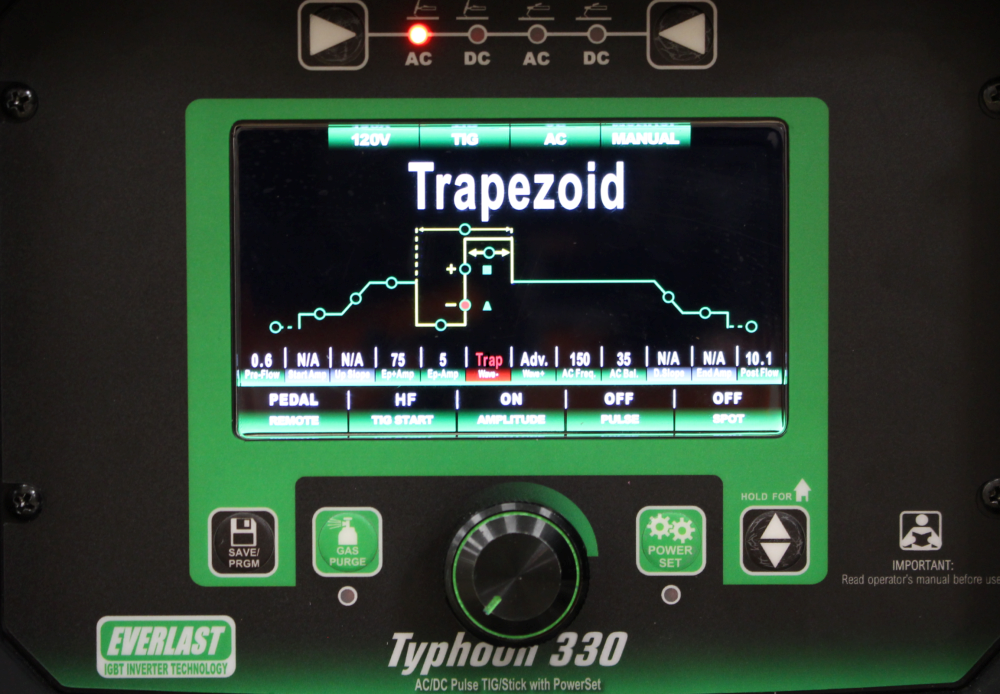

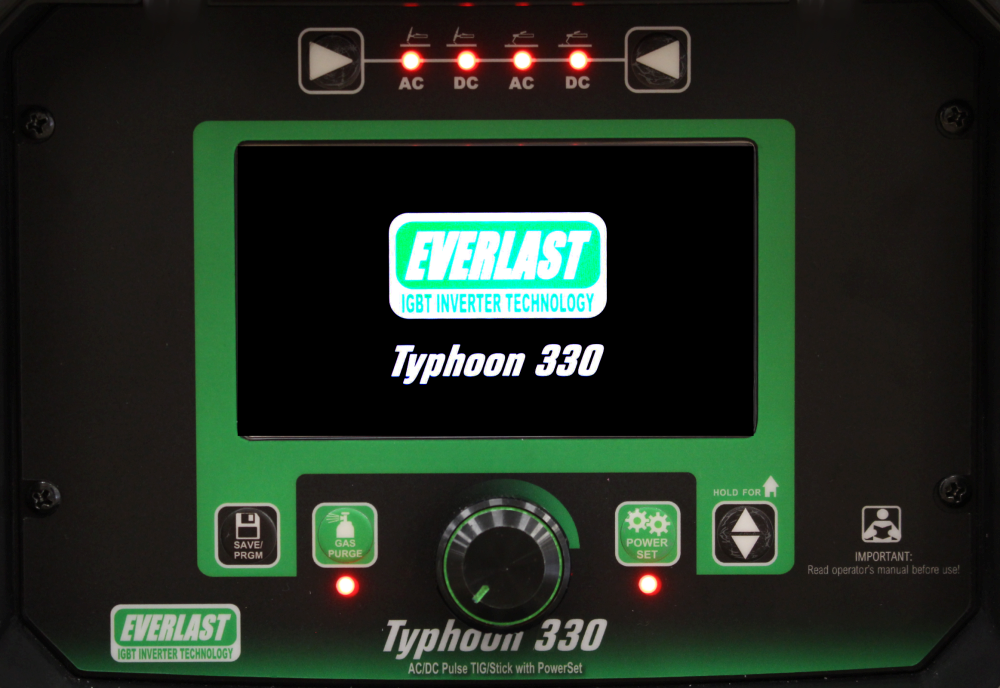

  • HD (720) 5.1" LCD color screen with easy to read contrast.
  • Intuitive navigation and layout of settings.
  • 240V 1 and 3 Phase operation.
  • 5 AC Wave forms: Adv. Square, Soft Square, Trapezoid, Triangle, and Sine.
  • Split AC Wave form control technology. Select wave form shape of individual half-waves in AC.
  • Independent Amplitude Control over EN and EP Amps in AC.
  • DC Wave form shaping for more control.
  • DC Pulse up to 999.9 Hz. AC Pulse up to 400 Hz.
  • AC Adv. Pulse (Mixed AC/DC pulse up to 10 Hz) increases Aluminum penetration similar to 500A or greater standard machines.
  • AC frequency up to 400Hz.
  • True low amp starts measured at 2A DC and 3A AC.
  • Single page layout without hidden menus to access.
  • Capacitive HV/HF arc starting: No Points to adjust.
  • Selectable to start Electrode Positive or Electrode Negative.
  • Selectable for Tungsten size for quicker starts.
  • Advanced PowerSet menu makes setup easy and quick.
  • 40% Duty Cycle TIG and 35% Stick at max output.
  • 330A TIG/ 275A Stick maximum output.
  • 30 program memory with lock function to prevent tampering.

Specifications

IGBT Type Module IGBT
Inverter Type Digital/Micro-controlled
Output Type AC/DC TIG, DC Stick
Voltage/Phase 220V/240V, 1/3 Phase
Max Rated TIG Amps 330A
Max Rated Stick Amps 275A
TIG Amps @ Rated Duty Cycle 330A @ 40%/ 270A @ 60%/ 210A @ 100%
Stick Amps @ Rated Duty Cycle 275A @ 40%/ 220A @ 60%/ 170A @ 100%
OCV TIG: 105V/ Stick: 85V
TIG Output Range DC 2-325A
TIG Output Range AC 3-325A
Stick Output Range DC 10-275A
Stick Hot Start Amps 0-100%
Stick Function Adjustable Arc Force Control
Stick Hot Start Type Adjustable Hot Start
6010/Cellulose Capable Yes
Min Amp TIG Start DC: 2A; AC: 3A
TIG Start Type HF (electronic HV), Lift with Remote, Life Lift
Memory Yes
Start Amp Range 2/3-325A
Upslope Time 0-30 seconds
Down Slope Time 0-60 seconds
Preflow Time 0-30 seconds
Post Flow Time 0-60 seconds
TIG Pulse Yes
Standard DC Pulse Frequency 0-999.9 Hz
Standard AC Pulse Frequency 0-400 Hz
AC Advanced Pulse Frequency 0-10 Hz
AC Frequency 20-400 Hz
AC Balance Range 5-70% of EP
AC Wave Form Adv. Square, Soft Square, Trapezoid, Triangle, Sine
Remote Control 2T/4T with Torch Amptrol Settings
Foot Pedal Standard
Dimensions 23" x 9.5" x 18"
Weight 62 lbs

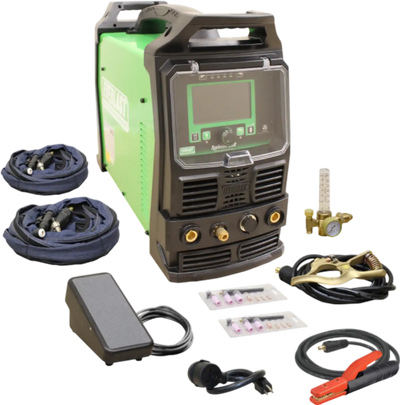

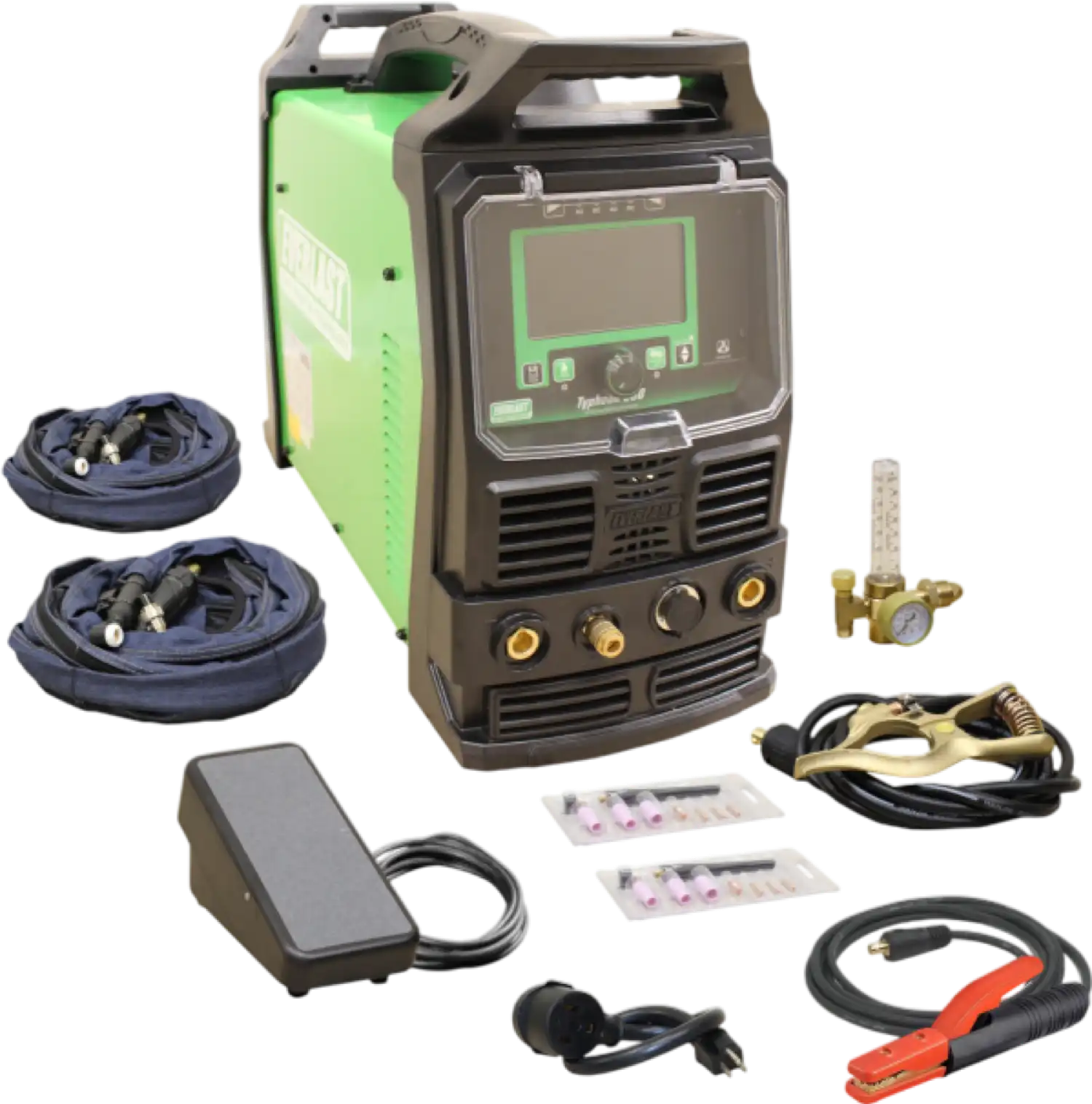

Package Contents

Typhoon 330 Welder

NOVA Rigid-Neck 9 series Air-Cooled TIG Torch

NOVA Rota-Flex 20 series Water-Cooled TIG Torch

(2) Torch Switch TIG for 2T/4T operation

Stick Electrode Holder

Ground Clamp

RH-191 Ar/Mix Gas Flowmeter CFH with Hose

NOVA Foot Pedal TIG 7 Pin

Starter Consumable Kit (tungsten not included)

Owner’s Manual
