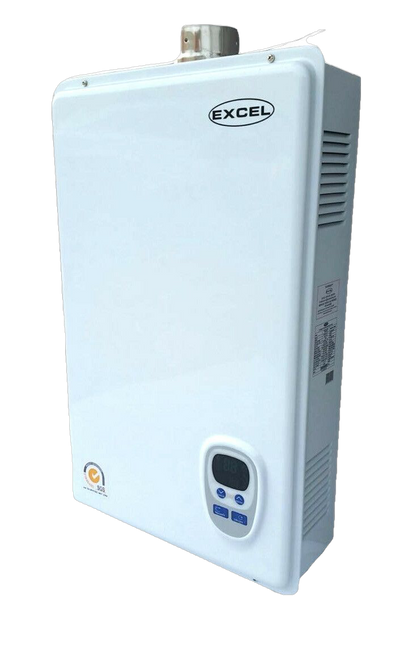

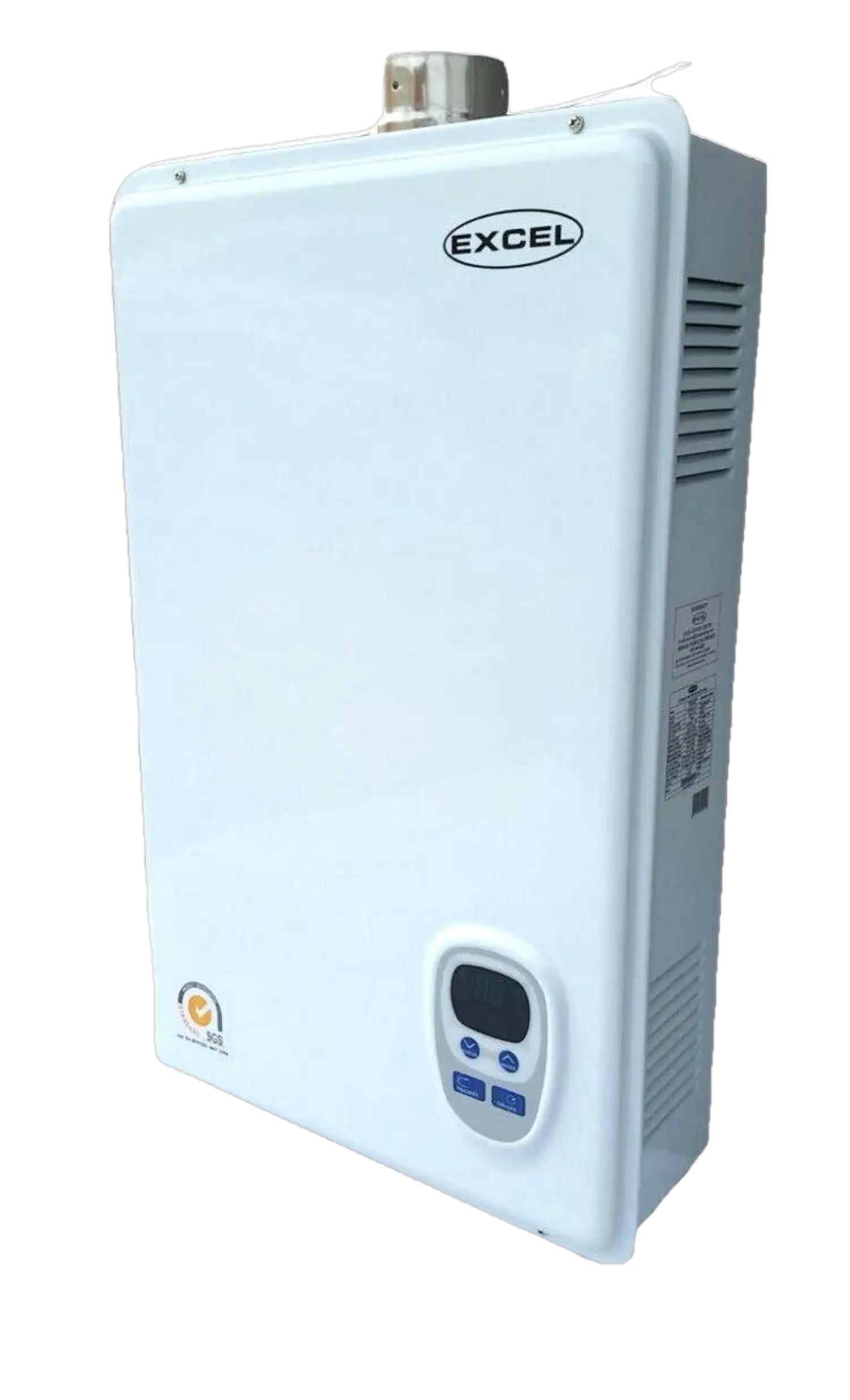

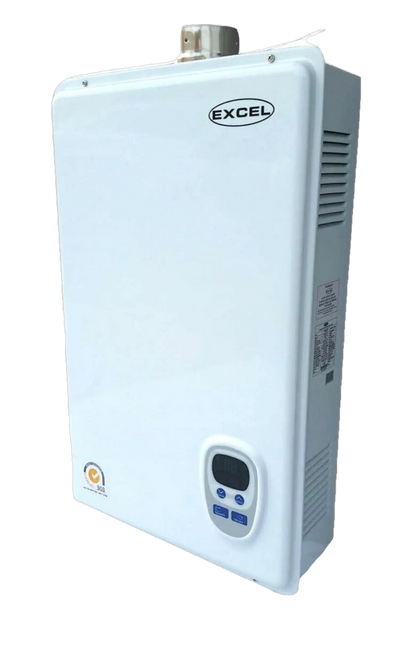

Excel 10009 Pro 6.6 GPM Liquid Propane LP Tankless Water Heater Whole House with Flue Kit New
Product Overview

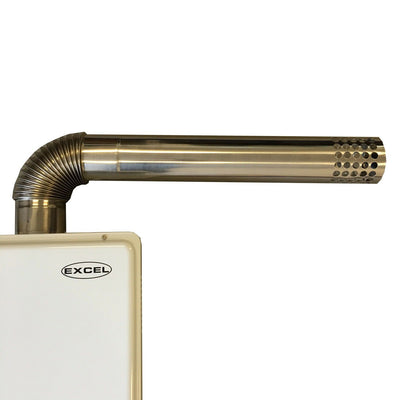

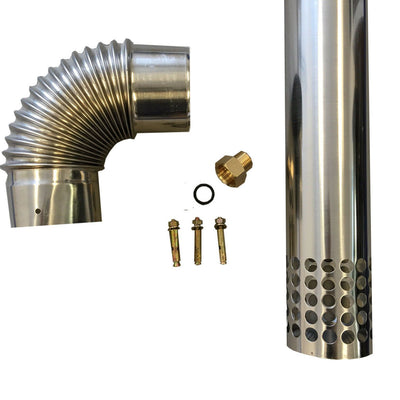

- Comes with a Free Flue Kit consisting of an elbow and 2′ straight piece.
- Can be Exhausted Vertically (Rooftops) or Sideways (Wall Exhaust)
- Designed to virtually do anything a 40-gallon tank-type water heater can do and much more
- The Wall mounted Excel Pro is design to work with hydronic baseboard or radiant floor heating applications, as well as provide domestic hot water to plumbing fixtures and appliances.
- Modulated tankless water heaters change their heat output in response to the flow rate of water running through the unit.
- Propane (LP) unit
Brand new in box
3 year factory warranty
Fast shipping from FL
Manufacturer direct
Authorized Excel dealer
Features

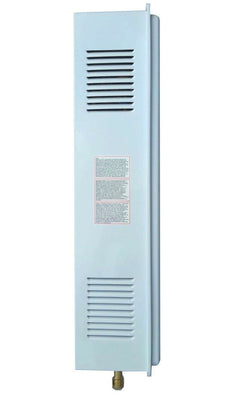

- Super compact 14.5" x 23" x 5.5" size 84%+
- Thermal efficiency 136,000 BTU
- Electronic ignition Vents vertically or horizontally with 3.5” stainless steel flue kit included (elbow + duct)
- Minimum activation flow rate of 1.2 gpm 6.6 max gpm
- Can be used in recirculation and space heating applications
- Maximum input 6.6 gallons/ minute capacity at 35F degree rise
Specifications

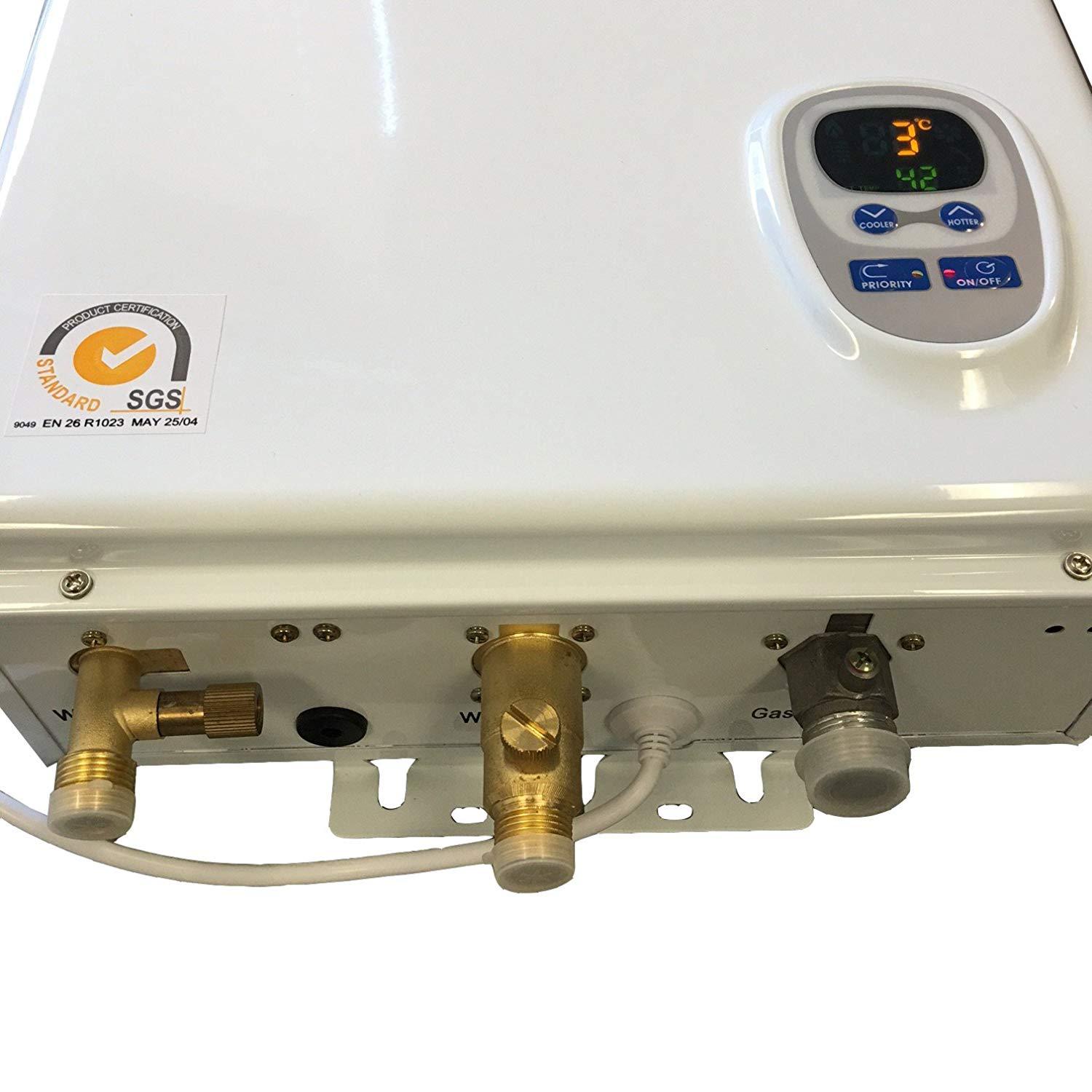

| Inlet Connection | 1/2" NPT |
| Outlet Connection | 1/2" NPT |

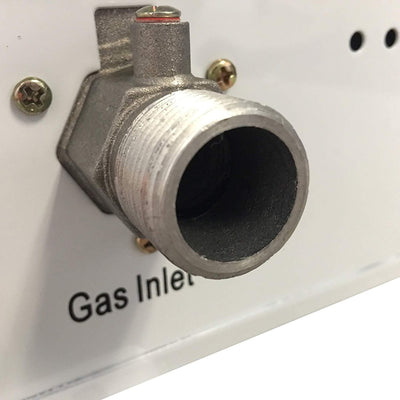

| Gas Connection | 1/2"NPT or ¾" BSP |
| Max Water Pressure | 150 psi |
| Min Water Pressure | 10 psi |
| Venting Options | Stainless Steel CAT III Flue Included (20") + Elbow |
| Vent Maximum Run | 35 feet |
| Max Input (BTU) | 136,000 |
| Min Input (BTU) | 20,000 |
| Capacity at 35 (°F) Rise (gpm) | 6.6 |
| Capacity at 45(°F) Rise (gpm) | 4.4 |
| Min Flow Rate | 0.5 gpm |

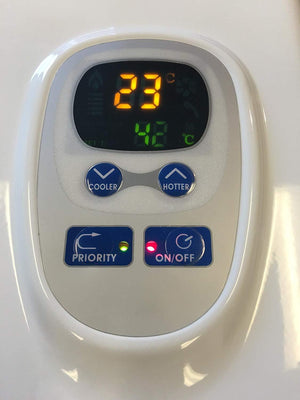

| Temp Range (°F) | 100 to 160 |
| Temp Stability (°F) | +/- 2 ° |
| Default Temp (°F) | 120 |
| Energy Factor | 84%+ |
| Thermal Efficiency | 83%+ |
| Installation Options | Indoor |
| Dimensions (w x h x d) | 14.5" x 23" x 5.5" |
| Weight (lbs.) | 36 |
Package Contents
Tankless Water Heater
Flue Kit
User Manual
Warranty
As as authorized Excel dealer, this item comes with a 3 year factory warranty and 15 year warranty on the heat exchanger.
