Forney 420 120/230V 220 AMP AC/DC TIG Welder New
Product Overview
Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/240V input power. The ability to weld up to 1/2 in and 220 AMPs of welding power makes machine a great tool for professionals.
This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze.
3 year limited factory warranty
Brand new in box
Ships directly from Forney out of CO and OH
Authorized Forney
Features
- Dual-voltage design with 120/230 Volt input power
- Powerful 220 Amp output with 5 to 220 Amp range
- Welds solid steel, cast iron, stainless steel and aluminum up to 1/2in. thick
- Duty cycle: TIG 120V: 25% @ 130 Amps; (DC) 240V: 35% @ 220 Amps; Stick: 120V: 40% @ 85 Amps; 240V: 35% @ 200 Amps
- Stick, TIG and TIG/Pulsed welding capabilities
- Handles stick electrodes from 1/16in. to 5/32in.; TIG electrodes from 0.040in. to 1/8in. and wire up to 1/2in.
- Delivers a stable arc at input power as low as 5 Amps
- Digital gauges provide easy-to-read readouts
- High frequency starts with the capability to turn off high frequency
- The ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze
- Includes 12.5in., 150 Amp 17F Amptrol TIG torch, 7-pin foot pedal, 15ft. ground clamp with cable, regulator with gas hose, 15ft. electrode holder with cable, 15ft. input power cable and flowmeter with hose
Specifications
| Volts | 120/240 |
| Max. Amps | 220 |
| Duty Cycle | Stick 120V: 40% at 85A; 240V: 35% at 200A; TIG 120V: 25% at 130A; 240V: 35% at 220A |
| Multi-process | Yes |
| Max. Weld Thickness | 0.5 in |
| Electrode Cable Length | 15 ft |
| Clamp Cable Length | 15 ft |
| Power Cord Length | 15 ft |
| Min. Amps | 5 |
| Weldable Materials | Solid steel, cast iron, stainless steel, aluminum |
| Regulator and Gas Hose Included | Yes |
| Shielding Gas Required | No |
| Product Weight | 54 lb |
| Dimensions L x W x H (in.) | 23.25 x 10.37 x 15.5 in |

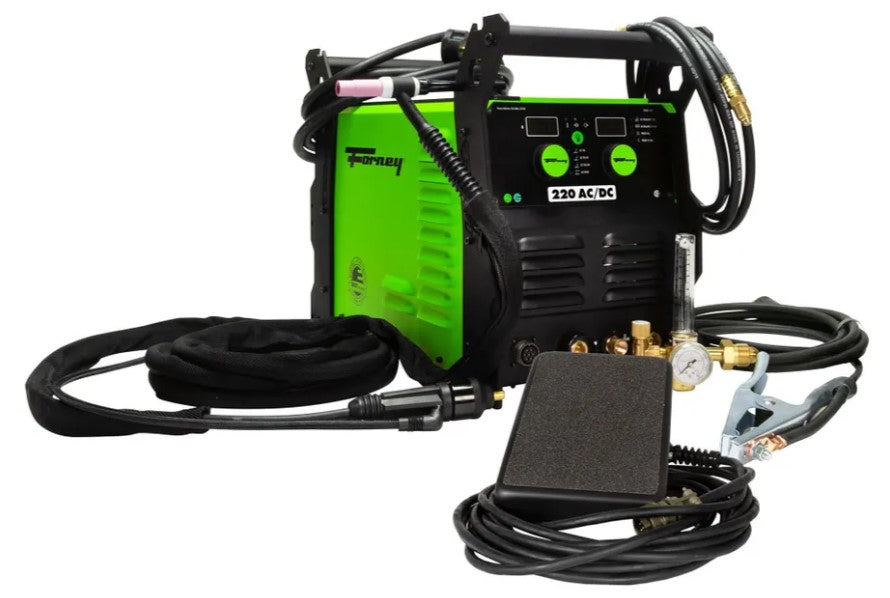

Package Contents
220 AC/DC TIG Welder
12.5ft (3.81 m) 150 AMP 17 Series TIG Torch with Flexible Neck
12.5ft (3.81 m) 7 Pin Foot Pedal
15ft (4.57 m) Ground Clamp with Cable
15ft (4.57 m) Electrode Holder with Cable
15ft (4.57 m) Input Power Cable
Flowmeter with Hose
Owner’s Manual
Warranty
This item comes with a 3 year limited factory warranty.
