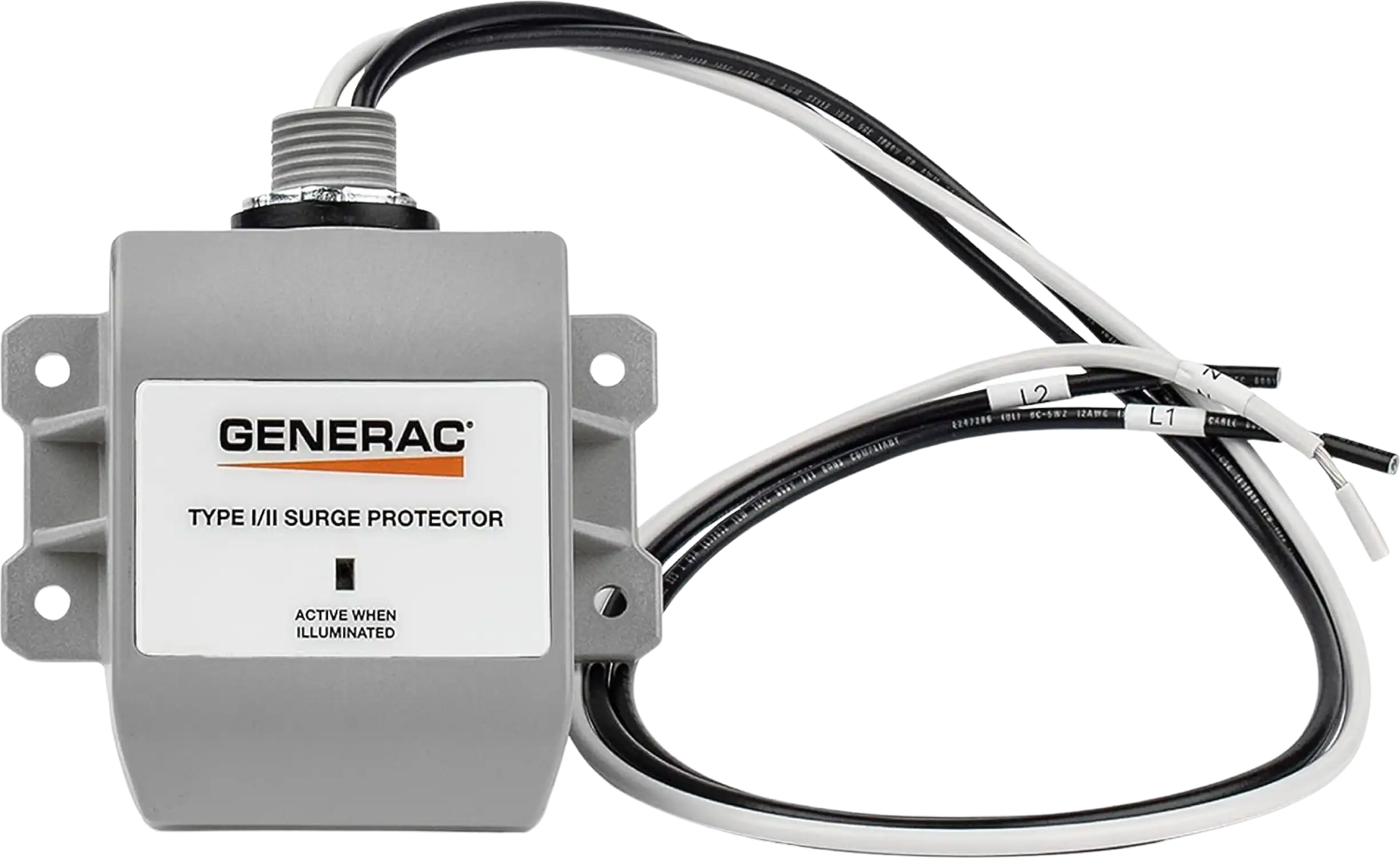

Generac 7409 Whole House Surge Protector 120V/240V Single Split Phase 50 kA Surge Capacity 7409 New
Product Overview
Brand new in box
2 year warranty
Manufacturer ships directly from WI
Fast shipping
Authorized Generac dealer
Features
- Type 1 or Type 2 Surge Protective Device
- 50,000 Amps Surge Current Capacity
- 200,000 Amp Short Circuit Current Rating
- Pre-Wired with 24 Inches of 12-Gauge Wire for L1, L2, and N.
- 1/2-Inch Nipple Mount
- NEMA 4x Enclosure.
- May be installed upstream or downstream from the main disconnect.
Specifications
| Surge Current Capacity Per Phase | 50 kA |
| Nominal Discharge Current (In) | 20 kA |
| Short Circuit Current Rating (SCCR) | 200 kA |
| SPD Type | Rated Type 1 or Type 2 |
| System Voltages Available | 120/240 VAC Single Split-phase |
| Protection Modes | L-N, L-L |
| Maximum Continuous Operating Voltage (MCOV) | 150 L-N, 300 L-L |
| Voltage Protection Rating (VPR) | 600V L-N, 1000V L-L |
| Input Power Frequency 5 | 0/60 Hz |
| Enclosure Rating | NEMA 4X |
| Operating Temperature | -4 °F through 122 °F (-20 °C through 50 °C) |
| Operating Humidity | 5% through 95%, non-condensing |
| Operating Altitude | Up to 6,500 ft (2,000 m) |
| Agency Certification and Approvals | UL1449 4th Edition Listed Device |
| Warranty | 2 Years |
Package Contents
Generac 7409
User's Manual
Warranty
This item comes with a 2 year factory warranty.
